Assembly of the Four-wheel Drive Valve (If Equipped
from Case L-Series Loader Backhoe Transmission Update Kits Installation Instructions Manual 7-54022 - PDF
STEP 385 STEP 388
BP95F361 Install a new O-ring on the nut. Use clean transmission oil to lubricate the O-ring. New O-rings for the nut and solenoid are provided in the overhaul kit.
STEP 386
BP95F358 Install the solenoid valve in the solenoid valve body. Tighten the solenoid valve to a torque of 195 pound-inches (22 Nm).
STEP 389
BP95F359 Install the three new O-rings on the solenoid valve. Use clean transmission oil to lubricate the O-rings.
STEP 387
BP95F357 Install a new O-ring on the solenoid valve. Use clean transmission oil to lubricate the O-ring.
STEP 390

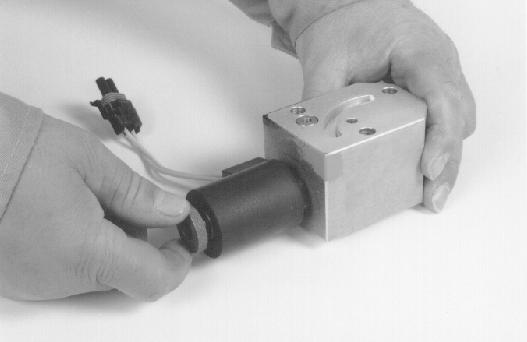

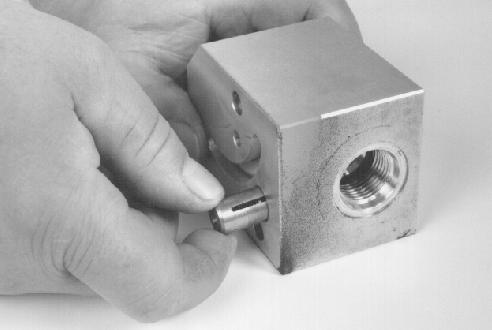

BP95F362 Install the check valve in the valve body as shown. Install the solenoid coil on the solenoid valve. BP95F355
BP95F356 Install the nut. Tighten the nut to a torque of 71 pound-inches (8 Nm).
