Assembly of the Shifter Housing

STEP 370

STEP 373

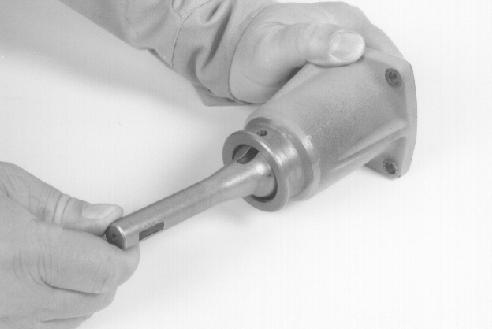

BP95F346 Apply lithium grease to the ball of the new shift lever. Install the shift lever in the shifter housing.

STEP 371

4 2

3

1

BP95F352 The correct alignment of the shift lever and the shifter housing is shown above. The slot (1) in the shift lever must be toward the flat side (2) of the flange on the shifter housing. The slots (3) on each side of the shift lever must be aligned with the holes (4) in each side of the shifter housing.

STEP 372

Install the new bushing from the update kit.

STEP 374

BP95F349

BP95F344 Put a new snap ring from the update kit on the shift lever. Use a 5/8 inch deep socket to push the snap ring into the snap ring groove.

STEP 375

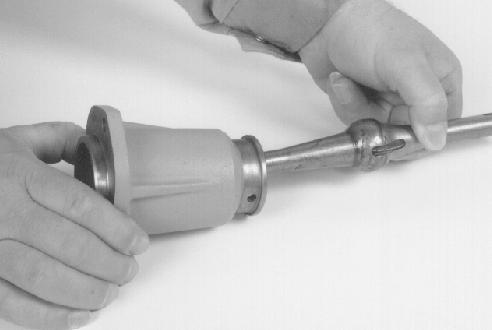

Install the new spring from the update kit. BP95F347 BP95F343 Install the new pins from the update kit through the holes in the shifter housing so that the pins engage the slots in the shift lever.

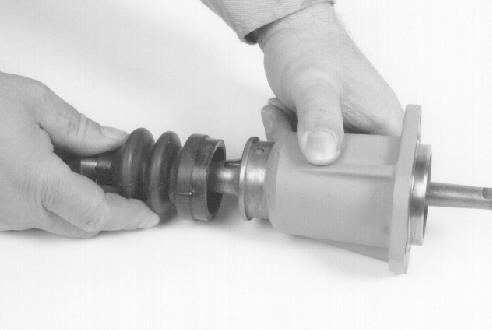

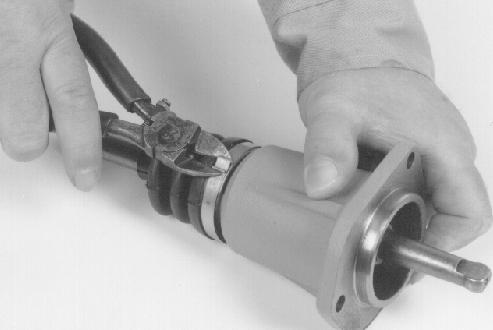

BP95F342 Install the boot so that the end of the boot fits over the ends of the pins. Be careful so that the pins do not fall out during this step. A new boot is provided in the update kit. BP95F341 Install the band from the overhaul kit on the boot as shown. Use the side cutters to engage the catch on the band.
