Shift Rods And Shift Forks

The original third-fourth rod assembly will not be re-used. It will be replaced by new parts from the update kit. The new fork will appear the same as the original third-fourth except for the machining on the legs that engage the synchronizer collar. Using the original third-fourth shift rod assembly as a pattern, assemble the new rod, fork, and roll pin from the update kit. Note the new rod may have different machining on the ungrooved end and may have two cross drilled holes for the fork roll pin. Use the hole closest to the detent grooves. The hole closest to the ungrooved end corresponds to the location for the first-second shift fork. These parts may be common in future production.

Inspect the first-second shift rod assembly for abnormal wear patterns on the shift rod diameter and detent grooves. The fork should be tight on the rod. Check the fingers on the firstsecond shift fork for abnormal or excessive wear. Replace as necessary. It is not necessary to disassemble the first-second shift rod assembly if it is in good condition for re-use. Roll pins are included in the uoverhaul kit if replacements are necessary.

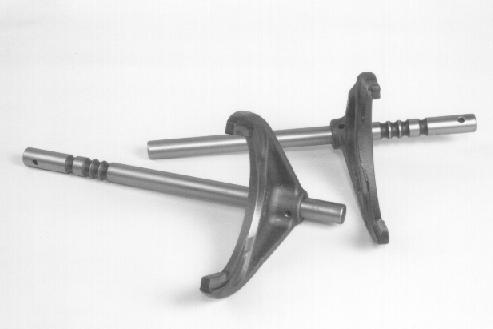

STEP 310

3rd/4th

1st/2nd

BP95F132 If disassembly is required, remove the roll pins and separate the shift forks from the shift rods. Make sure that you remember how the parts are assembled and which parts go together. Except for the roll pins, none of the parts are interchangeable. Inspect all parts for burrs and excessive wear. Assembly is the reverse of disassembly.

21 22 17 17

18

21 14

18 19

13 1

2

3

4

5 6

7

4

15

16 13 4

8 9 10

20

BT95G179

5

12 11

23

BT97D125

1.Boot 2.Band 3.Shift Lever

7.O-Ring 13.Detent Ball 19.Shift Rod for Third and Fourth Gear 8.Spring 14.Detent Plug 20.Shift Rod for First and Second Gear 9.Bushing 15.Washer 21.Roll Pin 4.Pin 10.Snap Ring 16.Detent Spring 22.Shift Fork for Third and Fourth Gear 5.Allen Head Screw 11.Shift Collar 17.Cap Screw 23.Shift Fork for First and Second Gear 6.Shifter Housing 12.Plate 18.Copper Washer
