ROPS/FOPS CAB
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
BRAKE CHECK Service specification
Check..........................................................................................Every 2000 hours (After the first 50 hours during the running-in period)
STEP 1 STEP 4

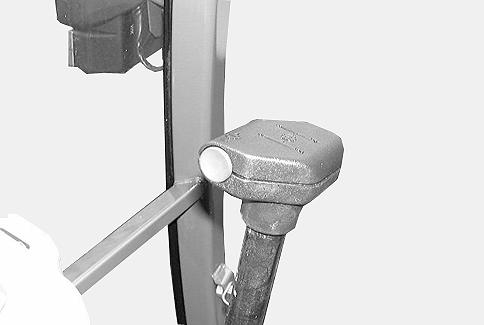

Park the machine on flat, level ground and engage parking brake.
STEP 2
CP99E003 Place the gear change lever in the second gear.
STEP 3

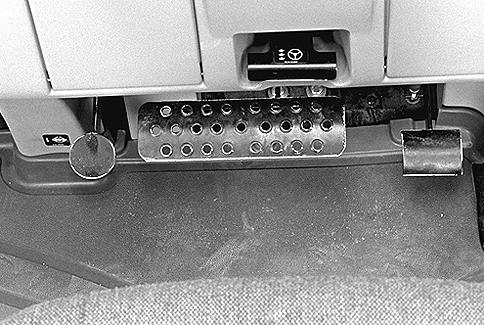

CK99D004 Using the accelerator pedal, run the machine at maximum speed.
STEP 5

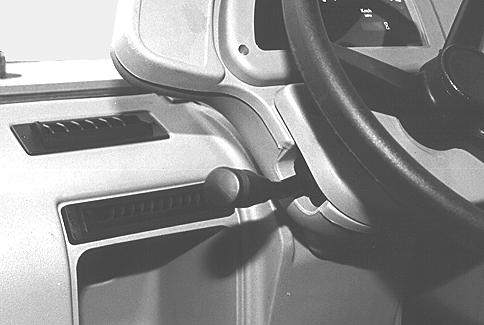

CP99D002 Place the direction of travel control lever in the forward position. Disengage parking brake.
CK99D004 Press down on the brake pedal. The machine should stop smoothly, in a straight line and the tension on the pedal should remain firm. If not, consult your CASE Dealer.
254
TRIM THIS EDGE
LEFT PAGE
RIDE CONTROL SYSTEM ACCUMULATOR (optional)
If it should be necessary to replace the ride control system accumulator, consult your CASE Dealer.
IMPORTANT : Consult the service manual to obtain complete information on inspecting the accumulator and the solenoid.
WARNING : Release pressure completely in the hydraulic system before disconnecting the hydraulic piping. Hydraulic oil escaping under pressure can cause serious injury.
WARNING : Use only a dry inert gas such as nitrogen to pre-load the accumulator.
WARNING : Release pressure completely in the accumulator before starting any accumulator disassembly operation.
WARNING : Never try to carry out any servicing operation on the accumulator to avoid replacing it. If this instruction is not followed serious or fatal injury can result.
