RIDE CONTROL SYSTEM ACCUMULATOR

Adjustment

STEP 1

Park the machine on flat, level ground, with the loader beams 30 cm above the ground. Make sure that the backhoe boom locking device is engaged.

STEP 2

Use the stabilizers to raise the rear wheels.

STEP 3

Use workshop jacks to support the rear of the machine, making sure the wheels are not touching the ground. IMPORTANT : Make perfectly sure that the jacks are capable of supporting the weight (8700 kg (3944 lb))

STEP 4

Lower the loader arms to the ground, stop the engine, remove the starter switch key and release the parking brake.

STEP 5

2 1

3

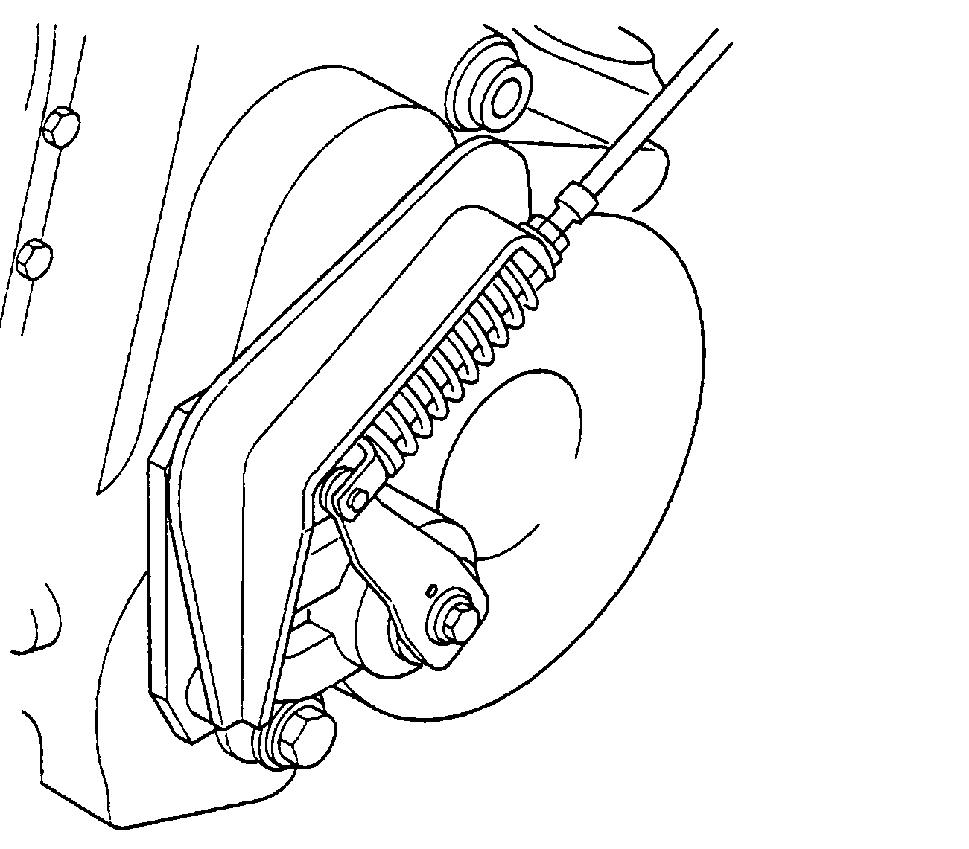

CS97N088 Adjust the brake caliper (3) nuts (2) to take up the play in the cable (1).

STEP 6

3 4

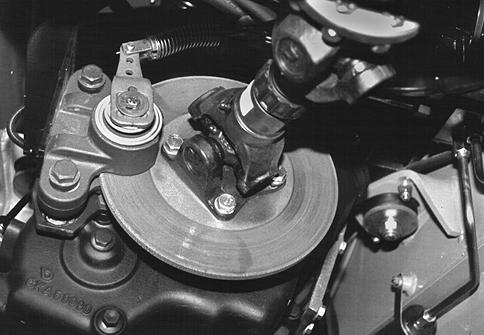

CP98A015 Make sure that the play between the caliper (3) and the disc (4) has not been reduced.

STEP 7

4

CP98A015 Apply the parking brake and check that the brake disc (4) engages before the brake lever reaches the seventh notch.

STEP 8

Start the engine and raise the loader 30 cm above the ground. Use the stabilizers to raise the rear of the machine.

STEP 9

Remove the workshop jacks, lower the machine to the ground and stop the engine.

253
