INTERVALS
SERVICING INSTRUCTIONS
Observe the servicing intervals by the checking the hourmeter every day. Before starting maintenance, park the machine on flat, firm ground, away from any obstacles, with the loader bucket and the backhoe bucket on the ground. All maintenance operations must be carried out with the engine stopped and the key removed from the starter switch. It is preferable to wait for all circuits to cool down before starting work. Clean the grease fittings before lubrication. Clean around plugs and filler holes before adding oil. No dust or dirt must enter the components or the circuits.
When performing maintenance work on the machine, place a "Do not start up" label on the instrument panel. Any modification to this machine without prior authorization could cause serious injury. Do not make any modifications without authorization. Consult your CASE Dealer.
WARNING : There is a risk of serious injury if maintenance or repairs are not performed correctly. If you do not understand the maintenance procedures, consult your CASE Dealer.
WARNING : If the attachment is raised or the machine moves when there is no operator, serious injury can result. Before carrying out any servicing operator on this machine, proceed as follows: 1. Park the machine on a flat, level ground. 2. Lower the loader and backhoe attachments until they are resting on the ground. 3. Stop the engine and remove the starter switch key. 4. Engage the parking brake. 5. Lock the loader attachment controls. 6. Block the wheels to prevent any machine movement. For all service work on the engine, install the loader attachment support strut.
WARNING : Never leave the operator’s compartment when the engine is running.
177
TRIM THIS EDGE
RIGHT PAGE TRIM THIS EDGE
Template Name: OM_1_colTemplate Date: 1994_04_29
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE IMPORTANT : If you use your machine under particularly severe conditions (dusty or corrosive atmosphere, etc.) reduce the interval between servicing operations. IMPORTANT : Observe the Servicing Intervals for all the machine’s filters. The life of the engine depends on clean filters. IMPORTANT : Do not drain used oil into the ground or down a drain. Stock the oil in sealed containers for collection by a company which recycles or disposes of it.

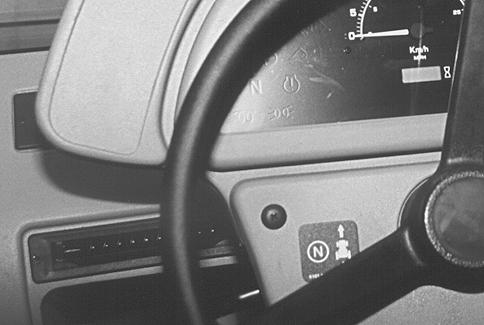

HOURMETER
CD98F031 The hourmeter enables servicing operations to be scheduled. It works in the same way as a clock when the engine is running. Servicing Intervals are properly calculated to guarantee safe and efficient machine operation. Be sure to carry out all the servicing operations properly, as defined in this manual.
178
