TRAVEL POSITION
Template Date: 1994_04_29Template Name: OM_1_col
TRIM THIS EDGE
STEP 7 STEP 9
Lower the stabilizers. The rear wheels must be about 10 cm (4 inch). off the ground and the machine must be in a horizontal position. IMPORTANT : Whenever the backhoe attachment is used the machine must be resting on the stabilizers.
WARNING : Before operating the backhoe, ensure that no person is within its working range.
STEP 8

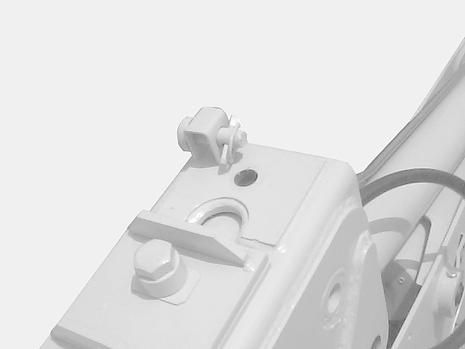

CD98G004 When using the extendable dipper (if equipped) make sure that the pin is placed in the external stowage bracket.
WARNING : Before starting work, make sure that no person is within the working range of the machine.
WARNING : Before starting work, check that all the backhoe controls operate correctly.
CK98F035

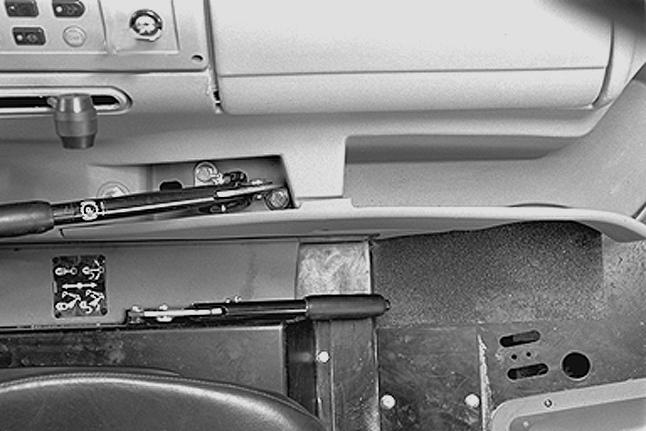

CK97N041 Raise the boom. Pull the lever up to release the lock.
136
TRIM THIS EDGE
LEFT PAGE

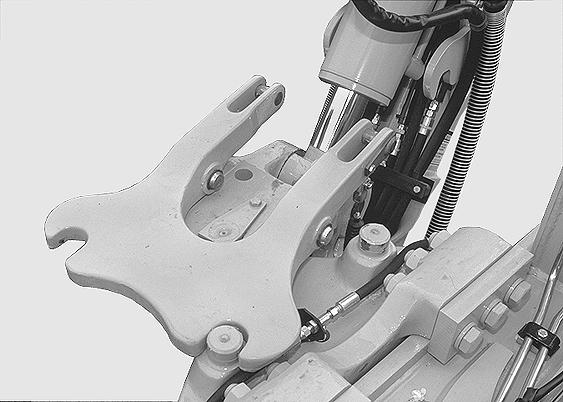

BACKHOE ATTACHMENT SIDESHIFT (sideshift(offset) backhoe version)
To dig alongside a building or fence, etc., it is possible to shift the backhoe equipment sideways to the right or the left.
STEP 1
The machine must be in the backhoe attachment position, see “Setting the machine in the backhoe attachment working position”.
STEP 2 STEP 4

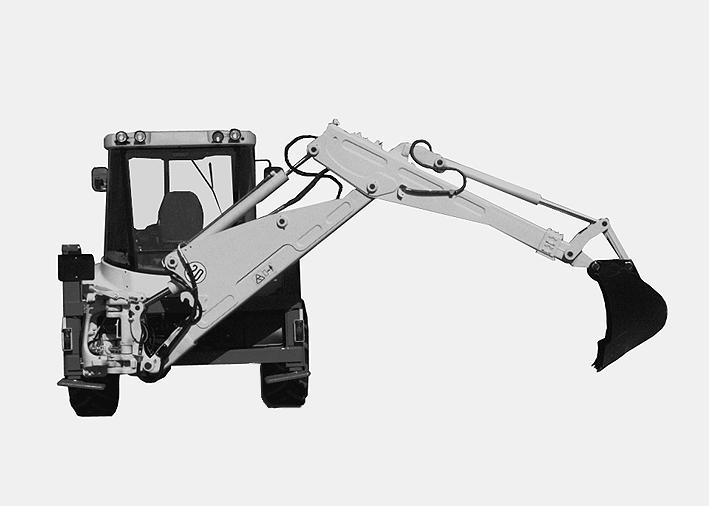

CD98K013 Place the backhoe attachment on the left if you want to shift the attachment to the right or place it on the right if you want to shift it to the left, then place the attachment on the ground in the position shown.
STEP 3
Operate the backhoe attachment controls alternately so as to slide the sideshift carriage sideways.
STEP 5
Once the attachment is in the side position required, swing it round into alignment with the machine.
STEP 6
CP99D009 Press the sideshift locking switch again to lock the sideshift. The indicator lamp will go out. TRIM THIS EDGE
CP99D009 Press the sideshift unlocking switch. The indicator comes on.
137
