LOADER ATTACHMENT SUPPORT STRUT

HYDRAULIC RESERVOIR

When installing the cap, make sure that it is correctly placed in the notches and lock it by turning clock-wise until it stops.

CK98F023 Located in front of the engine, the capacity of the reservoir is 45 litres (12.4 US gals). To refill the reservoir, see "Hydraulic system" in the "Lubrication/Filters/Fluids" section.

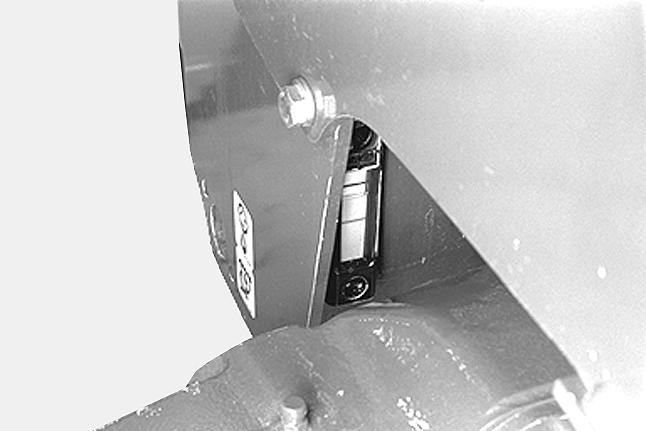

CK98F040 The sight glass shows the level of fluid in the reservoir. See "Hydraulic system" in the "Lubrication/Filters/Fluids" section.

NOTE : Clean around the filler cap before refilling. IMPORTANT : Use a suitable hydraulic fluid. See "Fluids and lubricants" in the "Lubrication/Filters/Fluids" section.
