Chapter 1

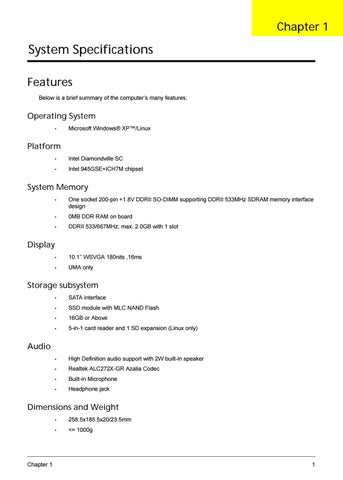

System Specifications Features Below is a brief summary of the computer’s many features:
Operating System •
Microsoft Windows® XP™/Linux
Platform •
Intel Diamondville SC
•
Intel 945GSE+ICH7M chipset
System Memory •
One socket 200-pin +1.8V DDRII SO-DIMM supporting DDRII 533MHz SDRAM memory interface design
•
0MB DDR RAM on board
•
DDRII 533/667MHz; max. 2.0GB with 1 slot
Display •
10.1’’ WSVGA 180nits ,16ms
•
UMA only
Storage subsystem •
SATA interface
•
SSD module with MLC NAND Flash
•
16GB or Above
•
5-in-1 card reader and 1 SD expansion (Linux only)
•
High Definition audio support with 2W built-in speaker
•
Realtek ALC272X-GR Azalia Codec
•
Built-in Microphone
•
Headphone jack
Audio
Dimensions and Weight
Chapter 1
•
258.5x185.5x20/23.5mm
•
<= 1000g
1
