Removing the LCD Module

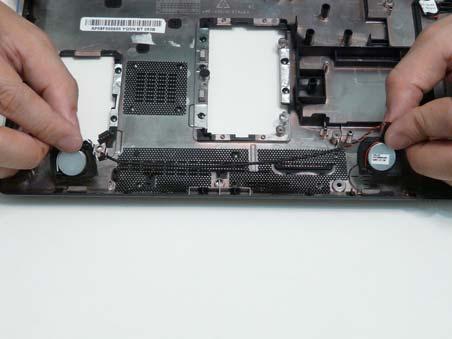

2. Remove the two screws 3. Lift out the speakers together

Step

Size

Speakers M2*4 2

Quantity Screw Type

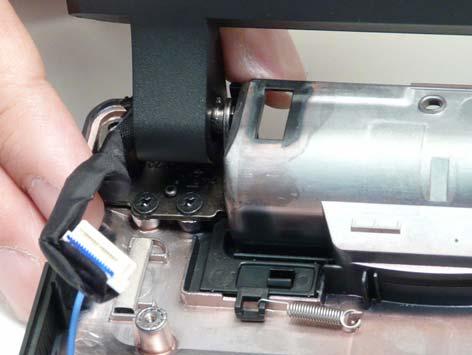

1. See “Detaching the Antenna Cables” on page 66. 2. Remove the three securing screws from the LCD brackets.

Step

Size

LCD Brackets M2*4 3

Quantity Screw Type

IMPORTANT:Ensure all cables are clear of the lower cover before removing the LCD module. Grasp the LCD module with both hands and lift upwards.
