Removing the Mainboard

1. See “Remove the WLAN Module” on page 60. 2. See “Remove the SSD Module” on page 61. 3. Disconnect the 3 cables noted:

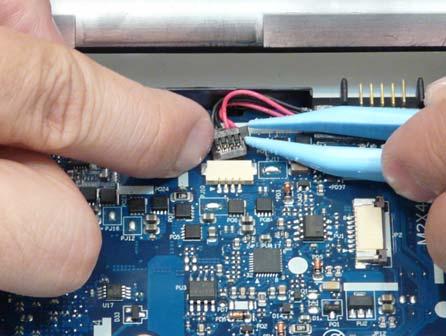

Detach the speaker connector. Detach the MB pcb power connector.

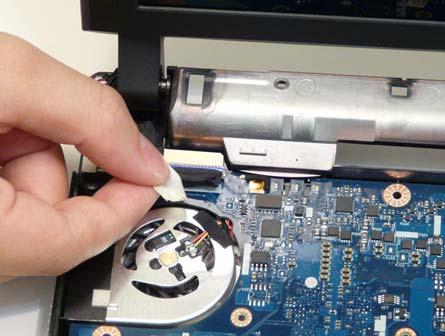

Detach the tape on the LCD connector. Detach the LCD connector

4. Remove the screw securing the Mainboard to the Lower Cover.

Step

Size

Mainboard M2*4 1

Quantity Screw Type
