Removing the LCD Bezel

1. See “Removing the LCD Module” on page 67. 2. Remove the 4 square black rubber screw caps and screws from the LCD Bezel.

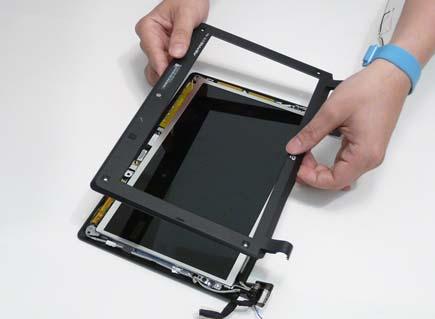

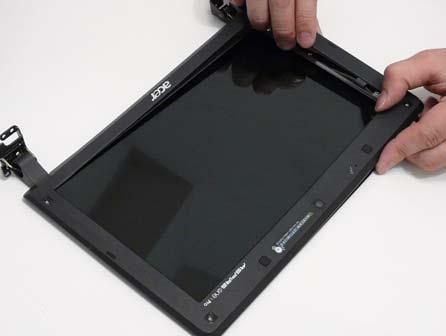

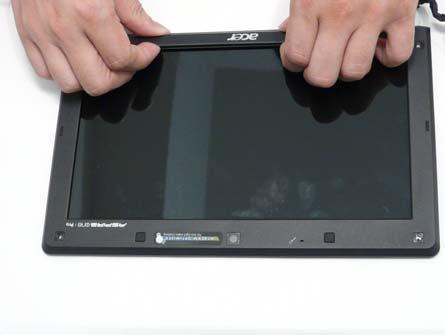

3. Starting from the inside top edge, pry the bezel away from the panel. Continue moving down the sides until the bezel is removed.

Step

Size

LCD Bezel M2*4 4

Quantity Screw Type
