Removing the LCD Brackets and FPC Cable

1. See “Removing the LCD Panel” on page 74. 2. Remove the four securing screws (two each side) from the LCD Panel brackets.

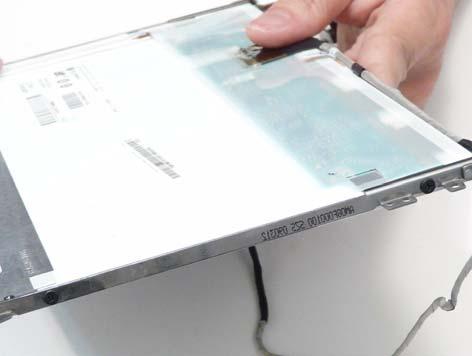

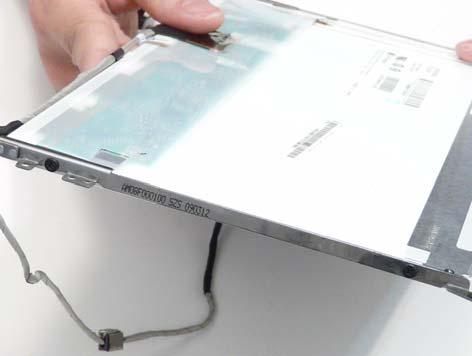

3. Remove the brackets from the LCD Panel.

LCD Brackets M2*4 4

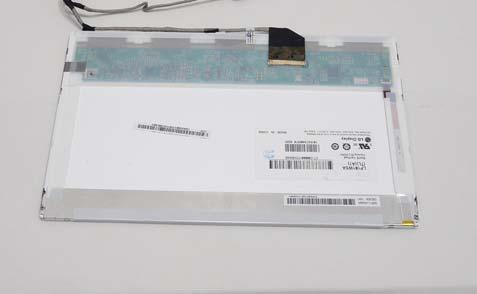

4. Turn the LCD panel over on a clean surface. Lift the cable to release the adhesive strips securing the cable to the panel.

5. Carefully lift the clear tape protecting the cable connector.

6. Carefully lift the black tape securing the cable to the panel.

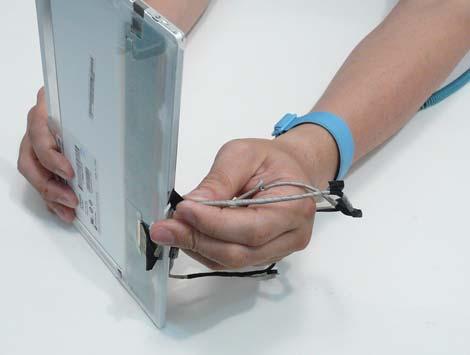

7. Disconnect the cable from the LCD panel
