Removing the 3G Module

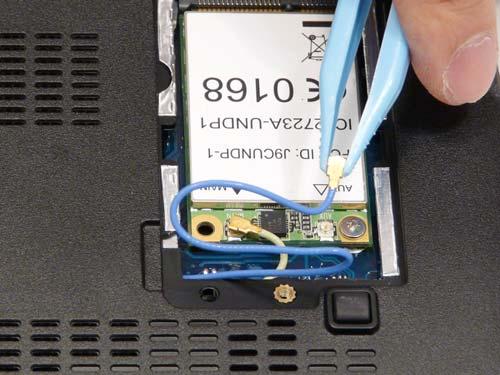

IMPORTANT:The 3G Module is only available on certain models. 1. See “Removing the Lower Covers” on page 45. 2. Disconnect the antenna cables from the 3G Module.

IMPORTANT:The yellow cable attaches to the M (Main) terminal and the blue cable attaches to the A (Aux) terminal.

3. Move the antennas away and remove the single screw on the 3G Module.

Step

Size

3G Module M2*3 1

Quantity Screw Type

NOTE: When reattaching the antennas, ensure the cables are tucked into the chassis to prevent damage.
