Replacement of pipelines hydraulic steering system with amplifier (ZF

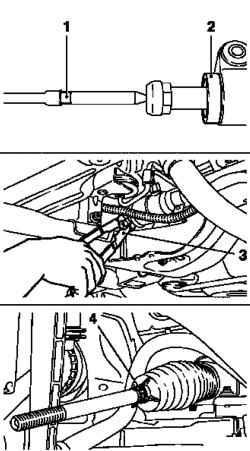

Fig. 5.32. Installing the cover on

the steering traction: 1, 2 - slots, 3 adaptation, 4 - fixing bracket

Attach the cover to the steering mechanism with a new restraint with a collar device KM-J-22610 (Fig. 5.32). Fasten the cover of the new retention bracket to the steering traction.

NOTE Make sure that the bag sits in the grooves of the steering rod.

Insert the tip of the steering rod. Install the bottom cover of the engine compartment. Fasten the front wheel bolts with torque 110 Nm

Withdrawal

Fig. 5.33. Removing the front

suspension subframe: 1 - bracket damping engine block, 2 - holder, 3 - supply pipeline, 4 - reusable tube

Remove the front suspension subframe.

The vehicles left-hand steering clear bracket damping engine block rear damping block engine.

Fig. 5.23. Removing the front

suspension subframe: 1 - bracket damping engine block, 2 - holder, 3 - supply pipeline, 4 - reusable tube

Remove the holder and disconnect the supply pipeline and return pipe from the steering mechanism (Fig. 5.23).

NOTE To collect oil flowing, use the tray.

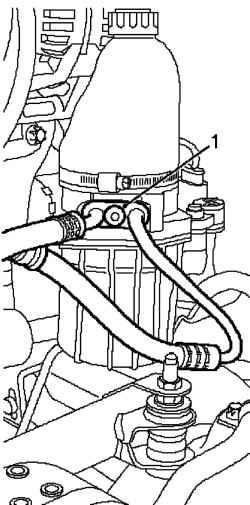

Fig. 5.34. Bolt mounting fuel line: 1

- Bolt

Remove the feed and return pipe electrohydraulic module, remove the attachment bolt (Figure 5.34).

Setting

Attach the feed and return pipe to the steering mechanism with the new. O-rings and tighten the attachment bolt moment 16 Nm Attach the feed and return pipeline to the electrohydraulic module with the new. O-rings and tighten the attachment bolt moment 16 Nm Attach the feed and return pipe in the holder the steering mechanism. Install the front suspension subframe. Fill the hydraulic liquid and remove it from the air.
