Replacing the covers on the steering mechanism

Attach the wiring harness of steering control to the front suspension subframe.

NOTE Make sure that the wiring laid out properly.

Attach the feed and return pipe to the steering mechanism and tighten the moment 30 Nm Use 2 new o-rings. Attach the holder submitting and return piping to the steering mechanism. On vehicles with left-hand steering: connect rear bracket. damping to the damping of the engine block engine block and tighten the moment 55 Nm Install the front suspension subframe. Fill the hydraulic system and remove the air from the hydraulic system. Check the convergence of the wheels, adjust if necessary.

Withdrawal

Remove the front wheel. Remove the engine compartment. Remove the tip of the steering rod. Remove the retaining collar / locking brackets.

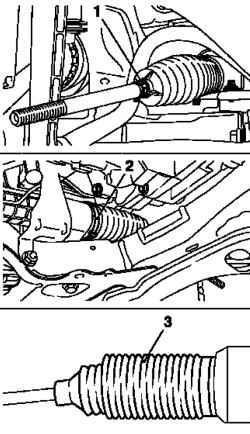

Fig. 5.31. Removing the shroud tie rod: 1, 2 - Fixing brackets, 3 - cover

Remove the cover tie rod (Fig. 5.31).

Setting

Tighten cover on the steering traction and steering mechanism. Lubricate grease groove.

NOTE
