Removing and installing brake booster vacuum line

Withdrawal

Remove the vacuum line from the elbow to the brake booster.

Fig. 6.28. Disconnecting the

vacuum magastrali: 1 - elbow pipe, 2 - latch mounting vacuum line

Disconnect the latch mounting the vacuum line from the front intake manifold (for cars with gasoline engines) or from the vacuum pump (for diesel vehicles) (Figure 6.28). Disconnect the latch by pressing on the latch (arrow). Remove the vacuum line.

Setting

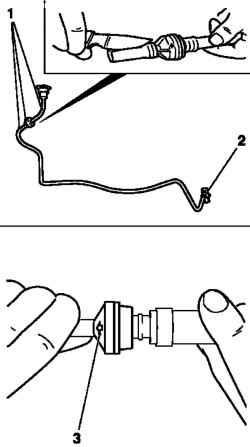

Fig. 6.29. Removing the vacuum

magastrali with fittings: 1, 2 - place paring 3 - pointer at the non-return valve

Cut open the vacuum line to the choke and remove from the nozzles (Fig. 6.29). Cut a new vacuum line (rubber hose with textile base) the required length and attach the new clamps with a special tool KM-J-22610.
