Removing and installing shaft wheel

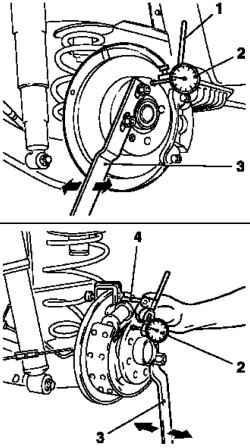

Fig. 3.102. Measurement oblique

gap block bearing: 1 - magnetic holder, 2 - a special tool, 3 - Bracket 4 - a special tool

Attach special tool KM-468-B of the wheel hub (see Figure 3.102). Attach special tool MKM-571-B, to the brake calipers or backplate brake mechanism with a magnetic holder, or bracket. Replace the sensor if a special tool MKM-571-B on the outer edge of the brake disc or wheel bearing. Check the clearance of raising a little bit special tool KM-468-B. The maximum permissible slope of the gap: 0,1 mm.

NOTE If this value is exceeded, replace the wheel bearing.

Setting

Remove the special tool MKM-571-B with the bracket or magnetic holder. Remove the special tool KM-468-B. For cars with drum brake mechanisms: Set the brake drum Install the rear wheel, tighten the bolts fastening point 110 Nm

Withdrawal

Remove the corresponding front wheel. Disconnect the wheel shaft of the wheel hub. Unscrew the nut on the shaft of the wheel.

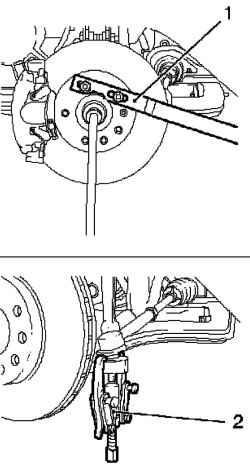

Hold with a special tool KM-468-B on the front wheel hub (see Figure 3.103). Remove the steering pull to the steering knuckle, remove the nuts. Vypressuyte steering thrust of the steering knuckle, using a special tool KM-161-B, together with a device KM-161-2 (Fig. 3.103). Disconnect the brake hose from the pipe supporting spring rack. Remove the strap. Disconnect the brake hose from the bracket.

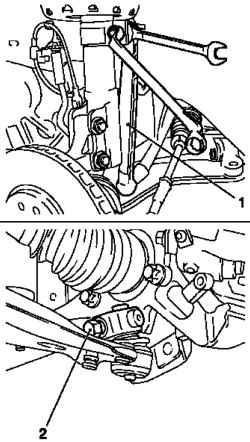

Fig. 3.104. Removing the rotary

arm supporting the pipe from the spring rack: 1, 2 - a special tool

Disconnect the swivel lever (1) of the supporting spring tube rack (Fig. 3.104). Hold for Lyskov open wrench. Remove the hinge from the steering knuckle, unscrewing bolts. Take the steering knuckle using special tool KM 915 (Fig. 3.104). Remove the joint from the steering knuckle. Squeeze the shaft of the wheel hub of the wheel.

NOTE When turning a fist Take this out, if necessary, use the puller wheel hub.

Remove the bottom cover of the engine compartment

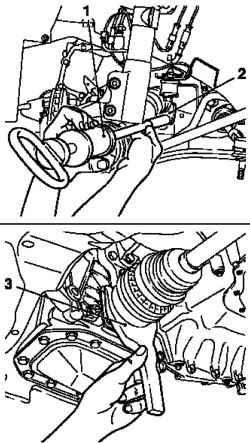

Fig. 3.105. Removing the shaft

wheel: 1, 2, 3 - special tool

Remove the wheel drive shaft of the gearbox and surmount it with an intermediate shaft (Fig. 3.105).

NOTE Collect the oil in a pan and close the hole plugs.

Observe the orderly handling of the shaft wheel.

Setting

Install wheel shaft in the gearbox. Install a new circlip on the shaft wheel. Cover the slots and supports oil for gearboxes
