Removing and installing the thermostat housing (engine 2.0 l

Setting

Install sensor mass air flow. Connect the intake hose. Tighten the clamp 2 point 3.5 Nm Connect the wiring harness connector. Close the hood.

Withdrawal

Open the hood. Disconnect the battery. Disconnect the grounding connector on the grounding clamp. Raise the car completely. Place the bottom of the container for drainage. Drain the coolant.

Fig. 2.311. Drainage bolt heatsink:

1 - bolt

Loosen the drain bolt on the radiator (Fig. 2.311). Collect the coolant. Tighten the drain bolt. Lower the car completely. Remove the battery.

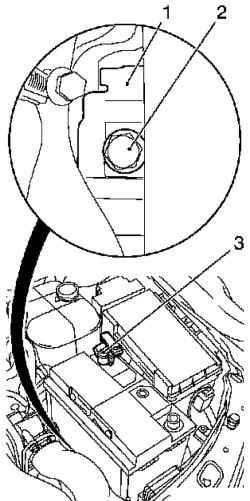

Fig. 2.312. Removing the battery: 1

- Bracket 2 - attachment bolt, 3 positive terminal

Fig. 2.313. Removing the pre-

launch heating: 1 - cable ties 2 mounting screws, 3 - the wiring harness connector, 4 - control unit heating system pre-launch, 5 - time

Remove the control system pre-launch heating (Fig. 2.313). Remove the wiring harness connector. Disconnect the coolant hose. Remove the clamp. Disconnect the wiring harness. Disconnect the 2 cable ties. Loosen the 3 bolts. Disconnect the wiring harness coolant temperature sensor. Disconnect the wiring harness connector. Unleash the wiring harness. 4 Disconnect the coolant hose lifting clamps.

Fig. 2.314. Housing Thermostat: 1

- body

Remove the thermostat housing by unscrewing the two mounting screws (Fig. 2.314). Disconnect the hose from the coolant. Tighten the thermostat housing in a vise.

Fig. 2.315. Coolant temperature

sensor: 1 - sensor
