Replacing the rear flange of the crankshaft

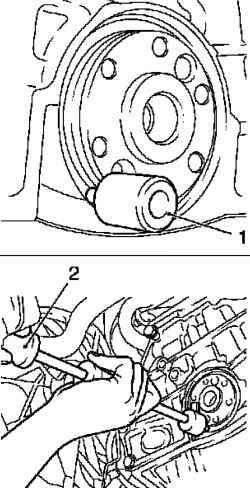

Fig. 2.163. Lock the flywheel

during installation: 1 - a special device

Lock the flywheel using the KM 652 when tightening the screws (Fig. 2.163). Tighten the 6 bolts moment 35 Nm, Dauvergne at +30 ° and + 15 °. Apply (red) for the fixing of the threads. Use new bolts Replace clutch Set the gearbox.

Withdrawal

Remove the flywheel.

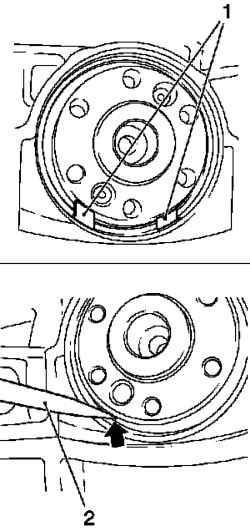

Fig. 2.164. Removing the plastic ring: 1 - plastic ring, 2 - Screwdriver

Remove the plastic ring with a screwdriver (Fig. 2.164).

NOTE

Make holes in the areas shown in Figure 2,165 in provisions: 5 h and 7 h, it is the only area

where there are behind the O-ring cavity.

Use a suitable tool, such as awls (Fig. 2.165), in order to make a hole in the O-ring

NOTE The diameter of the hole should not be more than 2 mm. Otherwise, screw accessories CM 6624 will not be able to keep the ring.

Place the awl on the outer edge of the seal ring. Remove the O-ring.

Fig. 2.166. Removing the

omentum: 1 - a special tool KM 6624; 2 - special tools KM-328-B, and KM 6624
