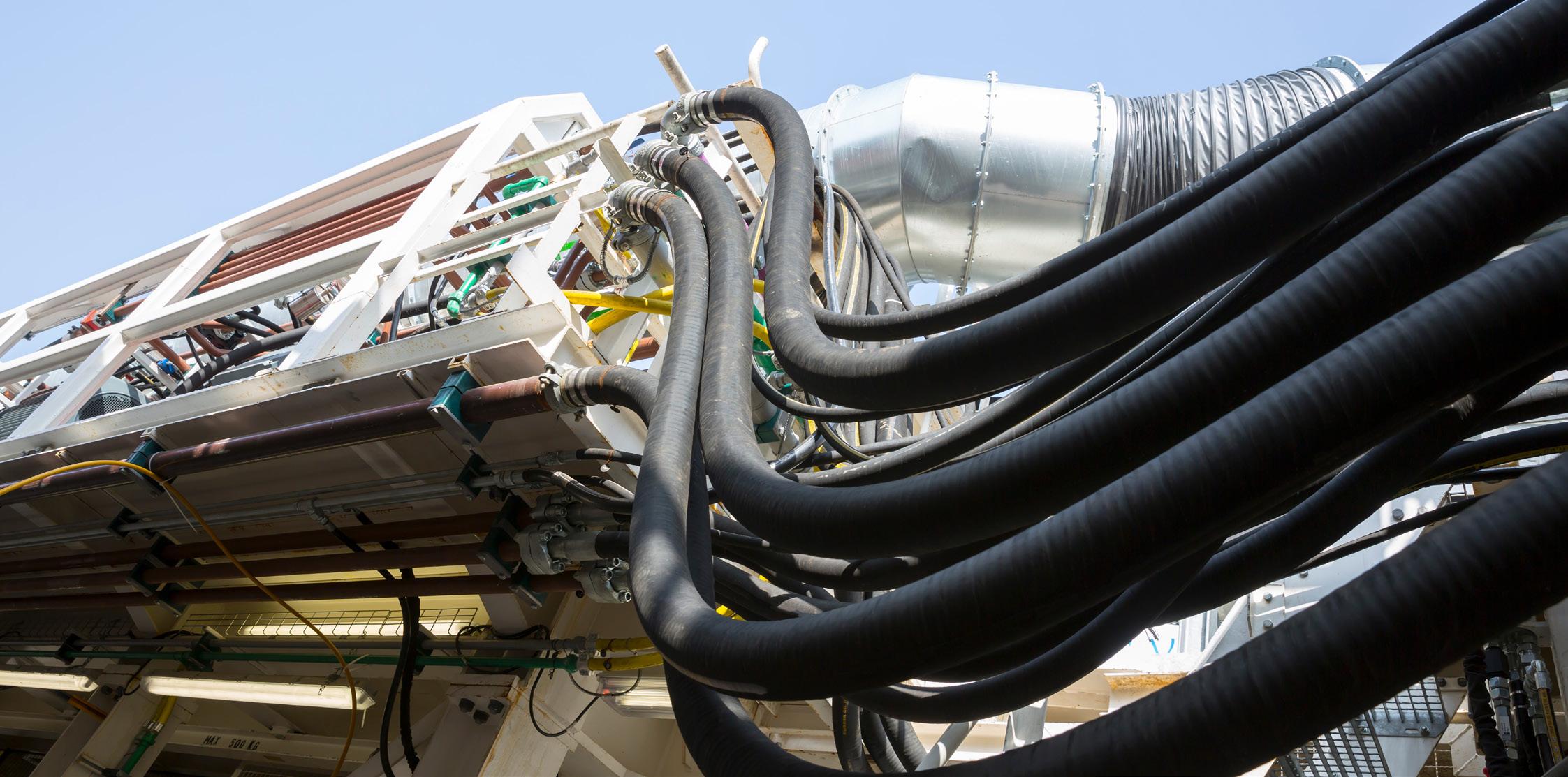

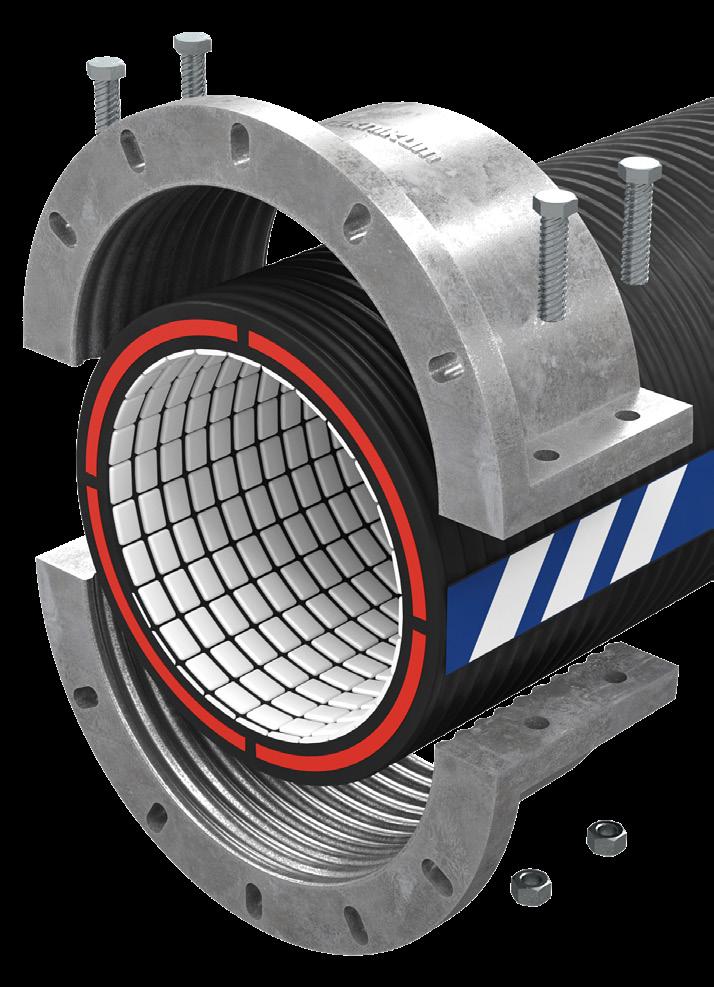

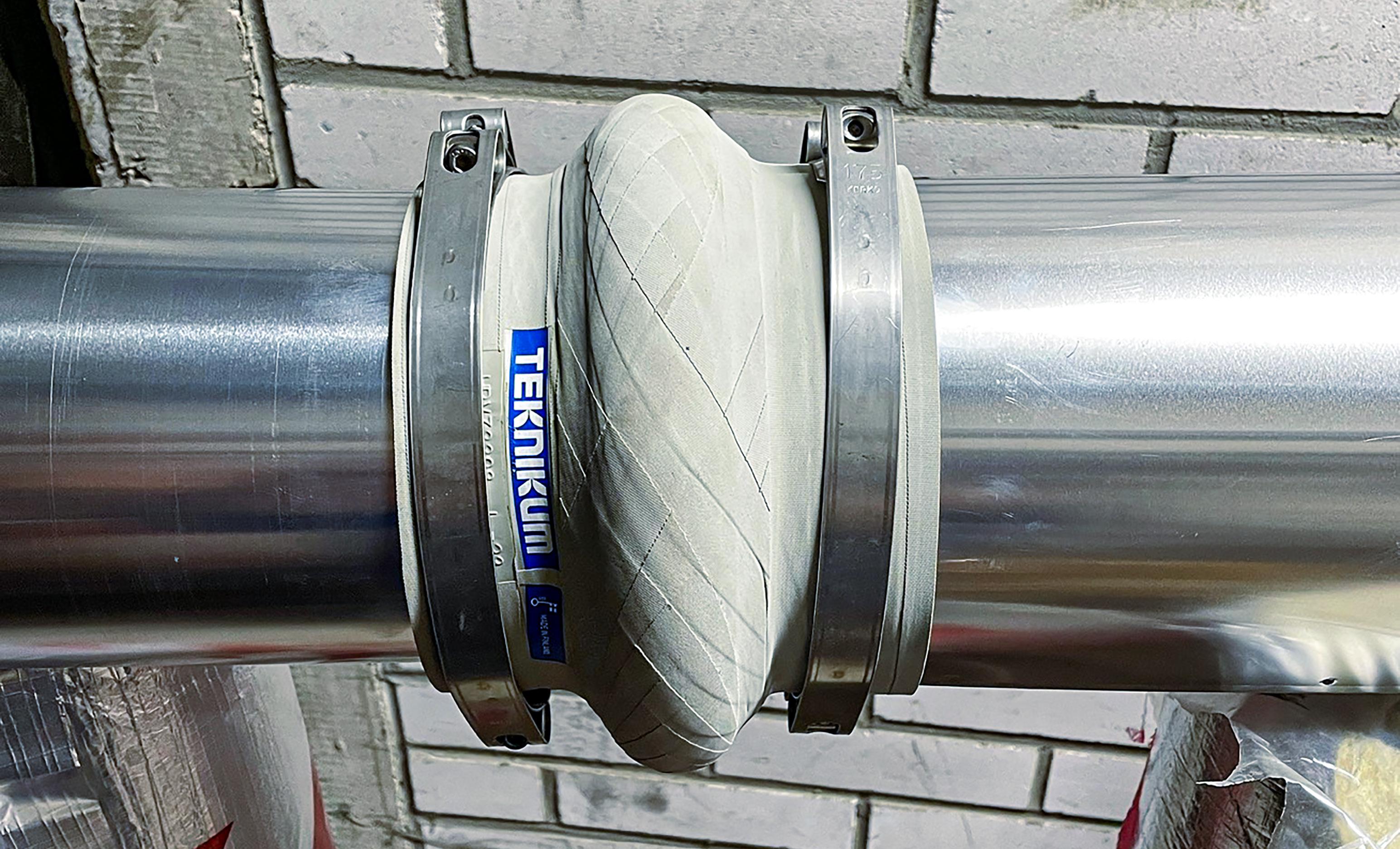

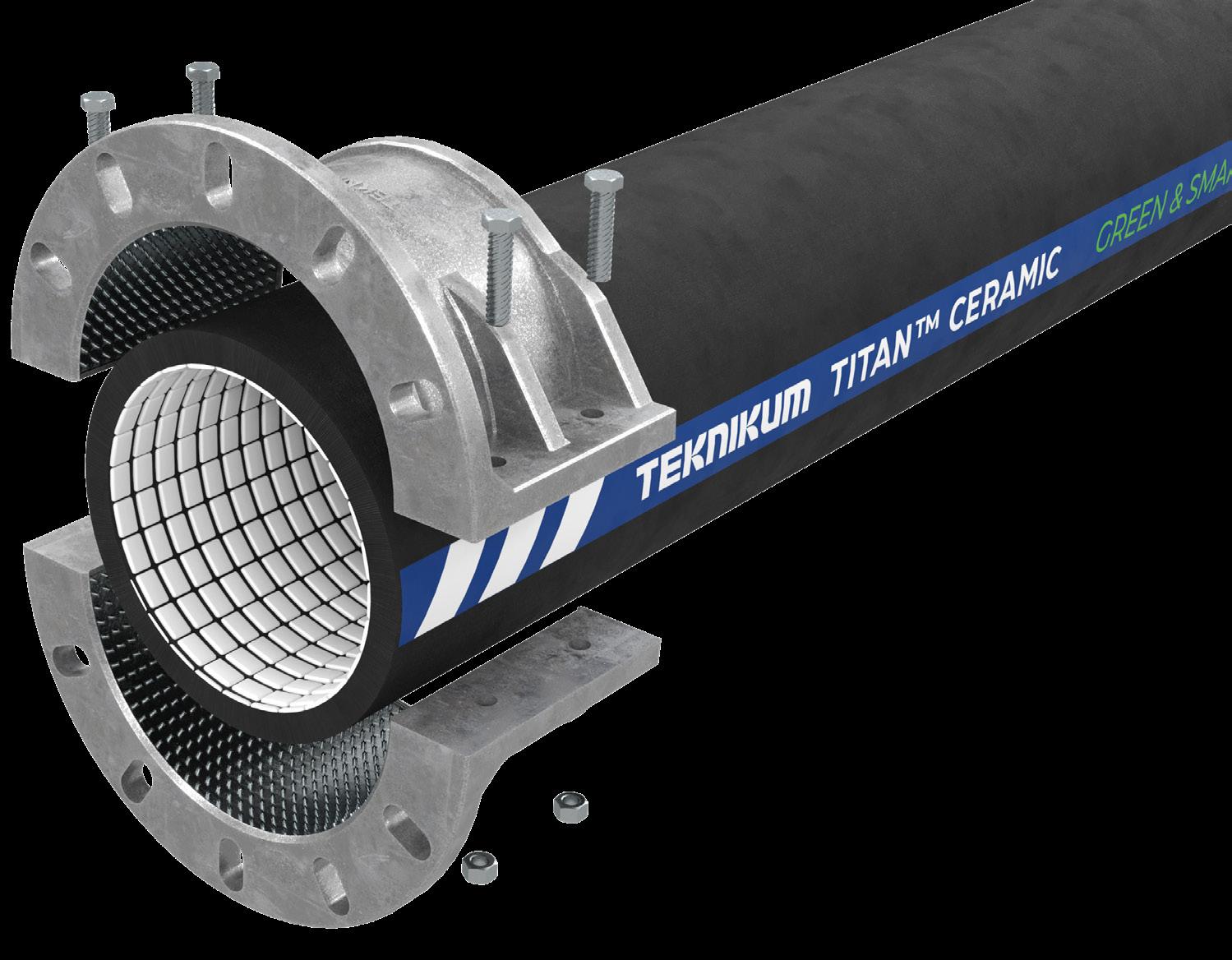

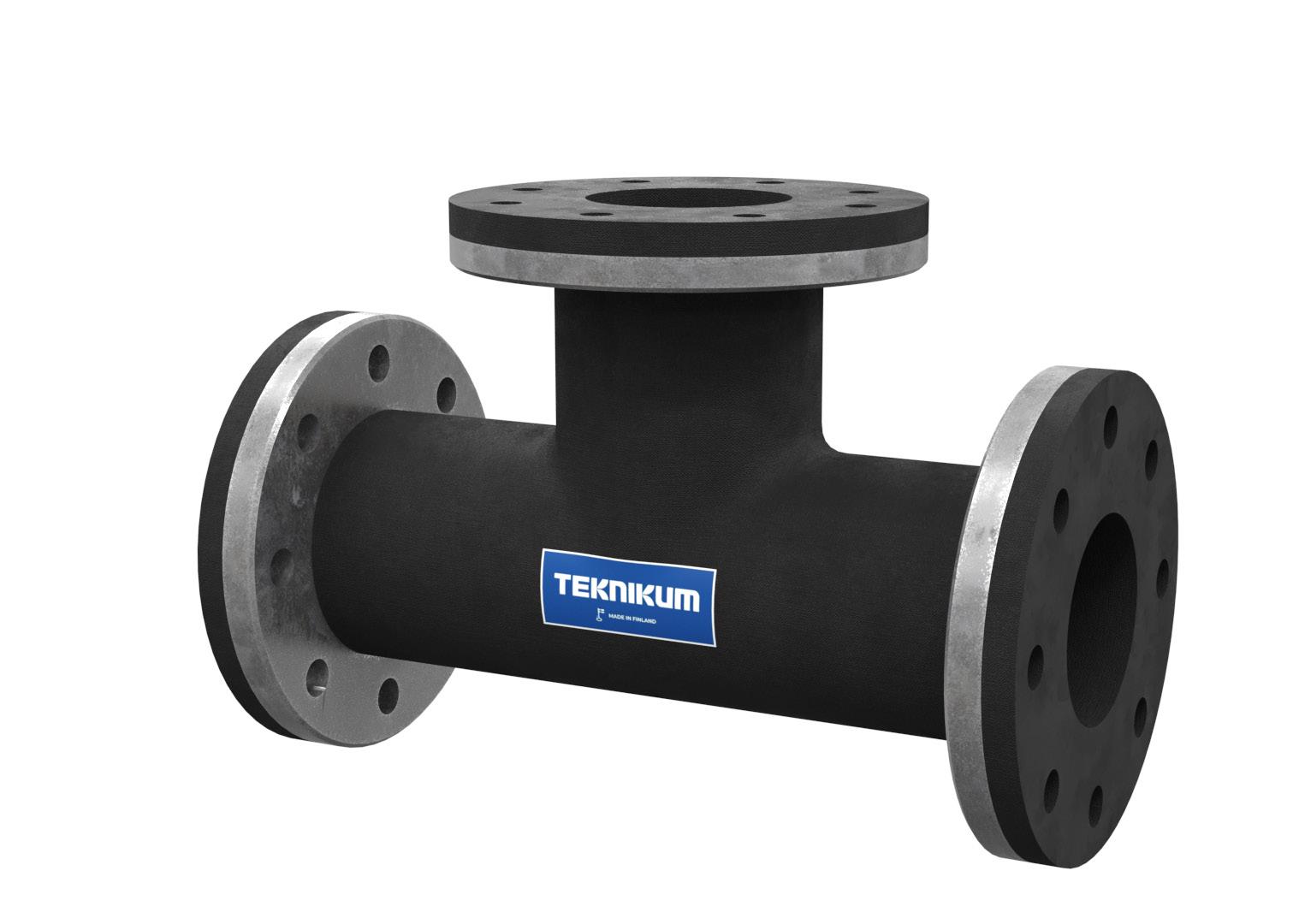

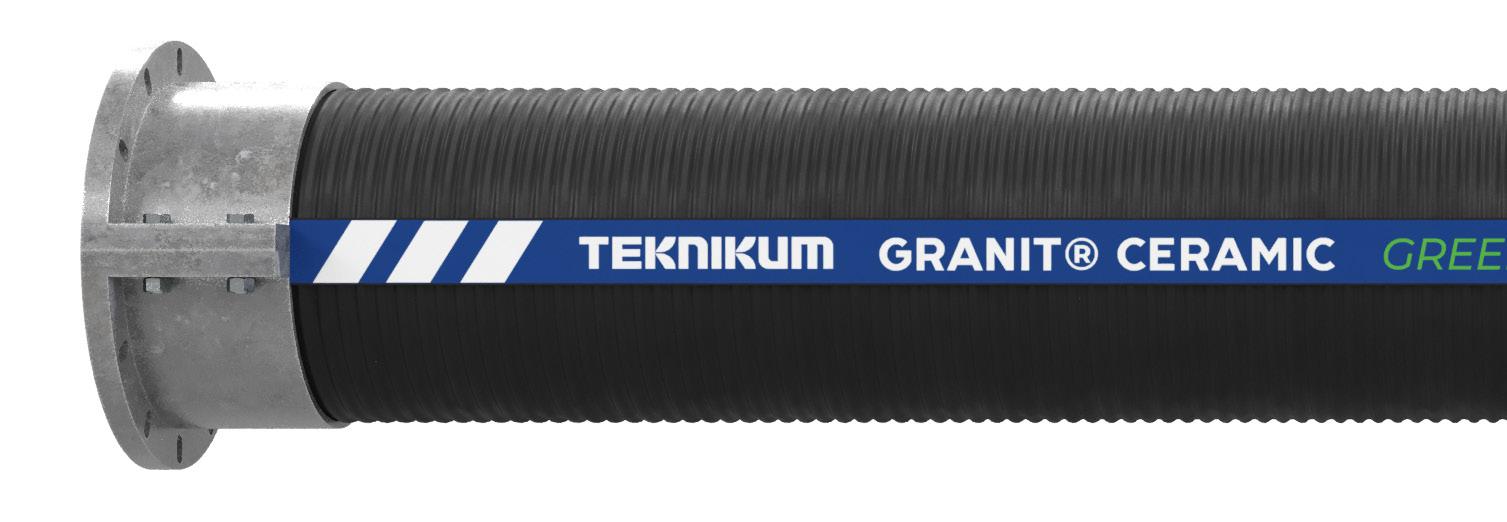

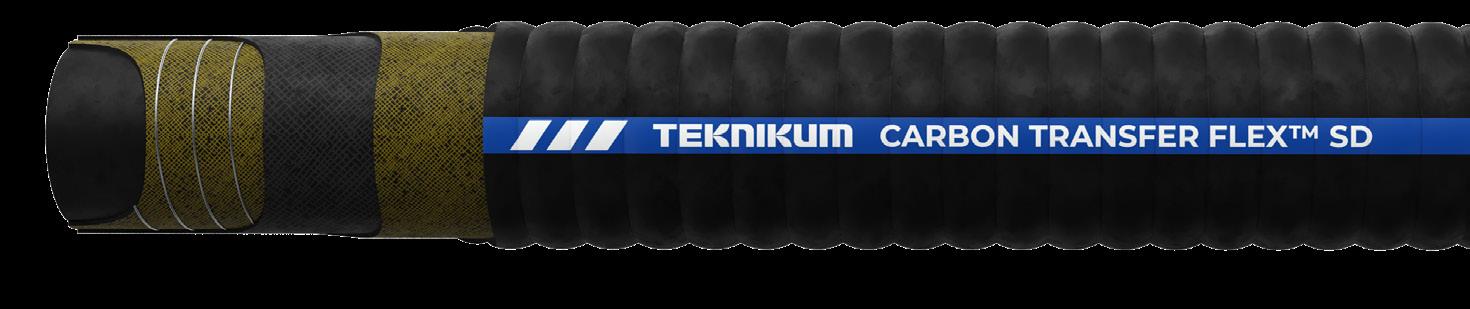

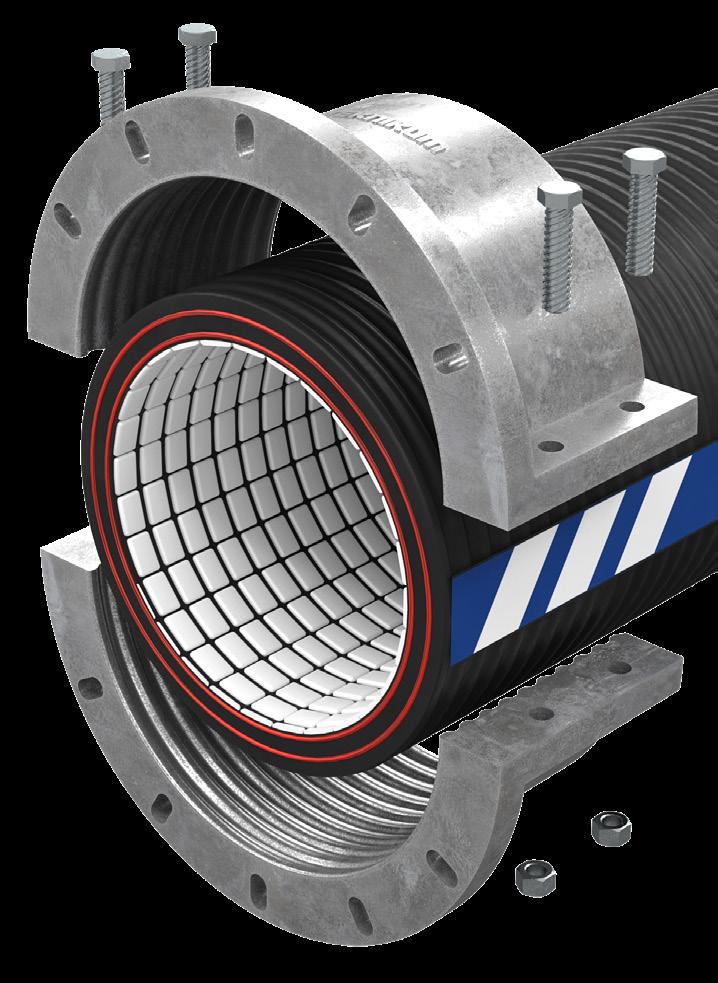

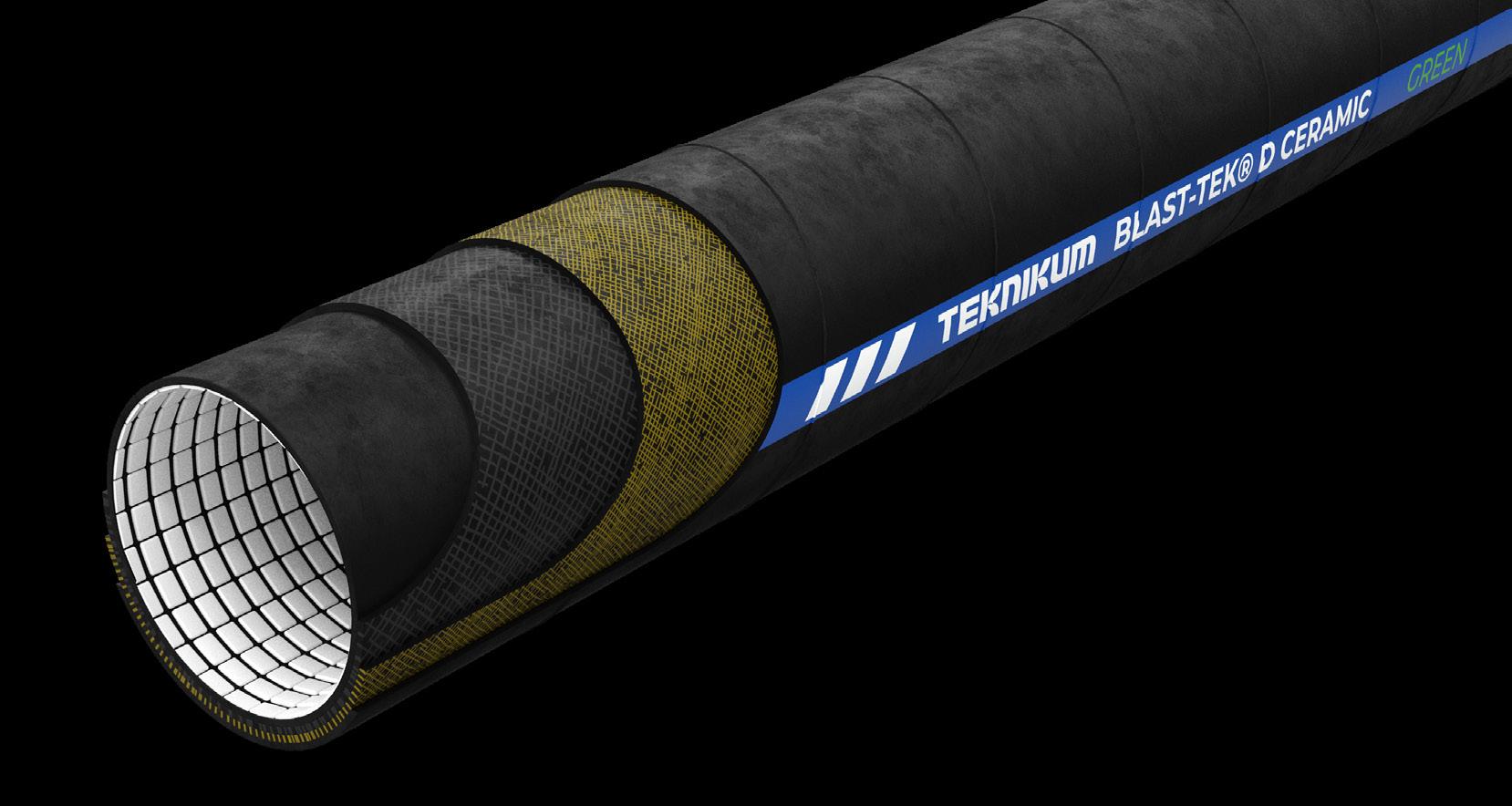

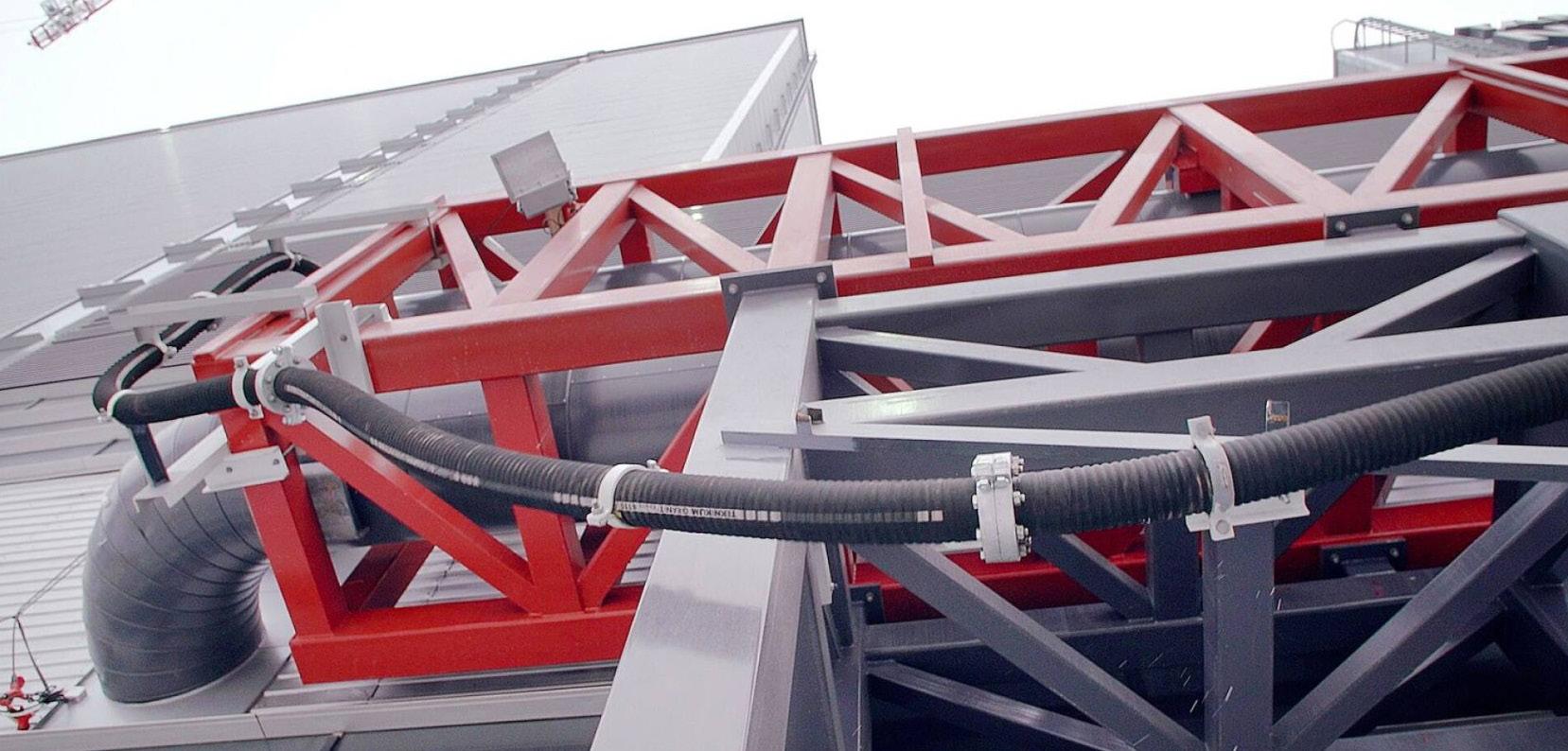

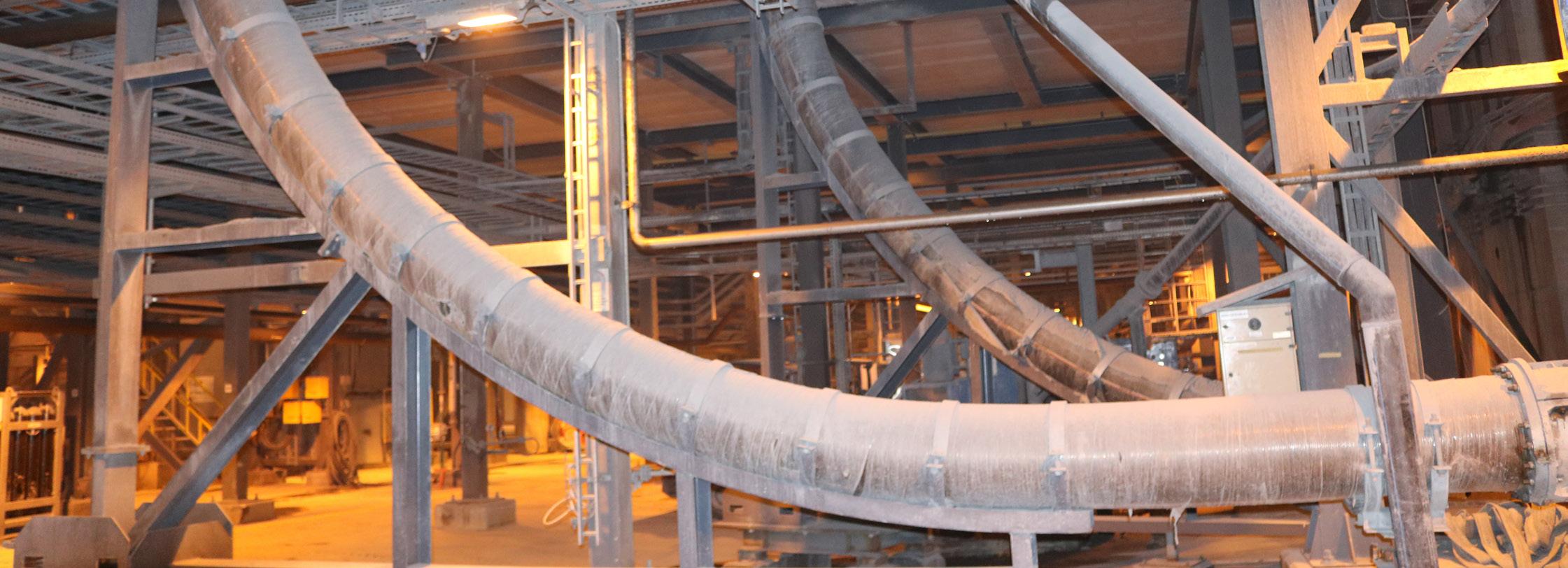

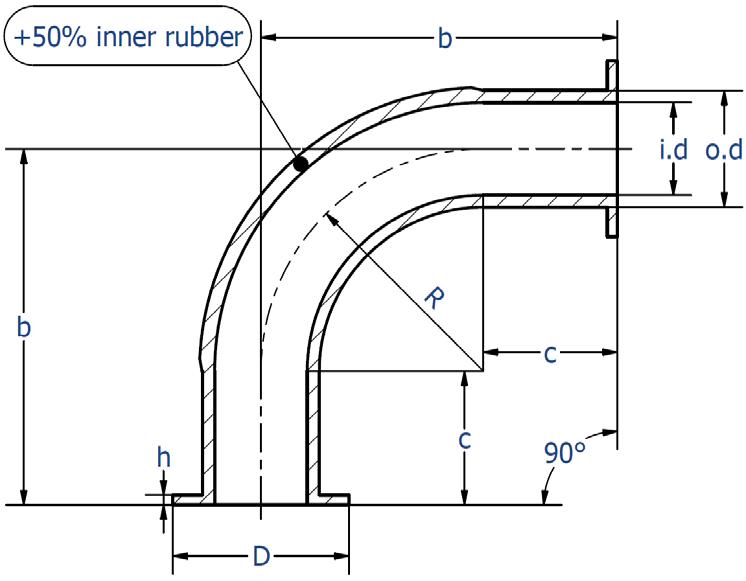

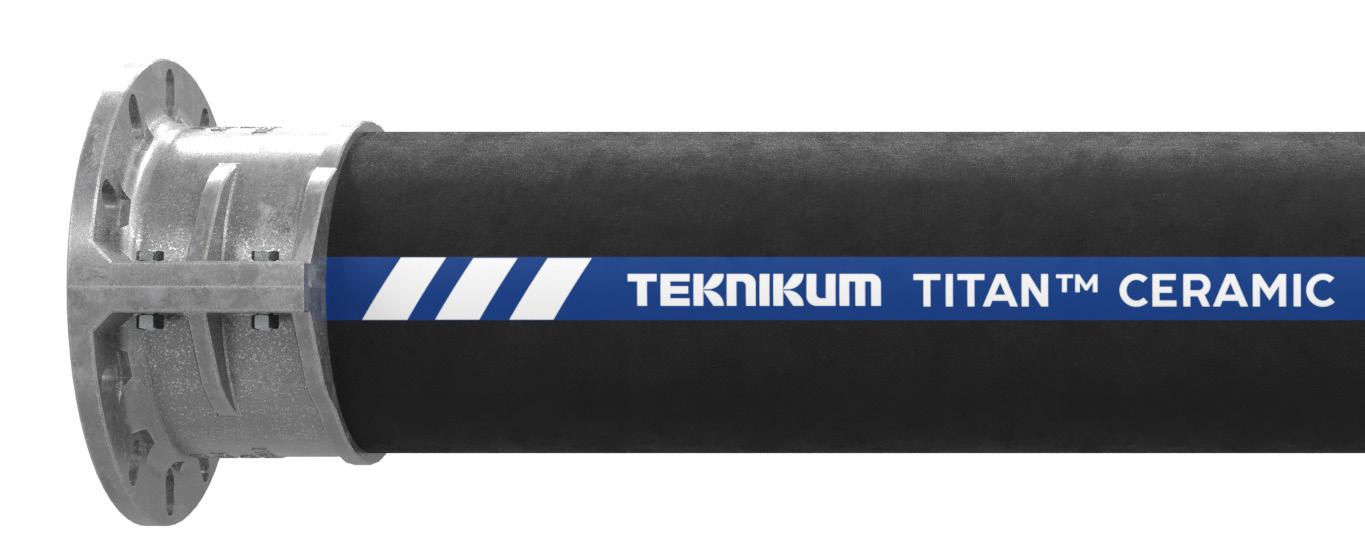

flexible Teknikum® CERAMIC hoses provide 3-10 longer working life in the most abrasive environment

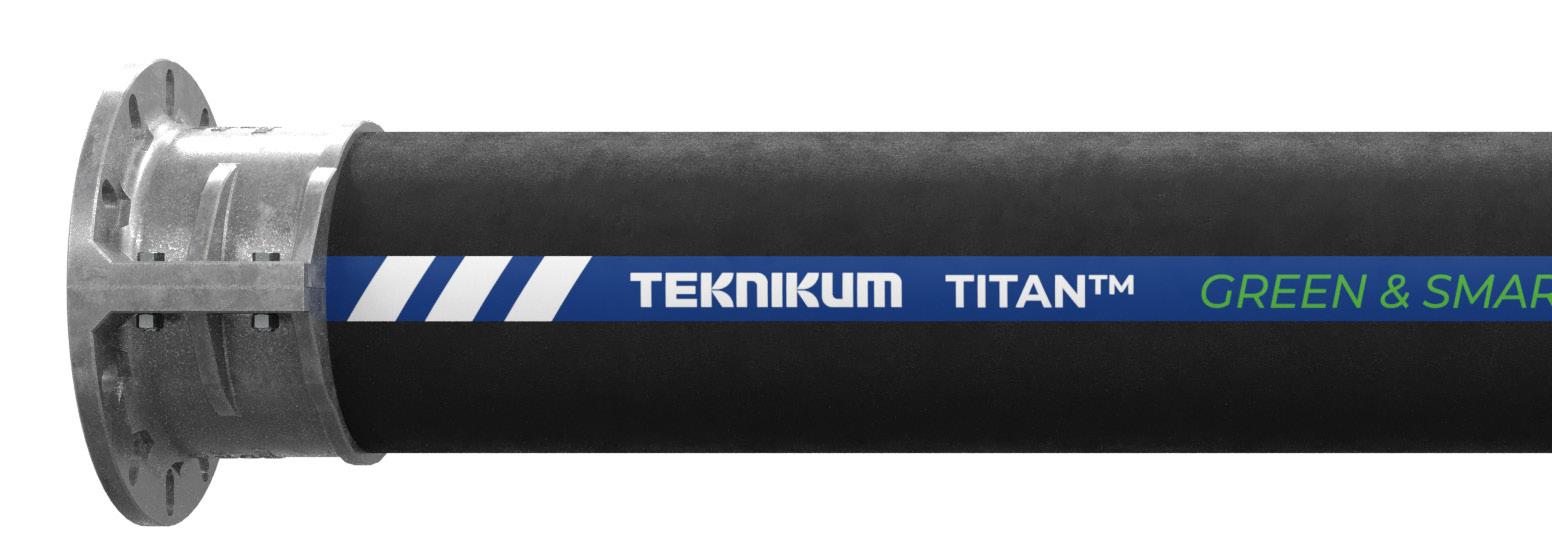

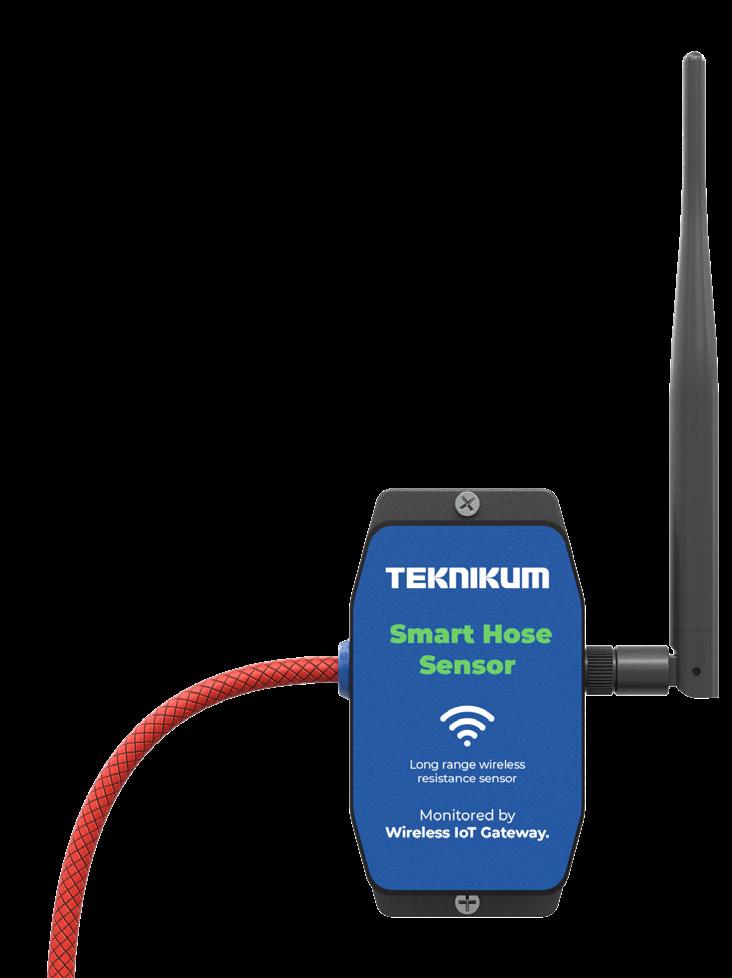

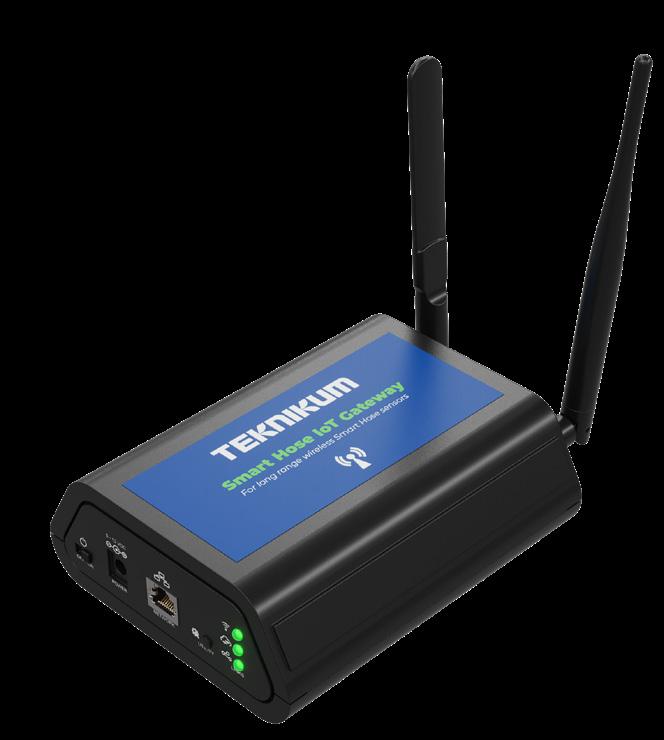

& SMART hose system brings new era to efficient material handling teknikum.com TEKNIKUM® CERAMIC TEKNIKUM® CERAMIC
Industrial
For
Pioneering
GREEN
Project orders and custom products: orders.vammala@teknikum.com Offer requests: sales@teknikum.com Switch +358 3 51911 firstname . surname @teknikum.com Customer feedback: feedback@teknikum.com Find Your Local Reseller Our Certified Channel Partners represent Teknikum® product offering around Europe. https://teknikum.com/resale Interested in becoming a reseller? Please contact us: sales@teknikum.com.
Dear customer,

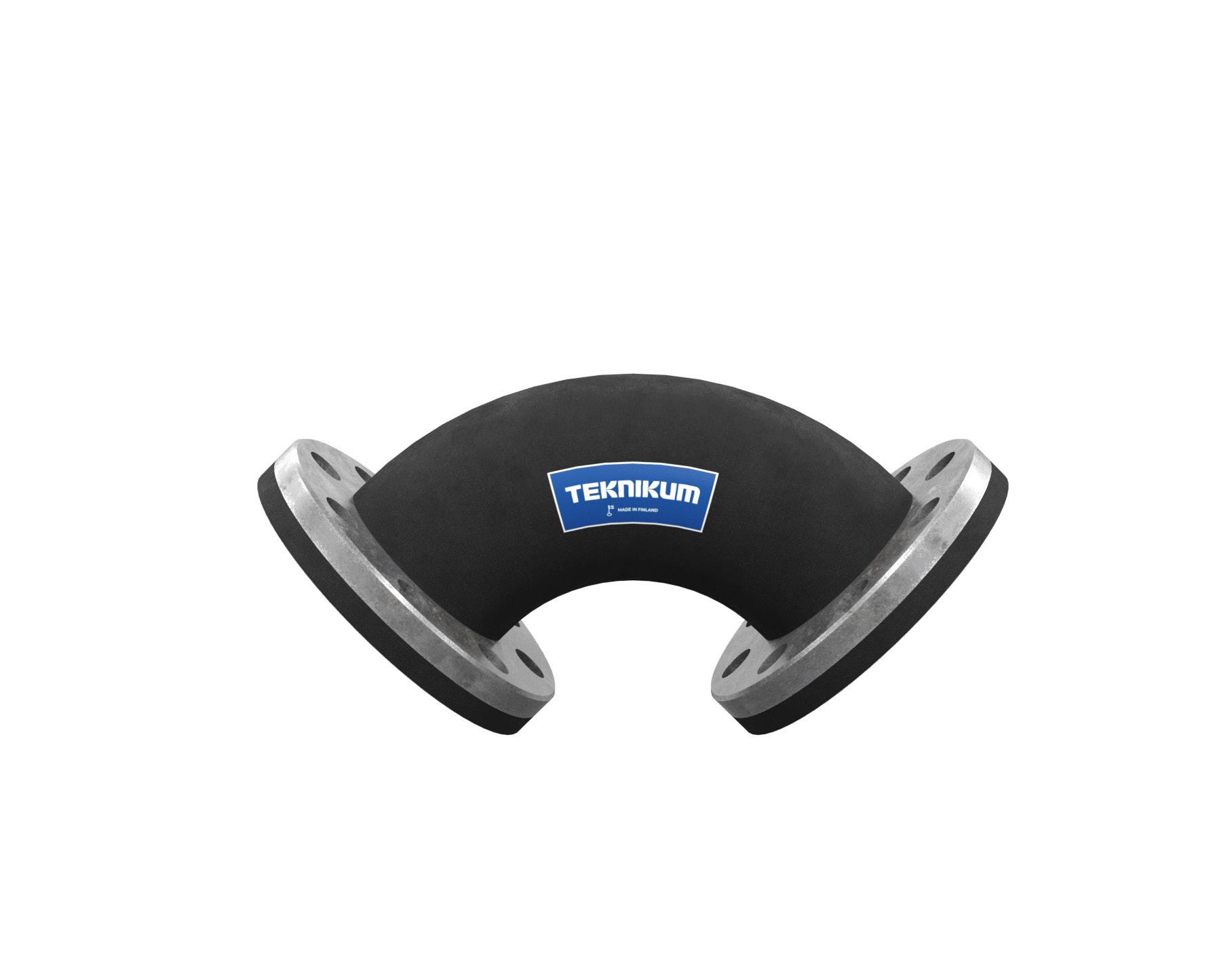

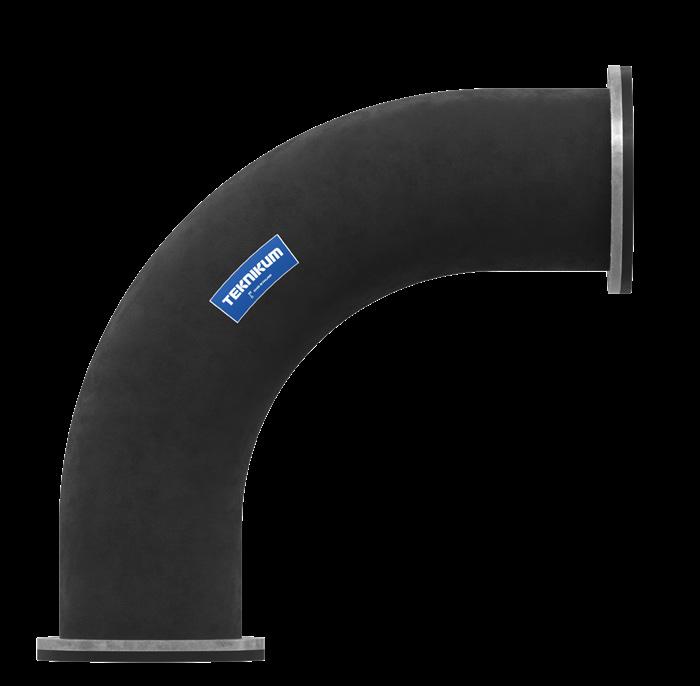

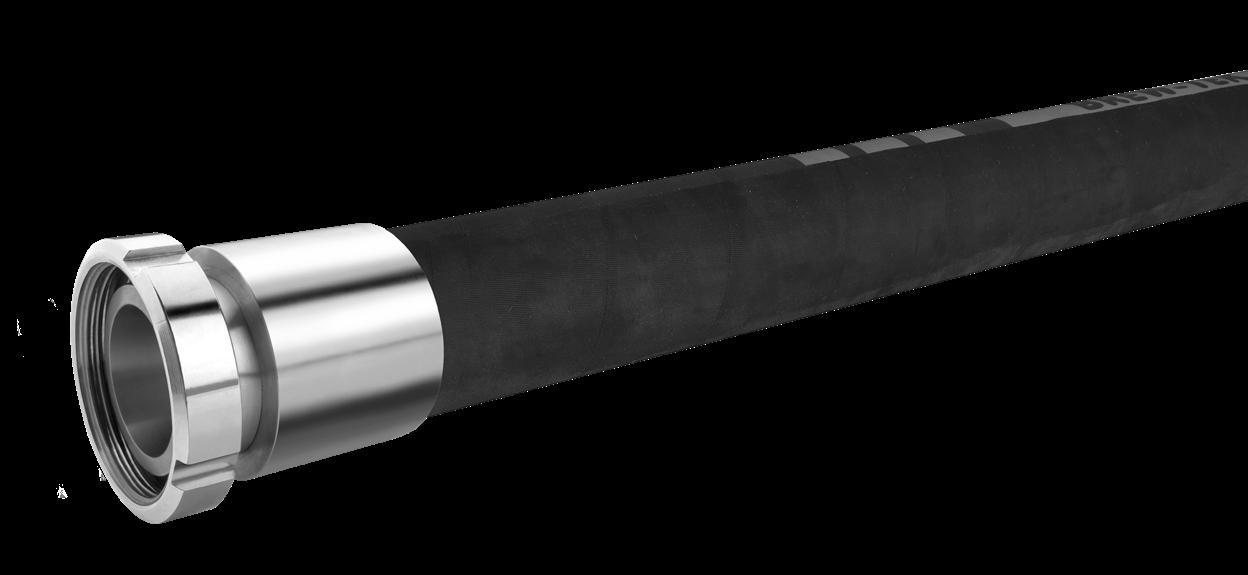

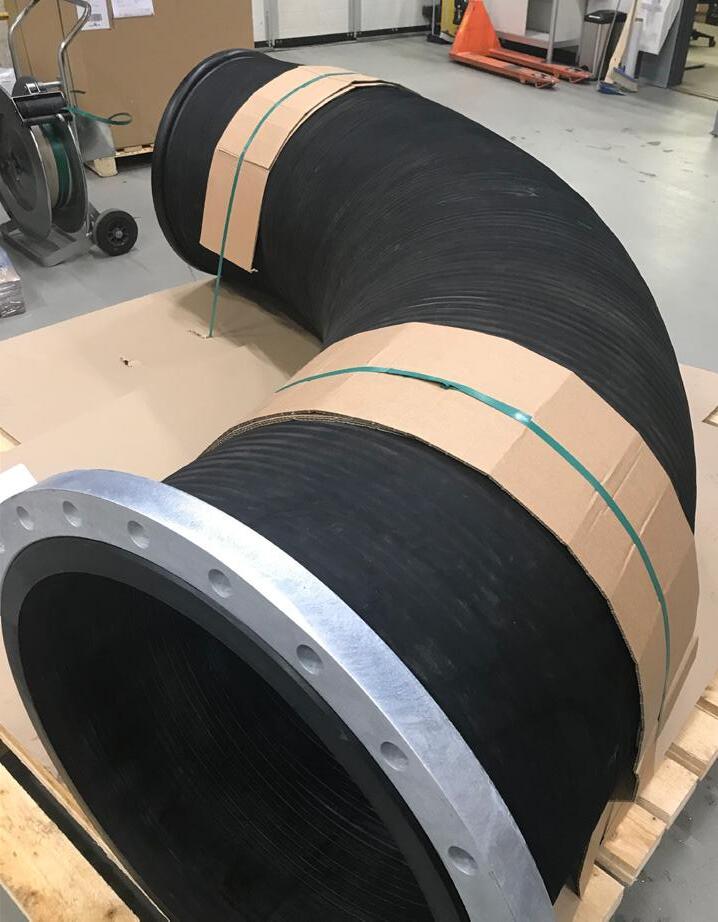

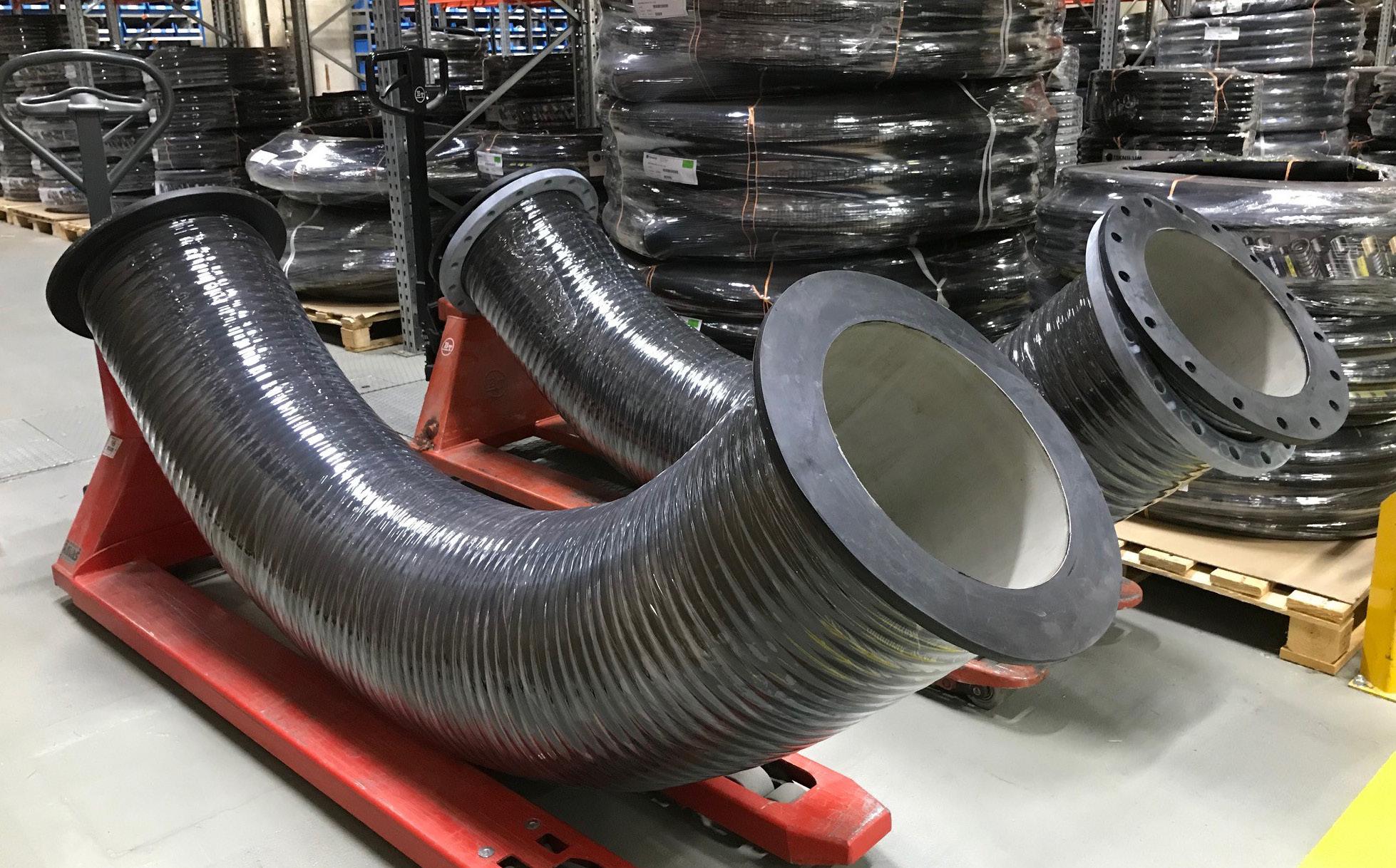

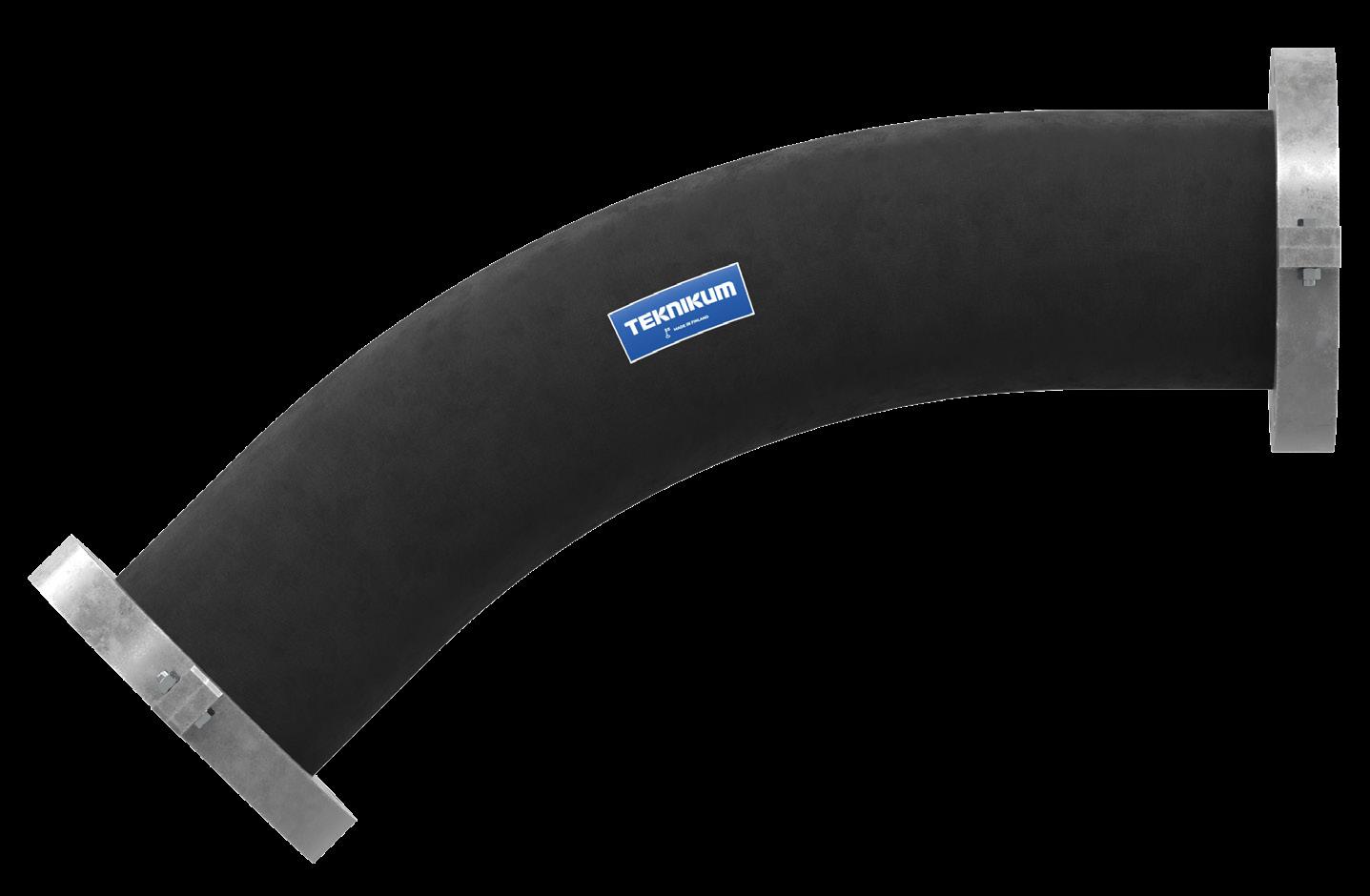

Teknikum’s high-quality rubber hoses, hose bends and ceramic hoses are popular solutions in Finland and abroad due to their long service life, the best raw materials and the excellent end-product brought by our long experience and know-how.
Teknikum differs from the competition not only with the features of flexible and strongest hoses, but also through our wide range of special hoses, with great customer service and customer-specific solutions. This is how we ensure the best possible customer experience for our customers, representing various industries.
Liebe Kunden, die hochwertigen Gummischläuche, Schlauchbögen und Keramikschläuche von Teknikum sind in Finnland und anderen Ländern aufgrund ihrer langen Nutzungsdauer, den besten Rohmaterialien und dem hervorragenden Endprodukt, das auf unserer langjährigen Erfahrung und unserem Fachwissen beruht, sehr beliebte Lösungen.
Teknikum hebt sich nicht nur durch die Eigenschaften der flexiblen und langlebigsten Schläuche von der Konkurrenz ab, sondern auch dank unseres breiten Spektrums an Spezialschläuchen, unseres ausgezeichneten Kundenservice und unserer kundenspezifischen Lösungen. So gewährleisten wir das bestmögliche Ergebnis für unsere Kunden, die aus den unterschiedlichsten Branchen kommen.
Cher client, chère cliente,
Les tuyaux en caoutchouc, les coudes de tuyaux et les tuyaux en céramique de haute qualité de Teknikum sont des solutions répandues en Finlande et à l’étranger, en raison de leur longue durée de service, de l’utilisation des meilleures matières premières et de l’excellente qualité des produits finis garantie par notre expérience de longue date et notre savoir-faire.
Teknikum se différencie de la concurrence non seulement grâce aux caractéristiques des flexibles et des tuyaux les plus robustes, mais également grâce à notre vaste gamme de tuyaux spéciaux, à notre excellent service à la clientèle et à nos solutions personnalisées. C’est ainsi que nous assurons la meilleure expérience possible à nos clients, issus de diverses industries.
Timo Kokkonen Director
Hoses Business Unit
Teknikum Group
3
As European polymer technology expert,
Operational values – Safety, Sustainability and Sincerity
Our aim is to produce safe products and solutions to environment and our customers while offering a safe working environment to our employees. Based on this core value, we consider the environmental effects in everything we do – by setting goals that make our operations even more environmentally friendly. As a company with Nordics roots, sincerity is important operational cornerstone for us.
To maintain a high level of operations, we plan with Sustainability Roadmap and measure the safety related observations and actions closely. The mission of Teknikum Group is to drive sustainability in polymer technology. Therefore, our brand promise to customers is that they can reach sustainability while using Teknikum® products and services.
We are committed to the Science Based Targets initiative (SBTi) to reduce emissions according to Paris Agreement and to the Chemical Industry Federation of Finland’s Responsible Care –environmental program that is the most long-running and renowned voluntary program supporting sustainable development.
We consider the environmental effects in everything we do – by setting goals that make our operations even more environmentally friendly. Safety is our top priority.
4
we are on a sustainable mission – for you
Our values
SAFETY of our products, solutions and working environment
SUSTAINABILITY in our operations
SINCERITY in our actions
Our mission is to drive sustainability in polymer technology.
When using Teknikum® products, our customers can reach sustainability.
5
Management quality systems
For demanding industrial applications, ensuring safety and efficiency.
Standard compliant hoses and hose assemblies for industrial plants.
Teknikum industrial hose factory is the largest in the Nordics – operating since 1958.
€MANAGEMENT QUALITY SYSTEMS
We constantly develop our production processes, our personnel’s know-how, and our materials.
We invest in occupational safety, the prevention of errors, and environmentally friendly operational models. A good reference of our quality level is the fact that we supply products to several international state-of-the-art technology companies.
We work in line with our documented and certified quality, environmental and safety systems: The Teknikum plants in Finland have ISO 9001:2015, ISO 14001:2015 and ja ISO 45001 certificates. Hungary plant holds ISO/TS 16949, ISO 14001:2015 and the highly demanding IATF16949:2016 certificate used in the vehicle industry. Additionally, the SMETA (Sedex Members Ethical Trade Audit) 4 Pillar audit was done in Hungary plant in 2021 with 0 observations found.
INDUSTRY STANDARD COMPLIANCE
Chemical Industry products - EN 12115
Teknikum hoses meet the requirements of chemical standard EN 12115. Please see each product’s datasheet for specific information.

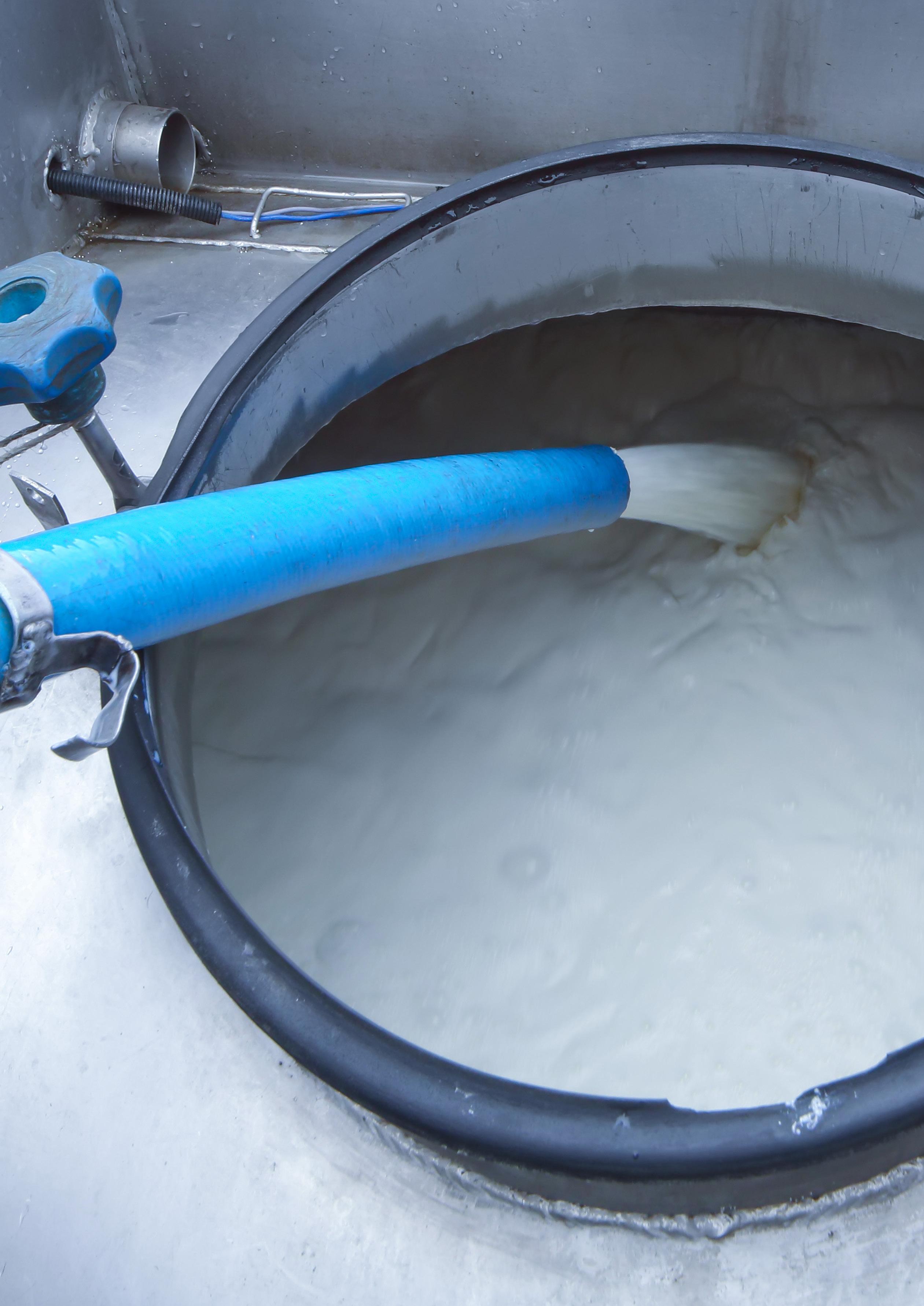

Food Industry products
Teknikum food quality hoses are in compliance with the European Parliament regulation EC 1935/2004 (Materials and articles intended to come into contact with food).
Individual hose types may be also in compliance with FDA regulation: No. 21 CFR 177.2600 and/or German regulation: BfR recommendation XXI category 2. Please see each product’s datasheet for specific information.
Antistatic, ESD Protection
ATEX compliance
Please see Manufacturer Declaration (EC Directive 2014/34/EU/ATEX). Most of our current standard chemical hoses (excluding Teknikum FLUOR-TEK® SD PTFE) comply with the requirements of EN12115:2011 for hose type SD and for grade Ω/T, which are relevant for the ATEX approval in the scope of the standard.
The hose assemblies can be operated when used properly as a part of equipment within the equipment group II, category 2, in compliance with the EC Directive 2014/34/EU (ATEX). The electrical conductivity fulfils the requirements of the standard EN12115:2011.
It must be ensured that the hose assembly will be operated only within operating conditions given to the hose and when the technical system (equipment) itself fulfils the requirements of the EC Directive 2014/34/EU (ATEX).
7
8 Contents Contact 2 Operational values ................................................................................................................4 Management quality systems 6 Contents ................................................................................................................................... 8 Rubber compounds ............................................................................................................ 10 How to select a hose? .........................................................................................................12 Chemical ................................................................................................................................. 14 Teknikum CHEMO-TEK® SD EPDM 16 Teknikum MULTI-TEK® D UPE 18 Teknikum MULTI-TEK® SD UPE CLEAN 20 Teknikum MULTI-TEK® SD UPE 22 Teknikum MULTI-TEK® SD UPE PRO ............................................................................................ 23 Teknikum FLUOR-TEK® SD FEP 24 Teknikum FLUOR-TEK® SD PTFE 26 Cam locking coupling 28 Thread hose coupling 29 Flange coupling 30 Safety clamp 32 Swaged ferrule clamp 34 Oil & Fuel.................................................................................................................................36 Teknikum FUEL-TEK® D 38 Teknikum FUEL-TEK® SD 40 Teknikum FUEL-TEK® D ARCTIC 42 Teknikum FUEL-TEK® SD ARCTIC 44 Teknikum FUEL-TEK® SD GAS LPG/LNG ................................................................................... 46 Teknikum FUEL-TEK® SD DOCK 48 Teknikum FUEL TEK® D MARI 50 ABRASIVE / Working hoses ............................................................................................. 52 Teknikum CARBON EXTRA LIGHTTM S Antistatic 54 Teknikum CARBON LIGHTTM S............................................................................................................ 56 Teknikum CARBONTM D 58 Teknikum CARBONTM SD 60 Teknikum CHARGE-TEK™ 62 Teknikum BLAST-TEK® D 63 Teknikum BLAST-TEK® D CERAMIC 64 ABRASIVE / Slurry hoses .................................................................................................. 66 Teknikum® Smart Hose system 68 Teknikum PLUS™ flange system 70 Teknikum® Steel support flanges 72 Teknikum GRANIT® 74 Teknikum GRANIT® CERAMIC Antistatic 76 Teknikum GRANIT® Select coupling 78 Teknikum TITANTM ..................................................................................................................................... 80 Contents
9 Teknikum TITAN™ CERAMIC Antistatic 82 Teknikum TITAN™ Select coupling 84 Teknikum Select™ gaskets 86 Teknikum TITAN™ 45° Flanged hose bends 88 Teknikum TITAN™ 90° Flanged hose bends 90 Teknikum TITAN™ T-branch hose 92 Teknikum TITAN™ Valve hoses ......................................................................................................... 94 Teknikum TITAN™ Straight connecting hoses 96 Teknikum TITAN™ Reducers 98 Teknikum TITAN™ Flexible rubber joints for pressure 100 Teknikum TITAN™ Balance flexible rubber joints 102 Teknikum TITAN™ Rubber compensators for pressure and vacuum 104 Teknikum TITAN™ Large compensator 106 Water / Air / Steam............................................................................................................ 108 Teknikum PAVE™ 1,0 MPa AIR/WATER 110 Teknikum PAVE™ 2,0 / 2,5 MPa AIR/WATER 112 Teknikum PAVE™ Hot Yellow 3,0 MPa AIR/WATER 114 Teknikum PAVE™ RINSING 116 Teknikum PAVE™ RINSING nozzle 116 Teknikum STEAM-TEK™ ........................................................................................................................ 118 Teknikum NORA™ Radiator 0,6 MPa 120 Teknikum RAIL-TEK™ 121 Teknikum AIR-TEK® SD 122 Agricultural hoses ............................................................................................................. 124 Teknikum AGRI-TEK™ SD ................................................................................................................... 126 Hose band clamp 127 Food Quality Hoses ........................................................................................................... 128 Teknikum FOOD-TEK® SD LIGHT 130 Teknikum FOOD-TEK® SD 132 Teknikum FOOD-TEK® SD LACTO ................................................................................................ 133 Teknikum FOOD-TEK® D CLEAN 134 Teknikum FOOD-TEK® D LACTO 135 Dairy coupling 136 SL clamp 137 Installation and handling instructions ...................................................................... 138 Teknikum material handling hoses, couplings and flanges 139 INFO........................................................................................................................................ 142 EN - Instructions for washing and disinfecting food quality hoses 142 EN - Teknikum® industrial hoses and services 143 DE - Wasch- und Desinfektionsanleitung für Lebensmittelschläuche �������� 144 DE - Teknikum® Industrieschläuche und Dienstleistungen 145 FR - Instructions de nettoyage et de désinfection des flexibles de qualité alimentaire 146 FR - concernant les flexibles industriels et les services Teknikum® 147
Rubber compounds
“The choice of raw materials is very important. It is important to us that our rubber compounds are of high quality, reliable and meet all the criteria.”
- Ms. Mira Juutilainen, R&D Manager in Teknikum Group (M.Sc. Plastics and Elastomers & M. Sc. Material Chemistry), sums up her work in the product development of rubber compounds that is based on European chemical legislation.
Teknikum® Rubber Compounds for Hoses Cover
Teknikum WearBlack™ NR recycled
This black compound includes 60% renewable natural rubber materials of which 15% is recycled. The compound is highly durable and suitable for abrasive materials.

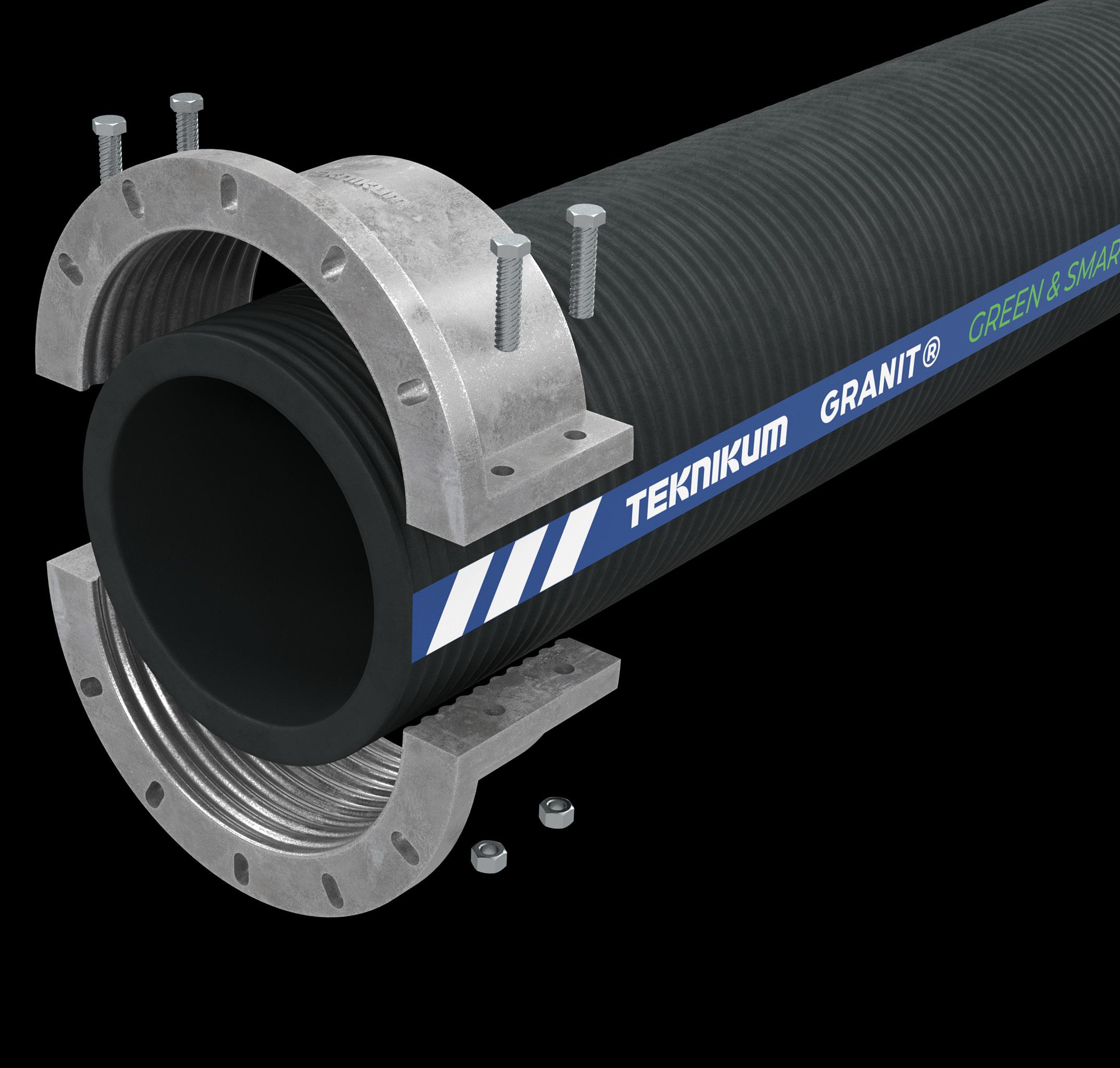

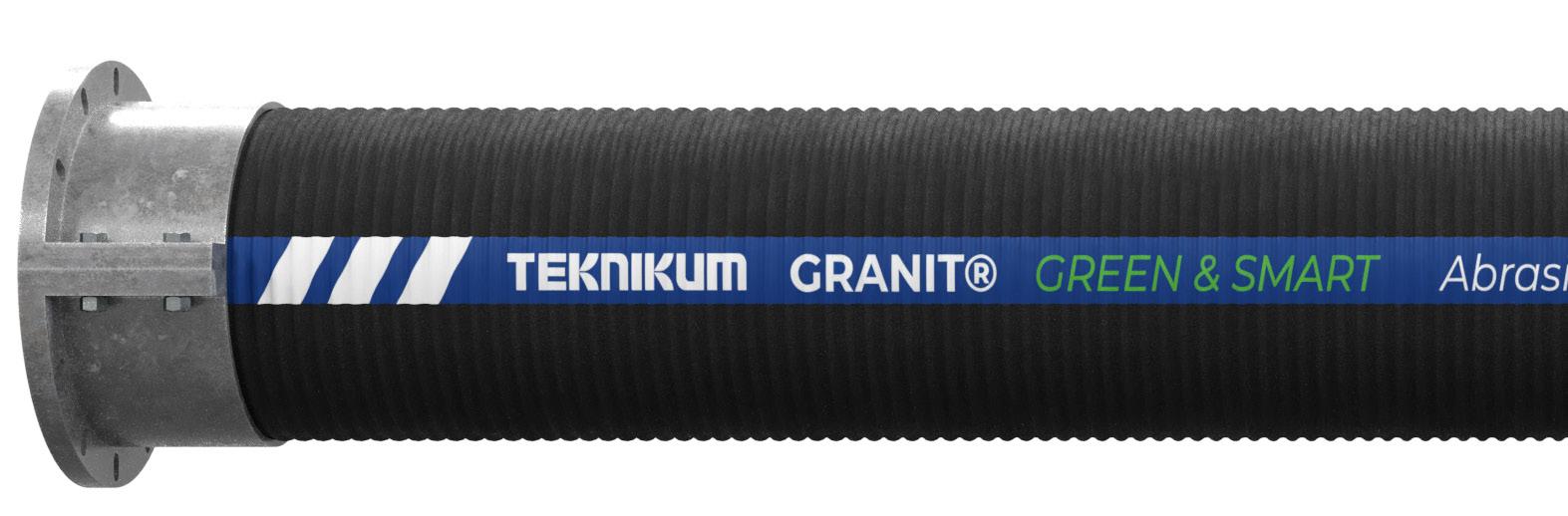

This compound is designed for Teknikum GRANIT®, TITAN and CARBON hose series.

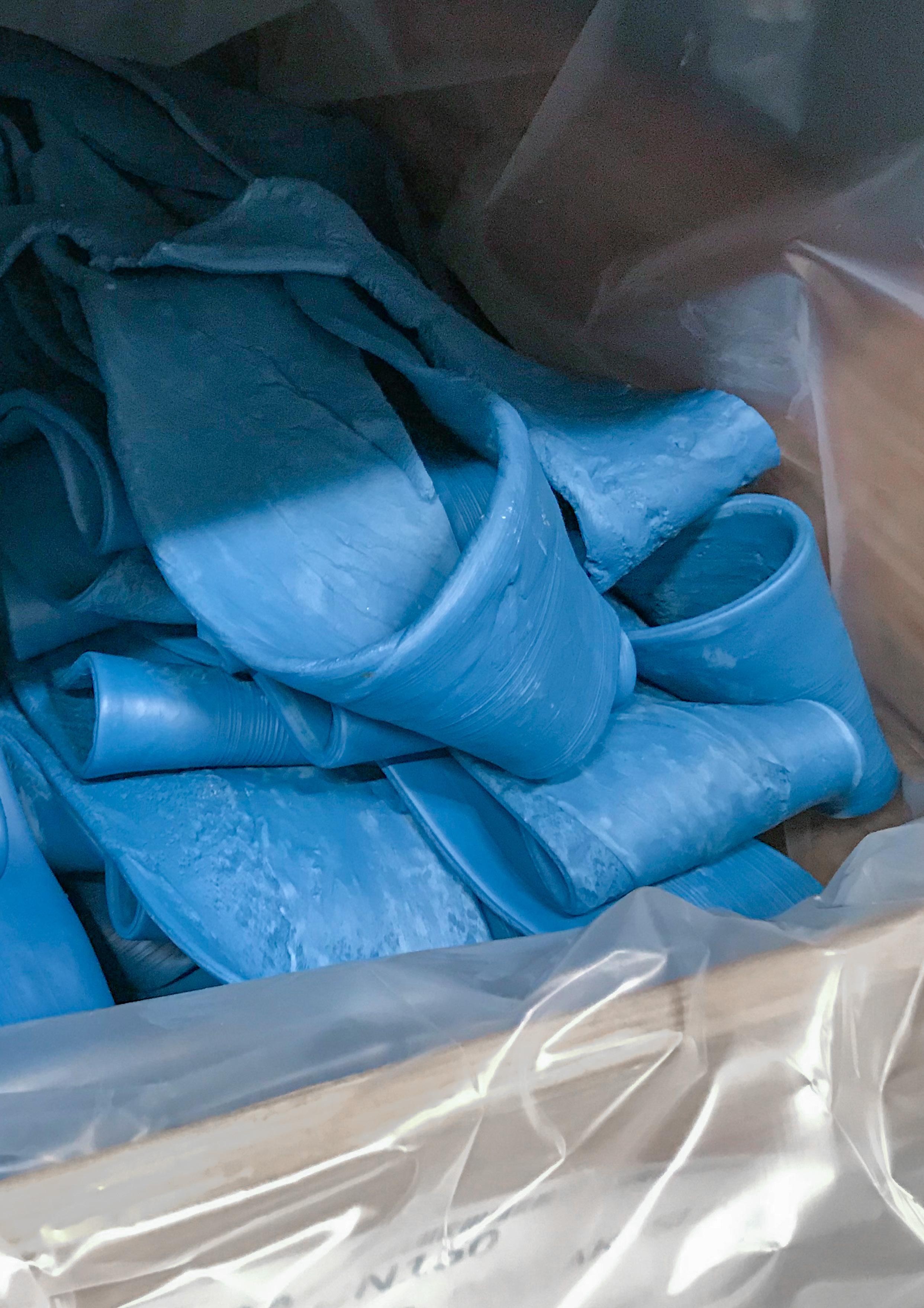

Teknikum ChemicalSafe™ EPDM blue
This blue EPDM based rubber compound is flame retardant, chemical resistant, safe and suitable for moderately corrosive chemicals such as alkalis, ketones, alcohols and acids.
This compound is used for Teknikum MULTI-TEK® SD UPE Clean, FOOD-TEK D Clean.
Teknikum ChemicalSafe™ EPDM black antistatic
This black EPDM based rubber compound is antistatic, flame retardant, chemical resistant, safe and suitable for moderately corrosive chemicals such as alkalis, ketones, alcohols and acids.
This compound is used for Teknikum CHEMO-TEK® SD EPDM and MULTI-TEK® series.
Teknikum® Rubber Compounds for Hoses Inner Lining
Teknikum WearGrey™ NR
This grey compound includes 40% renewable natural rubber material. The compound is highly durable and suitable for abrasive materials. Compared to our light NR compound, Teknikum WearGrey™ NR is more tear resistant and long-lasting in applications including transferring sharp materials. This compound is not antistatic.
This inner lining compound is designed for Teknikum GRANIT®, TITAN and CARBON series.
Teknikum WearLight™ NR renewable
This brown/multicolor compound includes 80% renewable natural rubber material. The compound is highly durable and suitable for abrasive materials. This compound is not antistatic.
This inner lining compound is designed for Teknikum GRANIT®, TITAN and CARBON hose series.
Teknikum WearBlack™ SBR antistatic
This black compound includes 10% renewable natural rubber materials. The compound is antistatic, highly durable and suitable for abrasive materials.
This inner lining compound is designed for Antistatic versions of Teknikum GRANIT®, TITAN and CARBON hose series.
Teknikum FoodSafe™ NR
This white compound is designed for conveying non-oily food materials and milk. It is EU, FDA and BfR approved. The compound includes 35% renewable natural rubber materials and as such it is very durable. The compound is developed for high hygienic requirements and food contact applications. This compound does not transfer any odor or taste to transported foodstuffs.

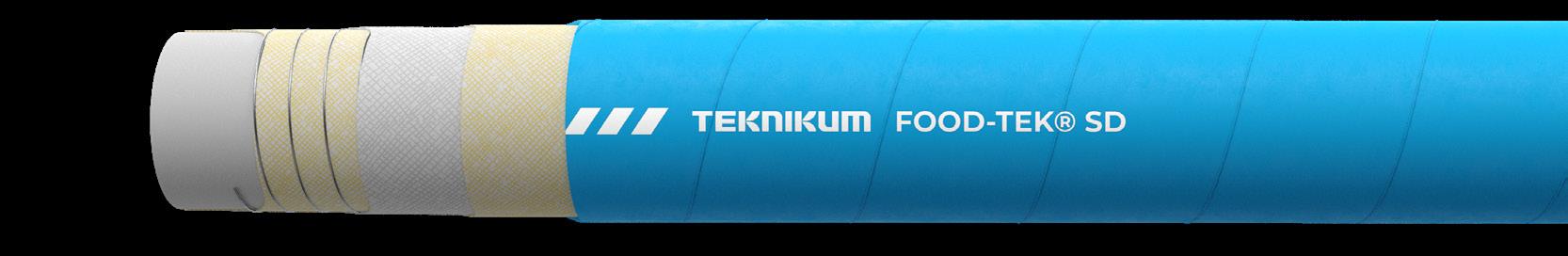

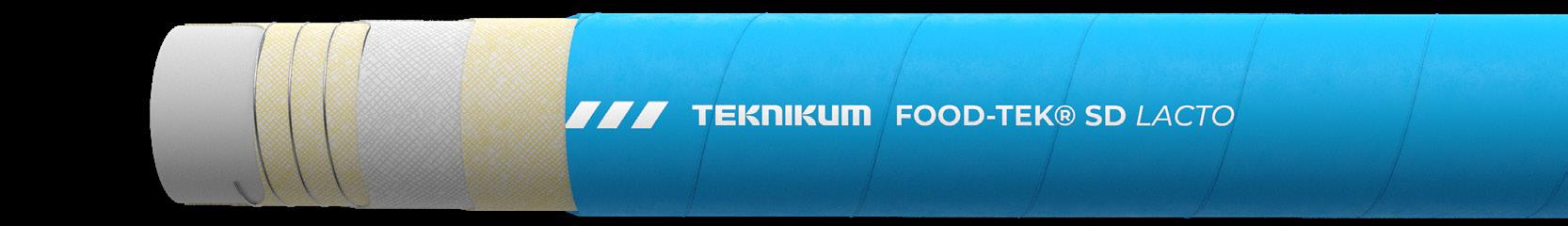

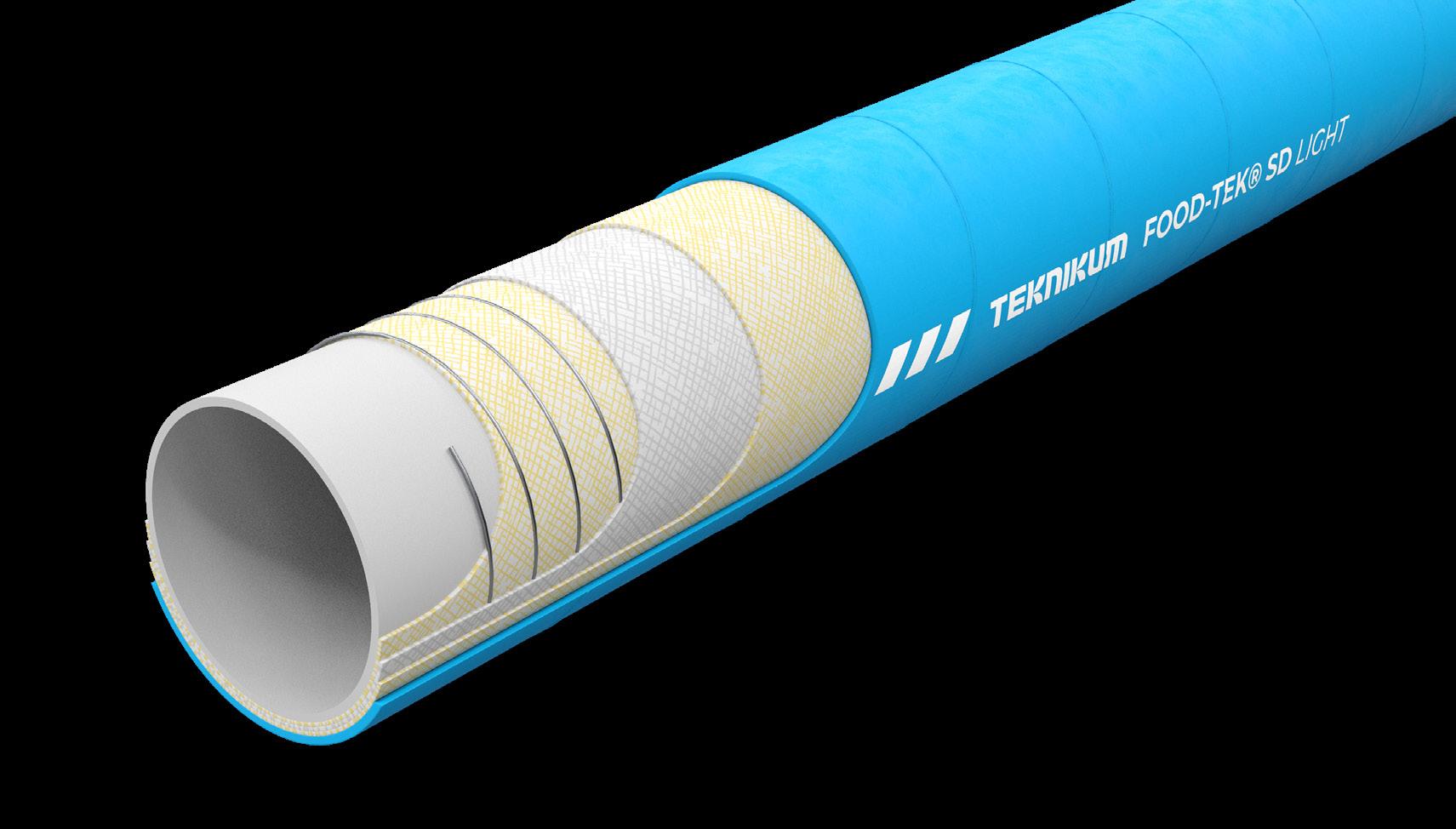

This inner lining compound is used for reelable Teknikum FOOD-TEK® SD and Teknikum FOOD-TEK® SD Light hoses.

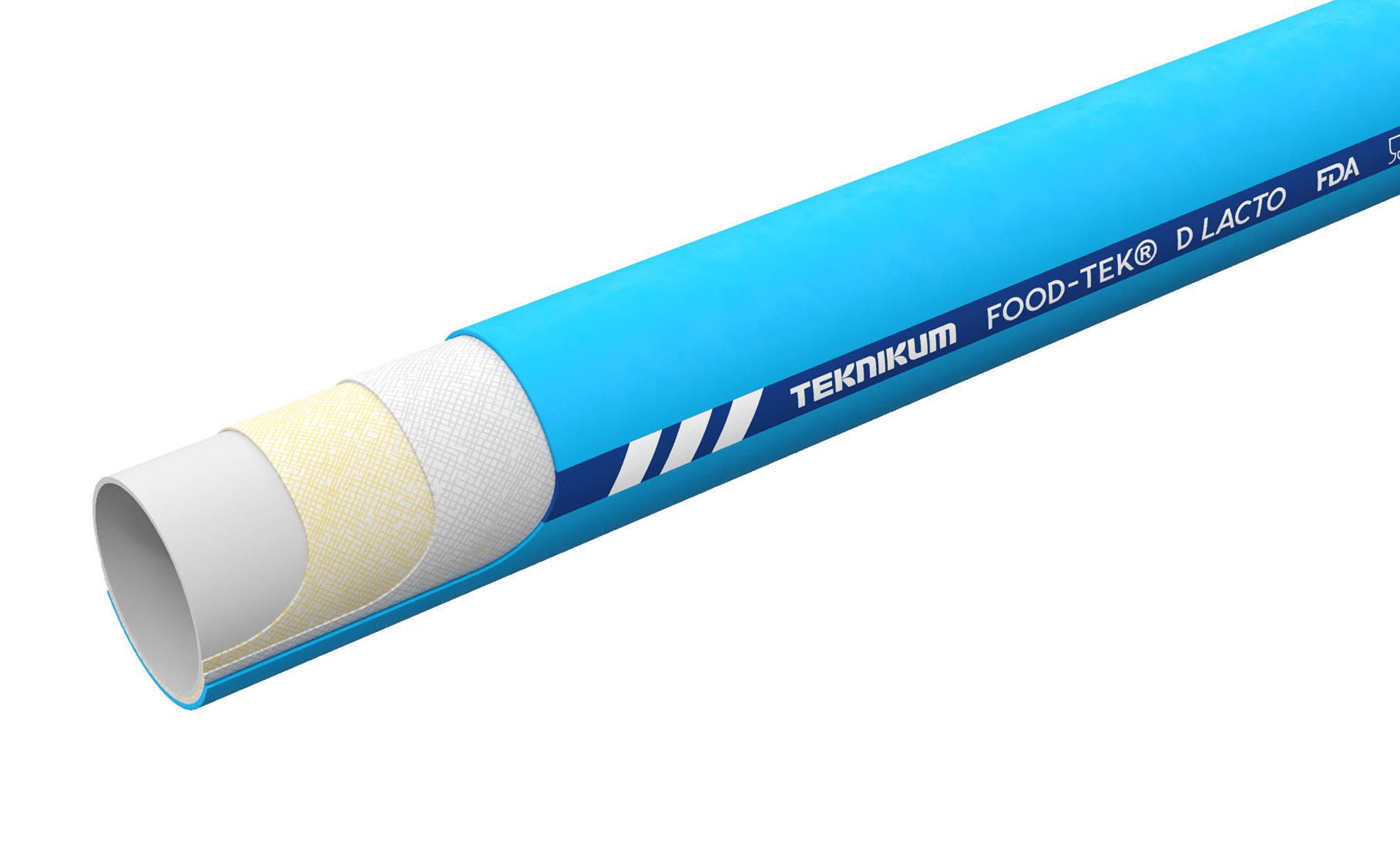

Teknikum FoodSafe™ NBR
This white NBR based rubber compound is hot water and oil resistant. It is also EU, FDA and BfR approved. The compound is developed for high hygienic requirements and food contact applications, especially for fatty foodstuffs and milk transferring. This compound does not transfer any odor or taste to transported foodstuffs.

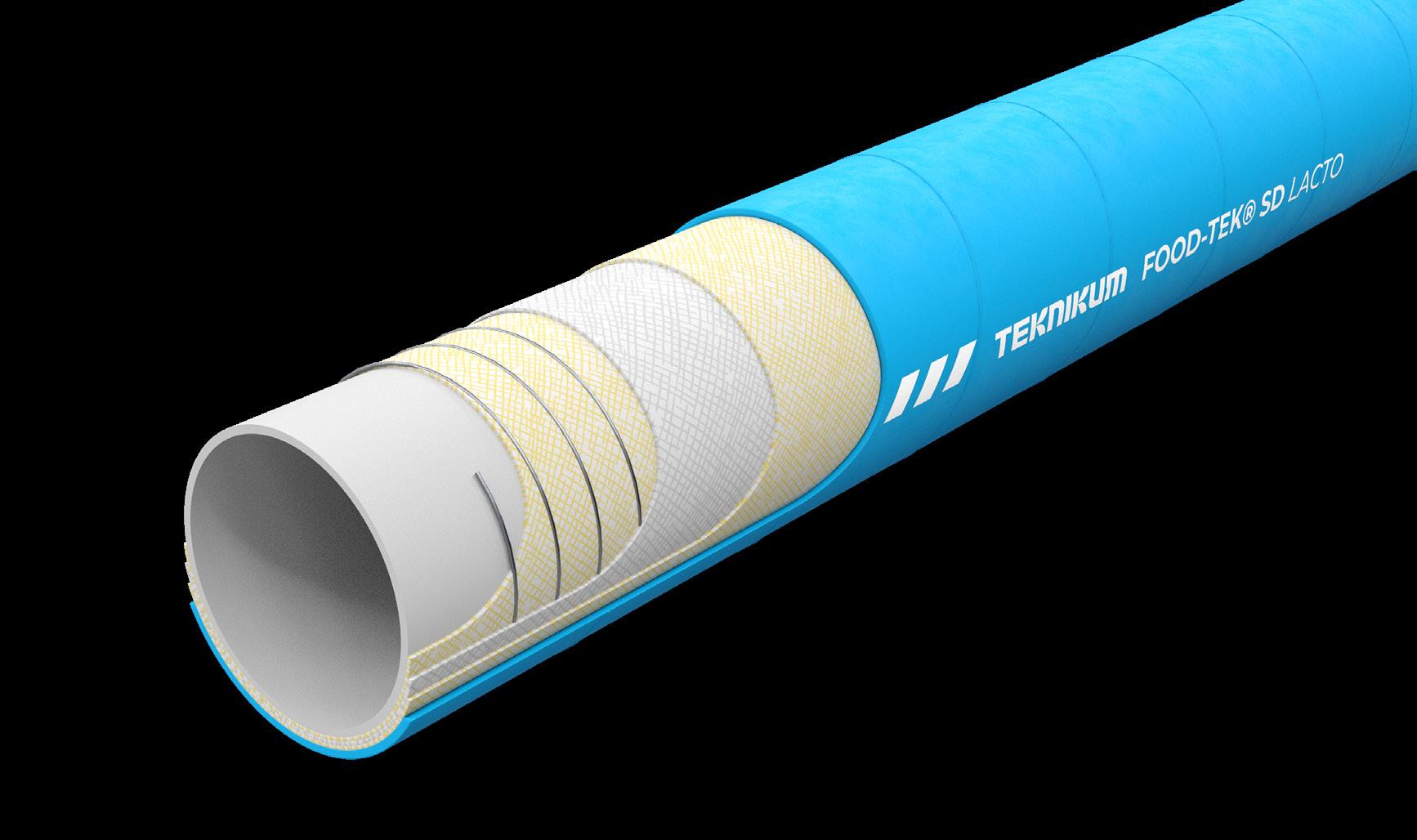

This inner lining compound is used for Teknikum FOODTEK® D Lacto and Teknikum FOOD-TEK® SD Lacto.
Teknikum FoodSafe™ EPDM
This white EPDM based rubber compound is hot water and chemical resistant. The compound is FDA approved. It’s developed for washing and cleaning purposes in the food industry.
This inner lining compound is used for Teknikum FOODTEK® D Clean.
Teknikum ChemicalSafe™ EPDM
This black EPDM based rubber compound is chemical resistant, safe and suitable for moderately corrosive chemicals such as alkalis, ketones, alcohols and acids.
This inner lining compound is used for Teknikum CHEMOTEK® SD EPDM and for Teknikum PAVE™ air and water hose series. It’s also used for the middle structure of Teknikum MULTI-TEK hoses.
Teknikum ChemicalSafe™ NBR
This black NBR based rubber compound is oil resistant, safe and suitable for gasoline, diesel oil and oil mixed water.

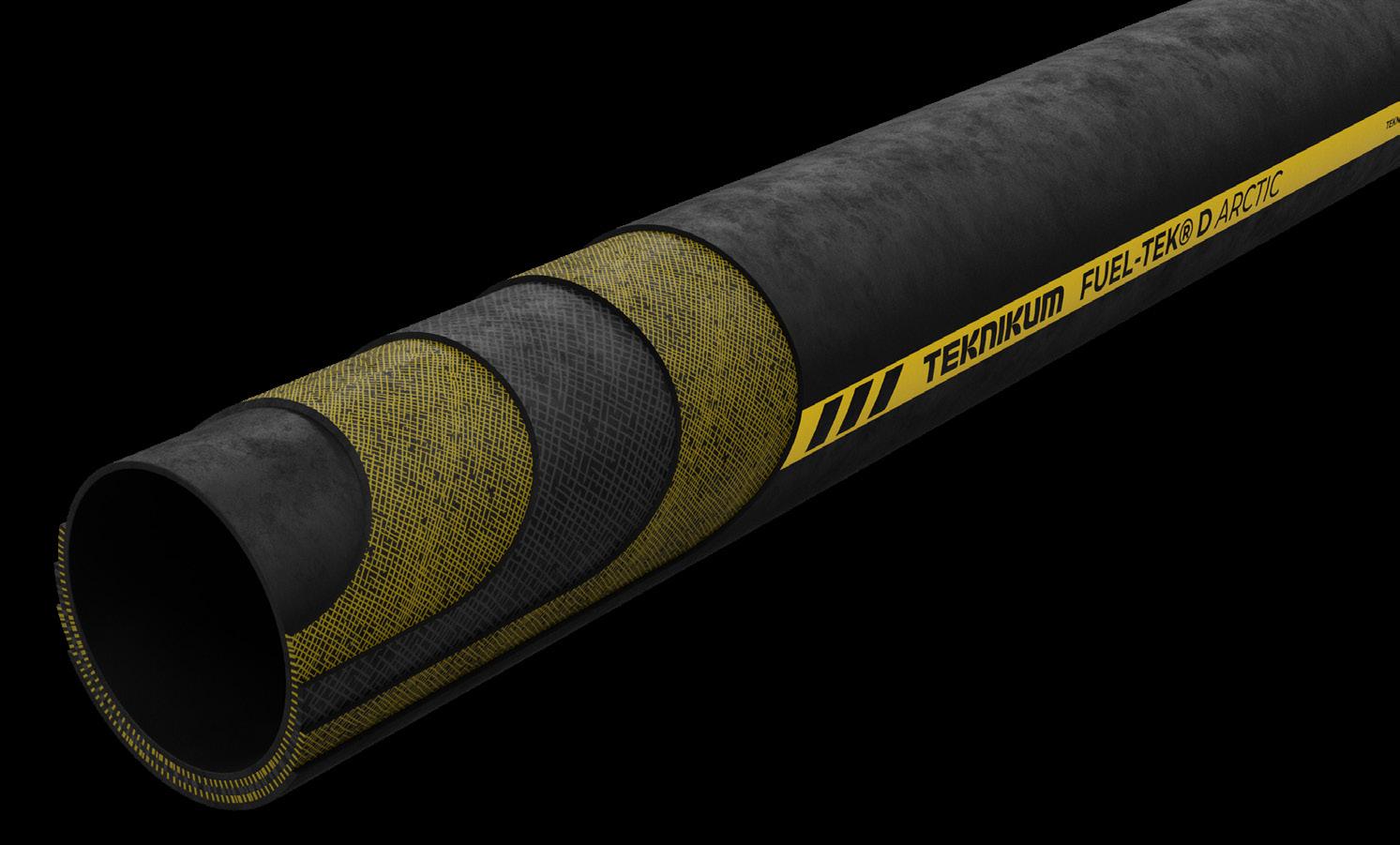

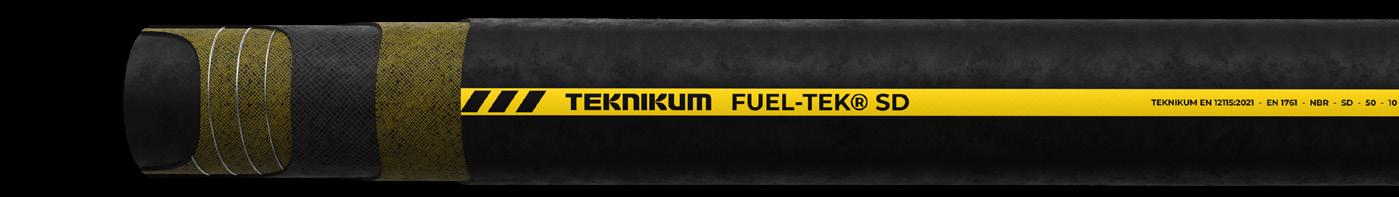

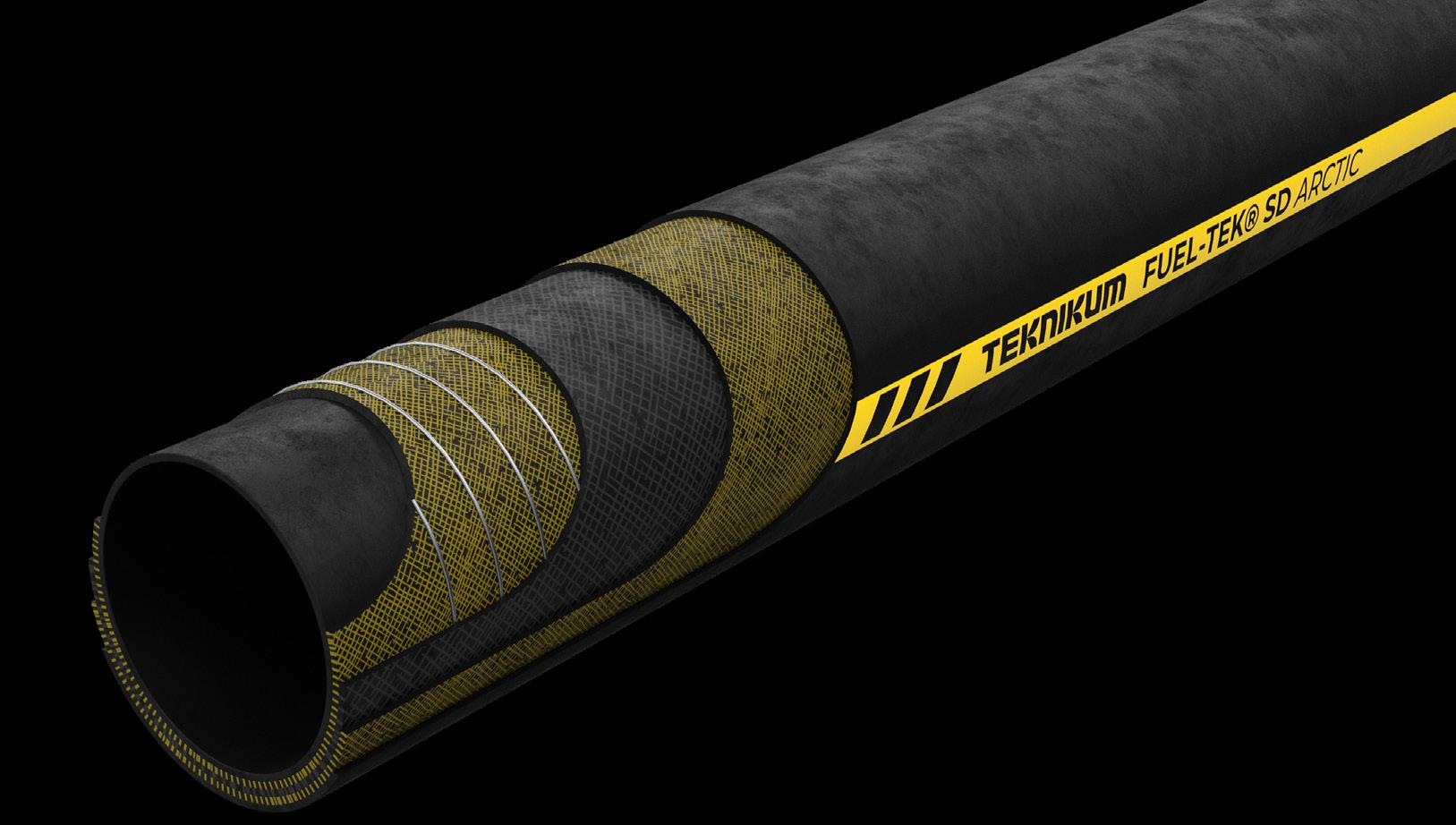

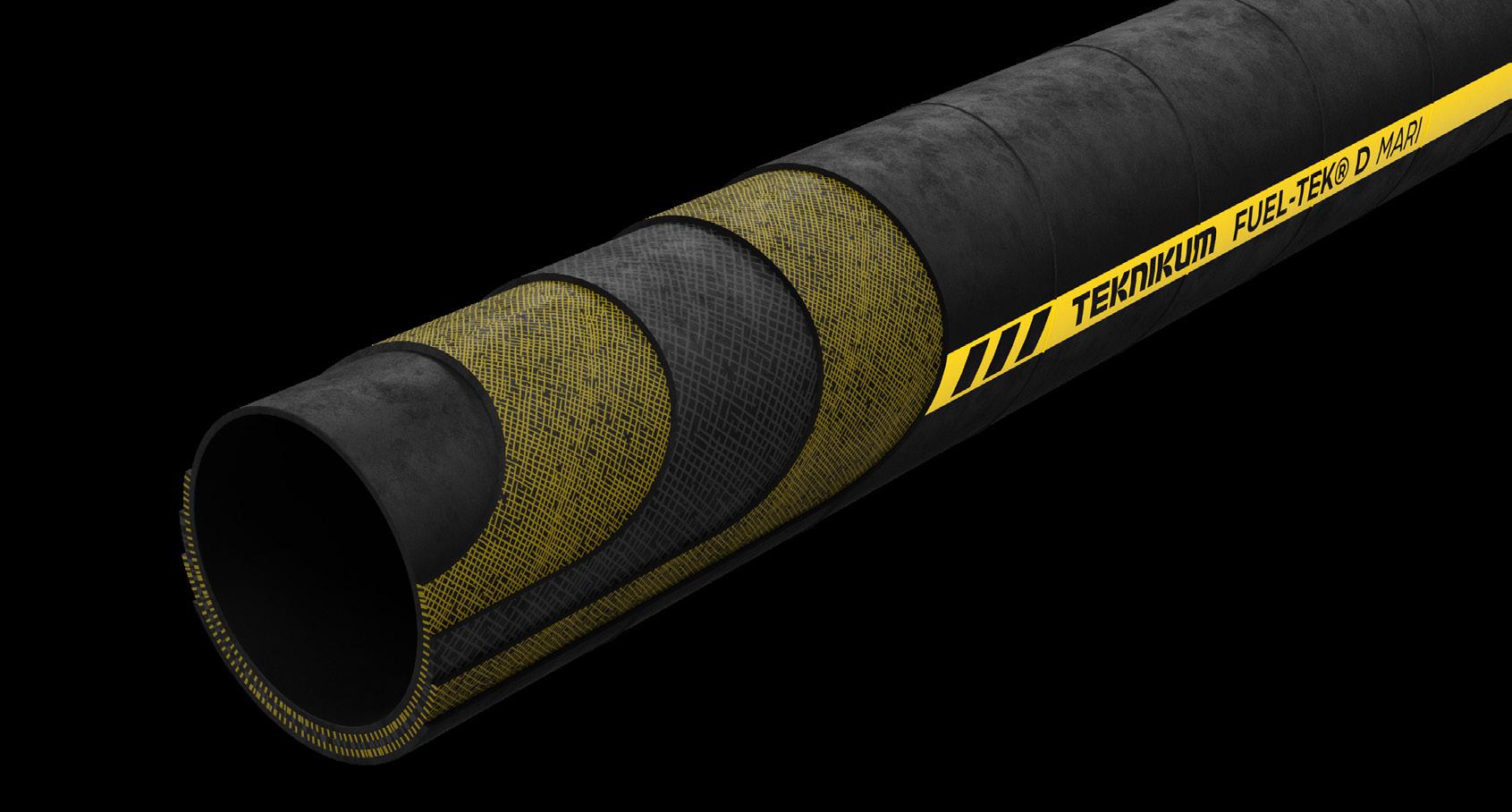

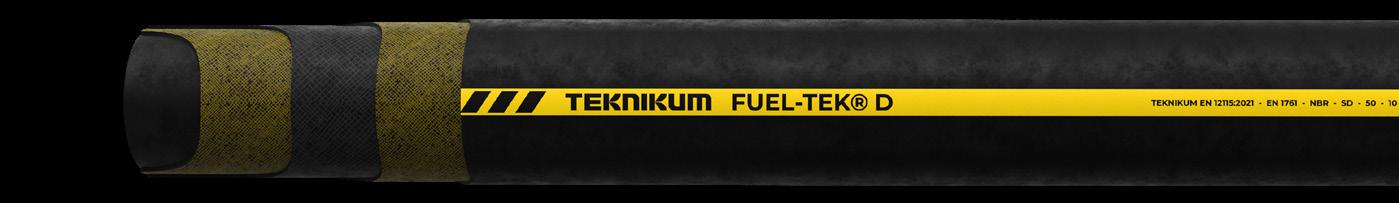

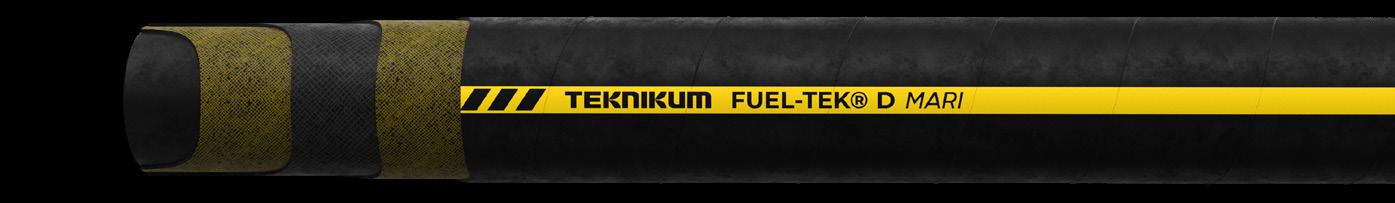

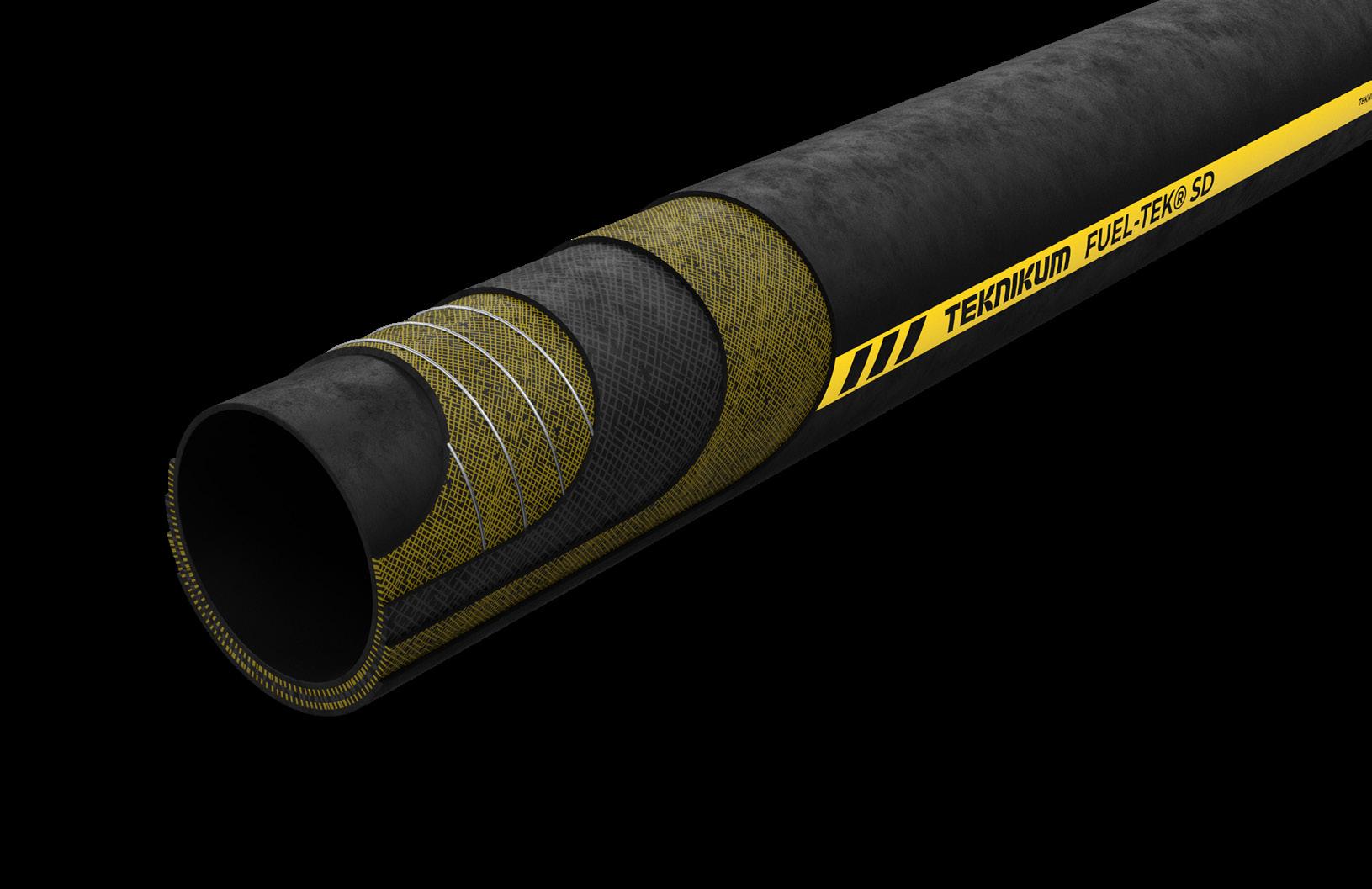

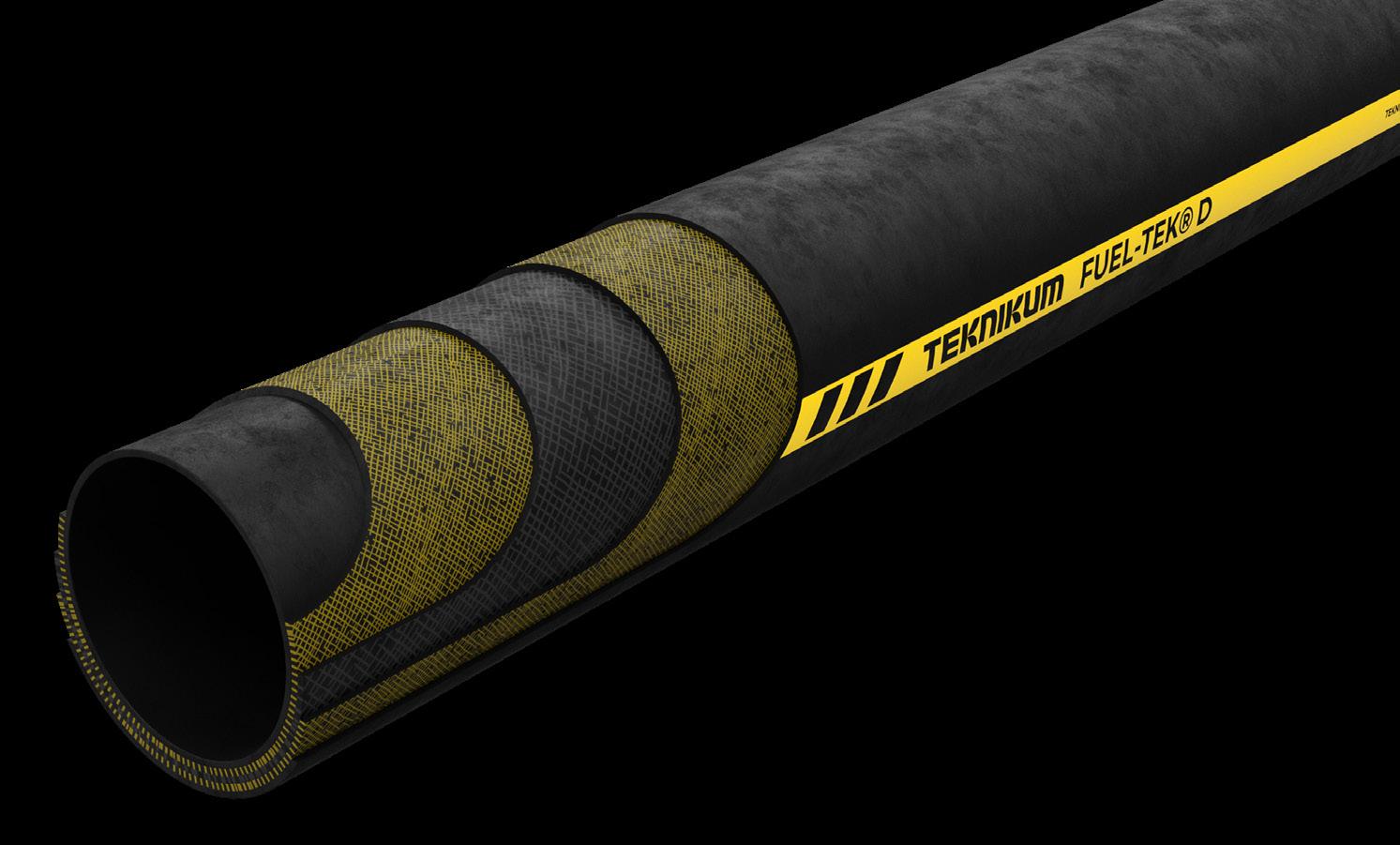

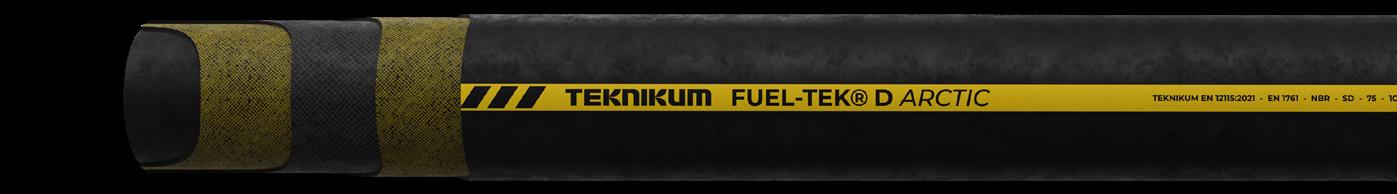

This inner lining compound is used for Teknikum FUEL-TEK® hose series.
11
How to select a hose?
In most situations it is easy choose the right industrial hose because a use application or some other feature (e.g. transferred material) defines the hose and a standard guides to the right solution.
When no suitable hose is available in standard product range or the use application is special, several hose properties must be considered.
Please go through following check list.
Our sales will help you to select the right, safe and durable hose solution: sales@teknikum.com.
1. Transferred substance?
• state of the substance?
• concentration?
• temperature?
€To be sure, please send us the chemical’s safety data sheet for review and possible lab testing.
You can send it via our website’s suitability inquiry
2. Working pressure and/or vacuum?
Select hose type S, SD, or D accordingly.
S= Suction hose
SD = Suction delivery hose
D = Delivery hose
3. Dimensions?
• inner diameter?
• outer diameter?
• length?
4. Physical properties?
• weight?
• bending radius?
• bending force?
5. Electrical conductivity requirements?
Features are listed on the product datasheets.
12
6. Other requirements from operation environment?
For example, dynamic stress from machines or outer wear and tear due pulling the hose along the ground.

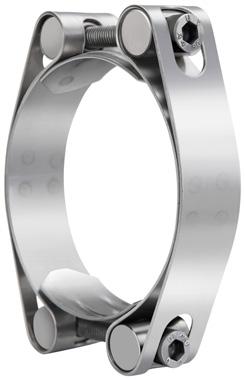

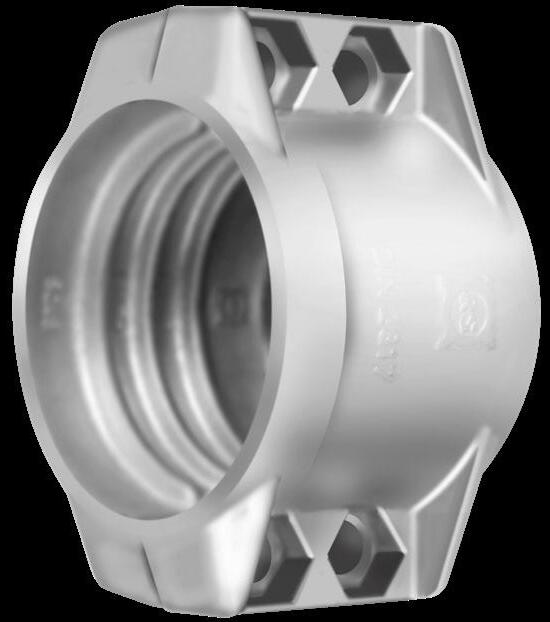

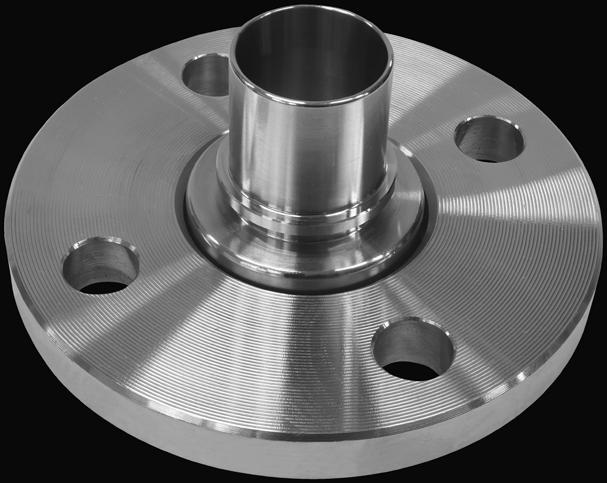

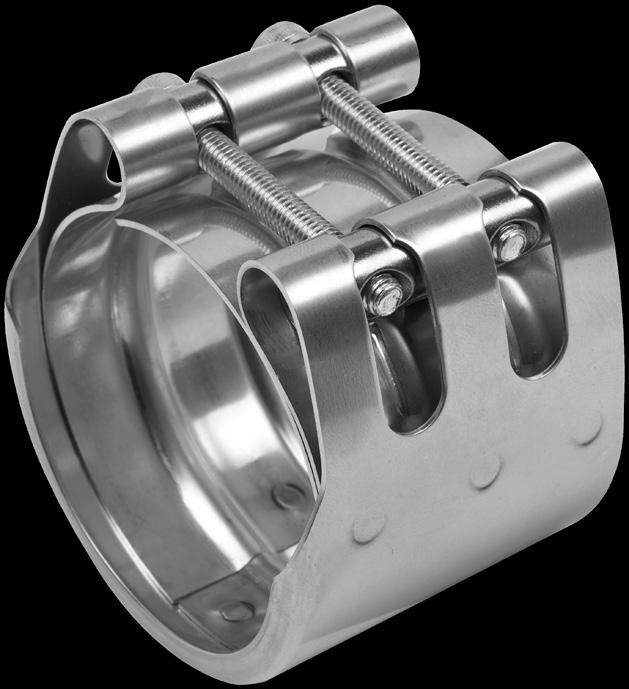

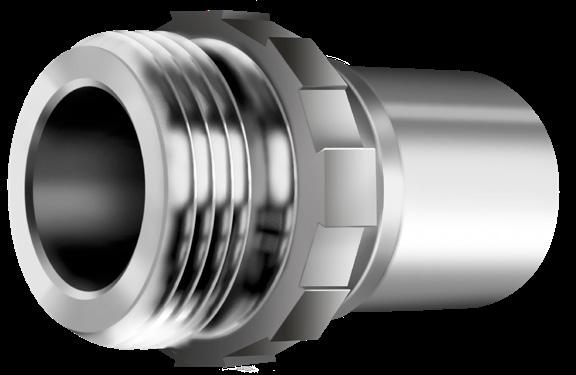

7. Hose couplings and clamps to be used?
• type?
• material?

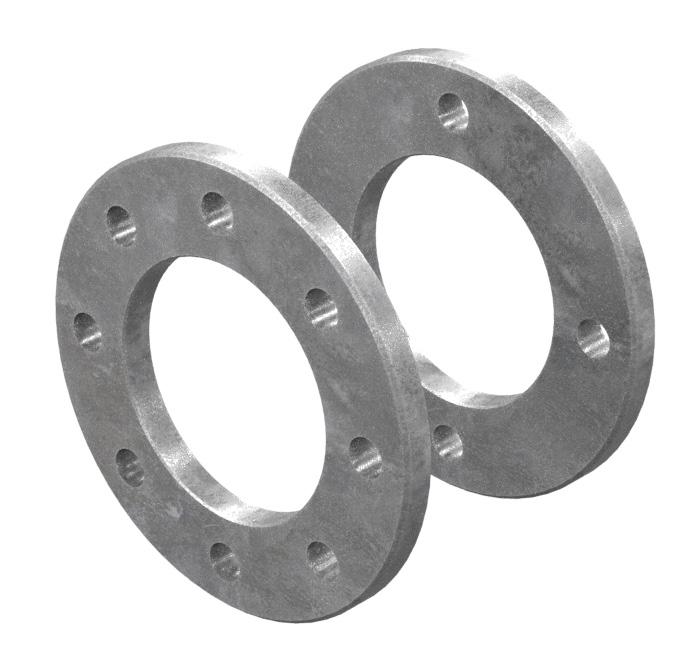

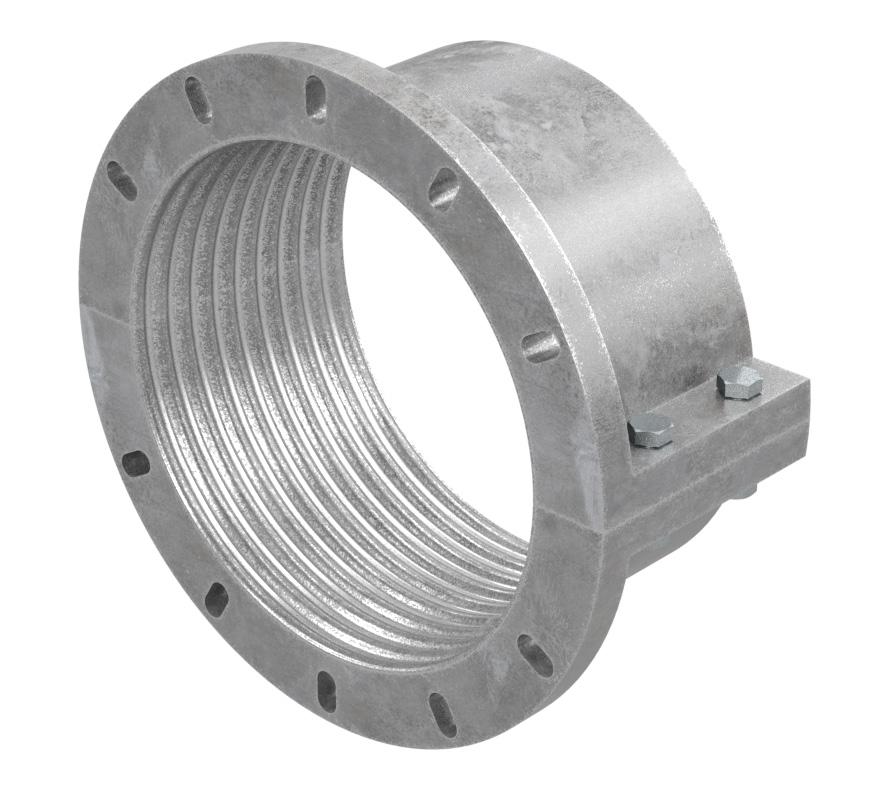

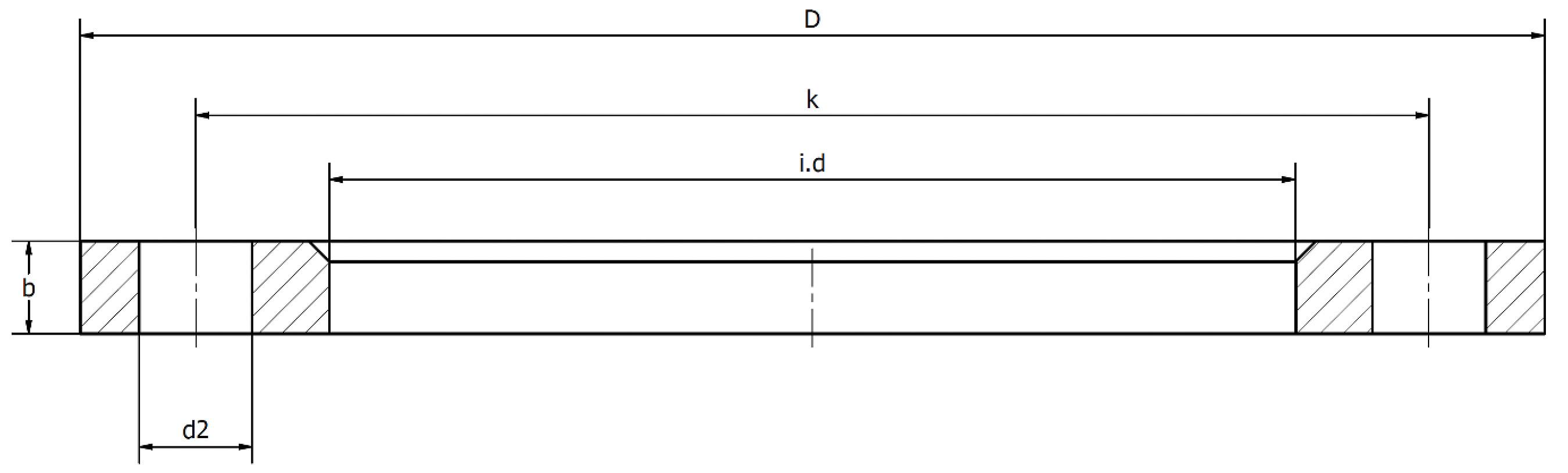

• in case of flanges, the connecting dimensions
8. Legislation, regulations, standards or other official requirements?
9. Required hose or hose assembly testing and needed documentation?
For example, pressure proof test, burst pressure test, electrical conductivity, etc.

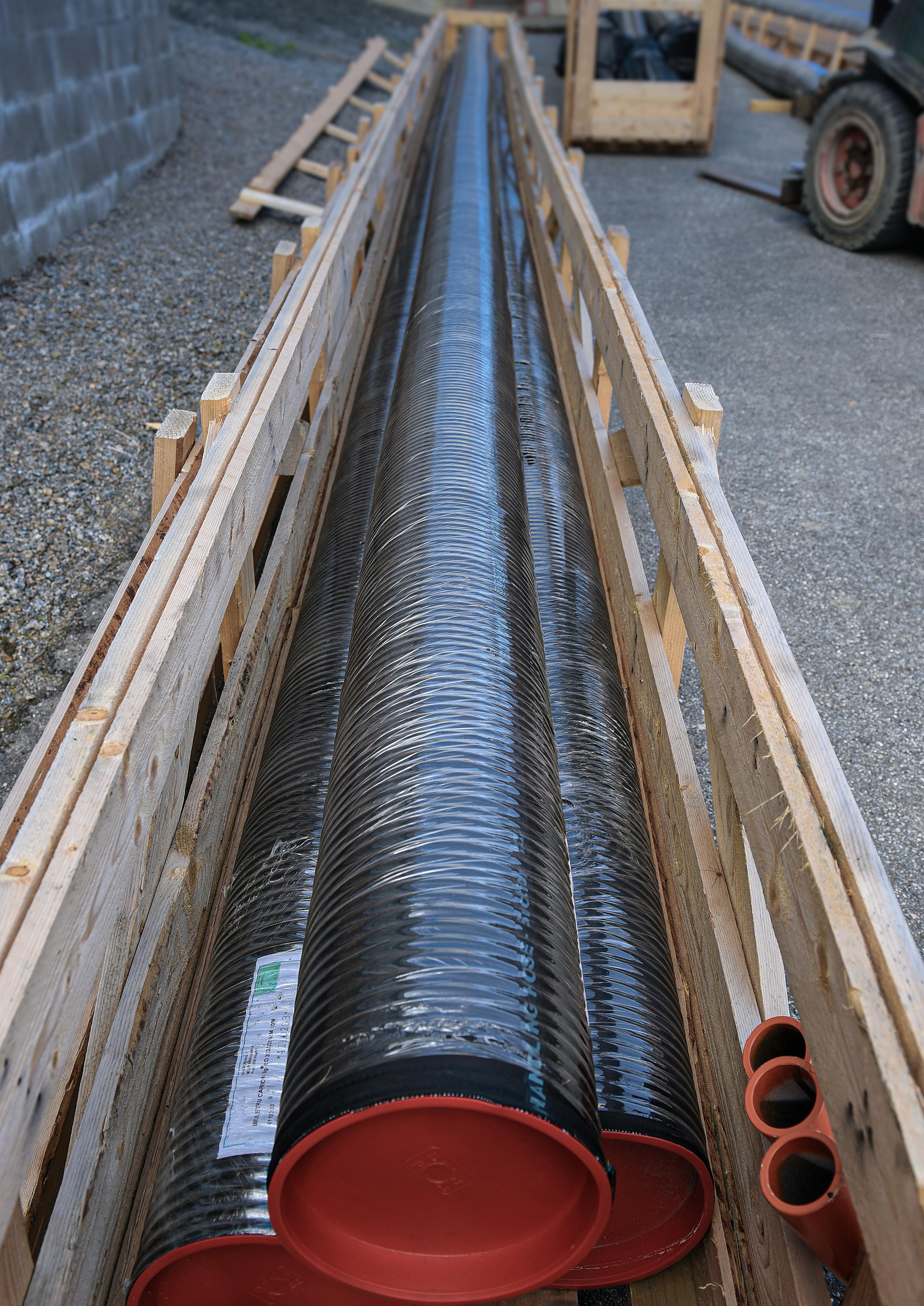

10. Packing and shipment requirements?
See our standard packaging at the end of this catalog. Teknikum® industrial hoses and services
All rights reserved. ©Teknikum Group Ltd 2021
About storage conditions
When keeping rubber hose products in storage or for maintenance operations, we highly recommend to view standard EN ISO 8331: Rubber and plastics hoses and hose assemblies – guidelines for selection, storage, use and maintenance.
13
Burst Pressure Nominal Weight Vacuum Length Inside Diameter Outside Diameter Code Working Pressure Bending Radius
Chemical
For the safe handling of chemicals according to EN 12115:2021.
Teknikum CHEMO-TEK® SD EPDM
Teknikum MULTI-TEK® D UPE

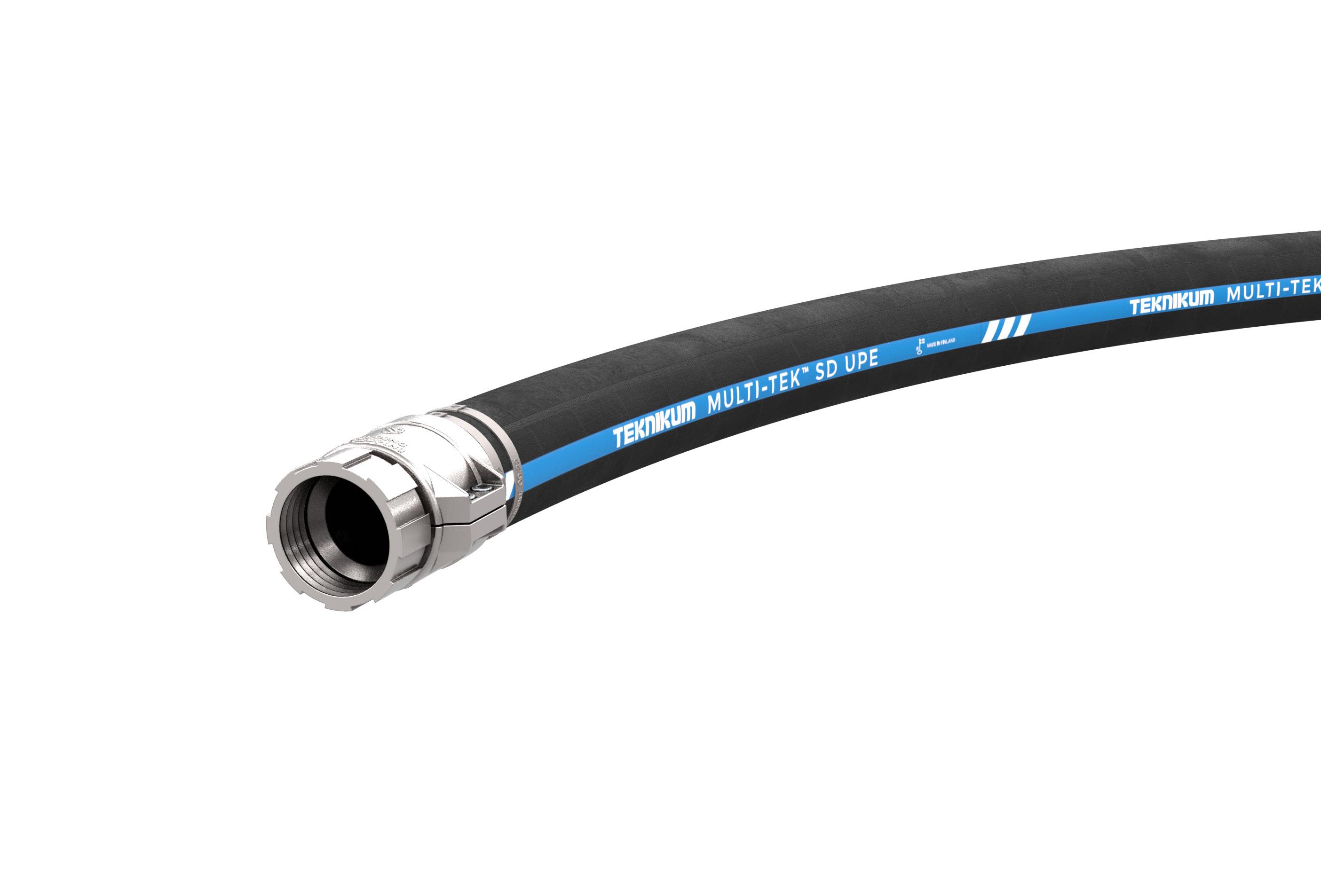

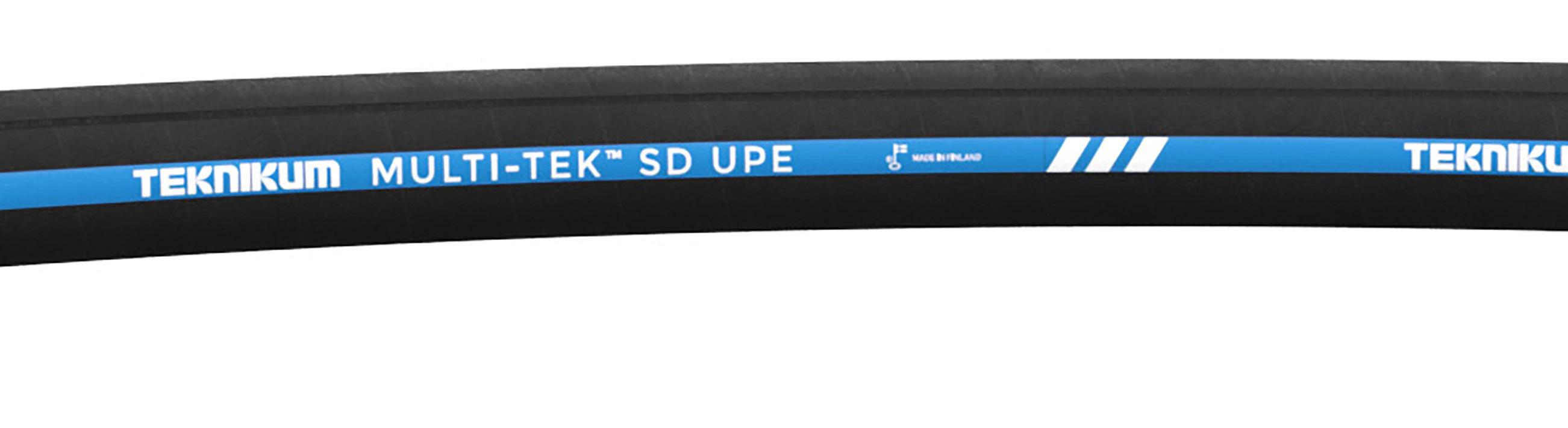

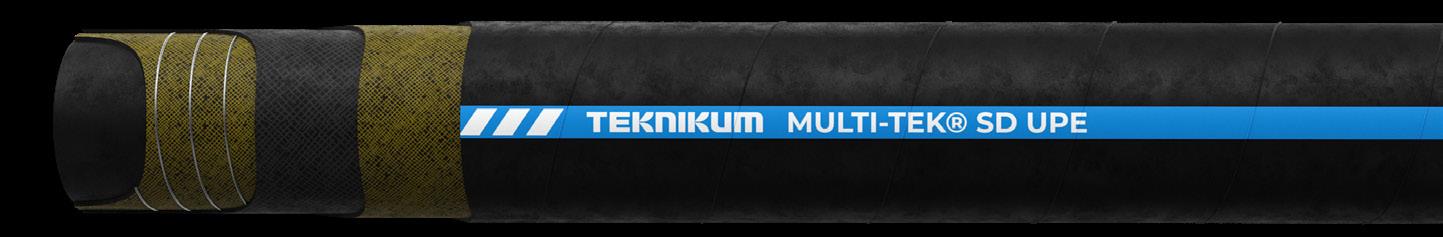

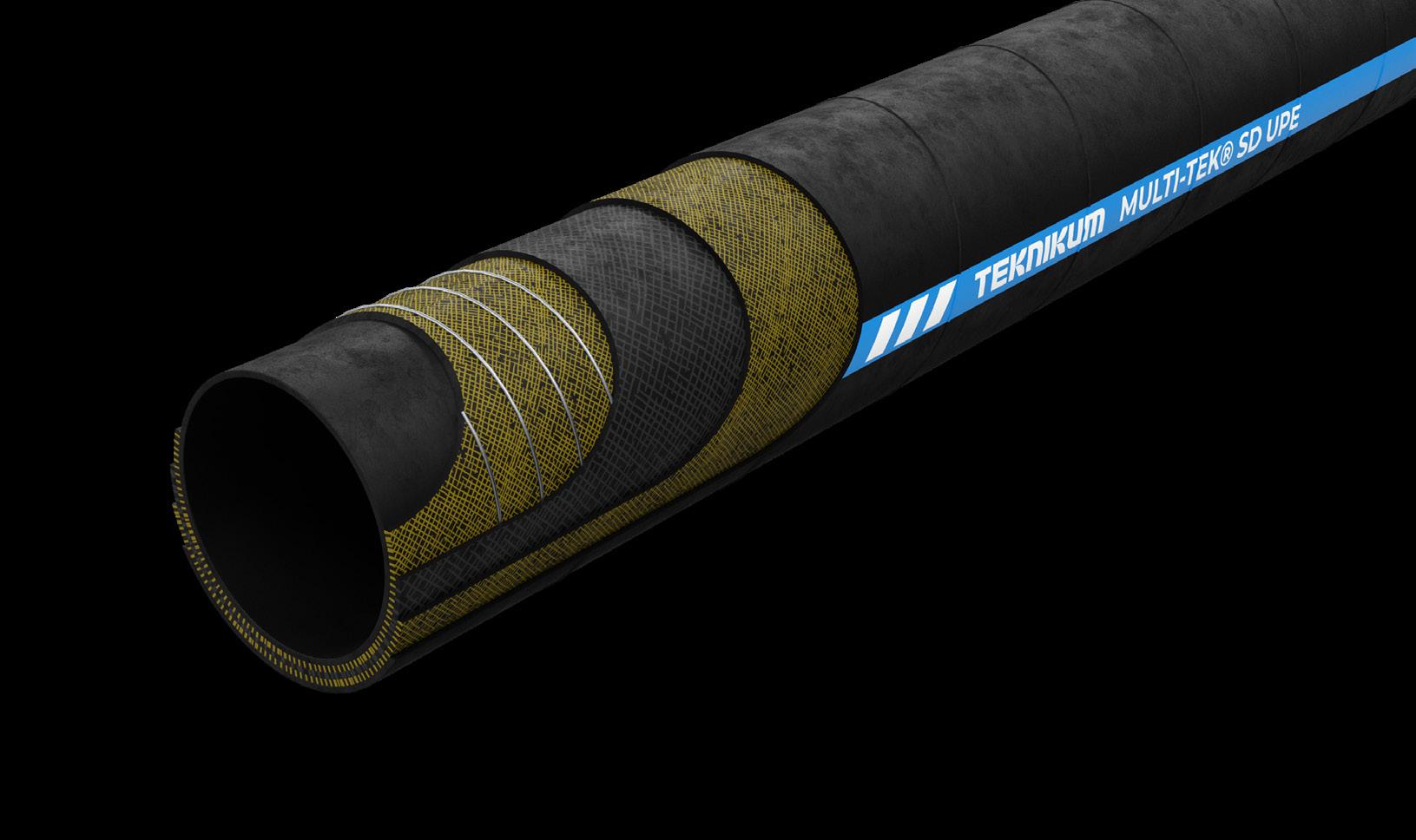

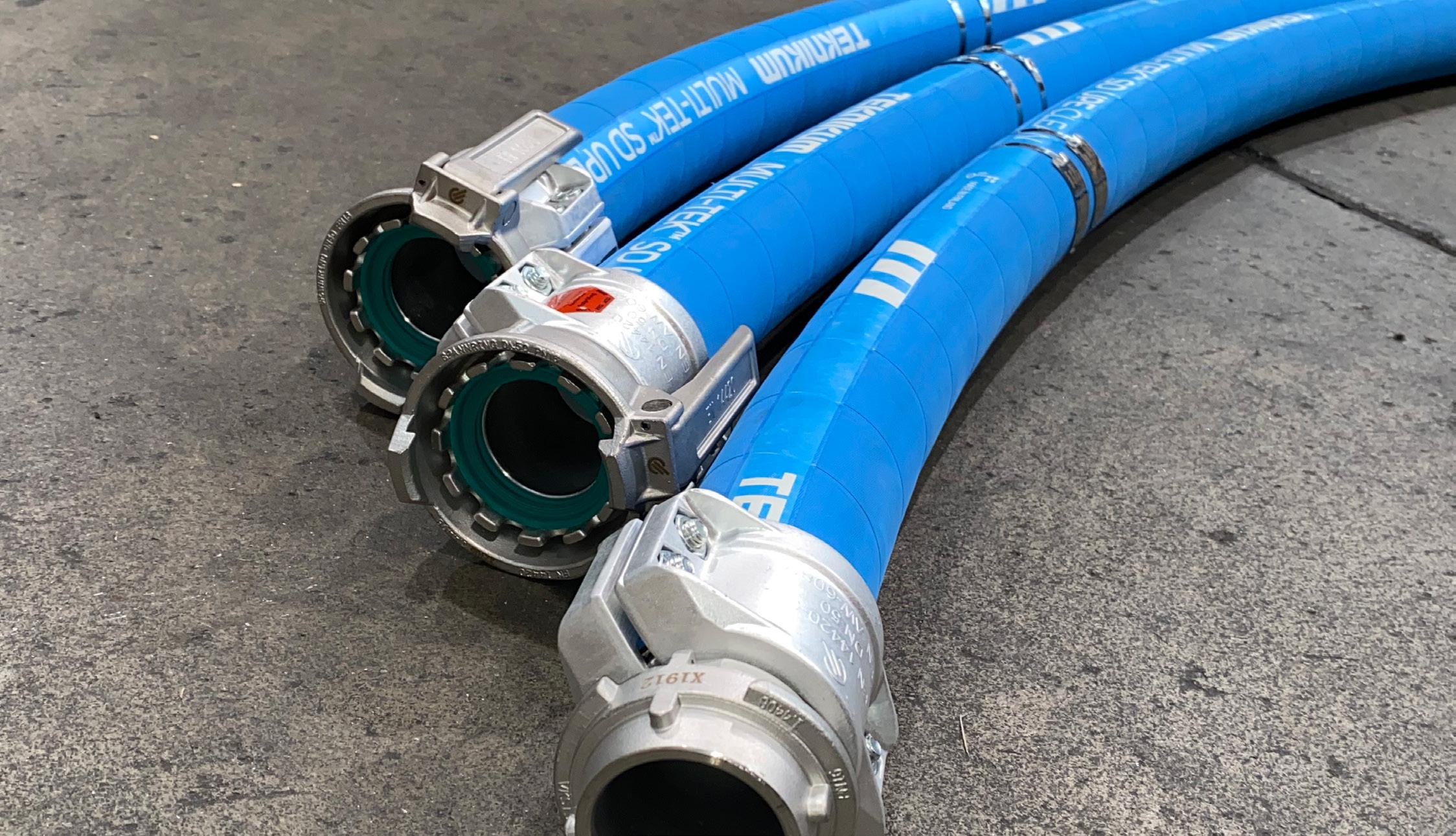

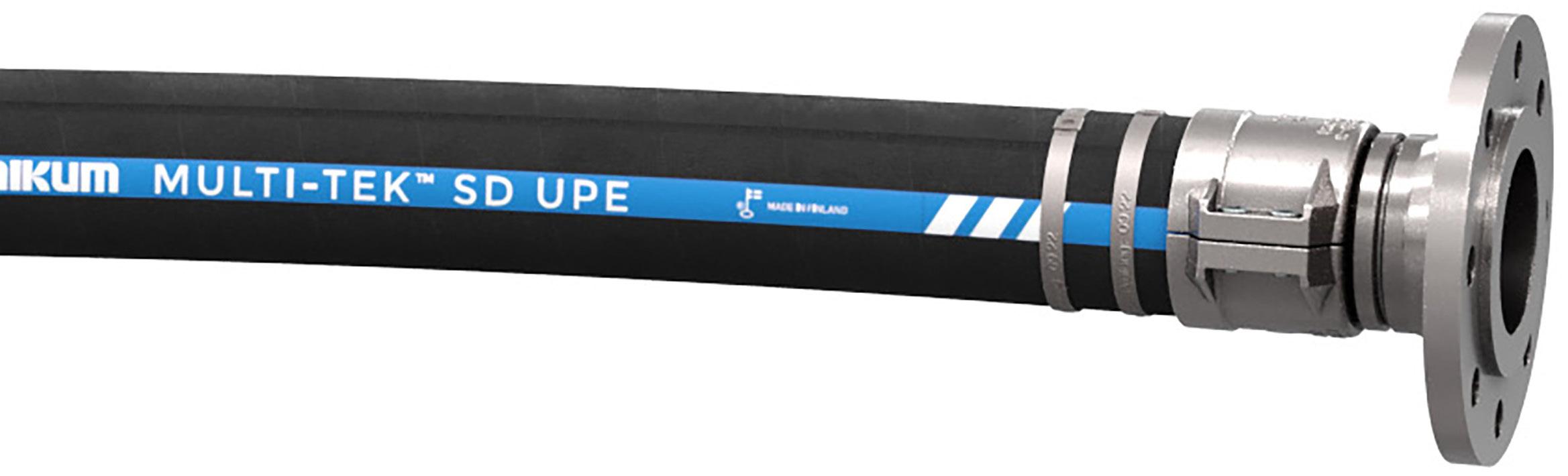

MULTI-TEK® SD UPE
MULTI-TEK® SD UPE CLEAN

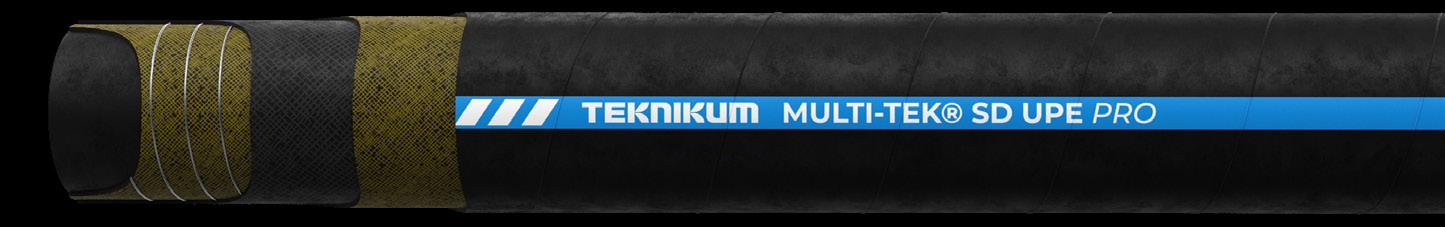

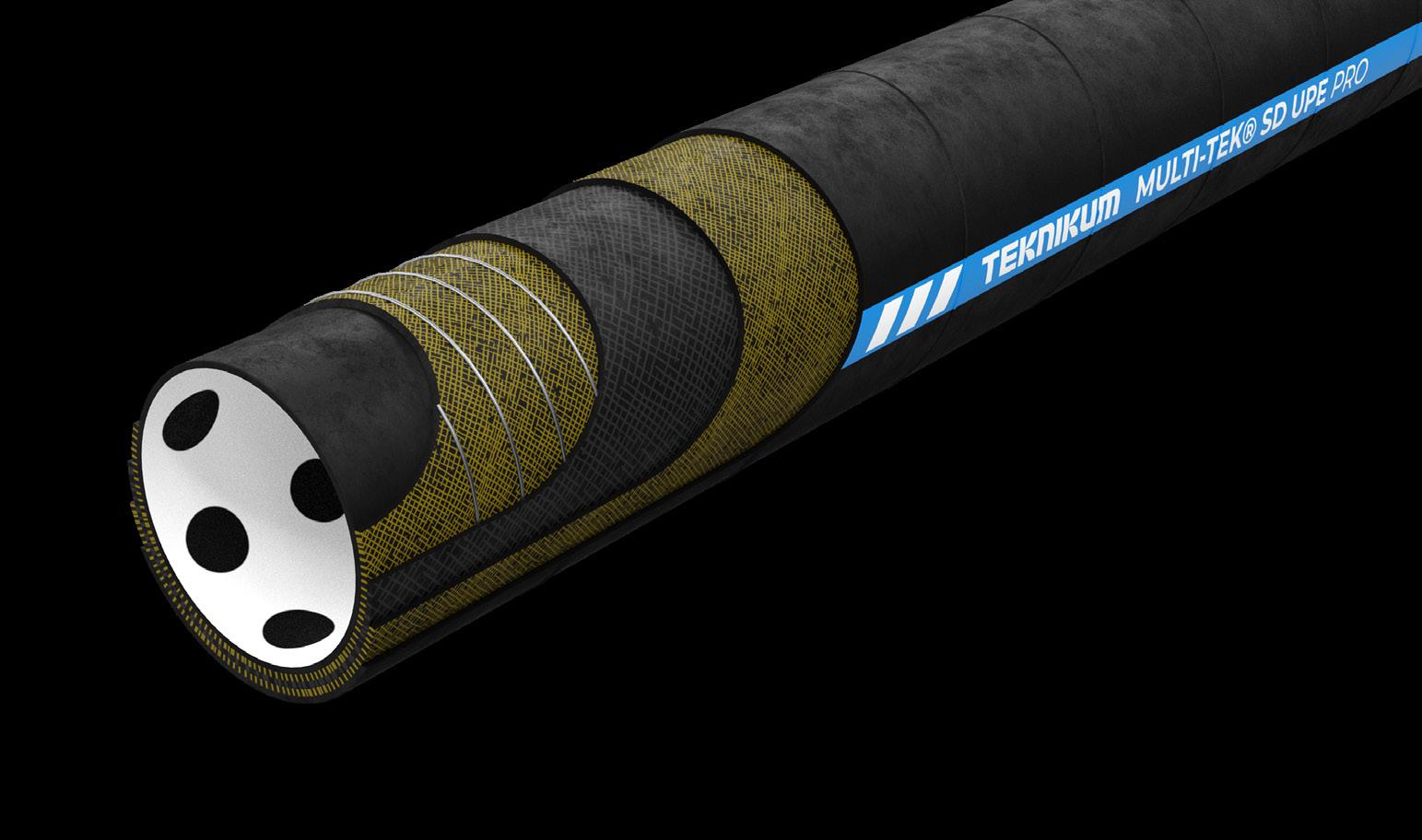

MULTI-TEK® SD UPE PRO

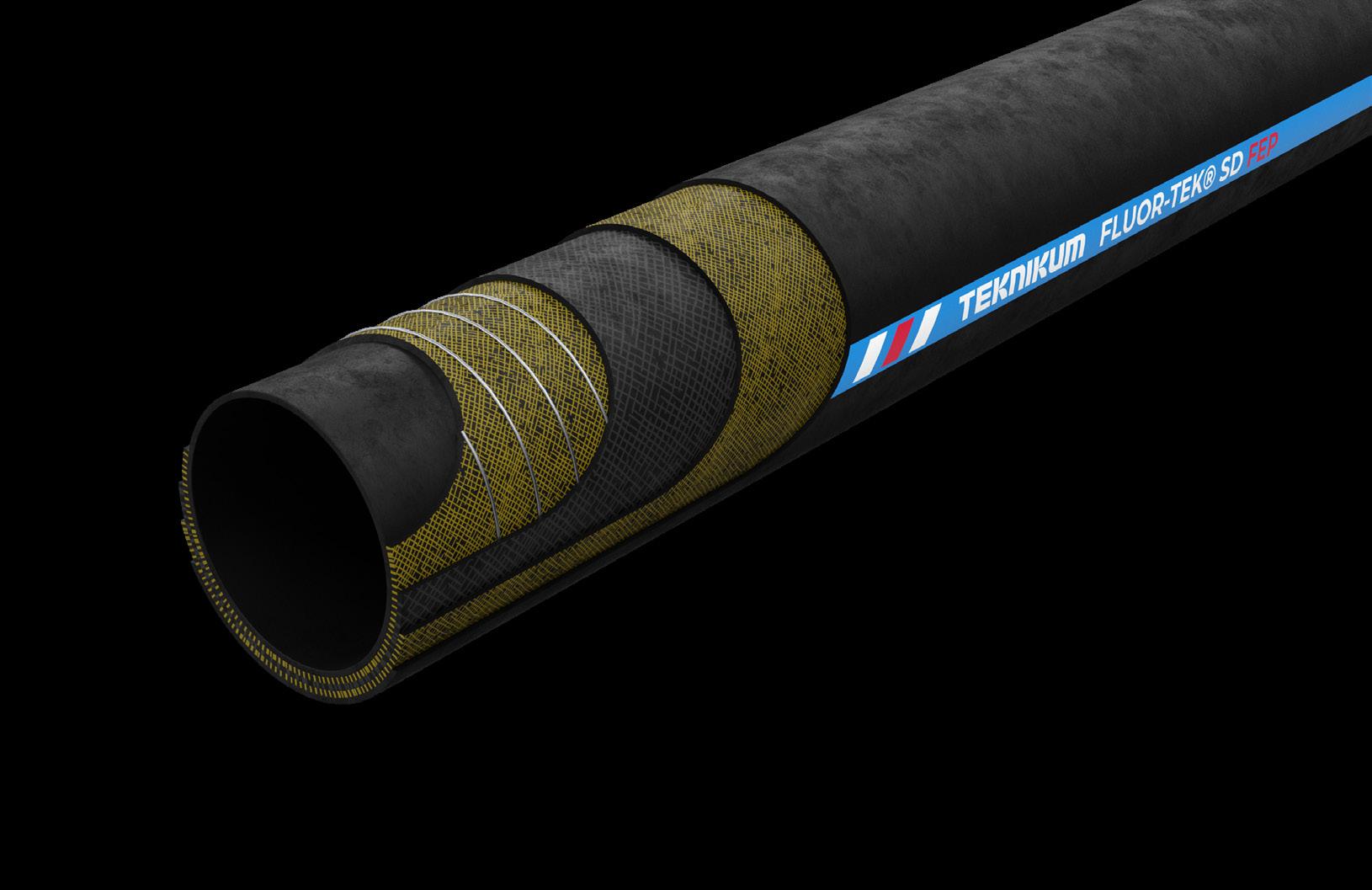

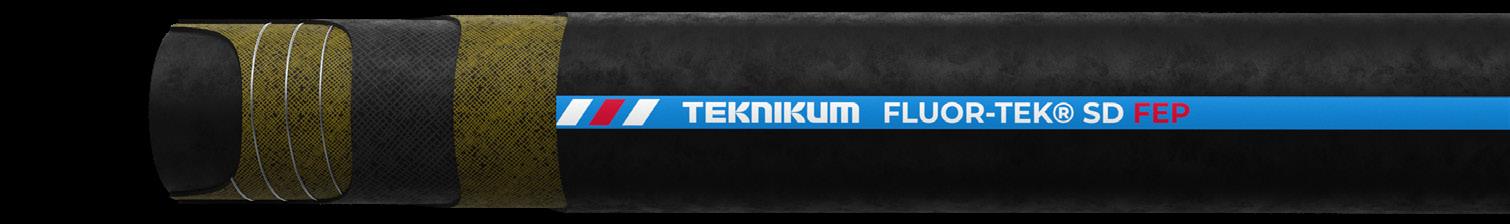

Teknikum FLUOR-TEK® SD FEP

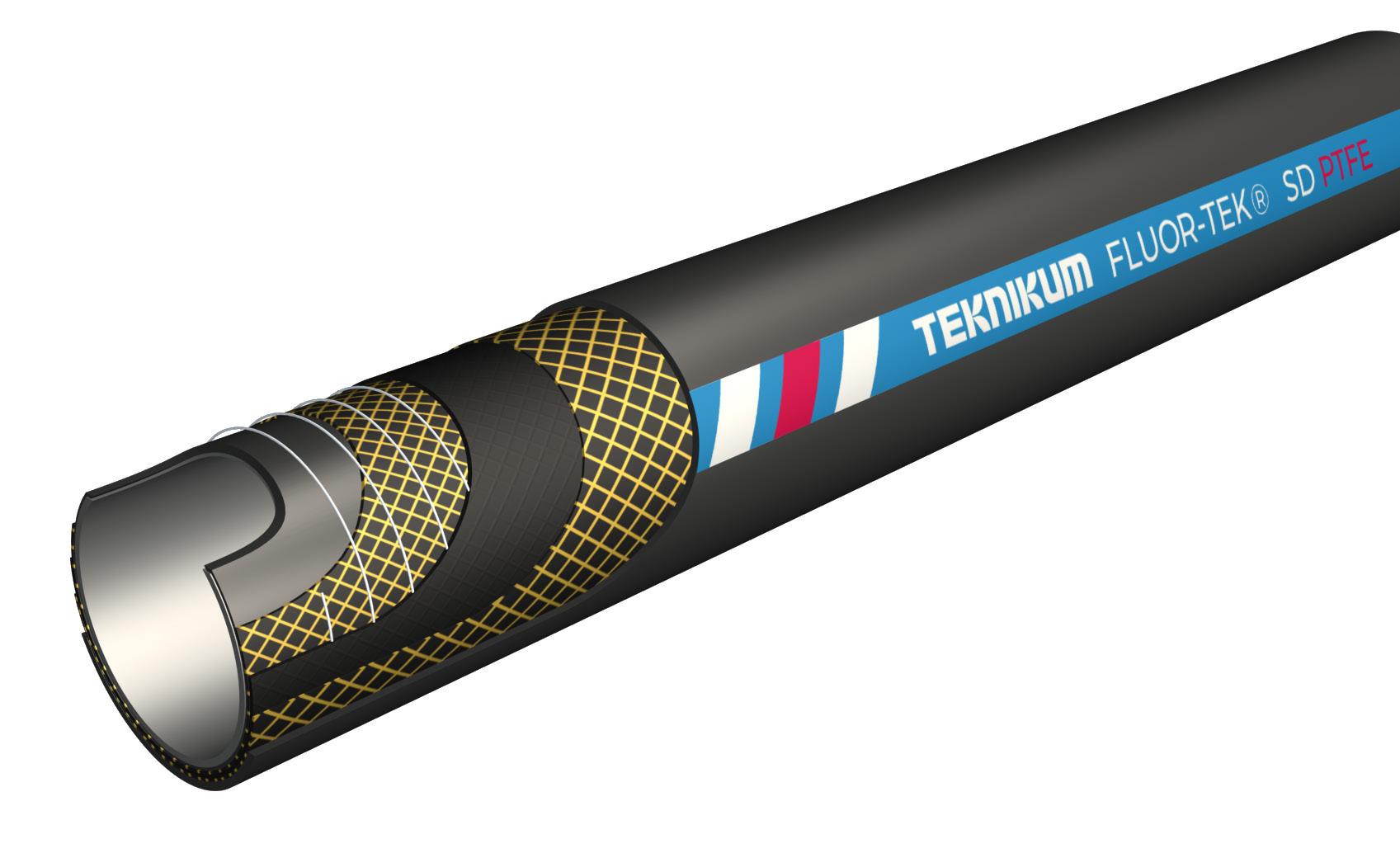

FLUOR-TEK® SD PTFE
14
“Choosing the right hose and fitting play a key role in safe hose installations.”
Martti Jokela
Director, New Business Development
Teknikum Group Ltd, Central Europe
For the safe handling of chemicals according to EN 12115:2021.
Teknikum suction and pressure hoses for chemicals comply with chemical industry standards, and cover all uses in the transfer of substances such as industrial chemicals, fuels and oils, liquid and natural gas, corrosive substances and solvents. Our hoses are known from their high quality, flexibility and safety features.
To further meet the customer needs, we have developed special features to our hoses, such as electrical conductivity, special materials for the inner and outer rubber and product specific textile reinforcements.
Für die sichere Handhabung von Chemikalien gemäß EN 12115:2021.
Die Saug- und Druckschläuche für Chemikalien entsprechen den Chemieindustrienormen und decken zudem alle Verwendungen bei der Förderung von Substanzen ab, wie industrielle Chemikalien, Brennstoffe und Öle, Flüssig- und Erdgas, korrosive Substanzen und Lösungsmittel. Unsere Schläuche sind für ihre hohe Qualität, Flexibilität und Sicherheitsfunktionen bekannt.
Um den Bedürfnissen unserer Kunden noch besser gerecht zu werden, haben wir besondere Leistungsmerkmale für unsere Schläuche entwickelt. Hierzu zählen unter anderem elektrische Leitfähigkeit, spezielle Materialien für das Innen- und Außengummi und unregelmäßige Textilverstärkungen.
Pour la manipulation sûre des produits chimiques conformément à la norme
EN 12115:2021.
Les tuyaux d’aspiration et de pression Teknikum destinés aux produits chimiques sont conformes aux normes de l’industrie chimique et couvrent toutes les applications dans le transfert de substances telles que les substances chimiques industrielles, le pétrole et les huiles, le gaz liquide et le gaz naturel, les substances corrosives et les solvants. Nos tuyaux sont réputés pour leur grande qualité, leur flexibilité et leurs caractéristiques de sécurité.
Pour répondre encore davantage aux besoins de nos clients, nous avons développé des caractéristiques spéciales pour nos tuyaux, telles que la conductivité électrique, des matériaux spéciaux pour les tubes intérieurs et extérieurs, et des renforts textiles non standard.
15 15 Chemical

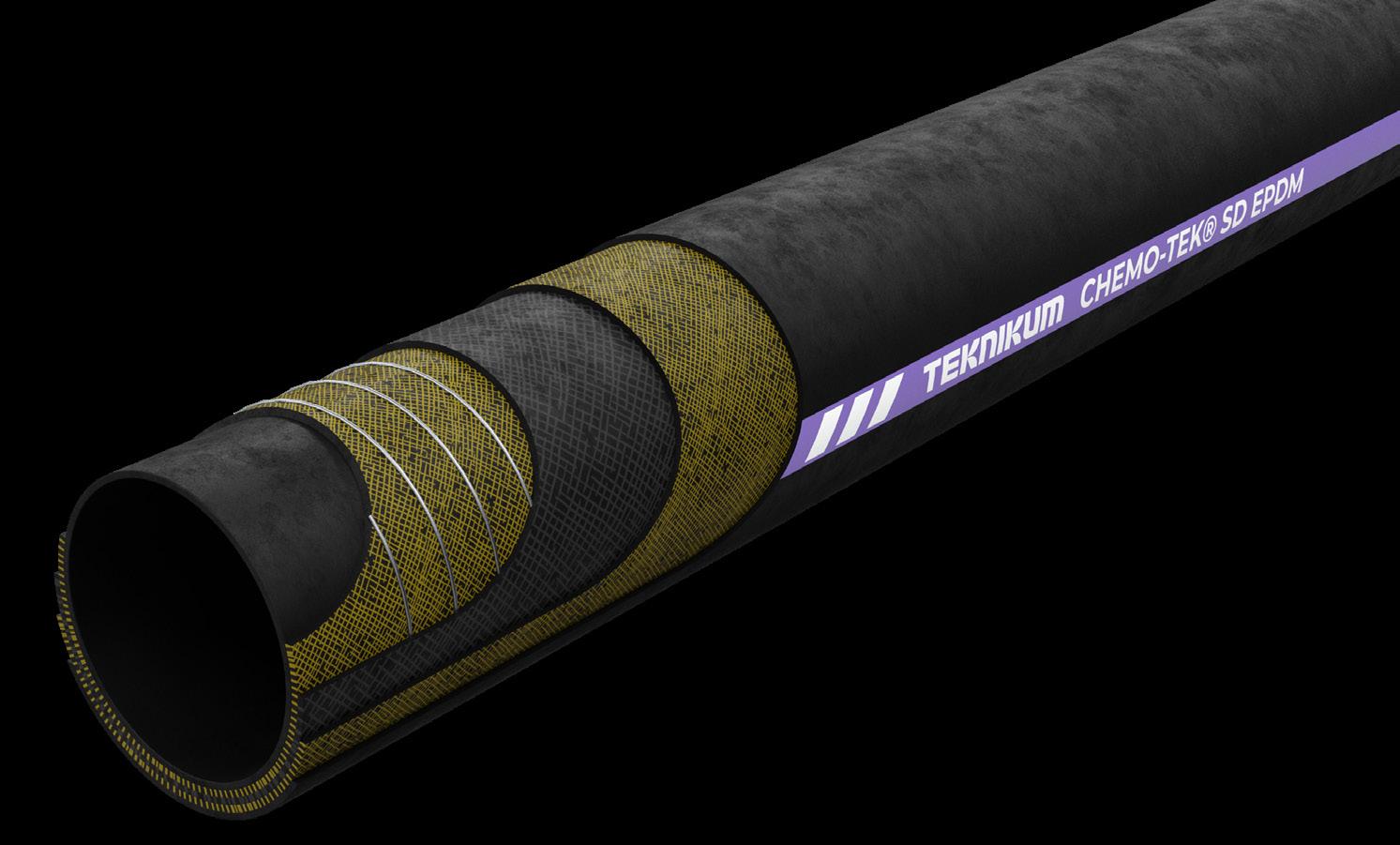

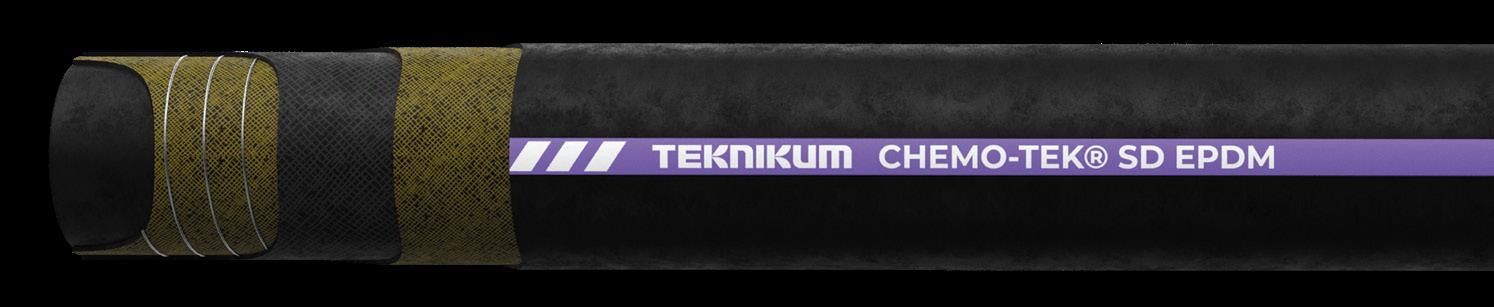

Teknikum CHEMO-TEK® SD EPDM
EN:12115
• Suction and delivery hose
Hose type: Ω/T
Suitable for moderately corrosive chemicals such as alkalis, ketones, alcohols and acids
Excellent weather and ageing resistance
High mechanical strength
• Recommended hose couplings according to EN 14420 and clamps according to EN 14420-3
Burst safety factor is 4 x working pressure
+100°C
- 40°C
• Saug- und Druckschlauch Schlauchtyp: Ω/T
Geeignet für mäßig aggressive Chemikalien wie Laugen, Ketone, Alkohole und Säuren
Hervorragende Witterungs- und Alterungsbeständigkeit
Hohe mechanische Festigkeit
• Empfohlene Schlauchkupplungen nach EN 14420 und Schlauchschellen nach EN 14420-3
Berstsicherheitsfaktor 4 x Betriebsdruck
• Tuyau d'aspiration et de refoulement
Type de tuyau : Ω/T
Convient aux produits chimiques moyennement corrosifs tels que les alcalis, les cétones, les alcools et les acides
Excellente résistance aux intempéries et au vieillissement
Résistance mécanique élevée
• Il est recommandé d'utiliser des raccords de tuyaux conformes à la norme EN 14420 et des colliers de serrage conformes à la norme
EN 14420-3
• Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
This black EPDM based rubber compound is chemical resistant, safe and suitable for moderately corrosive chemicals such as alkalis, ketones, alcohols and acids.
16 16 Chemical CHEMO-TEK® SD EPDM
EPDM
EPDM
STEEL SPIRAL
TEXTILE
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
17 17 Chemical
Check all current product details and specification on product datasheet (QR code): Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum CHEMO-TEK® SD EPDM H2710BC016 16 26 1,6 0,09 64 0,60 40 H2710BC019 19 31 1,6 0,09 76 0,60 40 H2710BC025 25 37 1,6 0,09 100 0,80 40 H2710BC038 38 51 1,6 0,09 152 1,20 40 H2710BC050 50 66 1,6 0,09 200 1,80 40 H2710BC063 63 79 1,6 0,09 252 2,80 40 H2710BC075 75 91 1,6 0,09 300 3,30 40 H2710BC076 76 92 1,6 0,09 304 3,30 40 H2710BC100 100 116 1,6 0,09 400 4,20 40
https://teknikum.com/product/teknikum-chemo-tek-sd-epdm-chemical-hose

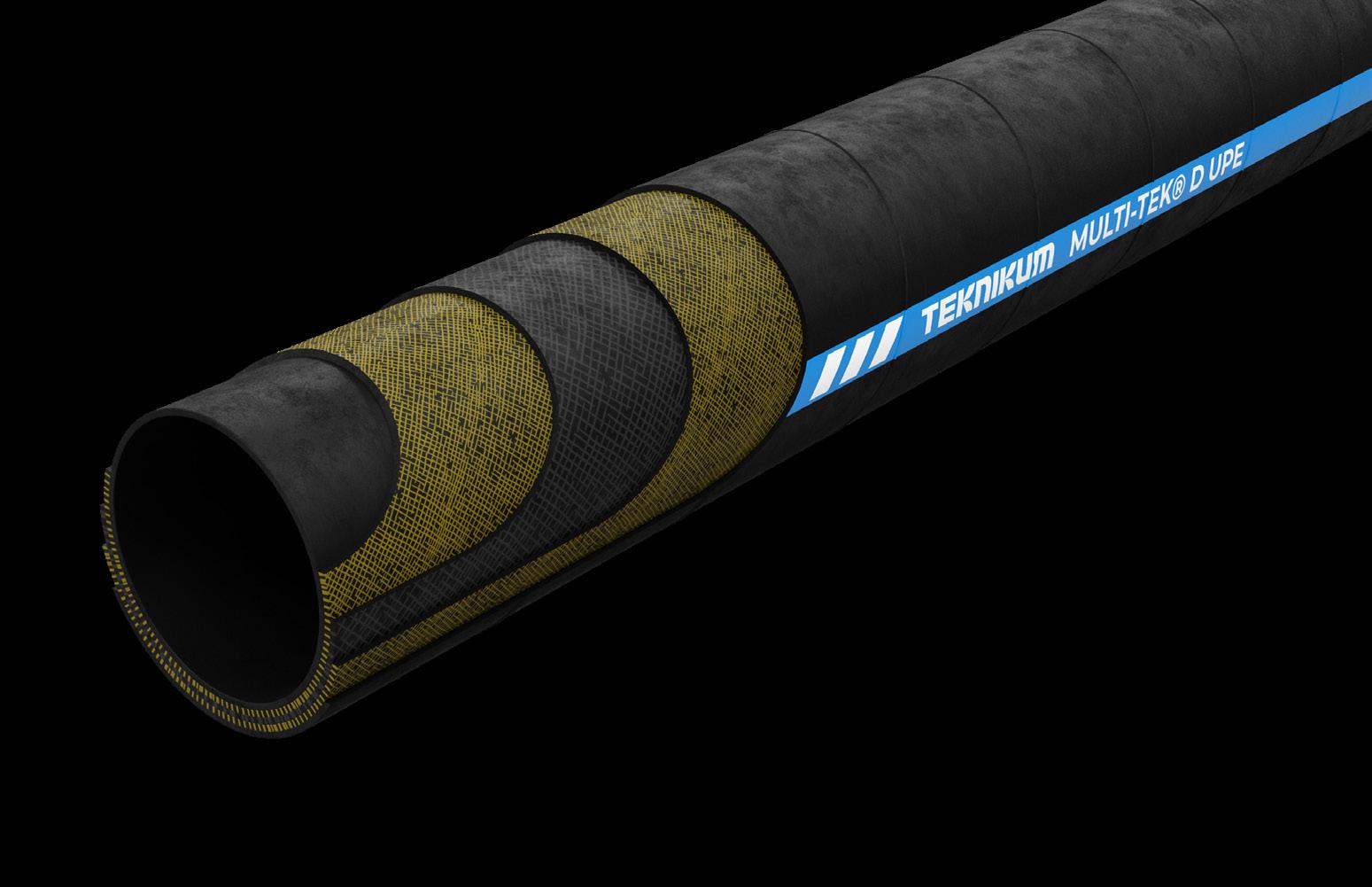

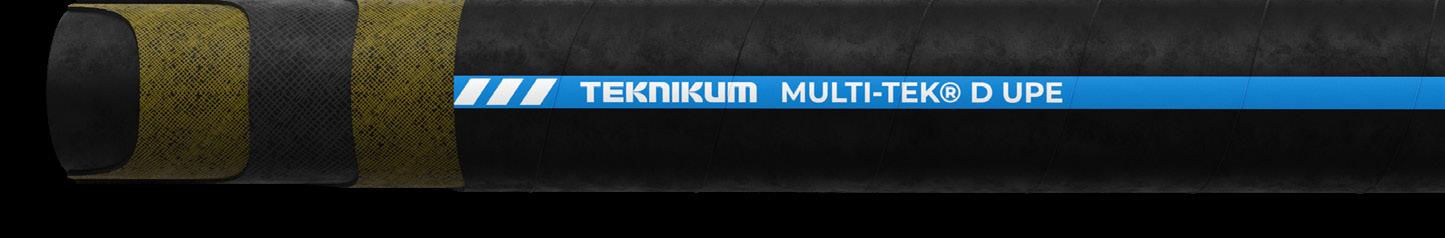

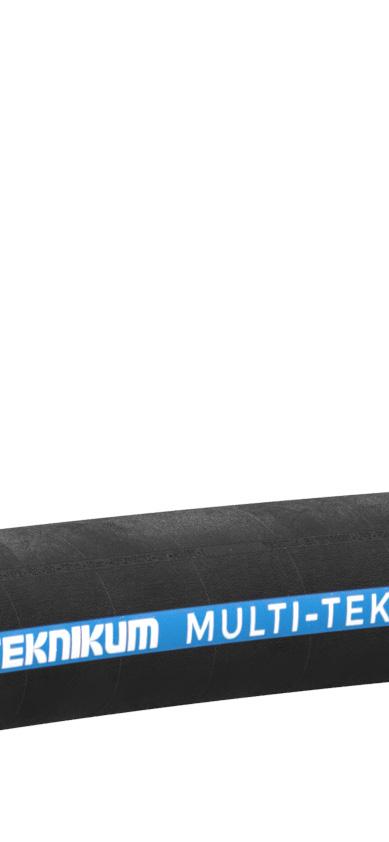

Teknikum MULTI-TEK® D UPE
EN:12115
Delivery hose
• Hose type: Ω/T
Suitable for approx. 98 % of the most common industrial chemicals
Excellent weather and ageing resistance
High mechanical strength
Recommended hose couplings according to EN 14420 and clamps according to EN 14420-3
• Burst safety factor is 4 x working pressure
UPE-FILM
TEXTILE
Druckschlauch
• Schlauchtyp: Ω/T
Geeignet für ca. 98 % der gängigsten Industriechemikalien
Hervorragende Witterungs- und Alterungsbeständigkeit
Hohe mechanische Festigkeit Empfohlene Schlauchkupplungen nach EN 14420 und Schlauchschellen nach EN 14420-3
• Berstsicherheitsfaktor 4 x Betriebsdruck
+100°C
- 40°C
Tuyau de refoulement
• Type de tuyau : Ω/T
Convient à environ 98 % des produits chimiques industriels les plus courants
Excellente résistance aux intempéries et au vieillissement
Résistance mécanique élevée Il est recommandé d'utiliser des raccords de tuyaux conformes à la norme EN 14420 et des colliers de serrage conformes à la norme EN 14420-3
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
UPE hoses made with chemical resistant UHMWPE-film (Ultra High Molecular Weight Polyethylene) are suitable for 98% of industrial chemicals. As lining material UHMWPE is odorless, tasteless, and nontoxic, as well as highly resistant to abrasion. The
hoses meet the requirements of chemical hose standard EN 12115:2011.
Benefits? Our recommended multi-purpose hose for chemical industry The inner lining is great in the transfer of powdered solids For example, the substance of a color pigment is very fine and contagious� The UPE lining lasts this well and does not cause blockages in the transmission line� It can be also used for the transfer of dry tea due to the slippery surface�
Our high-quality hose series Teknikum MULTI-TEK™ offers suitable options for most industrial chemicals in various forms
18 18 Chemical MULTI-TEK® SD UPE
EPDM
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
https://teknikum.com/product/teknikum-multi-tek-d-upe-chemical-hose/
19 19 Chemical
Check all current product details and specification on product datasheet (QR code): Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum MULTI-TEK® D UPE H2800BC013 13 23 1.6 0,05 52 0,40 40 H2800BC019 19 31 1.6 0.05 76 0,50 40 H2800BC025 25 37 1.6 0.04 100 0,60 40 H2800BC032 32 44 1.6 0.04 128 0,70 40 H2800BC038 38 51 1.6 0.04 152 1,10 40 H2800BC050 50 66 1,6 0.03 200 1,60 40

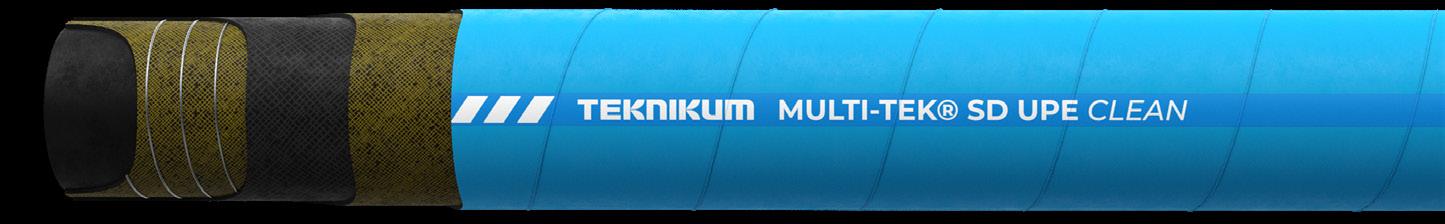

Teknikum MULTI-TEK® SD UPE CLEAN
EN:12115
DESCRIPTION AND ADVANTAGES
Suction and delivery hose
Hose type: Ω/T
• Suitable for approx. 98 % of the most common industrial chemicals
White FDA-approved UPE lining with black electrical conductive spots
Excellent weather and ageing resistance
High mechanical strength
Recommended hose couplings according to EN 14420 and clamps according to EN 14420-3
• Burst safety factor is 4 x working pressure
UPE-FILM
BESCHREIBUNG UND VORTEILE
Saug- und Druckschlauch
Schlauchtyp: Ω/T
• Geeignet für ca. 98 % der gängigsten Industriechemikalien
Weiße FDA konforme UPE-Seele mit schwarzen elektrisch leitfähigen Punkten
Hervorragende Witterungs- und Alterungsbeständigkeit
Hohe mechanische Festigkeit Empfohlene Schlauchkupplungen nach EN 14420 und Schlauchschellen nach EN 14420-3
Berstsicherheitsfaktor 4 x Betriebsdruck
+100°C
- 40°C
DESCRIPTION ET AVANTAGES
Tuyau d'aspiration et de refoulement
Type de tuyau : Ω/T
• Convient à environ 98 % des produits chimiques industriels les plus courants
Revêtement blanc en UPE approuvé par la FDA avec des points noirs électriquement conducteurs
Excellente résistance aux intempéries et au vieillissement
Résistance mécanique élevée
Il est recommandé d'utiliser des raccords de tuyaux conformes à la norme EN 14420 et des colliers de serrage conformes à la norme EN 14420-3
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
20 20 Chemical MULTI-TEK® SD UPE CLEAN
EPDM
STEEL SPIRAL TEXTILE
PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
"We have trusted in MULTI-TEK for years! The best UPE-hose available in several variations!”
Sören Rathje, CEO/ Geschäftsleitung FlexoTech GmbH
https://teknikum.com/product/teknikum-multi-tek-sd-upe-food-chemical-hose/
21 21 Chemical
Check all current product details and specification on product datasheet (QR code): Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum MULTI-TEK® SD UPE CLEAN H2820WC019B 19 31 1,6 0,09 76 0,70 40 H2820WC025B 25 37 1,6 0,09 100 0,80 40 H2820WC032B 32 44 1,6 0,09 128 1,00 40 H2820WC038B 38 51 1,6 0,09 152 1,20 40 H2820WC040B 40 53 1,6 0,09 160 1,30 40 H2820WC050B 50 66 1,6 0,09 200 1,90 40 H2820WC063B 63 79 1,6 0,09 252 2,10 40 H2820WC075B 75 91 1,6 0,09 300 2,60 40 H2820WC076B 76 92 1,6 0,09 304 2,60 40 H2820WC100B 100 116 1,6 0,09 400 4,00 40 H2820WC102B 102 118 1,6 0,09 408 4,00 40
Teknikum MULTI-TEK® SD UPE
•
•
Recommended
22 22 Chemical Check all current product details and specification on product datasheet (QR code): MULTI-TEK® SD UPE CLEAN EPDM UPE-FILM STEEL SPIRAL TEXTILE - 40°C +100°C
Suction and delivery hose Hose type: Ω/T Suitable for approx. 98 % of the most common industrial chemicals
Excellent weather and ageing resistance
High mechanical strength
hose couplings according to EN 14420 and clamps according to EN 14420-3 Burst safety factor is 4 x working pressure
DESCRIPTION AND ADVANTAGES Product code Teknikum MULTI-TEK® SD UPE H2810BC019 H2810BC025 H2810BC032 H2810BC038 H2810BC040 H2810BC050 H2810BC063 63 79 1,6 0,09 252 2,10 40 H2810BC075 75 91 1,6 0,09 300 2,60 40 H2810BC076 76 92 1,6 0,09 304 2,60 40 H2810BC100 100 116 1,6 0,09 400 4,00 40 H2810BC102 102 118 1,6 0,09 408 4,00 40
EN:12115
the most common
chemicals https://teknikum.com/product/teknikum-multi-tek-sd-upe-chemical-hose/ PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Suitable for approx. 98% of
industrial
Teknikum MULTI-TEK® SD UPE PRO
EN:12115
Suction and delivery hose
Hose type: Ω/T
Multipurpose and suitable for almost all chemicals
• White FDA-approved UPE-lining with black electrically conductive spots
Excellent weather and ageing resistance
High mechanical strength
Recommended hose couplings according to EN 14420 and clamps according to EN 14420-3
Burst safety factor is 4 x working pressure
Saug- und Druckschlauch
Schlauchtyp: Ω/T
Vielseitig und für fast alle Chemikalien geeignet
• Weiße FDA konforme UPE-Seele mit schwarzen elektrisch leitfähigen Punkten
Hervorragende Witterungs- und Alterungsbeständigkeit
Hohe mechanische Festigkeit Empfohlene Schlauchkupplungen nach EN 14420 und Schlauchschellen nach EN 14420-3
Berstsicherheitsfaktor 4 x Betriebsdruck
Tuyau d'aspiration et de refoulement
Type de tuyau : Ω/T
Polyvalent et adapté à quasiment tous les produits chimiques
• Revêtement blanc en UPE approuvé par la FDA avec des points noirs électriquement conducteurs
Excellente résistance aux intempéries et au vieillissement
Résistance mécanique élevée
Il est recommandé d'utiliser des raccords de tuyaux conformes à la norme EN 14420 et des colliers de serrage conformes à la norme EN 14420-3
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
https://teknikum.com/product/teknikum-multi-tek-sd-upe-pro-chemical-hose/
23 Check all current product details and specification on product datasheet (QR code): MULTI-TEK® SD UPE PRO
- 40°C +100°C EPDM
UPE-FILM
TEXTILE
STEEL SPIRAL
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum MULTI-TEK® SD UPE PRO H2820WC019 19 31 1,6 0,09 76 0,70 40 H2820WC025 25 37 1,6 0,09 100 0,80 40 H2820WC032 32 44 1,6 0,09 128 1,00 40 H2820WC038 38 51 1,6 0,09 152 1,20 40 H2820WC040 40 53 1,6 0,09 160 1,30 40 H2820WC050 50 66 1,6 0,09 200 1,90 40 H2820WC063 63 79 1,6 0,09 252 2,10 40 H2820WC075 75 91 1,6 0,09 300 2,60 40 H2820WC076 76 92 1,6 0,09 304 2,60 40 H2820WC100 100 116 1,6 0,09 400 4,00 40 H2820WC102 102 118 1,6 0,09 408 4,00 40

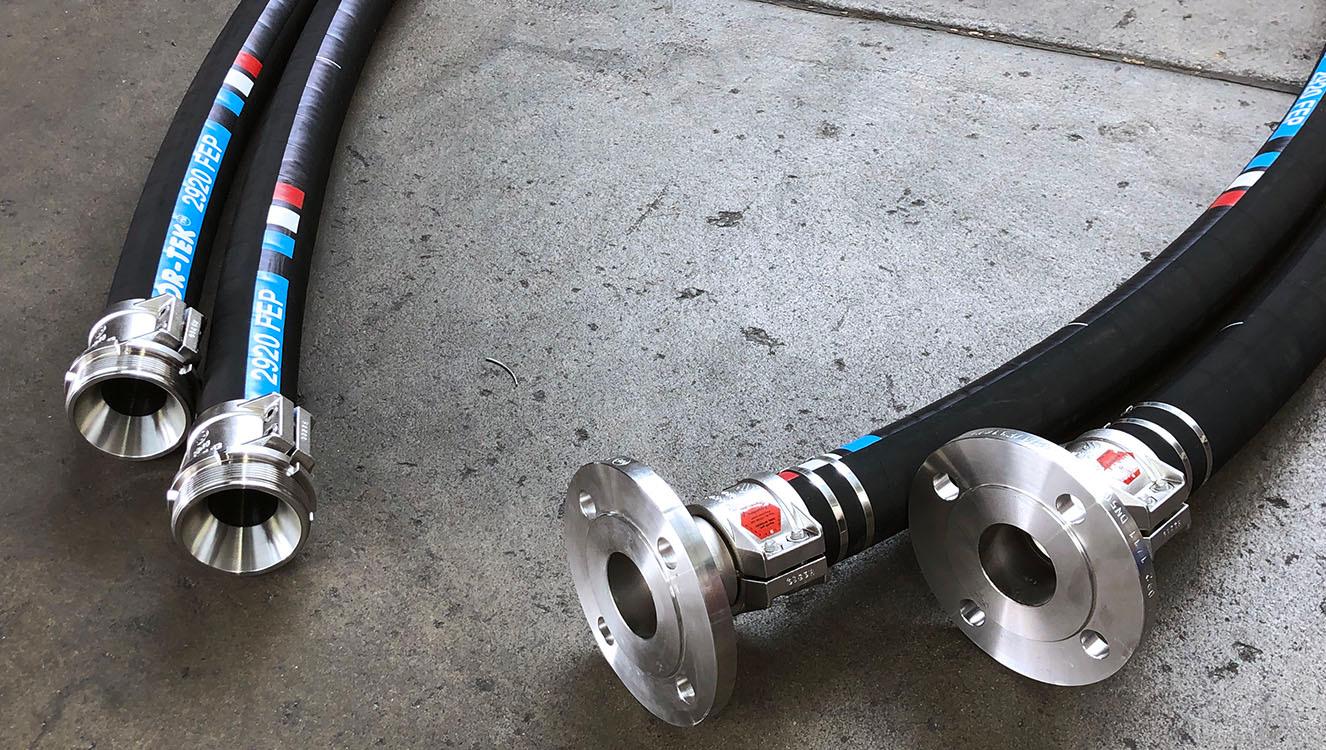

Teknikum FLUOR-TEK® SD FEP
EN:12115 DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Suction and delivery hose
• Hose type: Ω
Suitable for most aggressive chemicals, such as fuels, solvents, oils and corrosive chemicals
Excellent weather and ageing resistance
High mechanical strength
Recommended hose couplings a ccording to EN 14420 and clamps according to EN 14420-3
Burst safety factor is 4 x working pressure
+100°C
- 30°C
Saug- und Druckschlauch
• Schlauchtyp: Ω
Geeignet für die meisten aggressiven Chemikalien wie Kraftstoffe, Lösungsmittel, Öle und ätzende Chemikalien
Hervorragende Witterungs- und Alterungsbeständigkeit Hohe mechanische Festigkeit Empfohlene Schlauchkupplungen nach EN 14420 und Schellen nach EN 14420-3
Berstsicherheitsfaktor 4 x Betriebsdruck
Tuyau d'aspiration et de refoulement
• Type de tuyau : Ω
Convient à la plupart des produits chimiques agressifs, tels que les carburants, les solvants, les huiles et les produits chimiques corrosifs
Excellente résistance aux intempéries et au vieillissement Résistance mécanique élevée Il est recommandé d'utiliser des raccords de tuyaux conformes à la norme EN 14420 et des colliers de serrage conformes à la norme EN 14420-3
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
When transferring the most aggressive chemicals, hoses inner lining must be made out of PTFE (Polytetrafluoroethylene) or FEP (Fluorinated ethylene propylene). This kind of hose withstand for example fuels, solvents, oils and corrosive chemicals.
FEP and PTFE both share the useful properties of low friction and non-reactivity, but FEP is superior to PTFE in applications involving exposure to detergents.
24 24 Chemical FLUOR-TEK® SD FEP
CR FEP STEEL SPIRAL TEXTILE
PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
https://teknikum.com/product/teknikum-fluor-tek-sd-fep-chemical-hose/
25 25 Chemical
Check all current product details and specification on product datasheet (QR code): Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum FLUOR-TEK® SD FEP H2920FEP019 19 31 1,6 0,09 76 0,70 40 H2920FEP025 25 37 1,6 0,09 100 0,90 40 H2920FEP032 32 44 1,6 0,09 128 1,10 40 H2920FEP038 38 51 1,6 0,09 152 1,30 40 H2920FEP050 50 66 1,6 0,09 200 2,00 40 H2920FEP075 75 91 1,6 0,09 300 3,00 40
Teknikum FLUOR-TEK® SD PTFE
EN:12115
CR
PTFE
STEEL SPIRAL TEXTILE
+100°C
- 30°C
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Suction and delivery hose
• Hose type: Ω/T
Suitable for most aggressive chemicals, such as fuels, solvents, oils and corrosive chemicals
Excellent weather and ageing resistance
High mechanical strength
Recommended hose couplings according to EN 14420 and clamps according to EN 14420-3
Burst safety factor is 4 x working pressure
Saug- und Druckschlauch
• Schlauchtyp: Ω/T
Geeignet für die meisten aggressiven Chemikalien wie Kraftstoffe, Lösungsmittel, Öle und ätzende Chemikalien
Hervorragende Witterungs- und Alterungsbeständigkeit Hohe mechanische Festigkeit Empfohlene Schlauchkupplungen nach EN 14420 und Schlauchschellen nach EN 14420-3
Berstsicherheitsfaktor 4 x Betriebsdruck
Tuyau d'aspiration et de refoulement
• Type de tuyau : Ω/T
Convient à la plupart des produits chimiques agressifs, tels que les carburants, les solvants, les huiles et les produits chimiques corrosifs
Excellente résistance aux intempéries et au vieillissement
Résistance mécanique élevée
Il est recommandé d'utiliser des raccords de tuyaux conformes à la norme EN 14420 et des colliers de serrage conformes à la norme EN 14420-3
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
For the most aggressive chemicals.
26 26 Chemical FLUOR-TEK® SD PTFE
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Check all current product details and specification on product datasheet (QR code): https://teknikum.com/product/teknikum-fluor-tek-sd-ptfe-chemical-hose/
27 27 Chemical
PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum FLUOR-TEK® SD PTFE H2940PTFE025 25 37 1,6 0,09 100 0,90 40 H2940PTFE032 32 44 1,6 0,09 128 1,10 40 H2940PTFE038 38 51 1,6 0,09 152 1,30 40 H2940PTFE050 50 66 1,6 0,09 200 2,00 40

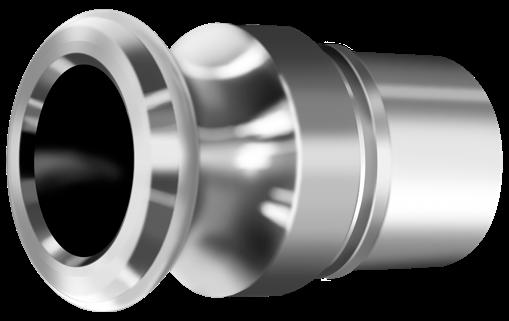

Cam locking coupling
DIN 2828 / EN 14420-7
AISI 316 / EN 1.4401
Cam locking couplings according to DIN 2828 / EN 14420-7 are used particularly in chemical industry and mining industry.
As default hose shank is smooth, coupling material is acid proof steel AISI 316 / EN 1.4401 and female coupling / coupler seal material is NBR. Thread couplings are available on request also with serrated hose shank, different coupling materials and different seal materials.
Recommended clamps according to EN 14420-3.
Schnellkupplungen nach DIN 2828 / EN 14420-7 werden besonders in der chemischen Industrie und im Bergbau eingesetzt.
Der Standard-Schlauchschaft ist glatt ist. Das Kupplungsmaterial ist säurebeständiger Stahl AISI 316 / EN 1.4401 und das Dichtungsmaterial der M-Kupplung ist NBR.
Gewindekupplungen sind auf Anfrage auch mit gezahntem Schlauchschaft, anderen Kupplungsmaterialien und anderen Dichtungsmaterialien erhältlich.
Empfohlene Schellen nach EN 14420-3.
Les raccords de verrouillage à came conformes à la norme DIN 2828 / EN 14420-7 sont particulièrement utilisés dans l'industrie chimique et l'industrie minière.
En standard, la tige du tuyau est lisse, le matériau du raccord est de l'acier résistant aux acides AISI 316 / EN 1.4401 et le matériau du joint du raccord femelle / coupleur est du NBR.
Sur demande, des raccords filetés sont également disponibles avec une tige de tuyau dentelée, différents matériaux de raccord et différents matériaux de joint. Il est recommandé d’utiliser des colliers de serrage conformes à la norme EN 14420-3.
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
https://teknikum.com/product/quick-hose-coupling/
28 28 Chemical Check all current product details and specification on product datasheet (QR code): Cam locking coupling
Product code DN Hose Ø i.d. mm Material FEMALE COUPLINGS NFKAR013 15 13 SS NFKAR019 20 19 SS NFKAR025 25 25 SS NFKAR032 32 32 SS NFKAR038 40 38 SS NFKAR050 50 50 SS NFKAR063 65 63 SS NFKAR075 80 75 SS NFKAR100 100 100 SS Product code DN Hose Ø i.d. mm Material MALE COUPLINGS NMKAR013 15 13 SS NMKAR019 20 19 SS NMKAR025 25 25 SS NMKAR032 32 32 SS NMKAR038 40 38 SS NMKAR050 50 50 SS NMKAR063 65 63 SS NMKAR075 80 75 SS NMKAR100 100 100 SS DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT

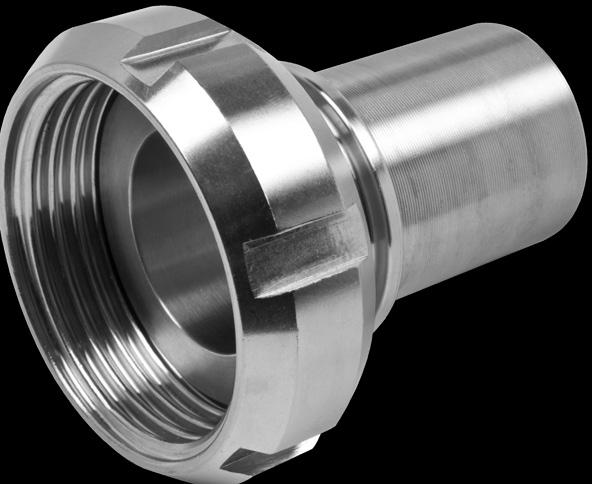

Thread hose coupling
EN ISO 228-1 / BSP
AISI 316 / EN 1.4401
Male and female threaded couplings for several industrial applications, e.g. foodstuff industry, chemical industry and mining industry.
Coupling thread is according to EN ISO 228-1 / BSP. As default hose shank is smooth, coupling material is acid proof steel AISI 316 / EN 1.4401 and female coupling seal material is PTFE.
Threaded couplings are available on request also with serrated hose shank, coupling material brass and different seal material.
Recommended clamps according to EN 14420-3.
Kupplungen mit Außen- und Innengewinde für verschiedene industrielle Anwendungen, z. Lebensmittelindustrie, chemische Industrie und Bergbau.
Kupplungsgewinde entspricht EN ISO 228-1 / BSP. Der Standard-Schlauchschaft ist glatt. Das Kupplungsmaterial ist säurebeständiger Stahl AISI 316 / EN 1.4401 und das Dichtungsmaterial der M- Kupplung ist PTFE.
Gewindekupplungen sind auf Anfrage auch mit gezahntem Schlauchschaft, Kupplungsmaterial Messing und anderen Dichtungsmaterialien erhältlich.
Empfohlene Schellen nach EN 14420-3.
Raccords filetés mâles et femelles pour diverses applications industrielles, par exemple l'industrie alimentaire, l'industrie chimique et l'industrie minière.
Le filetage du raccord est conforme à la norme EN ISO 228-1 / BSP. En standard, la tige du tuyau est lisse, le matériau du raccord est de l'acier résistant aux acides AISI 316 / EN 1.4401 et le matériau du joint du raccord femelle est du PTFE.
Sur demande, des raccords filetés sont également disponibles avec une tige de tuyau dentelée, du laiton comme matériau de raccord et différents matériaux de joint.
Il est recommandé d’utiliser des colliers de serrage conformes à la norme EN 14420-3.
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
29 29 Chemical Check all current product details and specification on product datasheet (QR code):
Thread hose coupling
https://teknikum.com/product/thread-hose-coupling/ Product code DN Hose Ø i.d. mm Material FEMALE COUPLINGS KFKAR013 15 13 SS KFKAR019 20 19 SS KFKAR025 25 25 SS KFKAR032 32 32 SS KFKAR038 40 38 SS KFKAR040 40 40 SS KFKAR050 50 50 SS KFKAR063 65 63 SS KFKAR065 65 65 SS KFKAR075 80 75 SS KFKAR080 80 80 SS KFKAR100 100 100 SS Product code DN Hose Ø i.d. mm Material MALE COUPLINGS KMKAR013 15 13 SS KMKAR019 20 19 SS KMKAR025 25 25 SS KMKAR032 32 32 SS KMKAR038 40 38 SS KMKAR040 40 40 SS KMKAR050 50 50 SS KMKAR063 65 63 SS KMKAR065 65 65 SS KMKAR075 80 75 SS KMKAR080 80 80 SS KMKAR100 100 100 SS DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT

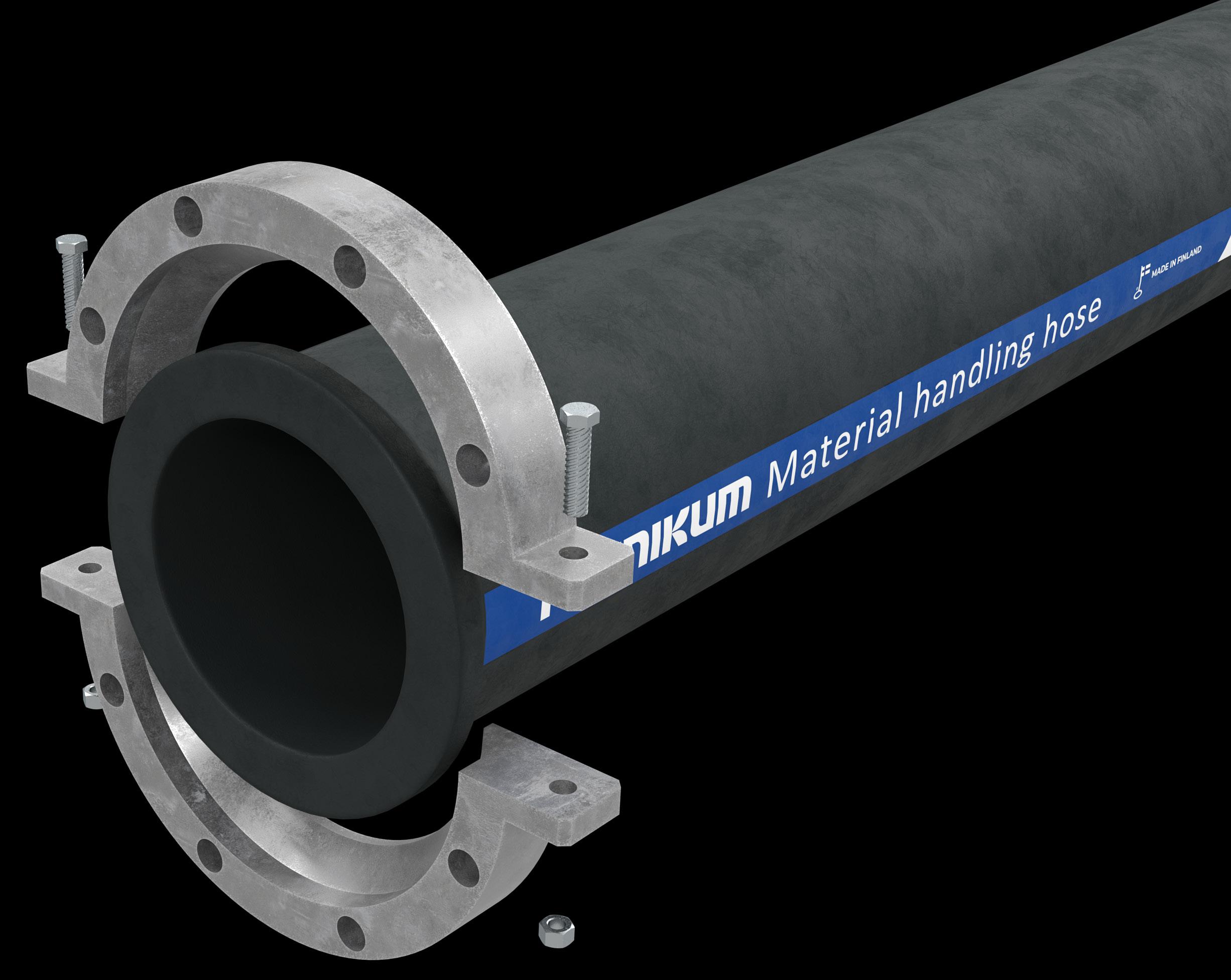

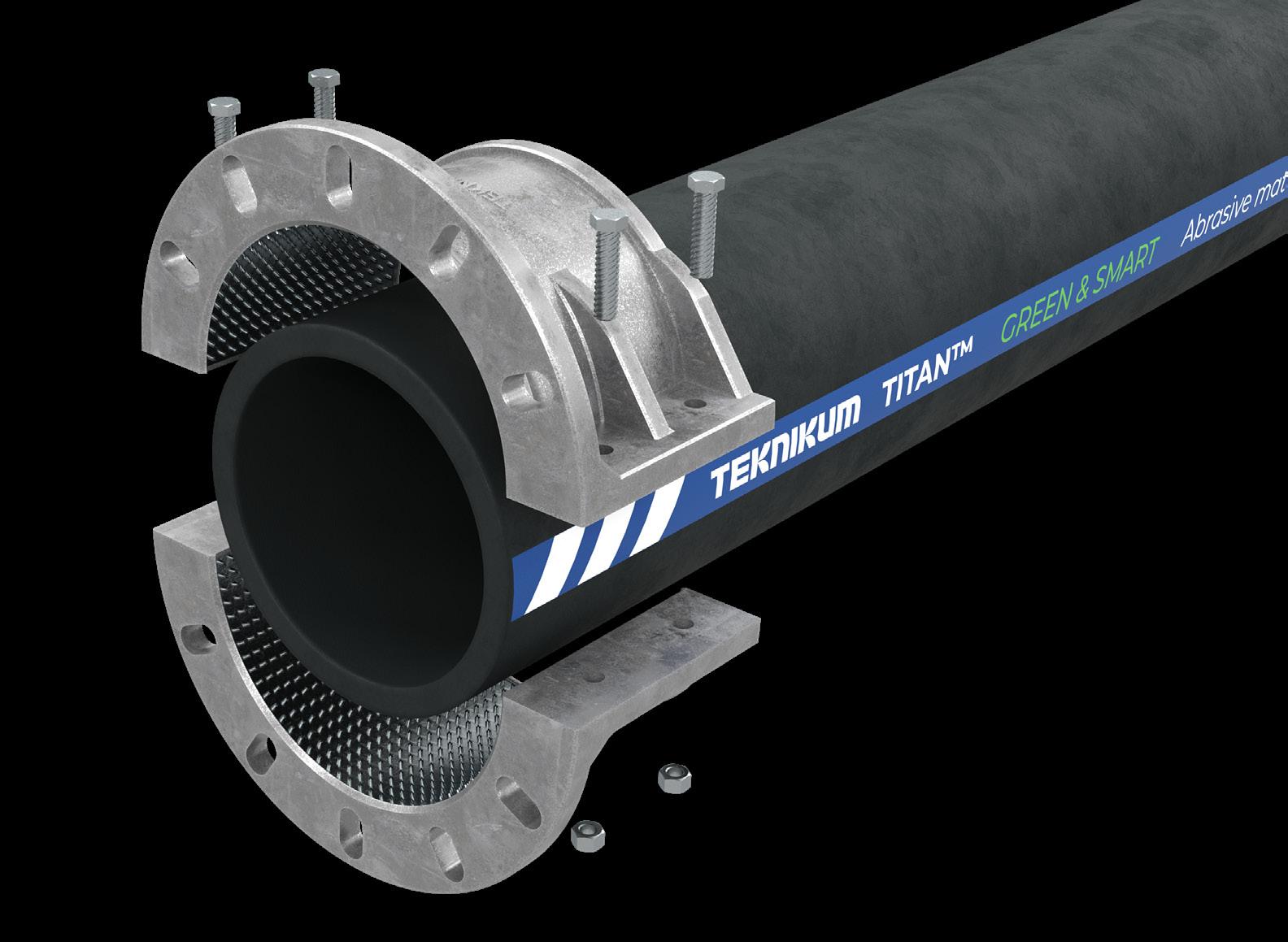

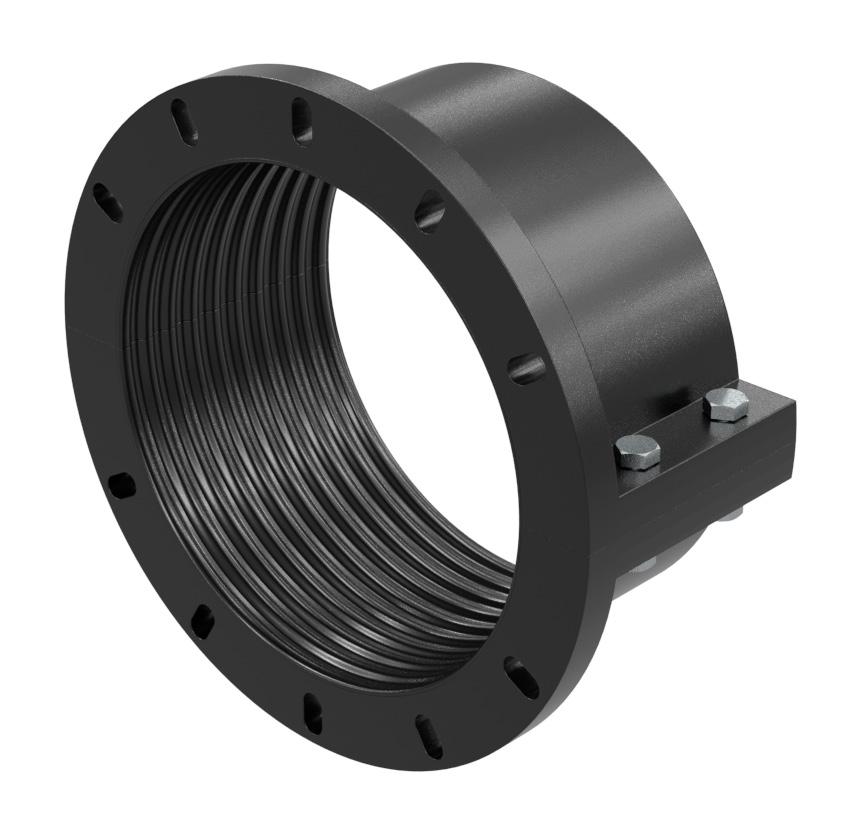

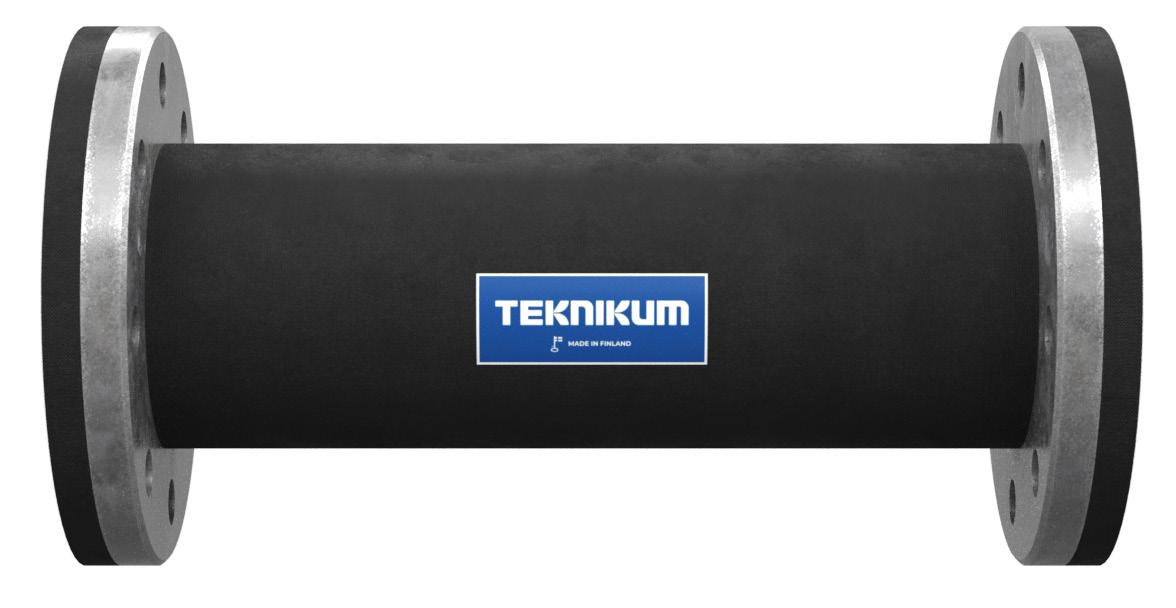

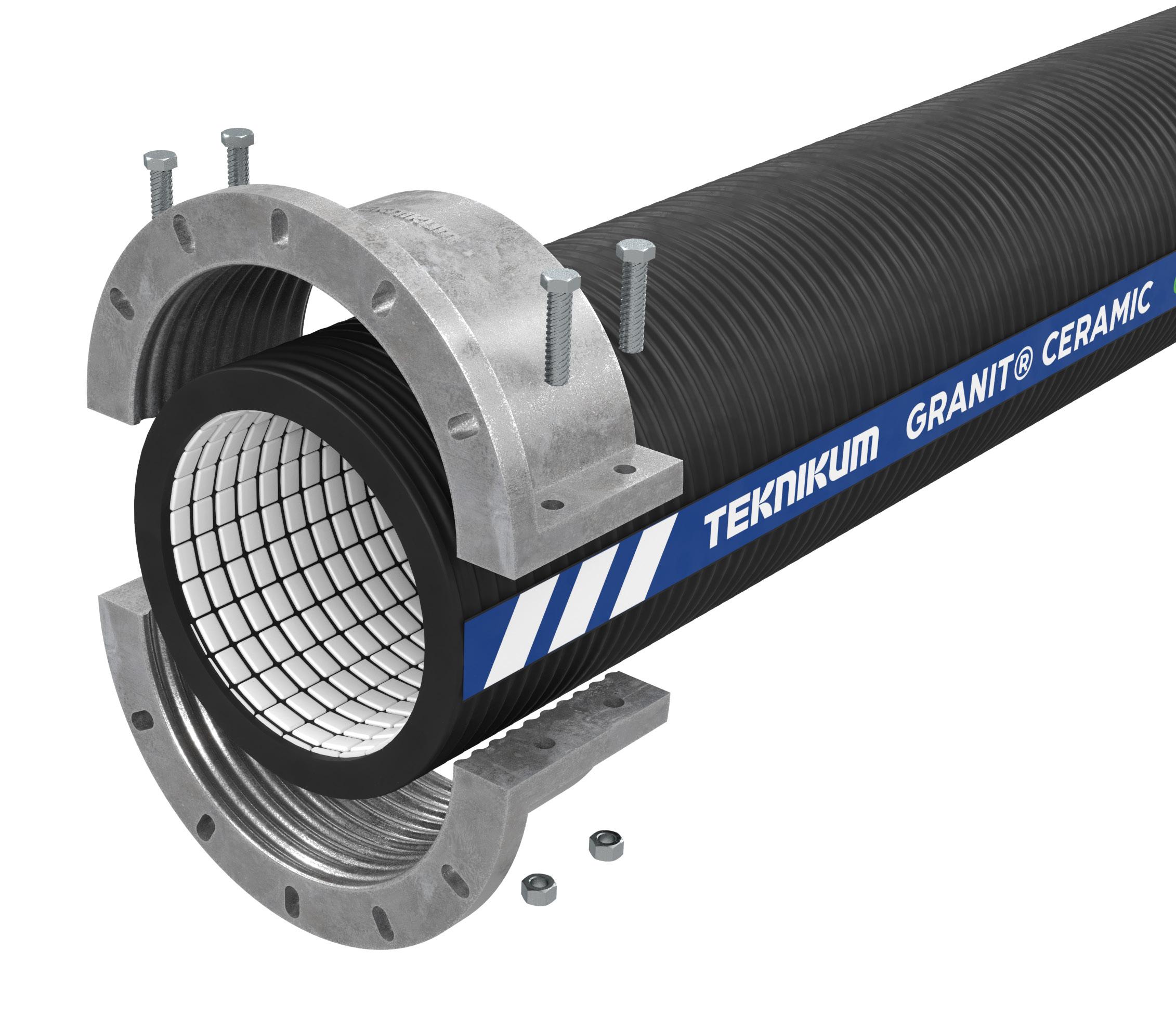

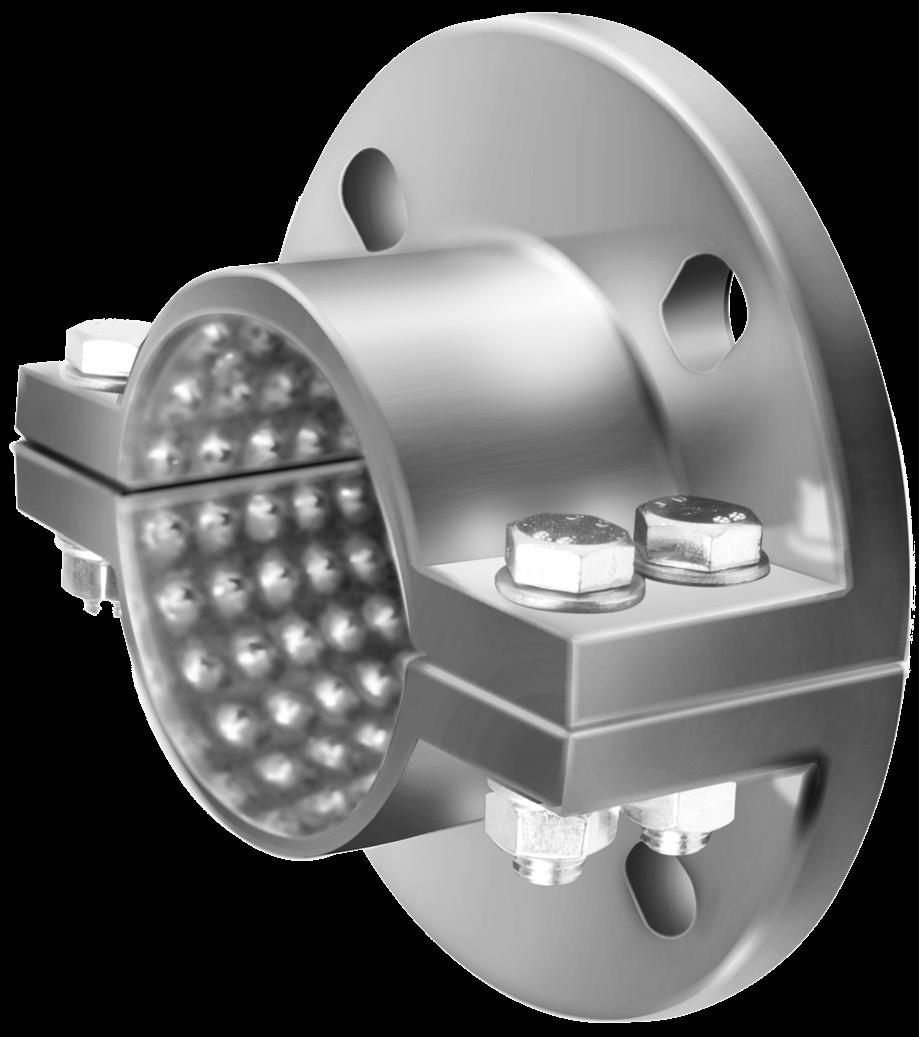

Flange coupling
EN 14420-4
AISI 316 / EN 1.4401
Flange couplings are widely used all around different industries, especially when connections between pipes and hoses are needed, or when permanent connections are needed. Advantages of this hose connection type are universal use as well as adaptation to comply with piping standards.
Flange couplings complying EN 14420-4 are suitable to almost all fixed/ permanent or nearly permanent hose connections when high reliability and high resistant against damages is needed. Dimensions are according to DIN 2642, EN 1092-1 or SFS 2170 pressure class PN 10.
• The material is acid resistant stainless steel AISI 316 (EN 1.4401). If necessary, flange couplings are available also made of other materials as well as with dimensions according to ANSI B16.5. Flange coupling hose shank is either smooth or serrated/shaped, according to the table below. Additionally flange couplings are available as fixed (onepiece) or swivel (rotating two-piece) flange.
Recommended clamps are according to hose outer diameter either swaged ferrule, EN 14420-3 safety clamps.
Flanschkupplungen werden überall in verschiedenen Branchen eingesetzt, insbesondere wenn Verbindungen zwischen Rohren und Schläuchen oder dauerhafte Verbindungen benötigt werden. Vorteile dieser Schlauchanschlussart ist der universelle Einsatz sowie die Anpassung an Rohrleitungsnormen. Flanschkupplungen nach EN 14420-4 eignen sich für fast alle festen/dauerhaften oder nahezu dauerhaften Schlauchverbindungen, wenn hohe Zuverlässigkeit und hohe Beständigkeit gegen Beschädigungen erforderlich sind. Abmessungen nach DIN 2642, EN 1092-1 oder SFS 2170 Druckklasse PN 10.
• Das Material ist säurebeständiger Edelstahl AISI 316 (EN 1.4401). Bei Bedarf sind Flanschkupplungen auch aus anderen Werkstoffen sowie mit Abmessungen nach ANSI B16.5 lieferbar. Der Schaft der Flanschkupplung ist entweder glatt oder gezahnt/geformt, gemäß der nachstehenden Tabelle. Zusätzlich sind Flanschkupplungen als fester (einteiliger) oder drehbarer drehbar (zweiteiliger) Flansch erhältlich. Empfohlene Schellen sind je nach Schlauchaußendurchmesser entweder Presshülsen oder En144203 Sicherheitsschellen
Les raccords à bride sont largement utilisés dans différents secteurs industriels, notamment lorsqu'il est nécessaire d'établir des connexions entre des tubes et des tuyaux, ou lorsque des connexions permanentes sont requises. Les avantages de ce type de raccord de tuyau sont l'utilisation universelle ainsi que l'adaptation aux normes de tuyauterie.
Les raccords à bride conformes à la norme EN 14420-4 conviennent à quasiment tous les raccords de tuyaux fixes/permanents ou quasi permanents lorsqu'une grande fiabilité et une résistance élevée aux dommages sont nécessaires. Les dimensions sont conformes aux normes DIN 2642, EN 1092-1 ou SFS 2170, classe de pression PN 10. Le matériau est un acier inoxydable résistant aux acides AISI 316 (EN 1.4401). Si nécessaire, les raccords à bride sont également disponibles dans d'autres matériaux ainsi que des dimensions conformes à la norme ANSI B16.5. La tige du tuyau du raccord à bride est soit lisse, soit dentelée/moulée, selon le tableau ci-dessous. En outre, les raccords à bride sont disponibles sous forme de bride fixe (une pièce) ou rotative (deux pièces rotatives). Les colliers recommandés sont, en fonction du diamètre extérieur du tuyau, soit des colliers à douille de sertissage, soit des colliers de serrage de sécurité EN 14420-3.
30 30 Chemical Flange coupling
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
31 31 Chemical
Check all current product details and specification on product datasheet (QR code): Product code DN Hose Ø i.d. mm Pressure class Material SMOOTH HOSE SHANK / SWIVEL FLANGE FC-SM-SW-SS-013 15 13 PN 10/16 SS FC-SM-SW-SS-019 20 19 PN 10/16 SS FC-SM-SW-SS-025 25 25 PN 10/16 SS FC-SM-SW-SS-032 32 32 PN 10/16 SS FC-SM-SW-SS-038 40 38 PN 10/16 SS FC-SM-SW-SS-050 50 50 PN 10/16 SS FC-SM-SW-SS-063 65 63 PN 10/16 SS FC-SM-SW-SS-075 80 75 PN 10/16 SS FC-SM-SW-SS-100 100 100 PN 10/16 SS FC-SM-SW-SS-125 125 125 PN 10/16 SS FC-SM-SW-SS-150 150 150 PN 10/16 SS Product code DN Hose Ø i.d. mm Pressure class Material SMOOTH HOSE SHANK / FIXED FLANGE FC-SM-FX-SS-013 15 13 PN 10/16 SS FC-SM-FX-SS-019 20 19 PN 10/16 SS FC-SM-FX-SS-025 25 25 PN 10/16 SS FC-SM-FX-SS-032 32 32 PN 10/16 SS FC-SM-FX-SS-038 40 38 PN 10/16 SS FC-SM-FX-SS-050 50 50 PN 10/16 SS FC-SM-FX-SS-063 65 63 PN 10/16 SS FC-SM-FX-SS-075 80 75 PN 10/16 SS FC-SM-FX-SS-100 100 100 PN 10/16 SS FC-SM-FX-SS-125 125 125 PN 10/16 SS FC-SM-FX-SS-150 150 150 PN 10/16 SS SERRATED HOSE SHANK / SWIVEL FLANGE FC-SR-SW-SS-013 15 13 PN 10/16 SS FC-SR-SW-SS-019 20 19 PN 10/16 SS FC-SR-SW-SS-025 25 25 PN 10/16 SS FC-SR-SW-SS-032 32 32 PN 10/16 SS FC-SR-SW-SS-038 40 38 PN 10/16 SS FC-SR-SW-SS-050 50 50 PN 10/16 SS FC-SR-SW-SS-063 65 63 PN 10/16 SS FC-SR-SW-SS-075 80 75 PN 10/16 SS FC-SR-SW-SS-100 100 100 PN 10/16 SS FC-SR-SW-SS-125 125 125 PN 10/16 SS FC-SR-SW-SS-150 150 150 PN 10/16 SS SERRATED HOSE SHANK / FIXED FLANGE FC-SR-FX-SS-013 15 13 PN 10/16 SS FC-SR-FX-SS-019 20 19 PN 10/16 SS FC-SR-FX-SS-025 25 25 PN 10/16 SS FC-SR-FX-SS-032 32 32 PN 10/16 SS FC-SR-FX-SS-038 40 38 PN 10/16 SS FC-SR-FX-SS-050 50 50 PN 10/16 SS FC-SR-FX-SS-063 65 63 PN 10/16 SS FC-SR-FX-SS-075 80 75 PN 10/16 SS FC-SR-FX-SS-100 100 100 PN 10/16 SS FC-SR-FX-SS-125 125 125 PN 10/16 SS FC-SR-FX-SS-150 150 150 PN 10/16 SS https://teknikum.com/product/flange-coupling/

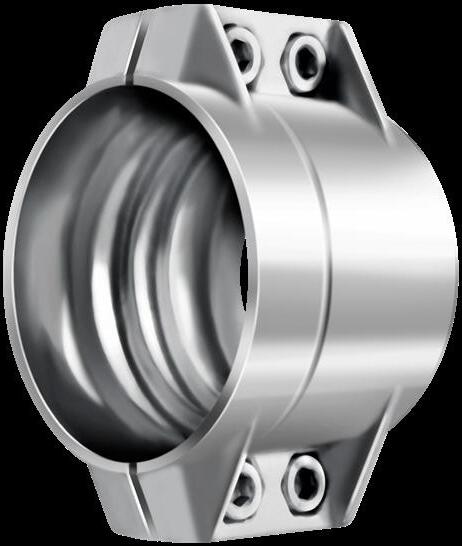

Safety clamp
EN 14420-3
AISI 316 / EN 1.4401
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Hose clamps according to EN 14420-3 (DIN 2817) are used with hose fittings from the EN 14420 series.
Corrugated inner surface, clamp collar and tightening from two sides ensure by two ways that the coupling stays in hose: by tightening the hose on the hose shank and by locking the coupling behind the clamp collar. Clamp material is aluminium or stainless steel AISI 316 / EN 1.4401.
Schlauchschellen nach EN 14420-3 (DIN 2817) dienen zum Anziehen und Klemmen von Schraubkupplungen. Geriffelte Innenfläche, Klemmschelle und Anziehen von zwei Seiten sorgen auf zwei Arten dafür, dass die Kupplung im Schlauch bleibt: durch Anziehen des Schlauchs auf dem Schlauchschaft und durch Verriegeln der Kupplung hinter dem Kupplungskragen.
Schellenmaterial ist Aluminium oder Edelstahl AISI 316 / EN 1.4401.
Les colliers de serrage conformes à la norme EN 14420-3 (DIN 2817) sont utilisés avec les raccords de tuyau de la série EN 14420.
La surface intérieure striée, le collier de serrage et le serrage de deux côtés garantissent que le raccord reste dans le tuyau de deux façons : en serrant le tuyau sur la tige du tuyau et en bloquant le raccord derrière le collier de serrage.
Le matériau du collier est l'aluminium ou l'acier inoxydable AISI 316 / EN 1.4401.
PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
32 32 Chemical Safety clamp
Product code DN Hose Ø i.d. mm Hose o.d. mm Material Weight kg/pc STAINLESS STEEL KIRSS013-5 15 13 22-24 SS 0,25 KIRSS019-6 20 19 30-33 SS 0,3 KIRSS025-6 25 25 36-39 SS 0,33 KIRSS032-6 32 32 43-46 SS 0,37 KIRSS038-6,5 40 38 50-53 SS 0,41 KIRSS050-5,5 50 50 60-62 SS 0,38 KIRSS050-8 50 50 63-67 SS 0,69 KIRSS063-6 65 63 74-76 SS 0,53 KIRSS063-8 65 63 78-82 SS 1,06 KIRSS075-6,5 80 75 87-89 SS 0,58 KIRSS075-8 80 75 89-93 SS 1,2 KIRSS100-8 100 100 114-119 SS 2,9
PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
33 33 Chemical
Check all current product details and specification on product datasheet (QR code): Product code DN Hose Ø i.d. mm Hose o.d. mm Material Weight kg/pc ALUMINIUM KIRAL013-5 15 13 22-24 AL 0,12 KIRAL019-6 20 19 30-33 AL 0,12 KIRAL025-5 25 25 34-36 AL 0,19 KIRAL025-6 25 25 36-39 AL 0,14 KIRAL032-5 32 32 41-43 AL 0,28 KIRAL032-6 32 32 43-46 AL 0,15 KIRAL038-5 40 38 47-49 AL 0,28 KIRAL038-6,5 40 38 50-52 AL 0,15 KIRAL050-5 50 50 59-61 AL 0,38 KIRAL050-8 50 50 64-67 AL 0,29 KIRAL050-10 50 50 69-71 AL 0,33 KIRAL063-6 65 63 74-76 AL 0,53 KIRAL063-8 65 63 78-82 AL 0,43 KIRAL075-6 80 75 86-88 AL 0,58 KIRAL075-8 80 75 89-93 AL 0,49 KIRAL100-6,5 100 100 112-114 AL 1,16 KIRAL100-8 100 100 114-119 AL 1,09 KIRAL125-10 125 125 143-148 AL 1,88 KIRAL150-10 150 150 168-174 AL 3,78 KIRAL200-12 200 200 222-229 AL 6,52
https://teknikum.com/product/safety-clamp/

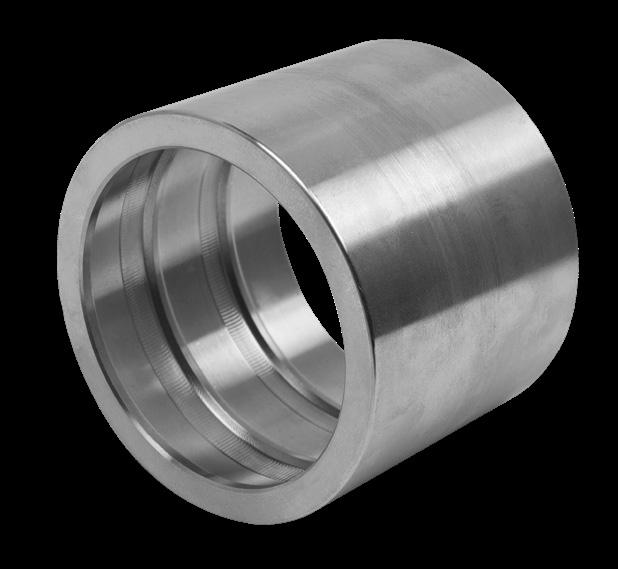

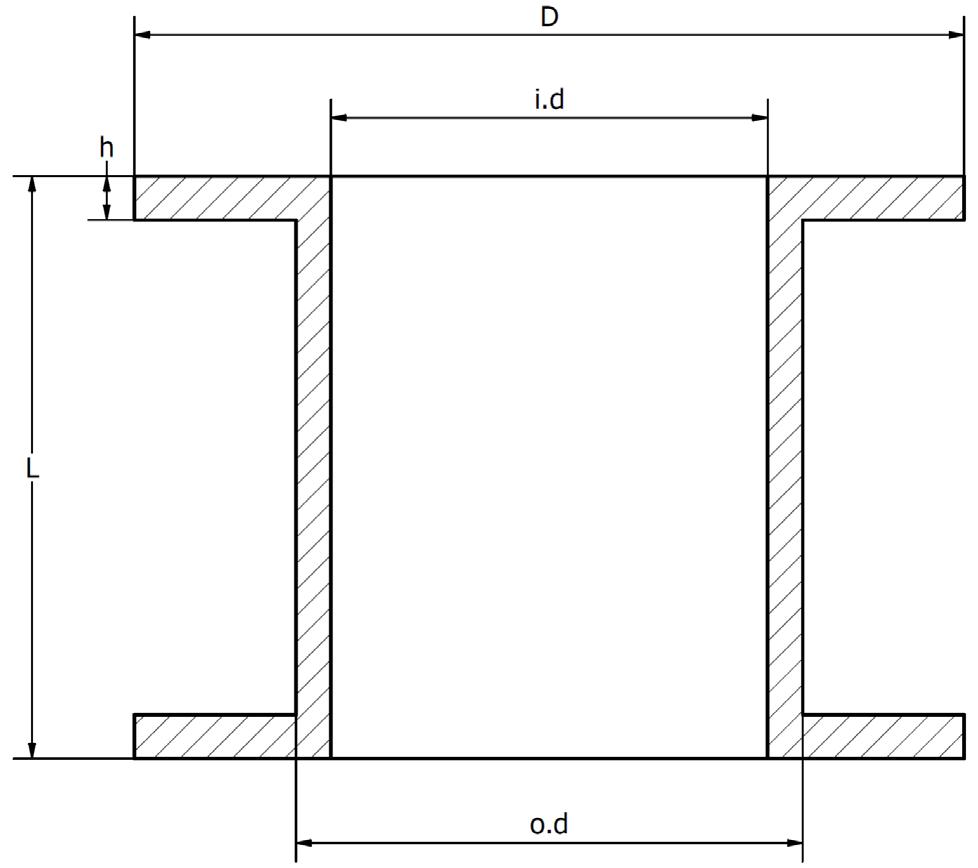

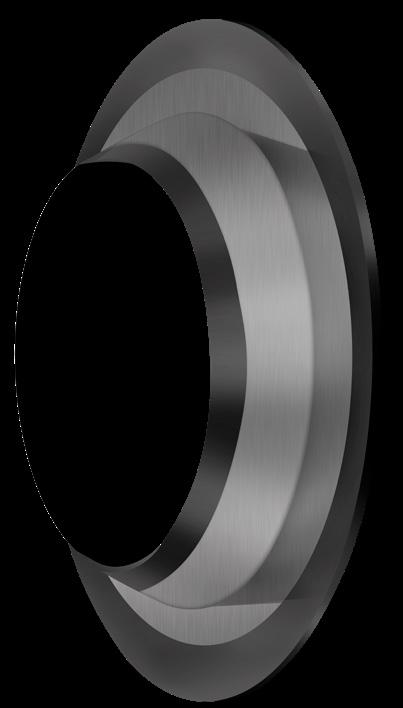

Swaged ferrule clamp
AISI 316 / EN 1.4401
DESCRIPTION AND ADVANTAGES
Swaged connection is a safe and hygienic way to connect hose fitings. The ferrule is swaged evenly on the hose creating a smooth connection inside and outside of the hose free of gaps or cavities for impurities.
Swaged ferrule assembly work is made by supplier so customer receives a hose assembly ready for operation.
Swaged ferrules are made of AISI 316 / EN 1.4401 stainless steel material.
Swaged ferrule price includes hose cutting, swage ferrule part and swaging operation.
BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Gepresste Verbindungen sind eine sichere und hygienische Art, Schlaucharmaturen zu verbinden. Die Hülse wird gleichmäßig auf den Schlauch gestaucht, wodurch eine glatte Verbindung innerhalb und außerhalb des Schlauchs ohne Lücken oder Hohlräume für Verunreinigungen entsteht.
Die Montagearbeiten für gepresste Klemmringe werden vom Lieferanten durchgeführt, sodass der Kunde eine betriebsbereite Schlauchleitung erhält. Presshülsen sind aus Edelstahl sind aus Edelstahl AISI 316 / EN 1.4401 gefertigt. Die Montagearbeiten für gepresste Klemmringe werden vom Lieferanten durchgeführt, sodass der Kunde eine betriebsbereite Schlauchleitung erhält.
La connexion sertie est un moyen sûr et hygiénique de connecter les raccords de tuyaux. La douille est sertie uniformément sur le tuyau, ce qui crée une connexion lisse à l'intérieur et à l'extérieur du tuyau, sans espace ni cavité pour les impuretés.
L'assemblage de la douille sertie est effectué par le fournisseur afin que le client reçoive un ensemble raccordtuyau opérationnel.
Les douilles serties sont fabriquées en acier inoxydable AISI 316 / EN 1.4401. Le prix de la douille sertie comprend la découpe du tuyau, la pièce de la douille sertie et l'opération de sertissage.
34 34 Chemical Swaged ferrule clamp
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
MULTI-TEK, FLUOR-TEK, FUEL-TEK, PAVE Cool Red, PAVE 1,0 MPa
PURHO038-1 38 FOOD-TEK® SD, PAVE 1,0 MPa
PURHO038-1 40 FOOD-TEK® SD LACTO, CHEMO-TEK, MULTI-TEK, FLUOR-TEK, FUEL-TEK, PAVE 1,0 MPa, AGRI-TEK SD
PURHO050-1 50 FOOD-TEK® SD, FOOD-TEK® SD LACTO
PURHO050-2 51 CHEMO-TEK MULTI-TEK, FLUOR-TEK, FUEL-TEK, PAVE Cool Red, PAVE 1,0 MPa
PURHO065-1 63 CHEMO-TEK, MULTI-TEK, FLUOR-TEK, FUEL-TEK, PAVE Cool Red, PAVE 1,0 MPa
PURHO080-1 75 CHEMO-TEK, MULTI-TEK, FLUOR-TEK, FUEL-TEK
PURHO080-1 75 CHEMO-TEK, MULTI-TEK, FLUOR-TEK, FUEL-TEK https://teknikum.com/product/swaged-ferrule-clamp/
35 35 Chemical
PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Check all current product details and specification on product datasheet (QR code): Product code Hose Ø i.d. mm Suitable Teknikum® hoses Swaged ferrule clamp

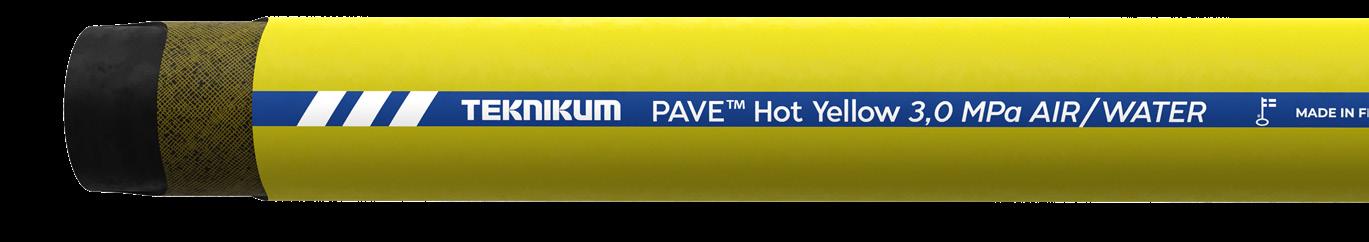

13 MULTI-TEK, PAVE Hot Yellow PURHO015-2 13 FOOD-TEK® D CLEAN
19 FOOD-TEK®
FOOD-TEK®
25 CHEMO-TEK,
CHEMO-TEK,
PURHO015-1
PURHO020-1
D CLEAN, MULTI-TEK, FLUOR-TEK, FUEL-TEK, PAVE Hot Yellow PURHO020-2 19
D CLEAN, PAVE, NOVE PURHO025-1 25 FOOD-TEK® SD, CHEMO-TEK, MULTI-TEK, FLUOR-TEK, FUEL-TEK, PAVE Hot Yellow PURHO025-2
MULTI-TEK, FLUOR-TEK, FUEL-TEK, PAVE Cool Red, PAVE 1,0 MPa PURHO032-1 32
Oil & Fuel
Teknikum FUEL-TEK® for the safe handling of oils, fuels, liquid and natural gas.
Especially developed for freezing operational conditions and dock operations.
Teknikum FUEL-TEK® D
FUEL-TEK® SD
FUEL-TEK® D ARCTIC
FUEL-TEK® SD ARCTIC
FUEL-TEK® SD GAS LPG/LNG
FUEL-TEK® D LYPO
FUEL TEK® D MARI

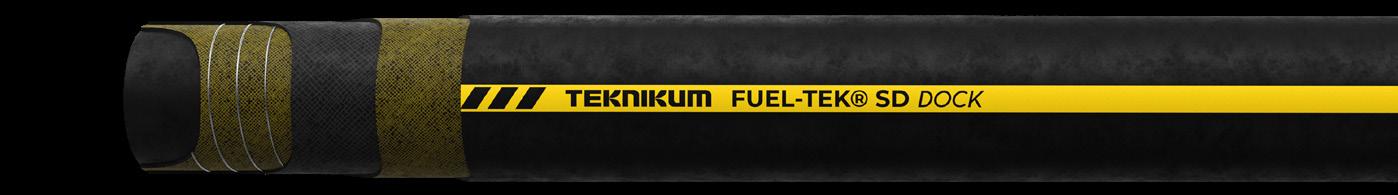

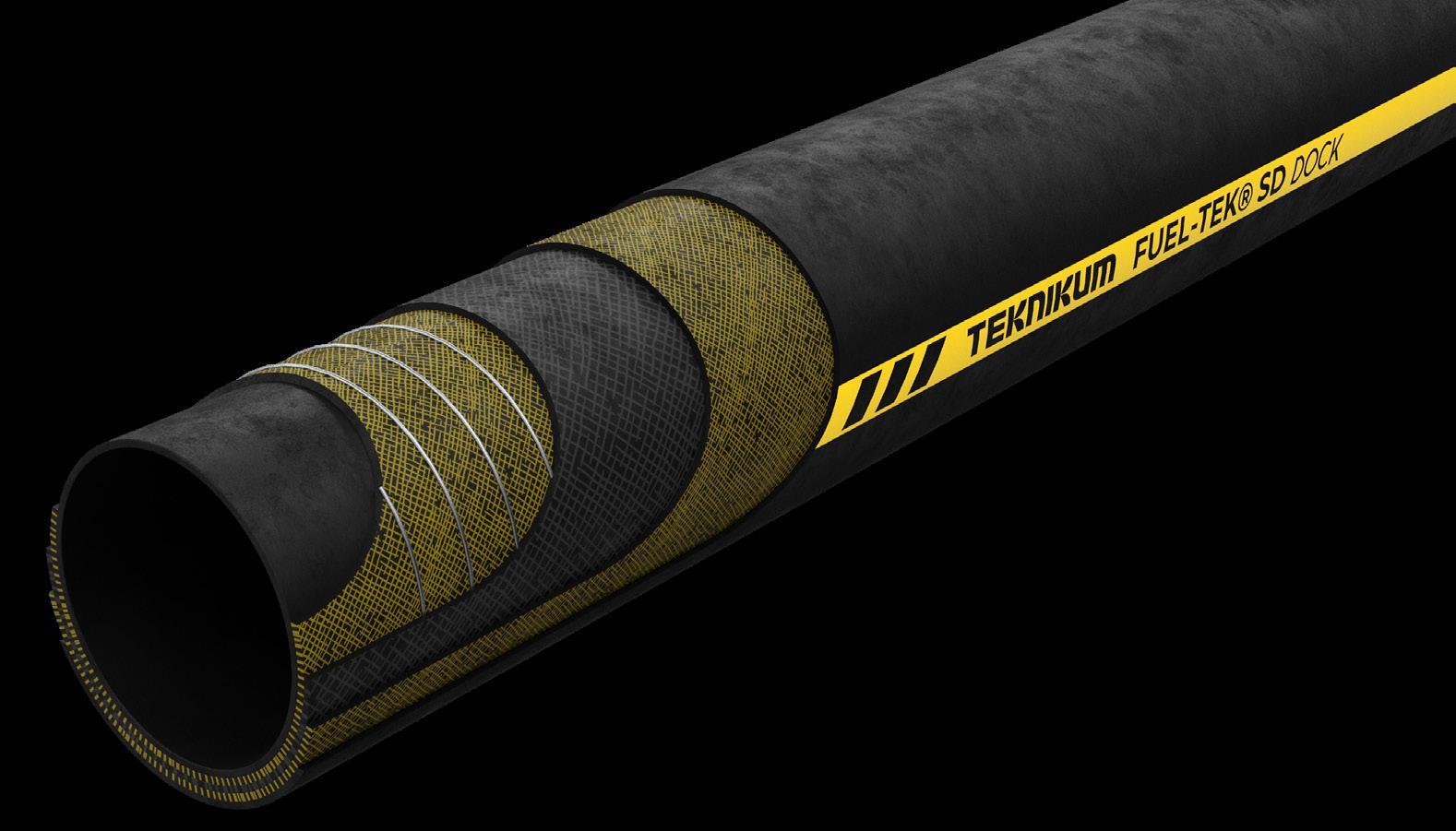

FUEL-TEK® SD DOCK
“When you are looking for a sustainable fuel and oil handling solution without quality or usability compromises.”
Timo Kokkonen Director, Hoses Business Unit Teknikum Group
For the handling of oils, fuels, liquid and natural gas
Teknikum suction and pressure hoses for oil and fuels comply with chemical and other relating industry standards, and cover all uses in the transfer of substances such as industrial chemicals, fuels and oils, liquid and natural gas, corrosive substances and solvents. Our hoses are known from their flexibility, easy handling and durability.

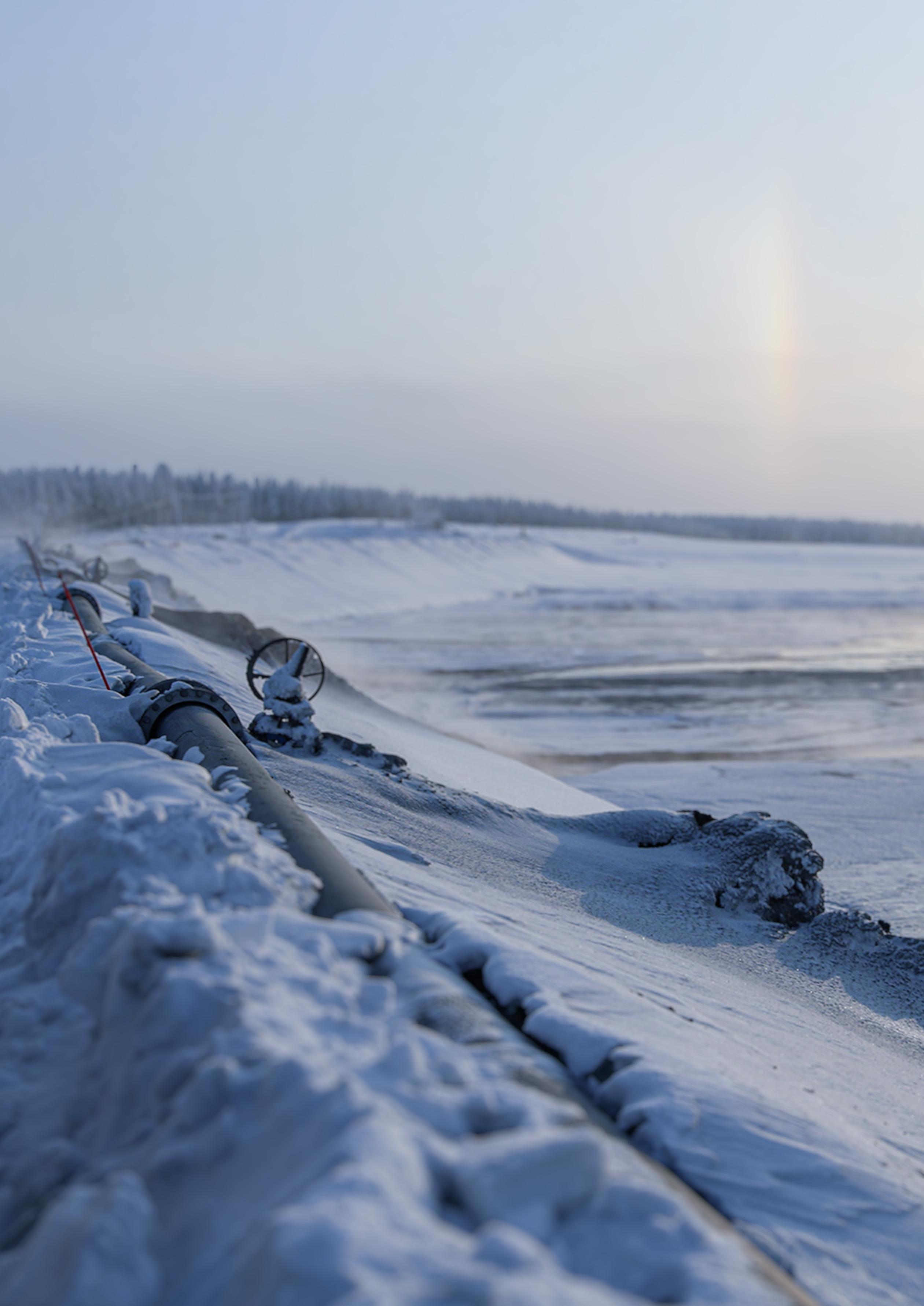

Teknikum FUEL-TEK® ARCTIC series is especially developed for freezing operational conditions and maintains its flexibility even in – 50 °C.
Für die Handhabung von Ölen, Brennstoffen, Flüssig- und
Erdgas
Die Saug- und Druckschläuche von Teknikum für Öl und Brennstoffe entsprechen den Chemie- und weiteren relevanten Industrienormen. Sie decken zudem alle Verwendungen bei der Förderung von Substanzen ab, wie industrielle Chemikalien, Brennstoffe und Öle, Flüssig- und Erdgas, korrosive Substanzen und Lösungsmittel. Unsere Schläuche sind für ihre Flexibilität, einfache Handhabung und Langlebigkeit bekannt.
Die Baureihe Teknikum FUEL-TEK® ARCTIC wurde speziell für den Einsatz unter kalten Bedingungen entwickelt und behält ihre Flexibilität selbst bei -50 °C bei.
Pour la manipulation d’huiles, de pétrole, de gaz liquide et de gaz naturel
Les tuyaux d’aspiration et de pression Teknikum destinés au pétrole et aux huiles sont conformes aux normes de l’industrie chimique et aux autres normes industrielles applicables, et couvrent toutes les applications dans le transfert de substances telles que les substances chimiques industrielles, le pétrole et les huiles, le gaz liquide et le gaz naturel, les substances corrosives et les solvants. Nos tuyaux sont réputés pour leur flexibilité, leur manipulation aisée et leur durabilité.
La série FUEL-TEK® ARCTIC de Teknikum est spécialement conçue pour les conditions de gel et conserve sa flexibilité même à – 50 °C.
37 37 Oil & Fuel
Teknikum FUEL-TEK® D
EN:12115 EN:1761
Delivery hose
• Hose type: Ω/T
Suitable for almost all oil-based materials and hydrocarbons with maximum aromatic content of 50%
Suitable for gasoline, diesel oil and oil mixed water
The hose can be used with biodiesels which have less than 20% FAME (Fatty acid methyl ester) and with bioethanol containing biofuels
Excellent weather and ageing resistance
High mechanical strength
• Flexible even in very cold conditions
Recommended hose couplings according to EN 14420 and clamps according to EN 14420-3
Burst safety factor is 4 x working pressure
Druckschlauch
• Schlauchtyp: Ω/T
Geeignet für fast alle Materialien auf Ölbasis und Kohlenwasserstoffe mit einem maximalen Aromatengehalt von 50 %
Der Schlauch kann mit Biodiesel mit weniger als 20 % FAME (Fettsäuremethylester) und mit bioethanolhaltigen Biokraftstoffen verwendet werden
Hervorragende Witterungs- und Alterungsbeständigkeit
Hohe mechanische Festigkeit Flexibel auch bei sehr kalten Bedingungen
Empfohlene Schlauchkupplungen nach EN 14420 und Schlauchschellen nach EN 14420-3
• Berstsicherheitsfaktor 4 x Betriebsdruck
CR
+100°C
- 40°C
Tuyau de refoulement
• Type de tuyau : Ω/T
Convient à quasiment toutes les matières à base de pétrole et aux hydrocarbures avec une teneur maximale en composés aromatiques de 50 %
Convient à l'essence, au gazole et à l'eau mélangée aux hydrocarbures
Le tuyau peut être utilisé avec des biodiesels qui ont moins de 20% d'EMAG (ester méthylique d'acide gras) et avec des biocarburants contenant du bioéthanol
Excellente résistance aux intempéries et au vieillissement
Résistance mécanique élevée
Flexible même par temps très froid
• Il est recommandé d'utiliser des raccords de tuyaux conformes à la norme
EN 14420 et des colliers de serrage conformes à la norme EN 14420-3
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
38 38 Oil & Fuel
NBR
TEXTILE
FUEL-TEK® D DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other dimensions available on request. / Weitere Größen auf
/ D'autres dimensions sont disponibles sur demande.
39 39 Oil & Fuel PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code):
Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum FUEL-TEK® D H2400BC008 8 16 1,0 0,05 32 0,20 40 H2400BC010 10 18 1,0 0,05 40 0,30 40 H2400BC013 13 23 1,0 0,05 52 0,40 40 H2400BC016 16 26 1,0 0,05 64 0,50 40 H2400BC019 19 31 1,0 0,05 76 0,60 40 H2400BC025 25 37 1,6 0,04 100 0,80 40 H2400BC032 32 44 1,0 0,04 128 1,00 40 H2400BC038 38 51 1,6 0,04 152 1,20 40 H2400BC040 40 53 1,0 0,04 160 1,30 40 H2400BC045 45 59 1,0 0,04 180 1,40 40 H2400BC050 50 66 1,6 0,03 200 1,70 40 H2400BC063 63 79 1,0 - 252 2,60 40 H2400BC075 75 91 1,6 - 300 3,20 40 H2400BC076 76 92 1,0 - 304 3,20 40 H2400BC090 90 106 1,0 - 360 3,70 40 H2400BC100 100 116 1,6 - 400 4,20 40 H2400BC102 102 118 1,0 - 408 4,20 40 H2400BC115 115 135 1,0 - 460 5,80 40 H2400BC127 127 147 1,0 - 508 6,30 20 H2400BC152 152 172 1,0 - 608 8,90 20
Anfrage erhältlich.
https://teknikum.com/product/teknikum-fuel-tek-d-petrochemical-hose/

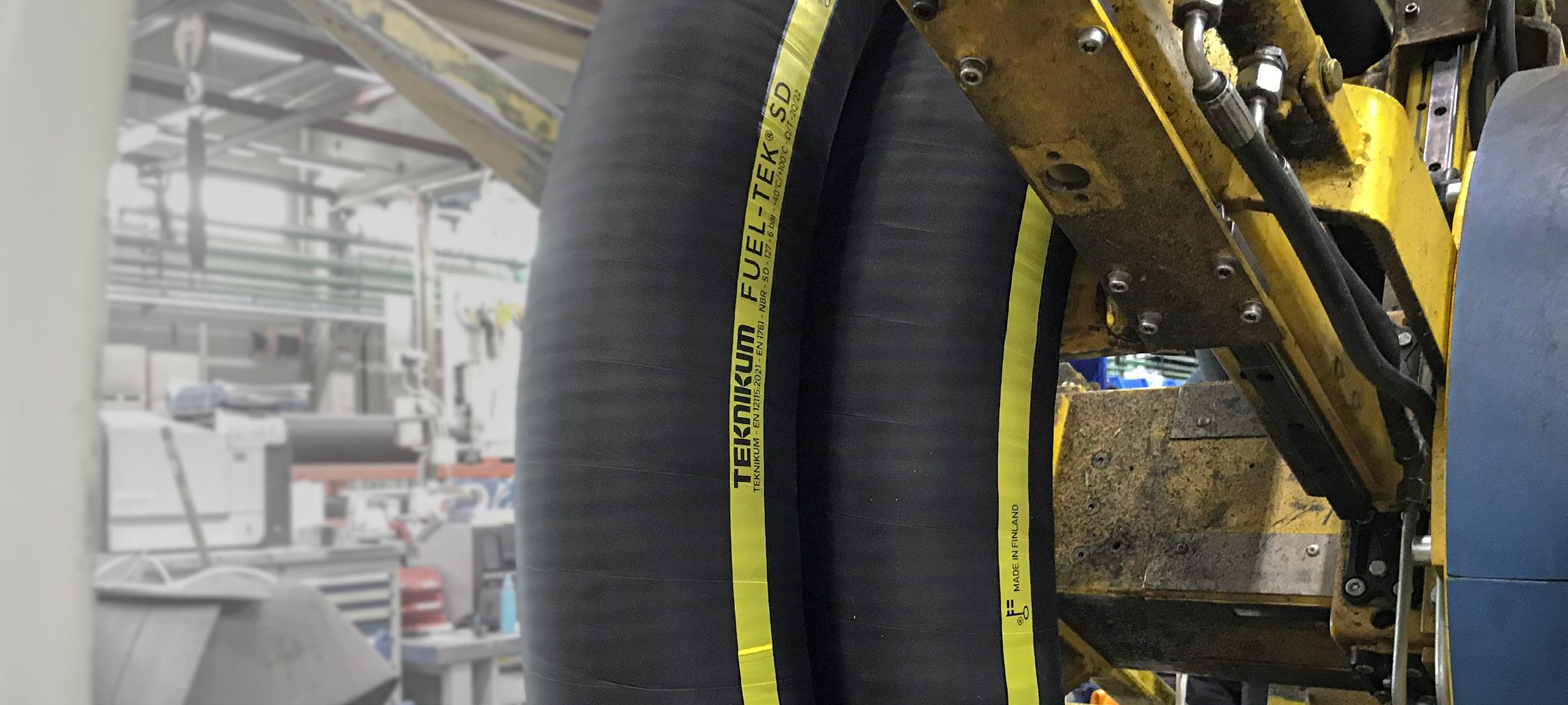

Teknikum FUEL-TEK® SD
EN:12115 EN:1761
Suction and delivery hose
• Hose type: Ω/T
Suitable for almost all oil-based materials and hydrocarbons with maximum aromatic content of 50%
Suitable for gasoline, diesel oil and oil mixed water
The hose can be used with biodiesels which have less than 20% FAME (Fatty acid methyl ester) and with bioethanol containing biofuels
Excellent weather and ageing resistance
Flexible even in very cold conditions
• High mechanical strength
Recommended hose couplings according to EN 14420 and clamps according to EN 14420-3
Burst safety factor is 4 x working pressure
Saug- und Druckschlauch
• Schlauchtyp: Ω/T
Geeignet für fast alle Materialien auf Ölbasis und Kohlenwasserstoffe mit einem maximalen Aromatengehalt von 50 %
Der Schlauch kann mit Biodiesel mit weniger als 20 % FAME (Fettsäuremethylester) und mit bioethanolhaltigen Biokraftstoffen verwendet werden
Hervorragende Witterungs- und Alterungsbeständigkeit
Flexibel auch bei sehr kalten Bedingungen
Hohe mechanische Festigkeit Empfohlene Schlauchkupplungen nach EN 14420 und Schlauchschellen nach EN 14420-3
• Berstsicherheitsfaktor 4 x Betriebsdruck
Tuyau d'aspiration et de refoulement
• Type de tuyau : Ω/T
Convient à quasiment toutes les matières à base de pétrole et aux hydrocarbures avec une teneur maximale en composés aromatiques de 50 %
Convient à l'essence, au gazole et à l'eau mélangée aux hydrocarbures
Le tuyau peut être utilisé avec des biodiesels qui ont moins de 20% d'EMAG (ester méthylique d'acide gras) et avec des biocarburants contenant du bioéthanol
Excellente résistance aux intempéries et au vieillissement
Flexible même par temps très froid Résistance mécanique élevée
• Il est recommandé d'utiliser des raccords de tuyaux conformes à la norme EN 14420 et des colliers de serrage conformes à la norme EN 14420-3 Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
40 40 Oil & Fuel CR NBR
TEXTILE - 40°C +100°C
STEEL SPIRAL
FUEL-TEK® SD DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
41 41 Oil & Fuel
INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
all current product details and specification on product datasheet (QR code):
PRODUCT
Check
Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum FUEL-TEK® SD H2410BC016 16 27 1,0 0,09 64 0,60 40 H2410BC019 19 31 1,0 0,09 76 0,70 40 H2410BC022 22 33 1,0 0,09 88 0,70 40 H2410BC025 25 37 1,6 0,09 100 0,90 40 H2410BC030 30 40 1,0 0,09 120 0,90 40 H2410BC032 32 44 1,0 0,09 128 1,00 40 H2410BC038 38 51 1,6 0,09 152 1,30 40 H2410BC040 40 53 1,0 0,09 160 1,20 40 H2410BC045 45 59 1,0 0,09 180 1,40 40 H2410BC050 50 62 1,0 0,09 200 1,60 40 H2410BC050-8 50 66 1,6 0,09 200 2,00 40 H2410BC057 57 70 1,0 0,09 228 1,60 40 H2410BC063 63 79 1,0 0,09 252 1,80 40 H2410BC075 75 91 1,6 0,09 300 2,00 40 H2410BC076 76 92 1,0 0,09 304 2,20 40 H2410BC090 90 106 1,0 0,09 360 3,20 40 H2410BC100 100 116 1,6 0,09 400 4,10 40 H2410BC102 102 118 1,0 0,09 408 4,00 40 H2410BC115 115 135 1,0 0,09 460 4,20 40 H2410BC127 127 147 0,6 0,09 508 4,60 20 H2410BC152 152 172 0,6 0,09 608 7,80 20
https://teknikum.com/product/teknikum-fuel-tek-sd-petrochemical-hose/
Teknikum FUEL-TEK® D ARCTIC
EN:12115
Delivery hose
• Hose type: Ω/T
Suitable for almost all oil-based materials and hydrocarbons with maximum aromatic content of 50%
Suitable for gasoline, diesel oil and oil mixed water
The hose can be used with biodiesels which have less than 20% FAME (Fatty acid methyl ester) and with bioethanol containing biofuels
Excellent weather and ageing resistance
High mechanical strength
• The hose maintains its high-quality flexibility even in the temperature of -50°C
• Recommended hose couplings according to EN 14420 and clamps according to EN 14420-3
Burst safety factor 4 x working pressure
CR NBR TEXTILE
Druckschlauch
• Schlauchtyp: Ω/T
Geeignet für fast alle Materialien auf Ölbasis und Kohlenwasserstoffe mit einem maximalen Aromatengehalt von 50 %
Der Schlauch kann mit Biodiesel mit weniger als 20 % FAME (Fettsäuremethylester) und mit bioethanolhaltigen Biokraftstoffen verwendet werden
Hervorragende Witterungs- und Alterungsbeständigkeit
Hohe mechanische Festigkeit
Der Schlauch behält auch bei einer Temperatur von -50°C seine hochwertige Flexibilität
Empfohlene Schlauchkupplungen nach EN 14420 und Schlauchschellen nach EN 14420-3
• Berstsicherheitsfaktor 4 x Betriebsdruck
+100°C
- 50°C
Tuyau de refoulement
• Type de tuyau : Ω/T
Convient à quasiment toutes les matières à base de pétrole et aux hydrocarbures avec une teneur maximale en composés aromatiques de 50 %
Convient à l'essence, au gazole et à l'eau mélangée aux hydrocarbures
Le tuyau peut être utilisé avec des biodiesels qui ont moins de 20% d'EMAG (ester méthylique d'acide gras) et avec des biocarburants contenant du bioéthanol
Excellente résistance aux intempéries et au vieillissement
Résistance mécanique élevée
Le tuyau conserve sa grande qualité de flexibilité même à une température de -50 °C
• Il est recommandé d'utiliser des raccords de tuyaux conformes à la norme EN 14420 et des colliers de serrage conformes à la norme EN 14420-3
• Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
The hose maintains its high-quality flexibility even in the temperature of -50°C.
42 42 Oil & Fuel
FUEL-TEK® D ARCTIC
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other
43 43 Oil & Fuel PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code):
Größen
Anfrage erhältlich. / D'autres dimensions
Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum FUEL-TEK® D ARCTIC 2400LT013 13 23 1,0 0,05 52 0,40 40 2400LT025 25 37 1,0 0,04 100 0,80 40 2400LT038 38 51 1,0 0,04 152 1,20 40 2400LT050 50 66 1,0 0,03 200 1,70 40 2400LT063 63 79 1,0 - 252 2,60 40
dimensions available on request. / Weitere
auf
sont disponibles sur demande.
https://teknikum.com/product/teknikum-fuel-tek-d-arctic-petrochemical-hose/
Teknikum FUEL-TEK® SD ARCTIC
EN:12115
Suction and delivery hose
• Hose type: Ω/T
Suitable for almost all oil-based materials and hydrocarbons with maximum aromatic content of 50%
Suitable for gasoline, diesel oil and oil mixed water
The hose can be used with biodiesels which have less than 20% FAME (Fatty acid methyl ester) and with bioethanol containing biofuels
Excellent weather and ageing resistance
High mechanical strength
• The hose maintains its high-quality flexibility even in the temperature of -50°C
• Recommended hose couplings according to EN 14420 and clamps according to EN 14420-3
Burst safety factor 4 x working pressure
Saug- und Druckschlauch
• Schlauchtyp: Ω/T
Geeignet für fast alle Materialien auf Ölbasis und Kohlenwasserstoffe mit einem maximalen Aromatengehalt von 50 %
Der Schlauch kann mit Biodiesel mit weniger als 20 % FAME (Fettsäuremethylester) und mit bioethanolhaltigen Biokraftstoffen verwendet werden
Hervorragende Witterungs- und Alterungsbeständigkeit
Hohe mechanische Festigkeit
Der Schlauch behält auch bei einer Temperatur von -50°C seine hochwertige Flexibilität
Empfohlene Schlauchkupplungen nach EN 14420 und Schlauchschellen nach EN 14420-3
• Berstsicherheitsfaktor 4 x Betriebsdruck
Tuyau d'aspiration et de refoulement
• Type de tuyau : Ω/T
Convient à quasiment toutes les matières à base de pétrole et aux hydrocarbures avec une teneur maximale en composés aromatiques de 50 %
Convient à l'essence, au gazole et à l'eau mélangée aux hydrocarbures
Le tuyau peut être utilisé avec des biodiesels qui ont moins de 20% d'EMAG (ester méthylique d'acide gras) et avec des biocarburants contenant du bioéthanol
Excellente résistance aux intempéries et au vieillissement
Résistance mécanique élevée
Le tuyau conserve sa grande qualité de flexibilité même à une température de -50 °C
• Il est recommandé d'utiliser des raccords de tuyaux conformes à la norme
EN 14420 et des colliers de serrage conformes à la norme EN 14420-3
• Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
44 44 Oil & Fuel CR NBR
50°C +100°C
STEEL SPIRAL TEXTILE -
FUEL-TEK® SD ARCTIC
AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
DESCRIPTION
“The hose is successfully used in the emulsion explosive mixing and charging machines due to the special lightness of the hose, the ability to maintain flexibility at -40°C and the inner layer with increased slip tat allows reduce the final pressure at the hose outlet.
45 45 Oil & Fuel PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code): Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande. Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum FUEL-TEK® SD ARCTIC 2410LT019 19 31 1,0 0,09 76 0,70 40 2410LT025 25 37 1,0 0,09 100 0,90 40 2410LT038 38 51 1,0 0,09 152 1,30 40 2410LT045 45 59 1,0 0,09 180 1,40 40 2410LT050 50 66 1,0 0,09 200 2,00 40 2410LT075 75 91 1,6 0,09 300 2,00 40 2410LT076 76 92 1,0 0,09 304 2,20 40 2410LT100 100 116 1,0 0,09 400 4,10 40 https://teknikum.com/product/teknikum-fuel-tek-sd-arctic-petrochemical-hose/
Energy x Components

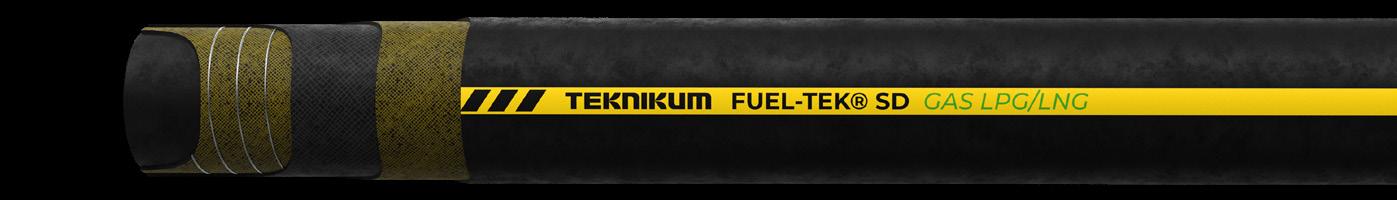

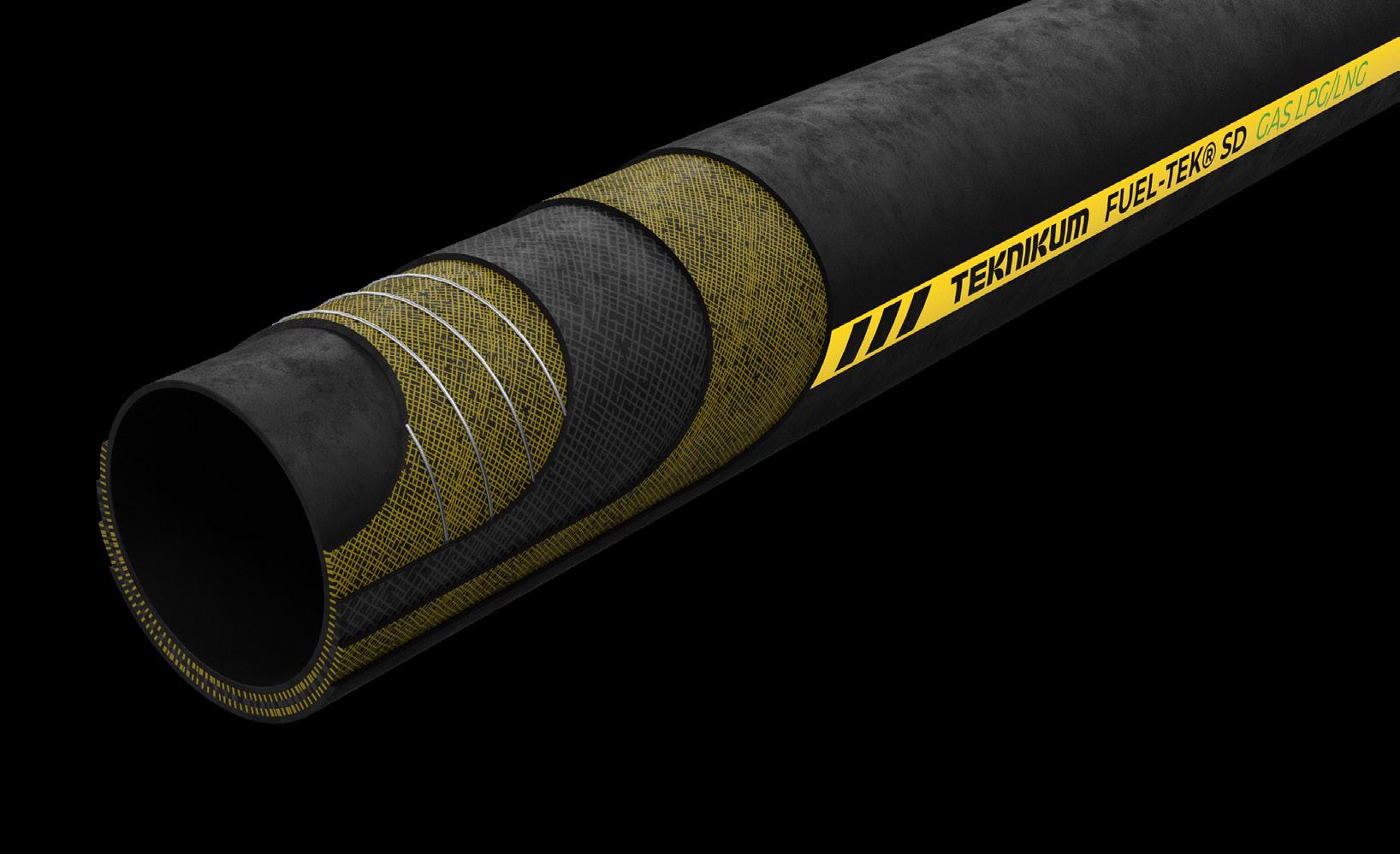

Teknikum FUEL-TEK® SD GAS LPG/LNG
EN:1762
• Suction and delivery hose
For liquid gas applications, such as transferring LPG (Liquefied Petroleum Gas) or natural gas
Suitable to most common saturated hydrocarbons, such as methane, ethane, propane and butane in its gaseous or liquid form
Excellent weather and ageing resistance
High mechanical strength
The hose cover is pin pricked allowing smooth gas permeation for safety
• Meets the requirements of standard
EN 1762:2003 for Ω-type hose: resistance of the hose is < 10⁶ Ω per length
• Recommended hose couplings according to EN 14420 and clamps according to EN 14420-3
• Burst safety factor is 4 x working pressure
• Saug- und Druckschlauch Für Flüssiggasanwendungen, wie z. B. das Umfüllen von LPG (Liquefied Petroleum Gas) oder Erdgas Geeignet für die gängigsten gesättigten Kohlenwasserstoffe wie Methan, Ethan, Propan und Butan in gasförmiger oder flüssiger Form Hervorragende Witterungs- und Alterungsbeständigkeit Hohe mechanische Festigkeit Die Schlauchdecke ist geprickt und ermöglicht aus Sicherheitsgründen eine reibungslose Gaspermeation.
• Erfüllt die Anforderungen der Norm
EN 1762:2003 für Ω-Schläuche: Widerstand des Schlauchs ist < 10⁶ Ω pro Länge
• Empfohlene Schlauchkupplungen nach EN 14420 und Schlauchschellen nach EN 14420-3
• Berstsicherheitsfaktor 4 x Betriebsdruck
• Tuyau d'aspiration et de refoulement Pour les applications de gaz liquide, telles que le transfert de GPL (gaz de pétrole liquéfié) ou de gaz naturel
Convient aux hydrocarbures saturés les plus courants, tels que le méthane, l'éthane, le propane et le butane, sous forme gazeuse ou liquide
Excellente résistance aux intempéries et au vieillissement
Résistance mécanique élevée
La gaine du tuyau est piquée à l'aide d'une épingle, ce qui permet une perméabilité au gaz pour plus de sécurité
Répond aux exigences de la norme
EN 1762:2003 pour les tuyaux de type Ω : la résistance du tuyau est < 10⁶ Ω par longueur
Il est recommandé d'utiliser des raccords de tuyaux conformes à la norme
EN 14420 et des colliers de serrage conformes à la norme EN 14420-3
• Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
46 46 Oil & Fuel CR NBR STEEL SPIRAL TEXTILE - 40°C +100°C
FUEL-TEK® SD GAS LPG/LNG DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
https://teknikum.com/product/teknikum-fuel-tek-sd-dock-petrochemical-hose/
47 47 Oil & Fuel PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Check all current product details and specification on product datasheet (QR code):
Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum FUEL-TEK® SD GAS LPG/LNG H3410BC019 19 31 2,5 0,09 75 0,70 40 H3410BC025 25 38 2,5 0,09 90 0,90 40 H3410BC032 32 45 2,5 0,09 110 1,00 40 H3410BC038 38 52 2,5 0,09 120 1,30 40 H3410BC050 50 66 2,5 0,09 200 2,00 40 H3410BC063 63 81 2,5 0,09 230 1,80 40 H3410BC075 75 93 2,5 0,09 260 2,00 40 H3410BC100 100 120 2,5 0,09 450 4,10 40
Teknikum FUEL-TEK® SD DOCK
EN:1765
Suction and delivery hose
Max. allowed resistance for electrically continuous hose assembly is 100 Ω, and min. allowed resistance for electrically discontinuous hose assembly is 2,5 x 10^4 Ω.
Premium suction delivery hose for transferring crude oil and liquid petroleum products

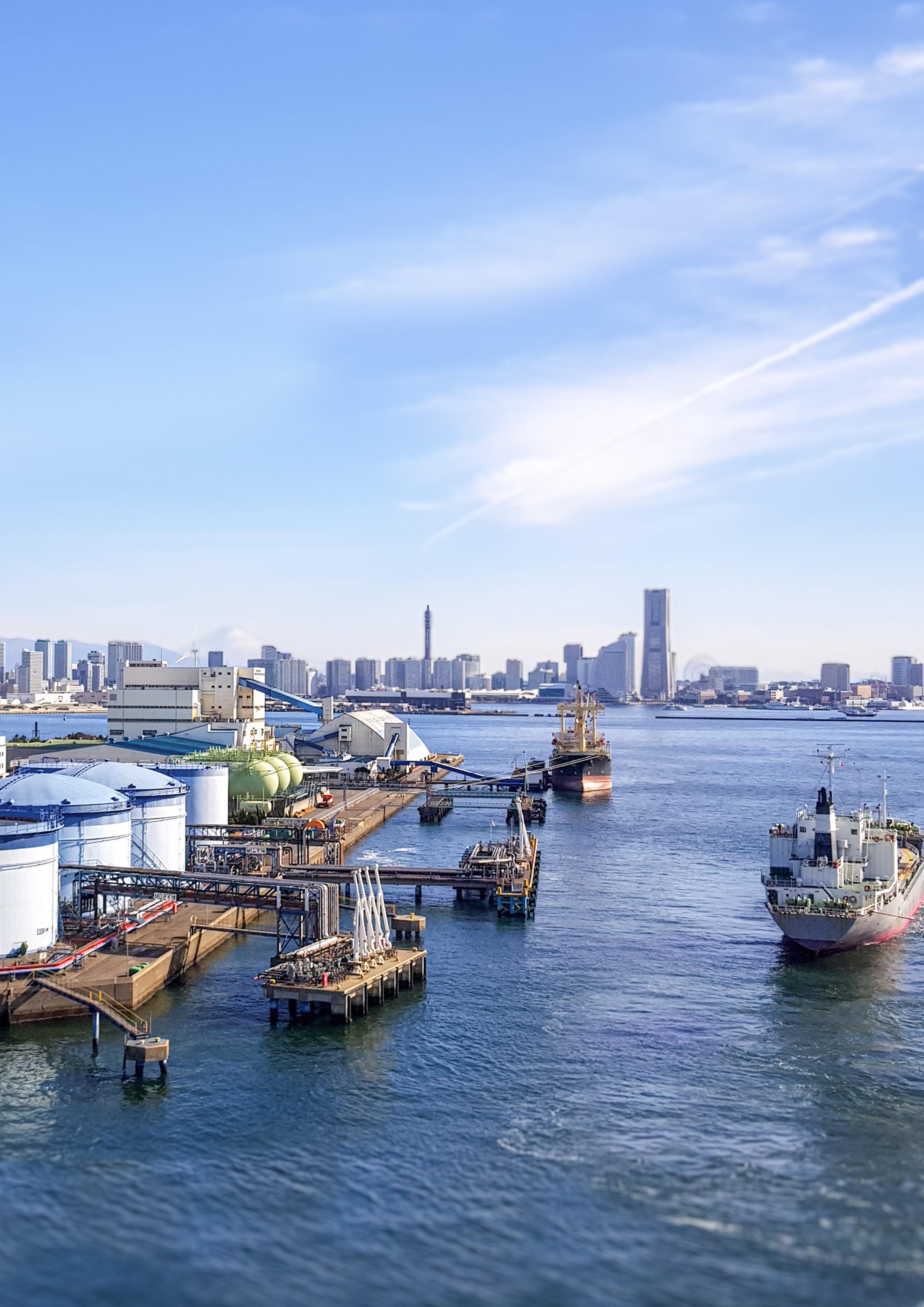

• Designed for dock operations
Compliant with hose assembly standard EN 1765, which deals oil suction and discharge services. Standard classifies following types:
Types S and L hose assemblies are intended to dock operations where flexibility and lightness are important.
Type S hose assemblies are intended to oil suction or delivevry operations.
Type L hose assemblies are intended to oil delivery only.
Note: Both S and L types may be electrically continuous or discontinuous.
• Excellent weather and ageing resistance
• High mechanical strength
Recommended hose couplings according to EN 14420 and clamps according to EN 14420-3
Burst safety factor 4 x working pressure
Saug- und Druckschlauch
• Max. zulässiger Widerstand für elektrisch durchgängige Schlauchleitungen 100 Ω und min. zulässiger Widerstand für elektrisch unterbrochene Schlauchleitung ist 2,5 x 10^4 Ω.
Hochwertiger Saugdruckschlauch zum Umfüllen von Rohöl und flüssigen Mineralölprodukten
• Konzipiert für das Be-und Entladen von Tankschiffen
Entspricht der Norm EN 1765
Die Schlauchleitungen vom Typ S und L sind für das Be-und Entladen von Tankschiffen im Hafenbetrieb konzipiert konzipiert, bei denen Flexibilität und Leichtigkeit wichtig sind.
Die Schlauchleitungen vom Typ S sind für die Ansaugung oder Förderung von Öl konzipiert.
Die Schlauchleitungen vom Typ L sind nur für die Ölförderung konzipiert.
Hinweis: Sowohl Schlauchleitungen vom Typ S und L können elektrisch leitend oder nicht leitend sein. Hervorragende Witterungs- und Alterungsbeständigkeit
• Hohe mechanische Festigkeit Empfohlene Schlauchkupplungen nach EN 14420 und Schlauchschellen nach EN 14420-3 Berstsicherheitsfaktor 4 x Betriebsdruck
CR
+100°C
- 30°C
Tuyau d'aspviration et de refoulement
• La résistance maximale autorisée pour un ensemble raccord-tuyau électriquement continu est de 100 Ω, et la résistance minimale autorisée pour un ensemble raccord-tuyau électriquement discontinu est de 2,5 x 10^4 Ω.
Tuyau d'aspiration et de refoulement d’excellente qualité pour le transfert de pétrole brut et de produits pétroliers liquides
Conçu pour les opérations de quai
• Conforme à la norme EN 1765
Les assemblages de flexibles de type S et L sont destinés aux opérations de dock, qui exigent souplesse et légèreté.
Les assemblages de flexibles de type S sont destinés aux opérations d'aspiration ou de livraison d'huile. Les assemblages de flexibles de type L sont uniquement destinés aux opérations de livraison d'huile. Note : Les assemblages de type S et L peuvent être électriquement continus ou discontinus.
Excellente résistance aux intempéries et au vieillissement
• Résistance mécanique élevée Il est recommandé d'utiliser des raccords de tuyaux conformes à la norme EN 14420 et des colliers de serrage conformes à la norme EN 14420-3
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
Premium suction delivery hose for transferring crude oil and liquid petroleum products.
Especially for dock operations where flexibility and lightness are important.
48 48 Oil & Fuel
NBR
STEEL SPIRAL
TEXTILE
FUEL-TEK® SD DOCK DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other dimensions available on request. / Weitere Größen auf Anfrage
/ D'autres dimensions sont disponibles sur demande.
49 49 Oil & Fuel PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code):
erhältlich.
https://teknikum.com/product/teknikum-fuel-tek-sd-dock-petrochemical-hose/ Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m FUEL-TEK® SD DOCK Type S hoses H3465050S 50 66 0,7 / 1,0 / 1,5 0,09 350 1,90 40 H3465075S 75 91 0,7 / 1,0 / 1,5 0,09 450 3,10 40 H3465100S 100 116 0,7 / 1,0 / 1,5 0,09 600 4,30 40 H3465150S 150 170 0,7 / 1,0 / 1,5 0,09 800 7,50 40 FUEL-TEK® D DOCK Type L hoses H3465050L 50 66 0,7 / 1,0 / 1,5 - 300 1,70 40 H3465075L 75 91 0,7 / 1,0 / 1,5 - 450 2,10 40 H3465100L 100 116 0,7 / 1,0 / 1,5 - 600 4,10 40 H3465150L 150 170 0,7 / 1,0 / 1,5 - 900 7,30 40
Teknikum FUEL TEK® D MARI
ISO
7840:2004 A2
ISO 8469:2006
CR NBR
+100°C
- 30°C
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Delivery hose
• Reinforcement: ø i.d. < 32 mm textile, ø i.d. ≥ 32 mm textile and steel spiral
• For transportation of almost all oil-based materials and hydrocarbons with maximum aromatic content of 50%
Suitable for gasoline, diesel oil and oil mixed water
Can be used also with biodiesels which have less than 20% FAME (Fatty acid methyl ester) and with bioethanol containing biofuels
Excellent weather and ageing resistance
High mechanical strength We recommend band clamp for hose tightening. Swaged clamp is also suitable when Ø i.d. < 32 mm
• Burst safety factor is 3 x working pressure
Druckschlauch
• Verstärkung: ø i.d. < 32 mm Textil, ø i.d. ≥ 32 mm Textil- und Stahlspirale
• Für den Transport von fast allen Materialien auf Ölbasis und Kohlenwasserstoffen mit einem maximalen Aromatengehalt von 50 % Geeignet für Benzin, Dieselöl und Ölmischwasser
Kann auch mit Biodiesel mit weniger als 20 % FAME (Fettsäuremethylester) und mit Bioethanol enthaltenden Biokraftstoffen verwendet werden Hervorragende Witterungs- und Alterungsbeständigkeit
Hohe mechanische Festigkeit Wir empfehlen eine Bandschelle zum Festziehen des Schlauchs. Eine verpresste Schelle ist auch geeignet wenn Ø i.d. < 32mm
• Berstsicherheitsfaktor 3 x Betriebsdruck
Tuyau de refoulement
• Renforcement : ø d. i. < 32 mm textile, ø d. i. ≥ 32 mm textile et spirale en acier
• Pour le transport de quasiment toutes les matières à base de pétrole et des hydrocarbures avec une teneur maximale en composés aromatiques de 50 %
• Convient à l'essence, au gazole et à l'eau mélangée aux hydrocarbures
Peut être utilisé avec des biodiesels qui ont moins de 20 % d'EMAG (ester méthylique d'acide gras) et avec des biocarburants contenant du bioéthanol
Excellente résistance aux intempéries et au vieillissement
Résistance mécanique élevée
Nous recommandons l'utilisation de colliers de serrage à bande pour le serrage des tuyaux. Un collier à sertir convient également lorsque Ø d. i. < 32 mm
Le coefficient de sécurité à l'éclatement est de 3 x la pression de service
For transportation of almost all oil-based materials and hydrocarbons with maximum aromatic content of 50%.

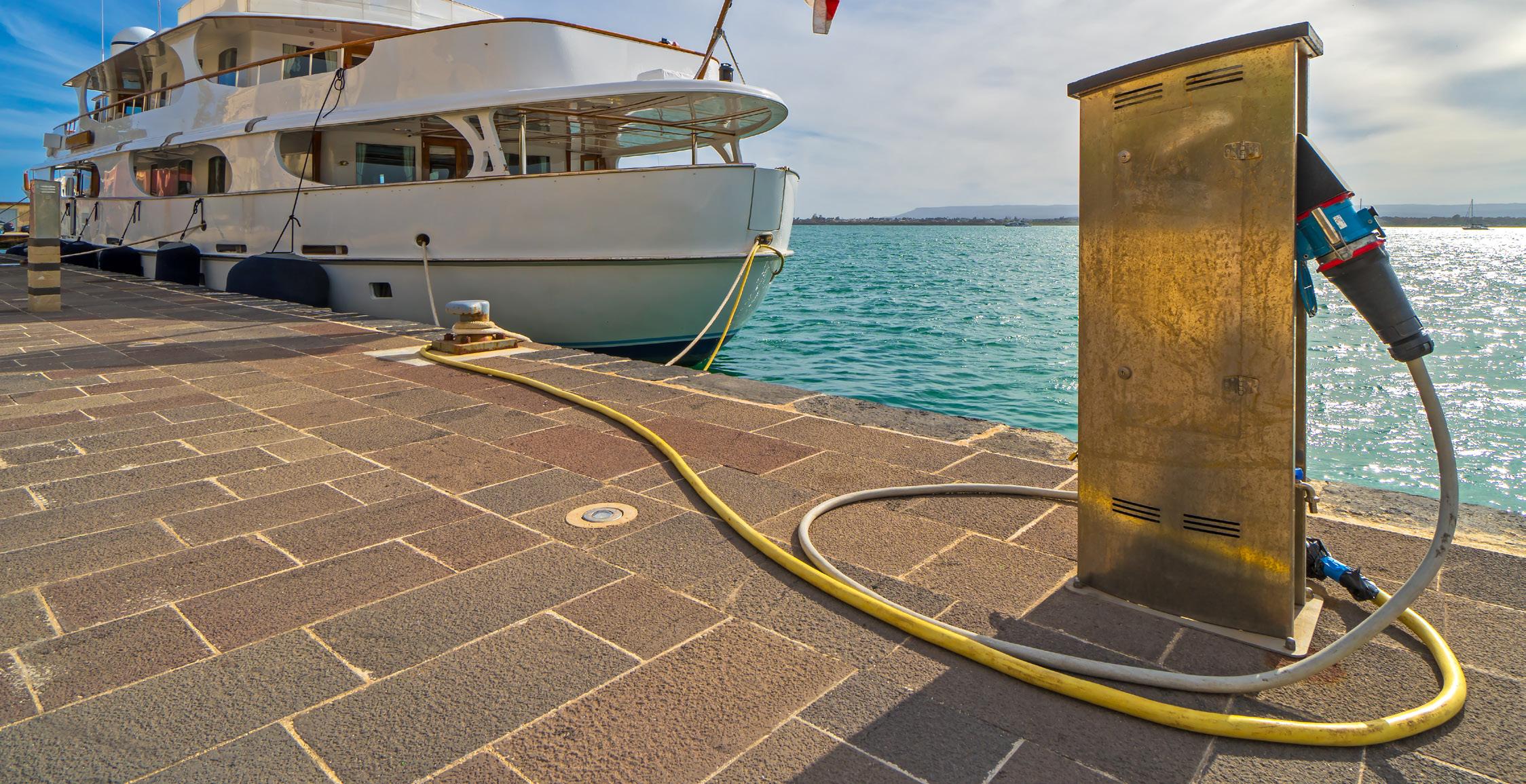

As fuel hose for boats the hose meets requirements of standards (SFS-EN-) ISO 7840:2004 A2 and (SFS-EN-) ISO
50 50 Oil & Fuel
FUEL TEK® D MARI
STEEL
SPIRAL TEXTILE
8469:2006.
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
51 51 Oil & Fuel PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code):
https://teknikum.com/product/teknikum-fuel-tek-d-mari/ Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum FUEL TEK® D MARI HMARI008 8 18 0,8 0,080 75 0,30 40 HMARI010 10 20 0,8 0,080 80 0,30 40 HMARI013 12,5 22,5 0,8 0,035 90 0,40 40 HMARI016 16 26 0,8 0,035 100 0,50 40 HMARI020 20 31 0,8 0,035 120 0,60 40 HMARI025 25 37 0,8 0,035 150 0,70 40 HMARI032 31,5 44,5 0,8 0,090 130 1,10 40 HMARI038 38 51 0,8 0,090 150 1,20 40 HMARI040 40 53 0,8 0,090 150 1,30 40 HMARI045 45 58 0,8 0,090 160 1,40 40 HMARI050 50 63 0,8 0,090 170 1,50 40 HMARI063 63 77 0,8 0,090 190 1,90 40
Wear-resistant, flexible and easy to handle industrial hoses for abrasive environment.
Teknikum CARBON EXTRA LIGHT™ S Antistatic
CARBON LIGHT™ S
CARBON™ D
CARBON™ SD

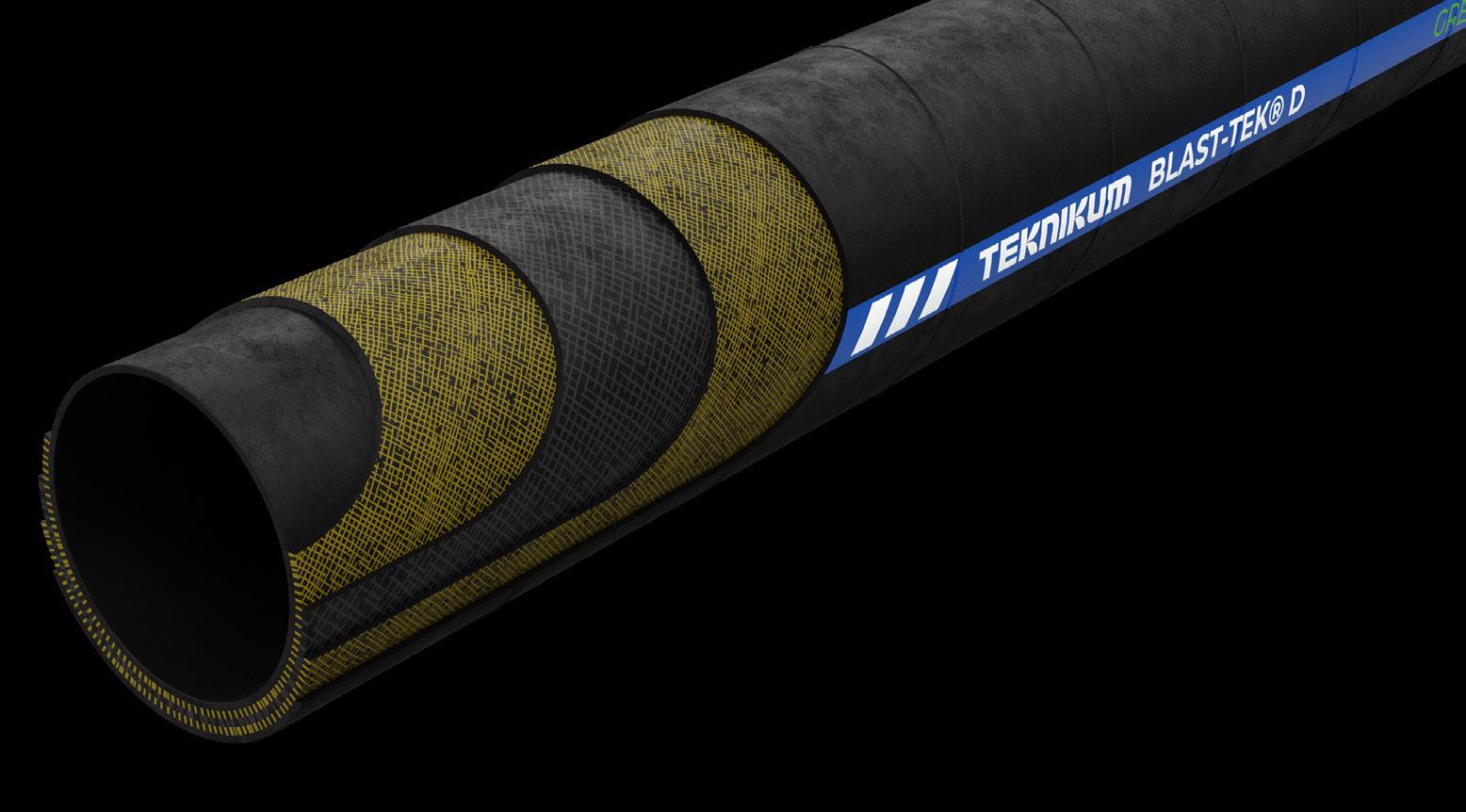

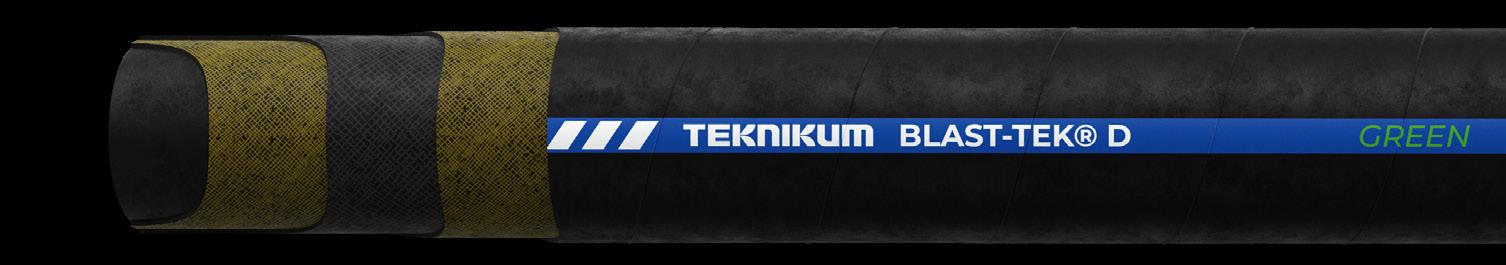

Teknikum BLAST-TEK® D

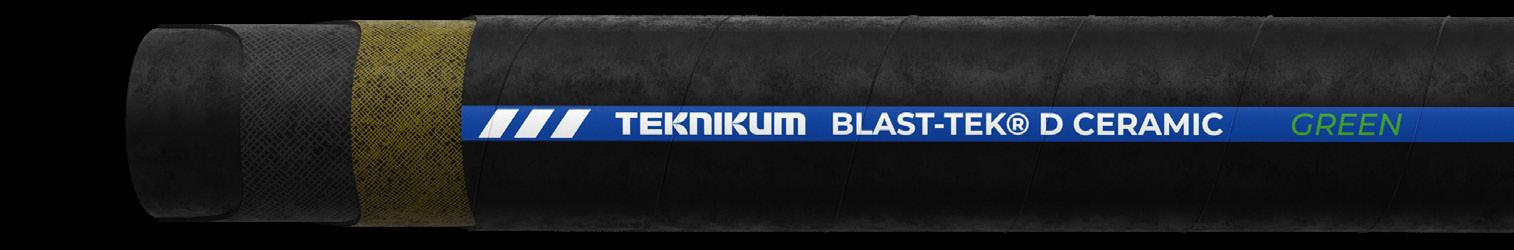

BLAST-TEK® D CERAMIC

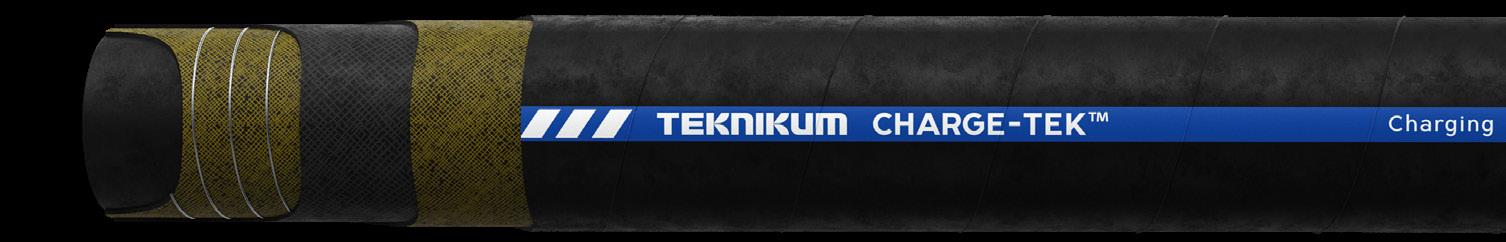

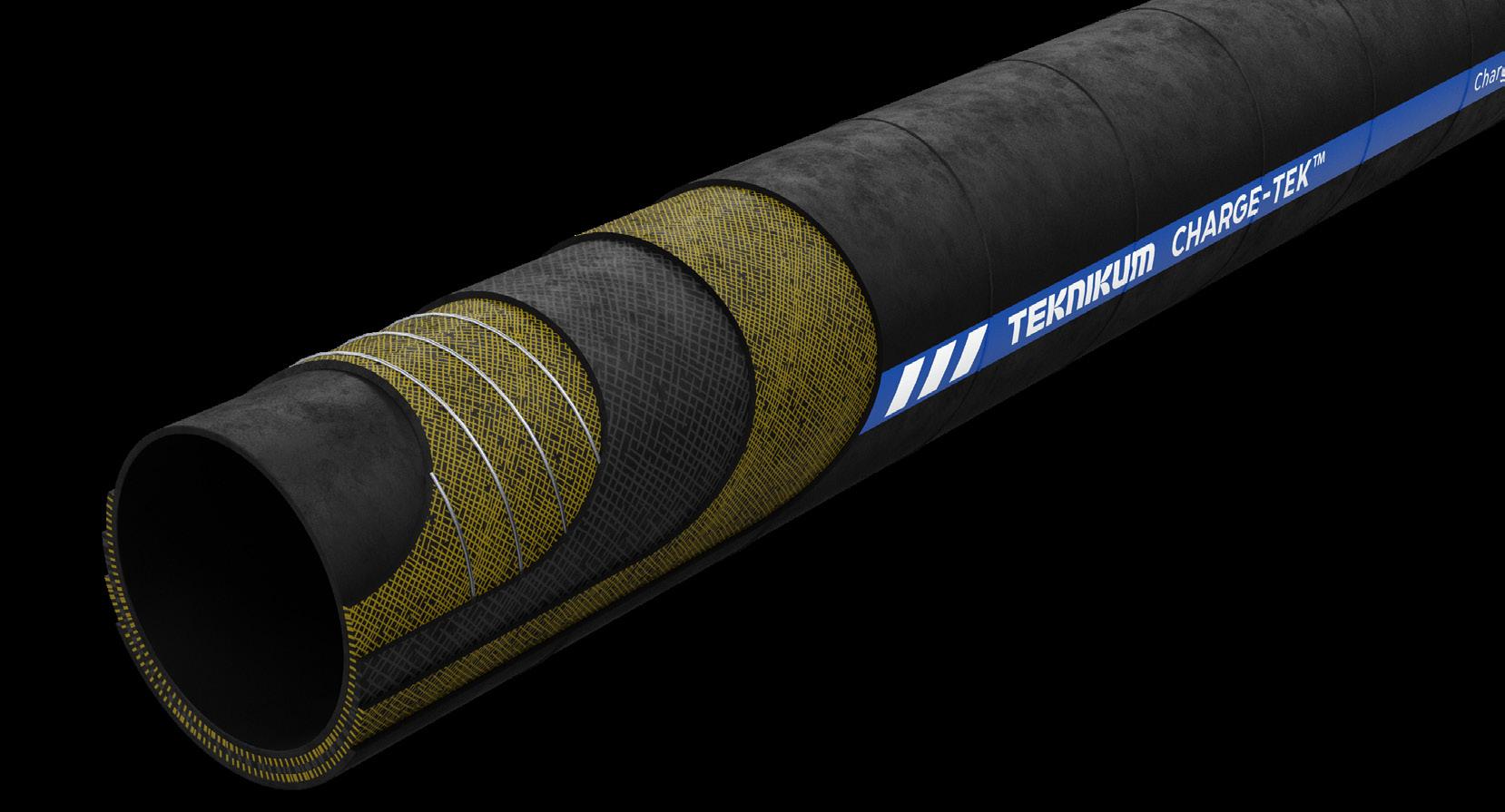

Teknikum CHARGE-TEK™
ABRASIVE / Working hoses
"Our manufacturing processes and high-quality rubber compounds make flexible and light handling hoses."
Martti
Jokela
Director, New Business Development
Teknikum Group Ltd, Central Europe
For efficient, easy working
Teknikum’s high-quality industrial working hoses provide advanced solutions for demanding abrasive environment. Our hoses are known from their extremely durable and flexible structure that enables easy handling.
Teknikum CARBON hose series covers all the industrial, municipal and construction related material handling needs. Our hoses are designed for tank trucks, transporting wearing granulate materials and blasting both wet and dry materials.
Für Effizienz und einfache Handhabung
Die hochwertigen Industrieschläuche von Teknikum bieten moderne Lösungen für anspruchsvolle, abrasive Anwendungen. Unsere Schläuche sind für ihre äußerst langlebige und flexible Struktur bekannt, die eine einfache Handhabung ermöglicht.
Die Schlauchreihe Teknikum CARBON deckt den gesamten industriellen, kommunalen und baulichen Materialtransportbedarf ab. Unsere Schläuche sind für Tankwagen ausgelegt, die Verschleißgranulat transportieren sowie nasse und trockene Materialien strahlen.
Pour des opérations efficaces et simples
Les tuyaux industriels de travail de haute qualité de Teknikum fournissent des solutions avancées pour les environnements abrasifs exigeants. Nos tuyaux sont réputés pour leur structure extrêmement durable et flexible permettant une manipulation aisée.
La série de tuyaux CARBON de Teknikum couvre tous les besoins industriels, municipaux et de construction dans la manutention de matériaux. Nos tuyaux sont conçus pour les camions-citernes, le transport de granulés abrasifs et la projection de matières humides et sèches.
53 53 ABRASIVE / Working hoses
Teknikum CARBON EXTRA LIGHTTM S Antistatic
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE
• Suction hose

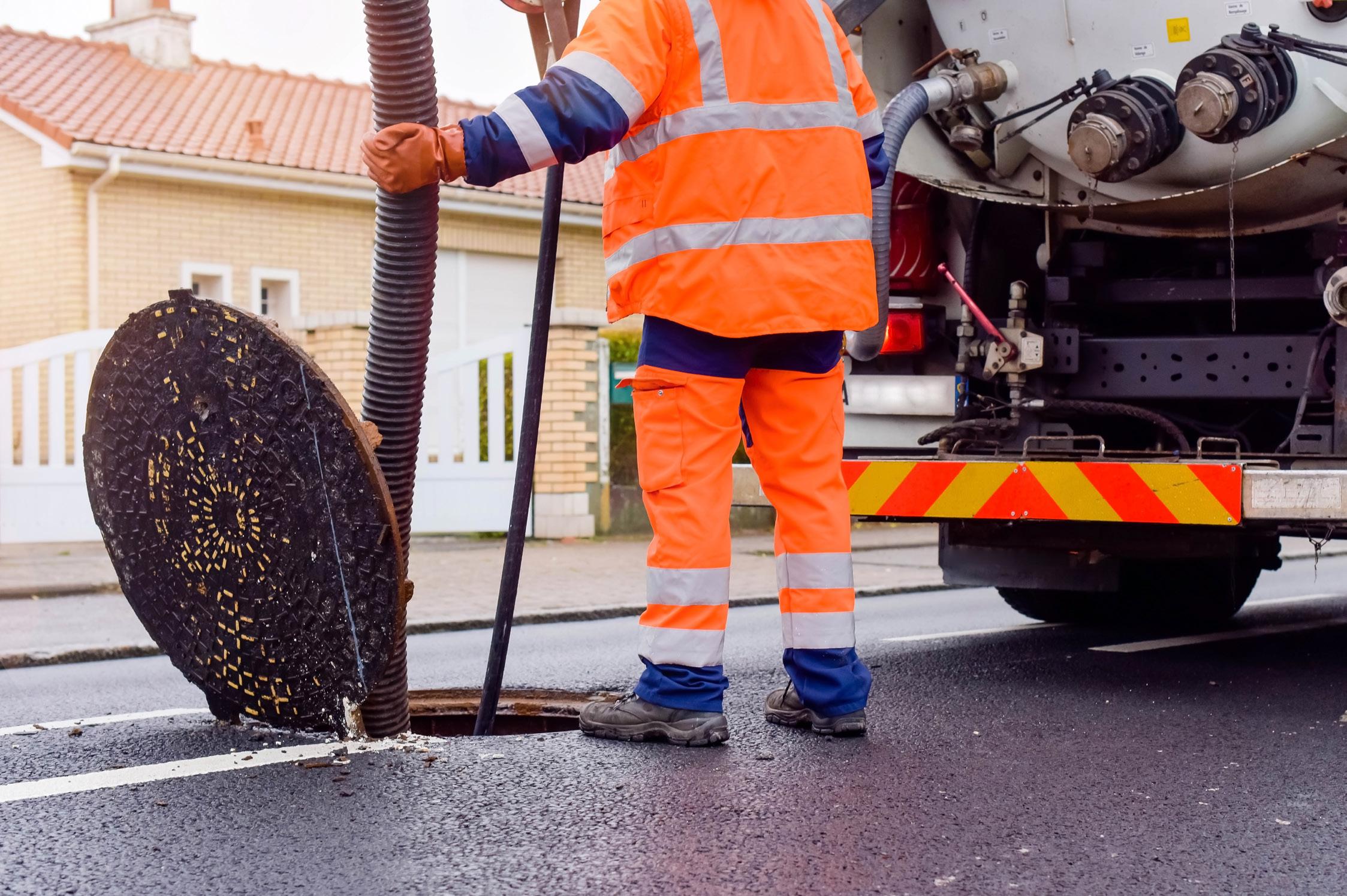

For industrial vacuum cleaning trucks and suitable for a wide range of industrial suction applications
Excellent resistance to abrasion
Extremely flexible hose with low bending radius due to special structure and corrugated surface Light weight and easy handling
• Antistatic
Hose can be cut on-site
Available with spiral-free cuffs
Recommended clamp is band clamp
• Saugschlauch
Für Industriesaugwagen und eine Vielzahl anderer industrieller Sauganwendungen Hervorragende Abriebfestigkeit
Extrem flexibler Schlauch mit geringem Biegeradius durch spezielle Struktur und gewellte Oberfläche Geringes Gewicht und einfache Handhabung Antistatisch
• Schlauch kann vor Ort zugeschnitten werden
Erhältlich mit spiralfreien Manschetten
Die empfohlene Schelle ist eine Bandschelle
DESCRIPTION ET AVANTAGES
• Tuyau d'aspiration
Convient aux camions aspirateurs industriels et adapté à une large gamme d'applications d'aspiration industrielle
Excellente résistance à l'abrasion
Tuyau extrêmement flexible avec un faible rayon de courbure grâce à sa structure spéciale et à sa surface striée
Léger et facile à manipuler
Antistatique
• Le tuyau peut être coupé sur place
Disponible avec des embouts sans spirale
Il est recommandé d’utiliser un collier de serrage à bande
For industrial vacuum cleaning trucks and suitable for a wide range of industrial suction applications.
54 54 ABRASIVE / Working hoses CARBON EXTRA LIGHTTM S
SBR
NR
- 40°C
STEEL SPIRAL TEXTILE
+80°C
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
55 55 ABRASIVE / Working hoses PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code):
55
Product code Ø i.d. mm Ø o.d. mm Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum CARBON EXTRA LIGHTTM S Antistatic H4130076 76 89 0,09 150 2,00 40 H4130102 102 114 0,09 170 3,10 12 (max.40) H4130127 127 140 0,09 200 4,00 12 (max.20) H4130152 152 166 0,09 270 5,20 12 (max.20) H4130203 203 220 0,09 450 8,30 12
https://teknikum.com/product/teknikum-carbon-extra-light-s-antistatic/
Teknikum CARBON LIGHTTM S
DESCRIPTION AND ADVANTAGES
• Suction hose

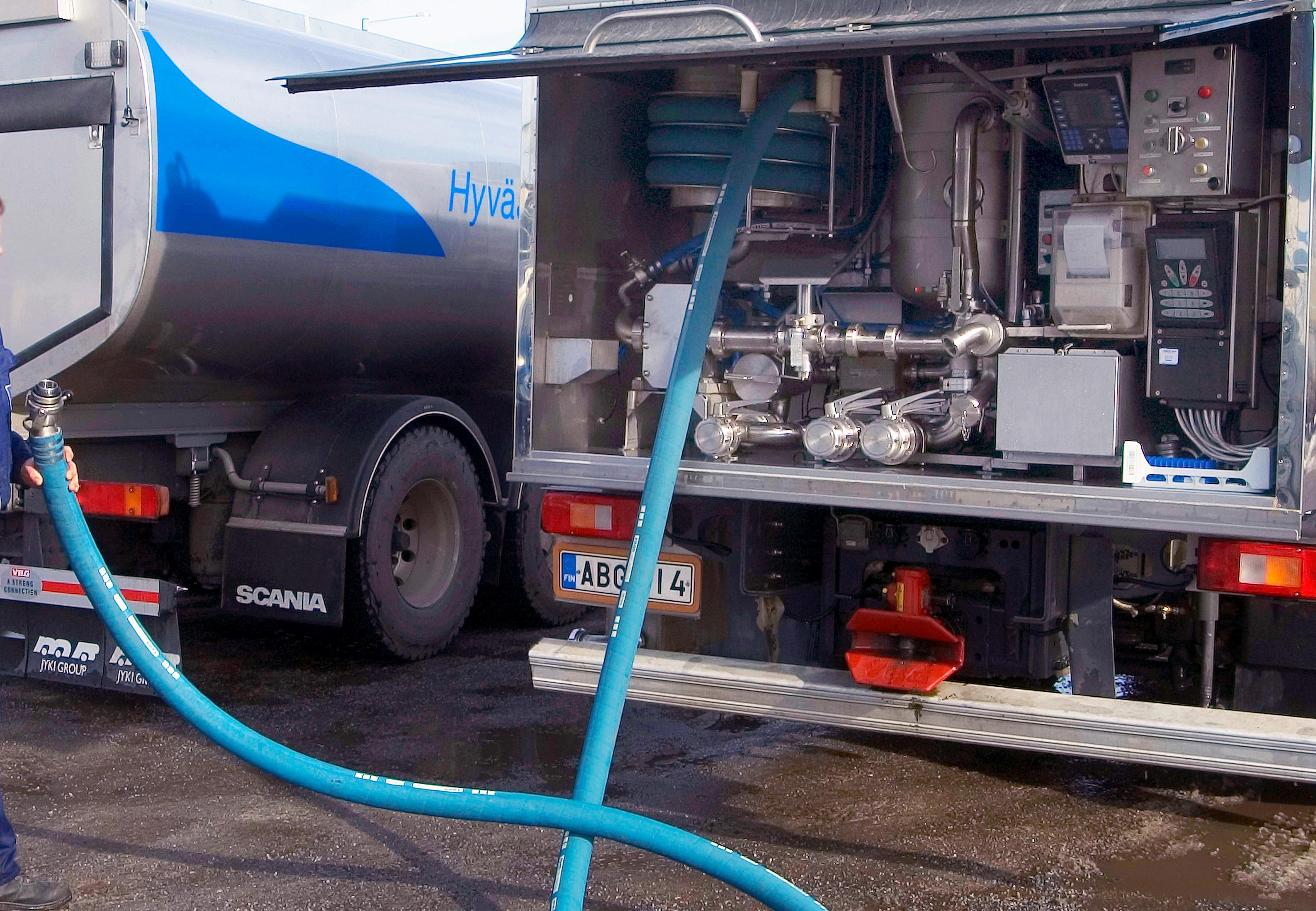

For industrial vacuum cleaners, tank trucks and cleaning systems
Excellent resistance to abrasion
Flexible and low bending radius due to special structure and corrugated surface
Light weight and easy handling
• ESD protection with Antistatic version Hose can be cut on-site
Available with spiral-free cuffs
Recommended clamp is band clamp
• Saugschlauch
Für Industriesauger, Tankwagen und Reinigungsanlagen Hervorragende Abriebfestigkeit
Flexibel und geringer Biegeradius durch spezielle Struktur und gewellter Oberfläche
Geringes Gewicht und einfache Handhabung
• ESD-Schutz mit Antistatik-Version
Schlauch kann vor Ort zugeschnitten werden
Erhältlich mit spiralfreien Manschetten Die empfohlene Schelle ist eine Bandschelle
+80°C
- 40°C
• Tuyau d'aspiration
Pour les aspirateurs industriels, les camions-citernes et les systèmes de nettoyage
Excellente résistance à l'abrasion
Flexible et faible rayon de courbure grâce à sa structure spéciale et à sa surface striée
Léger et facile à manipuler
• Protection ESD avec la version antistatique
• Le tuyau peut être coupé sur place
Disponible avec des embouts sans spirale
Il est recommandé d’utiliser un collier de serrage à bande
56 56 ABRASIVE / Working hoses CARBON LIGHTTM S
SBR
NR/ SBR
STEEL SPIRAL
TEXTILE
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Check all current product details and specification on product datasheet (QR code):
https://teknikum.com/product/teknikum-carbon-s-light-working-hose/
57 57 ABRASIVE / Working hoses PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
57
Product code Ø i.d. mm Ø o.d. mm Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum CARBON LIGHT™ S H4110032 32 45 0,09 100 0,80 40 H4110040 40 53 0,09 100 1,00 40 H4110045 45 58 0,09 130 1,20 40 H4110050 50 63 0,09 150 1,30 40 H4110063 63 76 0,09 160 1,60 40 H4110076 76 89 0,09 170 2,00 40 H4110090 90 104 0,09 200 2,80 40 H4110102 102 116 0,09 210 3,10 40 H4110115 115 129 0,09 220 3,60 20 H4110127 127 142 0,09 250 4,00 20 H4110152 152 167 0,09 370 5,20 20 H4110203 203 220 0,09 500 8,30 10 Teknikum CARBON LIGHT™ S ANTISTATIC H4210BC050 50 63 0,09 150 1,40 40 H4210BC063 63 76 0,09 160 1,70 40 H4210BC076 76 89 0,09 170 2,10 40 H4210BC102 102 116 0,09 210 3,20 40 H4210BC127 127 142 0,09 250 4,10 20 H4210BC152 152 167 0,09 370 5,00 20 H4210BC203 203 220 0,09 500 8,40 10

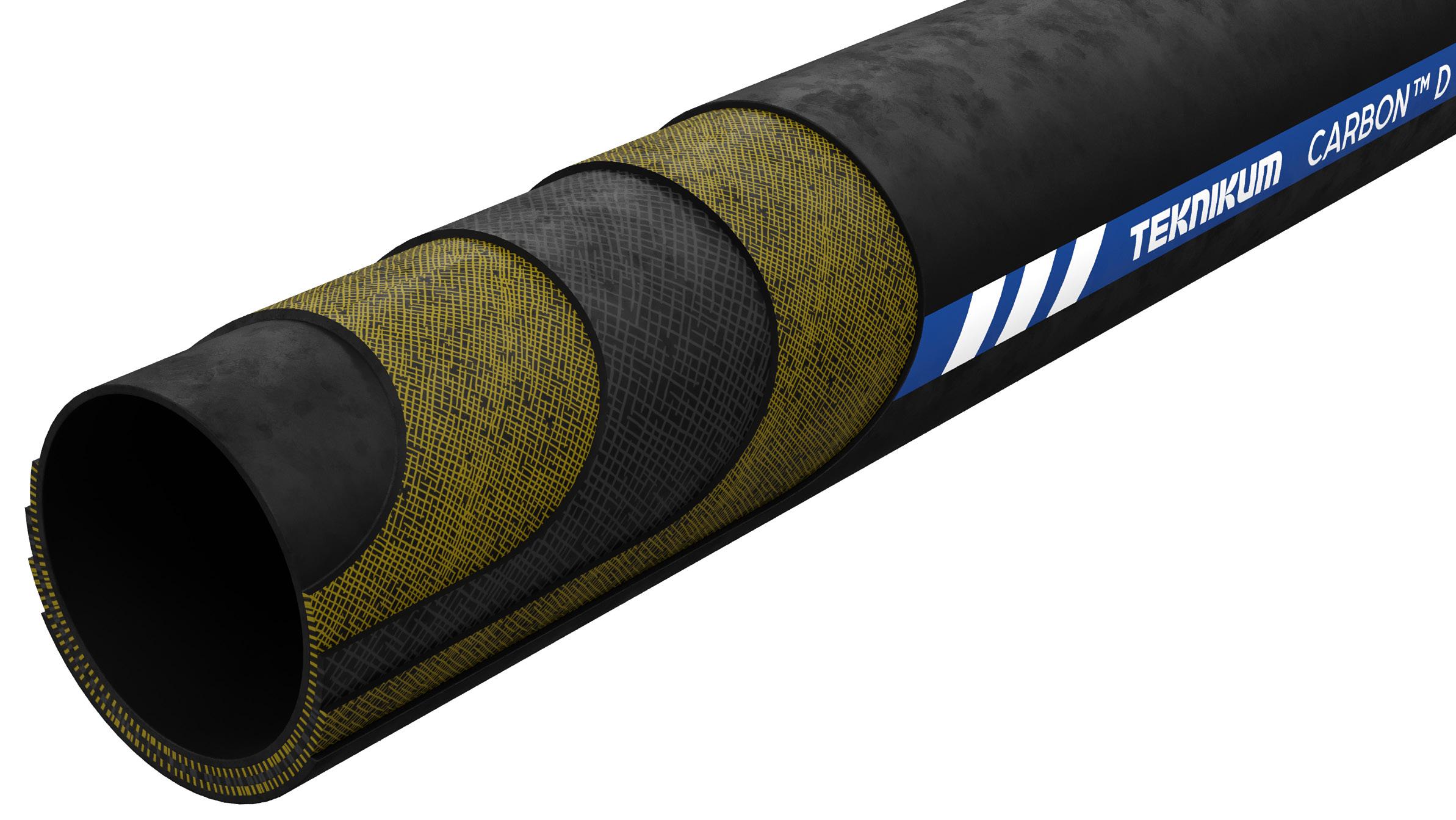

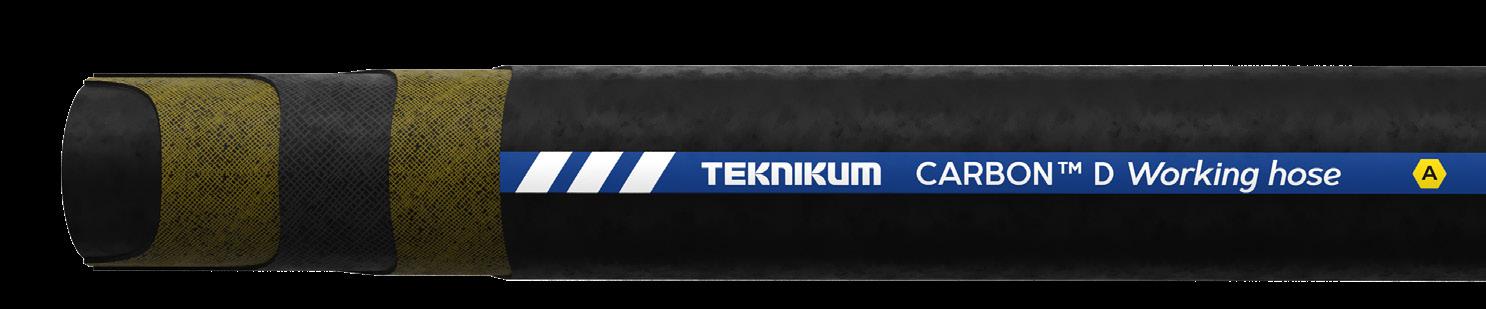

Teknikum CARBONTM D
DESCRIPTION AND ADVANTAGES
• Delivery hose
For transfering abrasive granulate materials in a wide range of industrial applications
Excellent resistance to abrasion
Flexible and low bending radius due to special structure
Light weight and easy handling due to steel wire-free construction
• Eliminates vibrations and noise
Hose can be cut on-site
Available with spiral-free cuffs
ESD protection with Antistatic version
• Recommended clamp is band clamp
Burst safety factor is 3,2 x working pressure
SBR
NR/ SBR
TEXTILE
BESCHREIBUNG UND VORTEILE
• Druckschlauch
Zum Fördern von abrasiven Granulaten in Druckanwendungen Hervorragende Abriebfestigkeit
Flexibel und geringer Biegeradius durch spezielle Struktur
Geringes Gewicht und einfache Handhabung durch Konstruktion ohne Stahldraht
• Eliminiert Vibrationen und Geräusche
Schlauch kann vor Ort zugeschnitten werden
ESD-Schutz bei Antistatischer Version
Die empfohlene Schelle ist eine Bandschelle
Berstsicherheitsfaktor ist 3,2 x Betriebsdruck
+80°C
- 40°C
DESCRIPTION ET AVANTAGES
• Tuyau de refoulement
Pour le transfert de granulés abrasifs dans une large gamme d'applications industrielles
Excellente résistance à l'abrasion
Flexible et faible rayon de courbure grâce à sa structure spéciale
Léger et facile à manipuler grâce à sa construction sans fil d'acier
• Élimine les vibrations et le bruit
Le tuyau peut être coupé sur place Protection ESD avec la version antistatique
Il est recommandé d’utiliser un collier de serrage à bande
Le coefficient de sécurité à l'éclatement est de 3,2 x la pression de service
58 58 ABRASIVE / Working hoses CARBONTM D
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Light weight and easy handling due to steel wire-free construction.
Check all current product details and specification on product datasheet (QR code):
https://teknikum.com/product/teknikum-carbon-d-pressure-working-hose/
59 59 ABRASIVE / Working hoses PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
59
Product code Ø i.d. mm Ø o.d. mm Working press. MPa Weight kg/m Length m Teknikum CARBONTM D H4120063 63 79 0,5 1,90 40 H4120076 76 92 0,5 2,30 40 H4120102 102 118 0,5 3,00 40 H4120127 127 143 0,5 3,50 40 H4120152 152 168 0,5 4,10 40 Teknikum CARBON™ D ANTISTATIC H4220BC063 63 79 0,5 2,10 40 H4220BC076 76 92 0,5 2,50 40 H4220BC102 102 118 0,5 3,20 40 H4220BC127 127 143 0,5 3,90 40 H4220BC152 152 168 0,5 4,50 40
Teknikum CARBONTM SD
DESCRIPTION AND ADVANTAGES
• Suction and delivery hose
Excellent resistance to abrasion
Suitable for use as part of pipeline and industrial central vacuum systems
Flexible and low bending radius due to special structure and corrugated surface
Medium weight
• Eliminates vibrations and noise
Hose can be cut on-site
Available with spiral-free cuffs
ESD protection with Antistatic version
• Recommended clamp is band clamp Burst safety factor is 3,2 x working pressure
+80°C
- 40°C
BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
• Saug- und Druckschlauch Hervorragende Abriebfestigkeit Geeignet für den Einsatz als Teil von Pipeline- und industriellen Zentralvakuumsystemen
Flexibel und geringer Biegeradius durch spezielle Struktur und gewellter Oberfläche mittleres Gewicht
• Eliminiert Vibrationen und Geräusche
Schlauch kann vor Ort zugeschnitten werden
Erhältlich mit spiralfreien Manschetten ESD-Schutz bei Antistatischer Version Die empfohlene Schelle ist eine Bandschelle
• Berstsicherheitsfaktor ist 3,2 x Betriebsdruck
• Tuyau d'aspiration et de refoulement
Excellente résistance à l'abrasion
Convient à une utilisation dans le cadre de systèmes centraux d'aspiration industrielle et de systèmes de conduites
Flexible et faible rayon de courbure grâce à sa structure spéciale et à sa surface striée
Poids moyen
• Élimine les vibrations et le bruit
Le tuyau peut être coupé sur place
Disponible avec des embouts sans spirale
Protection ESD avec la version antistatique
Il est recommandé d’utiliser un collier de serrage à bande
• Le coefficient de sécurité à l'éclatement est de 3,2 x la pression de service
60 60 ABRASIVE / Working hoses CARBONTM SD
SBR
SBR
STEEL SPIRAL TEXTILE
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Flexible medium duty material handling hose designed for transporting wearing granulate materials. Suitable for a wide range of industrial and municipal applications.
Check all current product details and specification on product datasheet (QR code):
https://teknikum.com/product/teknikum-carbon-working-hose/
61 61 ABRASIVE / Working hoses
INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
PRODUCT
61 Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum CARBONTM SD H4100050 50 69 0,5 0,09 100 2,00 40 H4100063 63 82 0,5 0,09 130 2,50 40 H4100076 76 96 0,5 0,09 200 3,00 40 H4100090 90 109 0,5 0,09 240 3,80 40 H4100102 102 122 0,5 0,09 290 4,30 40 H4100115 115 134 0,5 0,09 310 5,00 20 H4100127 127 147 0,5 0,09 350 5,50 20 H4100152 152 173 0,5 0,09 600 7,40 20 H4100203 203 225 0,5 0,09 700 9,90 10 Teknikum CARBON™ SD ANTISTATIC H4200BC050 50 69 0,5 0,09 100 1,80 40 H4200BC063 63 82 0,5 0,09 130 2,60 40 H4200BC076 76 96 0,5 0,09 200 3,20 40 H4200BC102 102 122 0,5 0,09 290 4,50 40 H4200BC115 115 134 0,5 0,09 310 5,30 20 H4200BC127 127 147 0,5 0,09 350 5,50 20 H4200BC152 152 173 0,5 0,09 600 7,40 20 H4200BC203 203 225 0,5 0,09 700 9,90 10

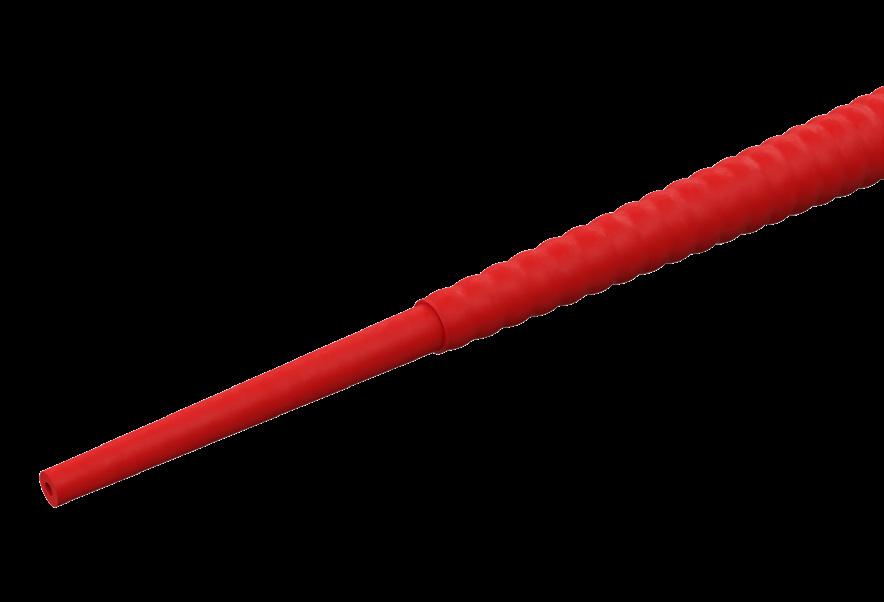

Charging and blasting hose designed together with mining and quarrying professionals
For feeding and dosing explosion emulsion into solid rock drillings
Resistant to all common blasting agents and substances, which are used in mining, civil engineering, excavation and construction industries
Resistant to e.g. lubricants as well as mineral oil-based products
Electrically conductive due to safety reasons and risks relating to electrical discharges
• Excellent weather and ageing resistance
High mechanical strength
Flexible and easy handling Hose can be cut on-site
• Burst safety factor is 4 x working pressure
+100°C
- 40°C
Lade- und Sprengschlauch, der zusammen mit Bergbau- und Steinbruchprofis entwickelt wurde
Zum Einbringen und Dosieren von Sprengemulsion bei Bohrungen im massiven Gestein
Beständig gegen alle gängigen Strahlmittel und Substanzen, die im Bergbau, Tiefbau, Erdbau und in der Bauindustrie eingesetzt werden
Beständig gegen z.B. Schmierstoffe sowie Produkte auf Mineralölbasis
Elektrisch leitfähig aus Sicherheitsgründen und Risiken in Bezug auf elektrische Entladungen
• Hervorragende Witterungs- und Alterungsbeständigkeit
• Hohe mechanische Festigkeit
Flexible und einfache Handhabung
Schlauch kann vor Ort zugeschnitten werden Der Berstsicherheitsfaktor beträgt das 4-fache des Betriebsdrucks
Tuyau de charge et de projection conçu avec les professionnels des industries minières et extractives
Pour l'alimentation et le dosage de l'émulsion d'explosifs dans les forages de roches dures
Résistant à tous les agents et substances de projection courants, utilisés dans les industries minières, de génie civil, d'excavation et de construction
Résistant, par exemple aux lubrifiants et aux produits à base d'huile minérale
Électroconducteur pour des raisons de sécurité et de risques liés aux décharges électriques
• Excellente résistance aux intempéries et au vieillissement
• Résistance mécanique élevée
Flexible et facile à manipuler
Le tuyau peut être coupé sur place
Le coefficient de sécurité à l’éclatement est de 4 x la pression de service
PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
https://teknikum.com/product/teknikum-charge-tek/
62 62 ABRASIVE / Working hoses Check all current product details and specification on product datasheet (QR code): CHARGE-TEK™ Teknikum CHARGE-TEK™ DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
ETER TEXTILE STEEL SPIRAL Product code Ø i.d. mm Ø o.d. mm Steel spiral incl. Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length max. m Teknikum CHARGE-TEK™ CHARGE025-035 25 35 - 1,2 - 125 0,80 40 CHARGE025-037 25 37 + 1,2 0,09 110 0,90 40 CHARGE032-045 32 45 - 1,2 - 190 1,10 40 CHARGE032-047 32 47 + 1,2 0,09 170 1,20 40 CHARGE050-064 50 64 - 1,2 - 260 1,70 40 CHARGE050-066 50 66 + 1,2 0,09 240 1,90 40 CHARGE076-094 76 94 - 1,2 - 350 3,10 40 CHARGE076-098 76 98 + 1,2 0,09 320 3,40 40
ETER
Teknikum BLAST-TEK® D
EN ISO 3861
Sand blasting and concrete pumping hose
Suitable for highly abrasive materials such as sand, grit, quartz and granulates
For dry and wet materials
Excellent resistance to abrasion due to excellent inner tube quality
• Meets standard EN ISO 3861: 2008 (Sand and grit blasting hoses)
Long service life
Antistatic
Quick and easy installation
• Fixing with commonly used sand blasting couplings
Burst safety factor is 4 x working pressure
Sandstrahl- und Betonpumpenschlauch
Geeignet zum Pumpen von Beton und für stark abrasive Materialien wie Quarz und
• Erfüllt die Norm EN ISO 3861: 2008 (Sandstrahlschläuche)
Lange Lebensdauer
Antistatisch
Schnelle und einfache Installation
• Befestigung mit handelsüblichen Sandstrahlkupplungen
Der Berstsicherheitsfaktor beträgt das 4-fache des Betriebsdrucks
Tuyau longue durée pour sablage et grenaillage
Pour les matières extrêmement abrasives, par exemple la boue, le béton, la chaux en poudre, le charbon, le sable de quartz et les granulés
Pour les applications où le remplacement fréquent des tuyaux n'est pas souhaitable
Pour les matières sèches et humides
• Le revêtement en céramique offre une excellente résistance à l'abrasion et une longue durée de vie
• Répond aux exigences de la norme
EN ISO 3861: 2008 (Tuyaux pour sablage et grenaillage)
Antistatique
Installation rapide et facile
Fixation avec les raccords de sablage couramment utilisés
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
https://teknikum.com/product/blast-tek-d/
63 Check all current product details and specification on product datasheet (QR code): 63
BLAST-TEK® D
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
SBR NR TEXTILE - 40°C +80°C
Product code Ø i.d. mm Ø o.d. mm Working press. MPa Bending radius mm Weight kg/m Length m Teknikum BLAST-TEK® D BLAST013 13 27 1,2 40 0,60 40 BLAST019 19 33 1,2 60 0,70 40 BLAST025 25 39 1,2 100 1,00 40 BLAST032 32 48 1,2 130 1,30 40 BLAST038 38 56 1,2 160 1,50 40 BLAST050 50 72 1,2 220 2,00 40
Granulate
und
Hervorragende Abriebfestigkeit
spezielle Innenschlauchqualität
Für trockene
nasse Materialien
durch
Teknikum BLAST-TEK® D CERAMIC
CERAMIC
+80°C
- 40°C
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
• Longlife sand and grit blasting hose
For extremely abrasive materials, e.g. sludge, concrete, powdered lime, carbon, quartz sand and granulates
For applications where frequent hose replacements are not desirable
For dry and wet materials
Ceramic lining provides excellent resistance to abrasion and long lifecycle
Meets standard EN ISO 3861: 2008 (Sand and grit blasting hoses)
• Antistatic
Quick and easy installation
Fixing with commonly used sand blasting couplings
Burst safety factor is 4 x working pressure
• Langlebiger Sandstrahlschlauch
Für extrem abrasive Materialien, z.B. Schlämme, Beton, Kalkmehl, Kohle, Quarzsand und Granulate
Für Anwendungen, bei denen häufiger Schlauchwechsel nicht erwünscht ist Für trockene und nasse Materialien Keramikauskleidung bietet hervorragende Abriebfestigkeit und lange Lebensdauer
Erfüllt die Norm EN ISO 3861: 2008 (Sand- und Sandstrahlschläuche)
• Antistatisch Schnelle und einfache Installation Befestigung mit handelsüblichen Sandstrahlkupplungen
Der Berstsicherheitsfaktor beträgt das 4-fache des Betriebsdrucks
• Tuyau longue durée pour sablage et grenaillage
• Pour les matières extrêmement abrasives, par exemple la boue, le béton, la chaux en poudre, le charbon, le sable de quartz et les granulés
Pour les applications où le remplacement fréquent des tuyaux n'est pas souhaitable
Pour les matières sèches et humides
Le revêtement en céramique offre une excellente résistance à l'abrasion et une longue durée de vie
Répond aux exigences de la norme
EN ISO 3861: 2008 (Tuyaux pour sablage et grenaillage)
Antistatique
• Installation rapide et facile
Fixation avec les raccords de sablage couramment utilisés
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
Longlife version is enabled by CERAMIC inner lining material. The life cycle of the hose is significantly longer, thus work interruptions and continuous hose purchases can be avoided.
64 64 ABRASIVE / Working hoses BLAST-TEK® D CERAMIC
SBR
LINING TEXTILE
EN ISO 3861
TEKNIKUM® CERAMIC
TEKNIKUM® CERAMIC
Other
65 65 ABRASIVE / Working hoses PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code):
dimensions available on
/ Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande. 65 https://teknikum.com/product/teknikum-blast-tek-longlife-blasting-hose/ Product code Ø i.d. mm Ø o.d. mm Working press. MPa Bending radius mm Weight kg/m Length m Teknikum BLAST-TEK® D BLAST025-LL 25 39 1,2 100 1,50 10 BLAST032-LL 32 48 1,2 130 1,90 10 BLAST038-LL 38 56 1,2 160 2,20 10 BLAST050-LL 50 72 1,2 220 2,90 10
request.

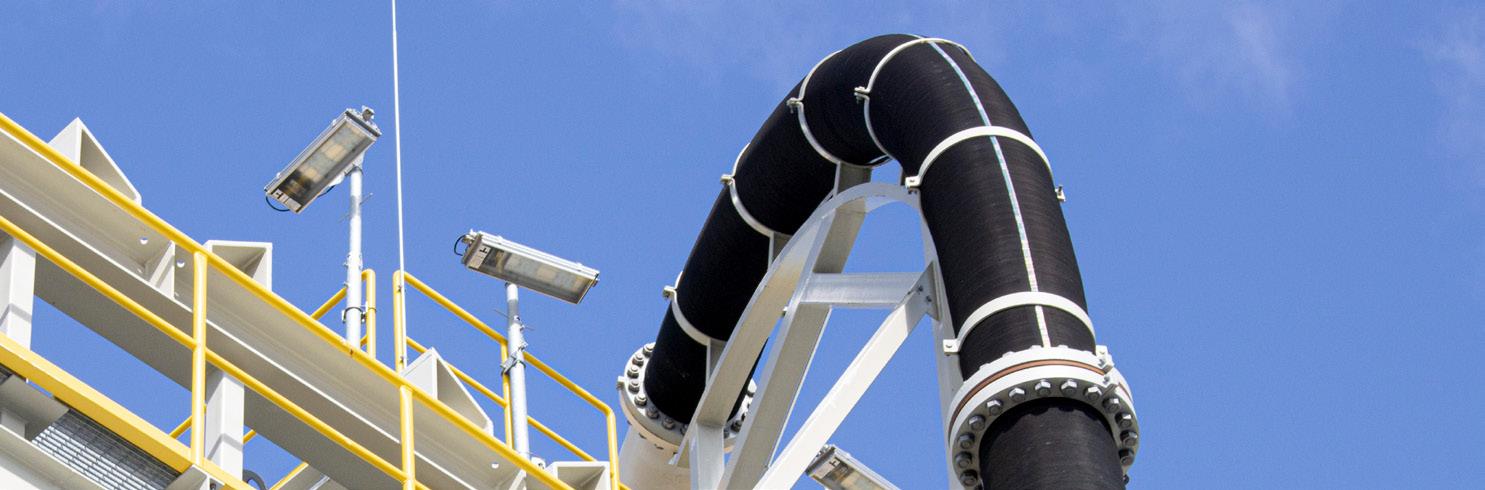

ABRASIVE / Slurry hoses
Teknikum hoses, bends and connector systems - an advanced solution for demanding abrasive environment.
Teknikum Smart Hose solution
Teknikum PLUS™ flange system
Teknikum GRANIT®
GRANIT® CERAMIC Antistatic
GRANIT® Select coupling
Teknikum TITAN™
TITAN™ CERAMIC Antistatic
TITAN™ Select coupling

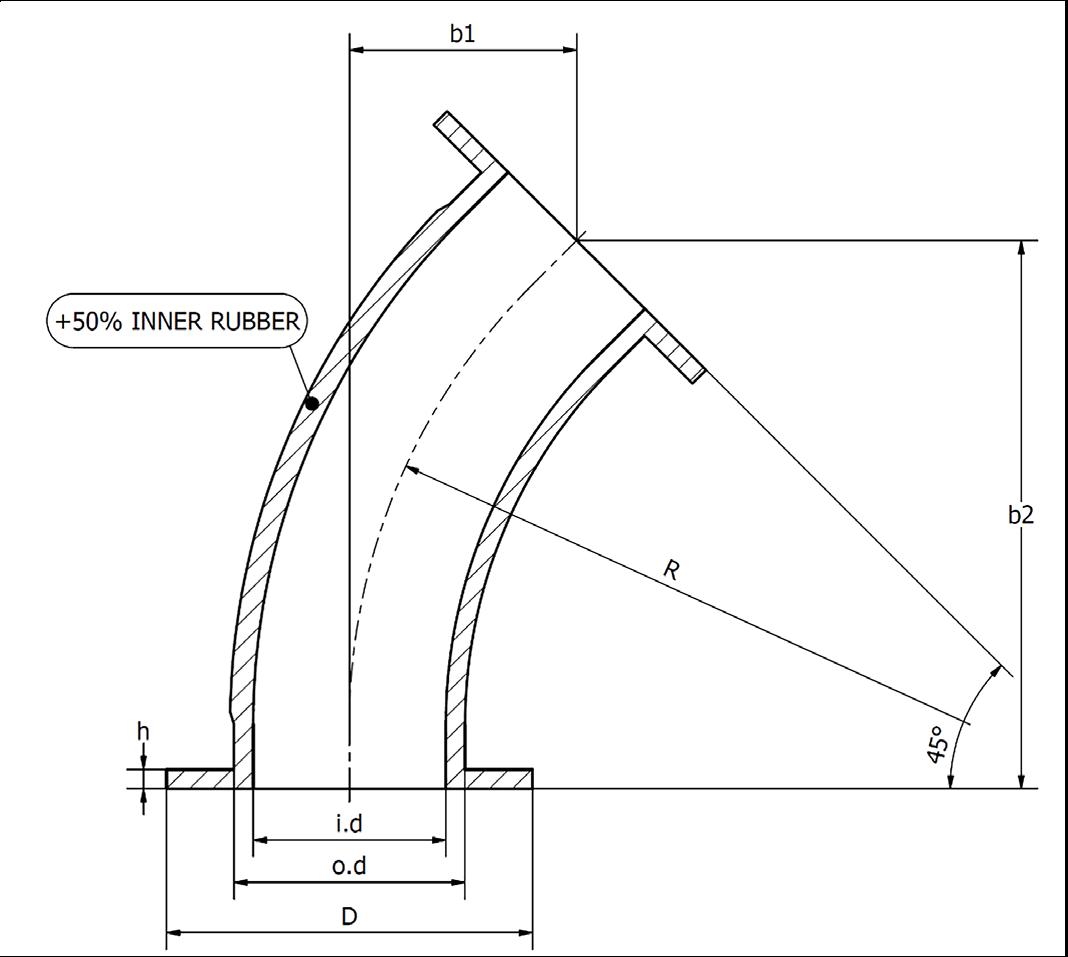

45° Flanged hose bends

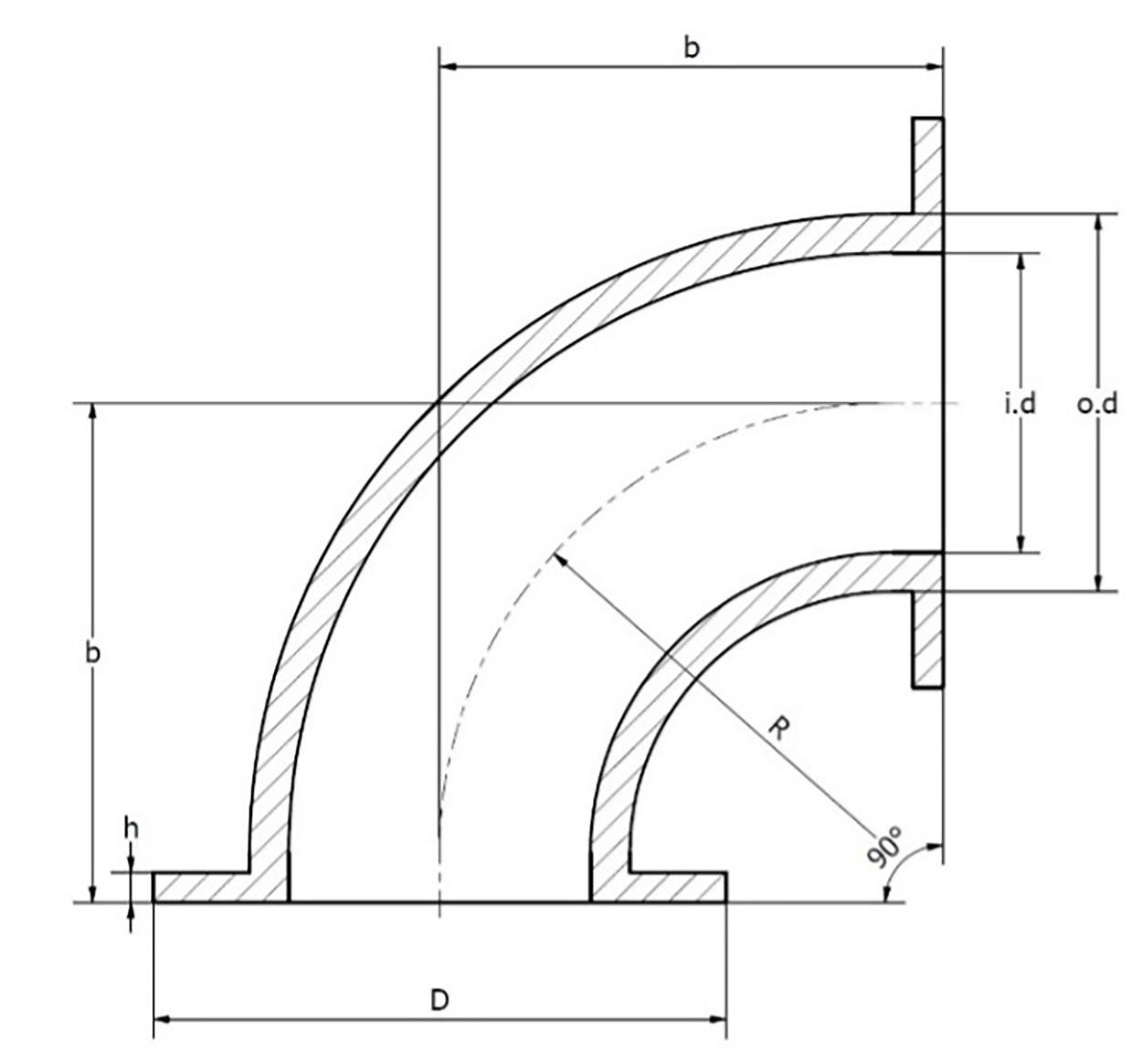

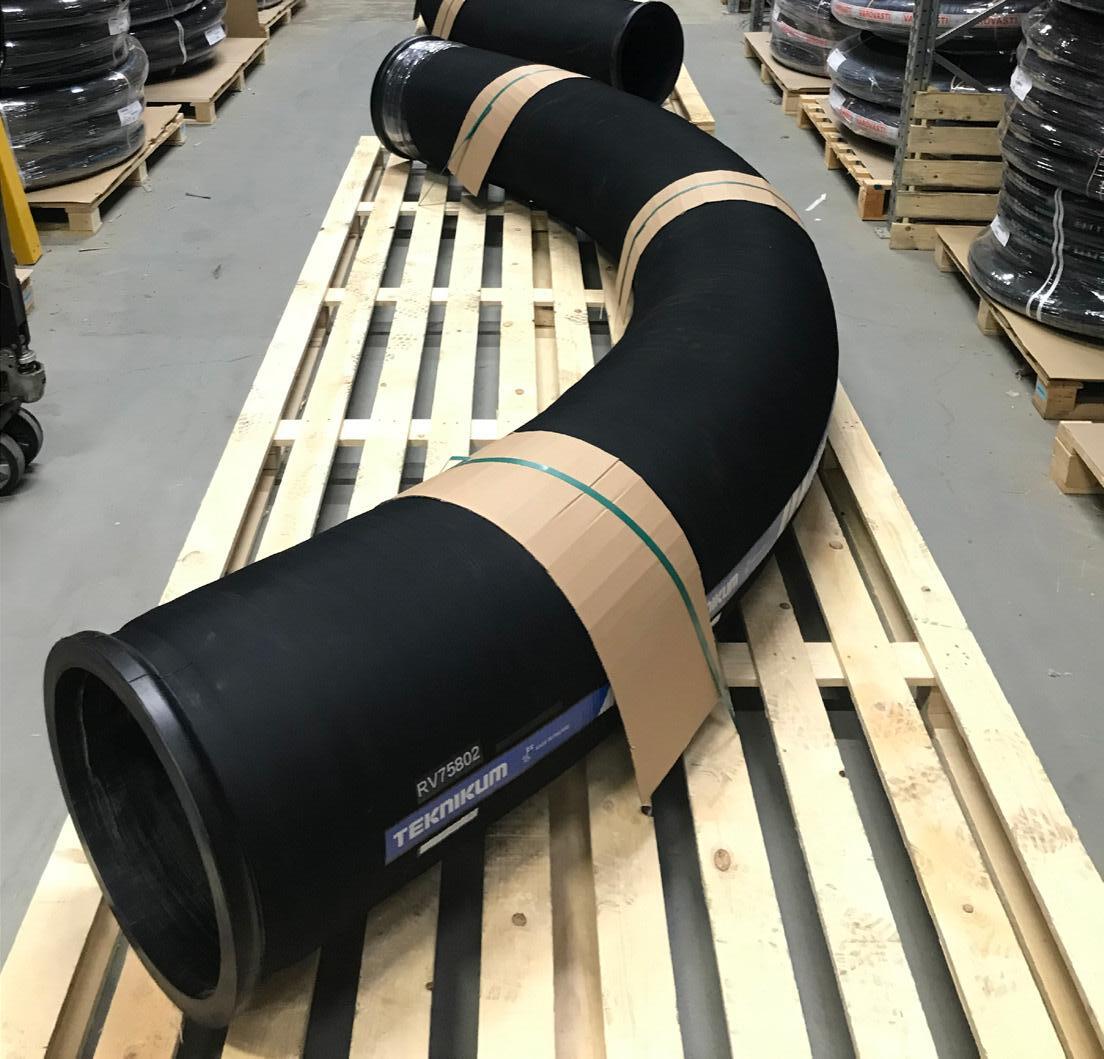

90° Flanged hose bends

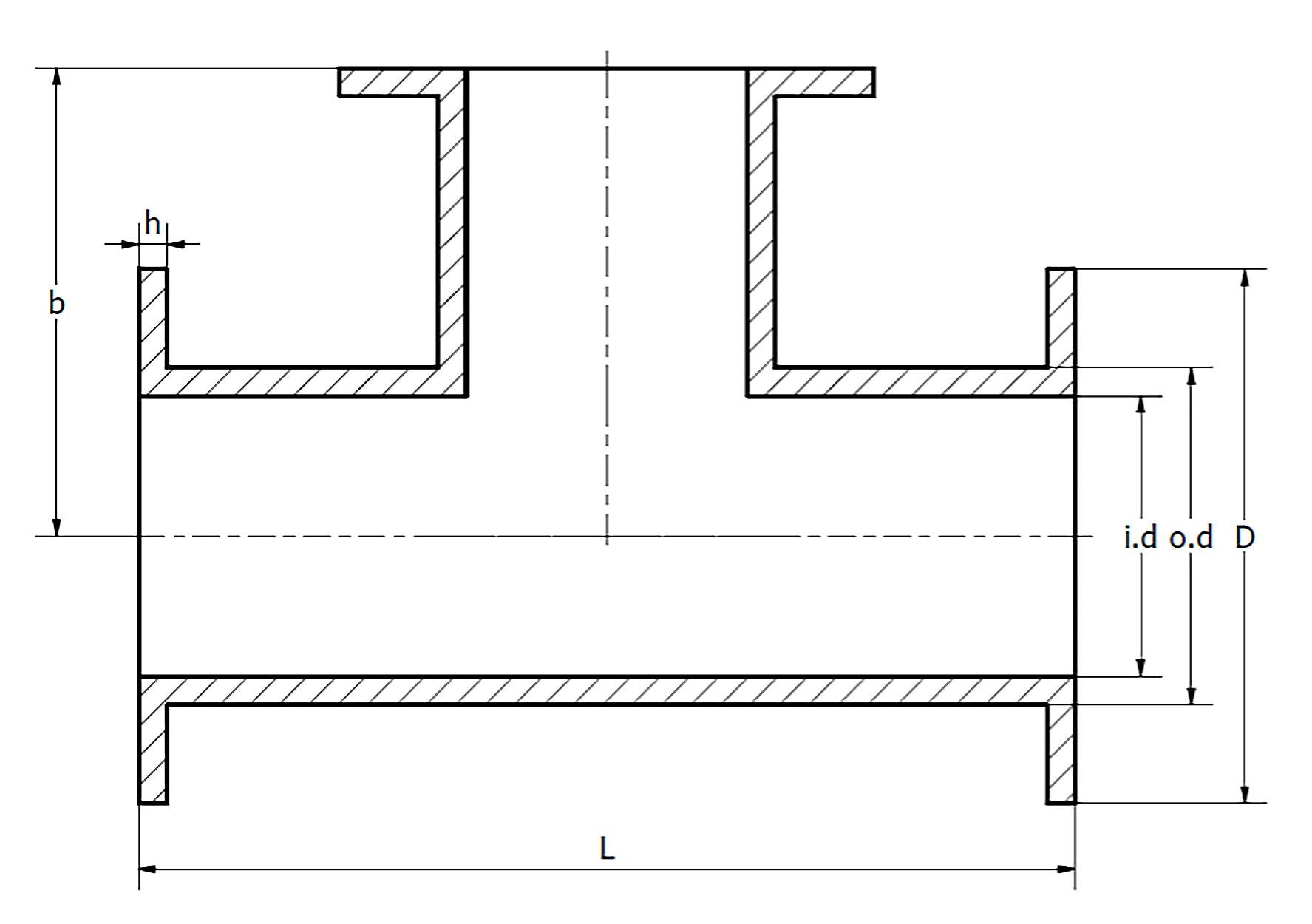

T-branch hose
Valve hoses

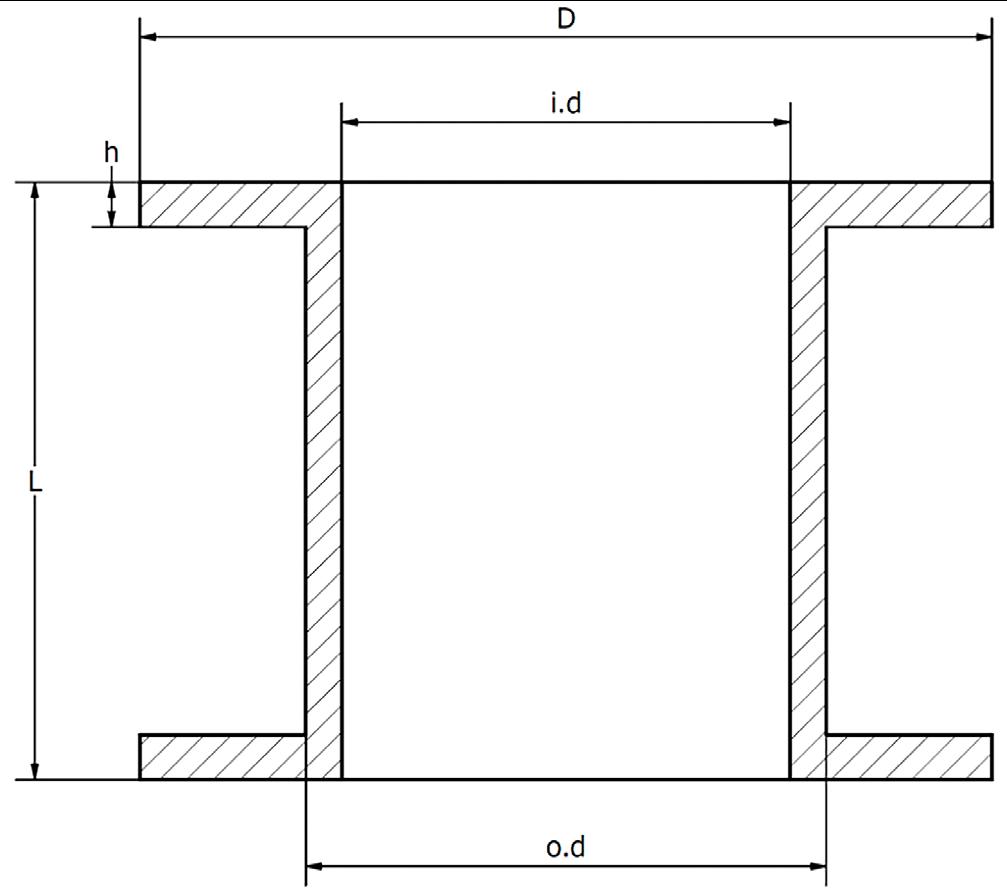

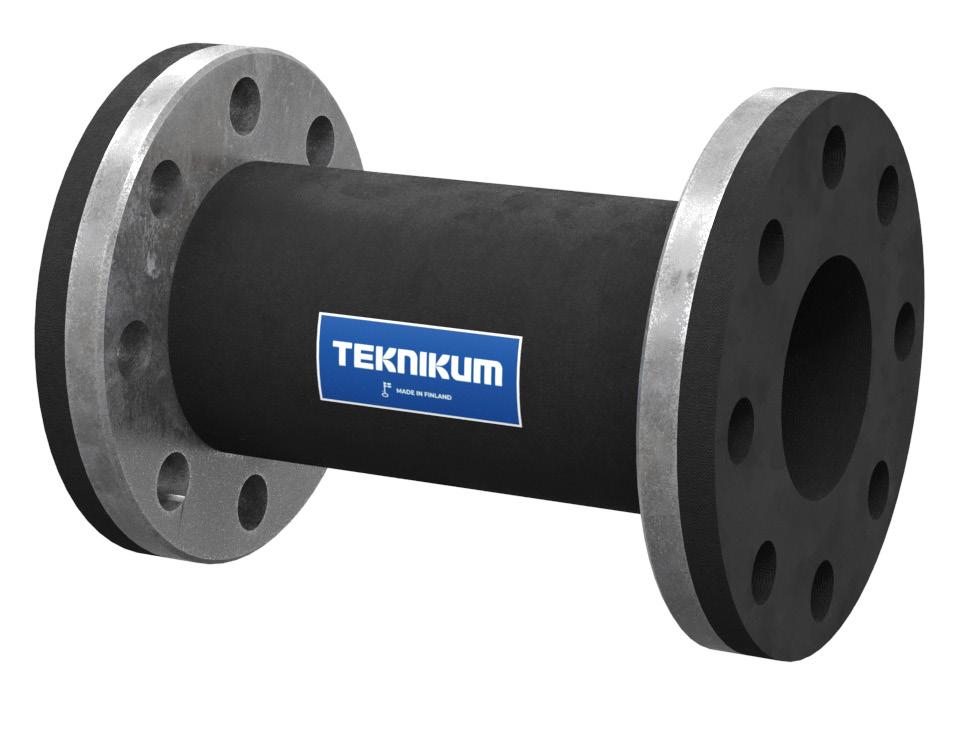

Straight connecting hoses

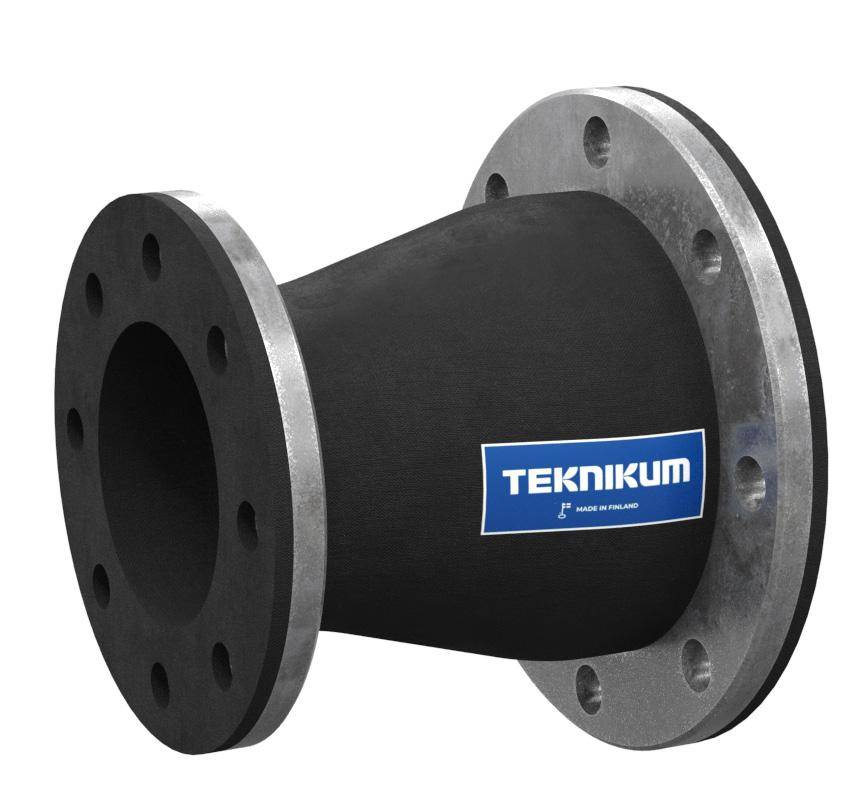

Reducers

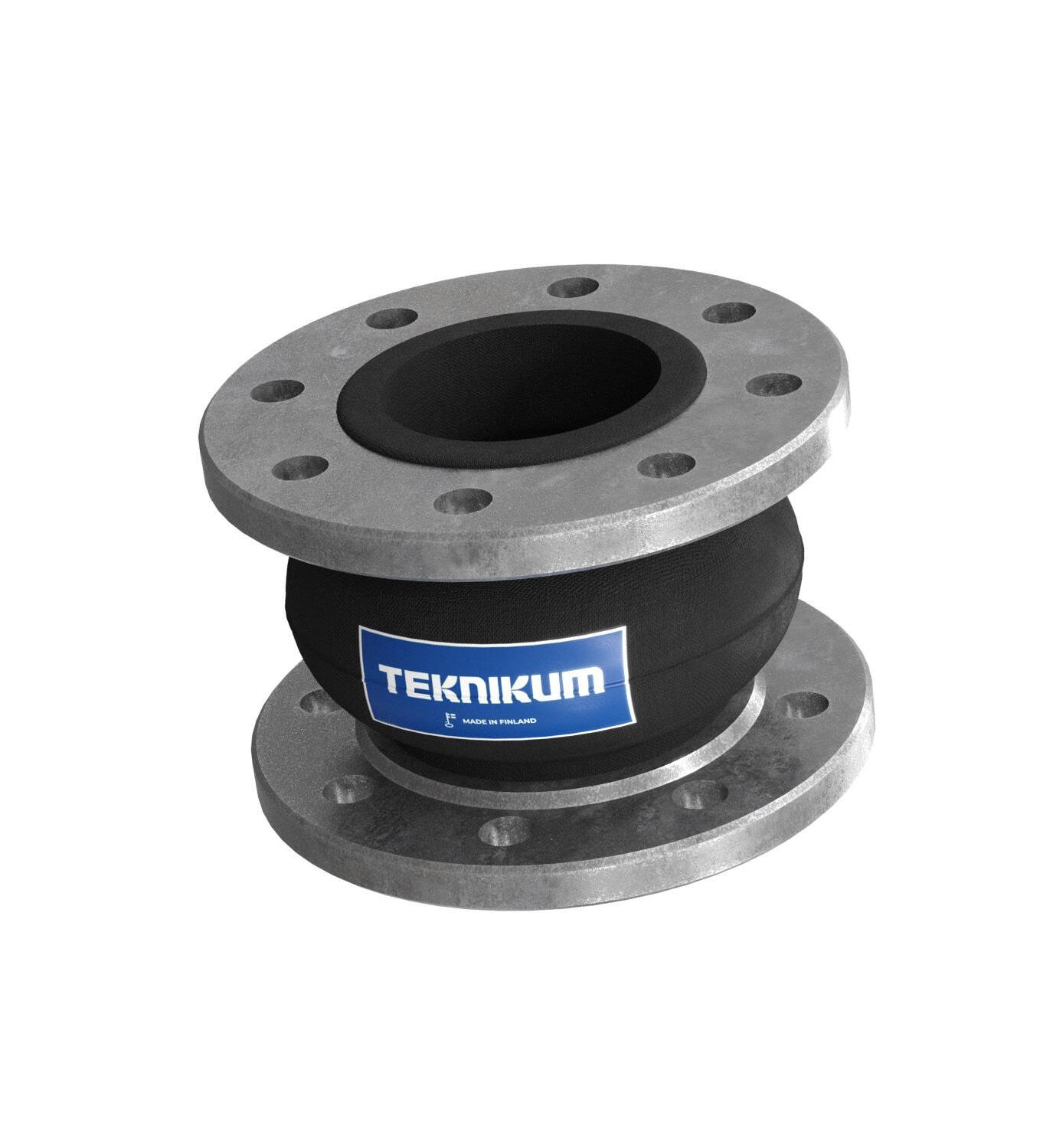

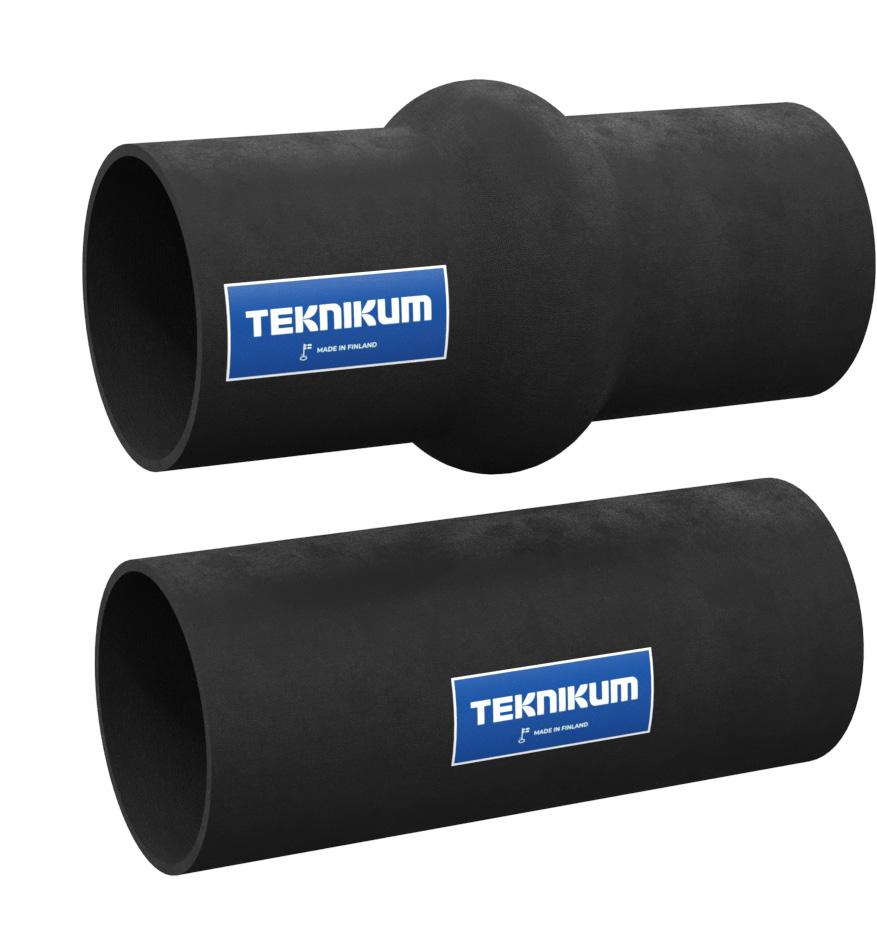

Flexible rubber joints

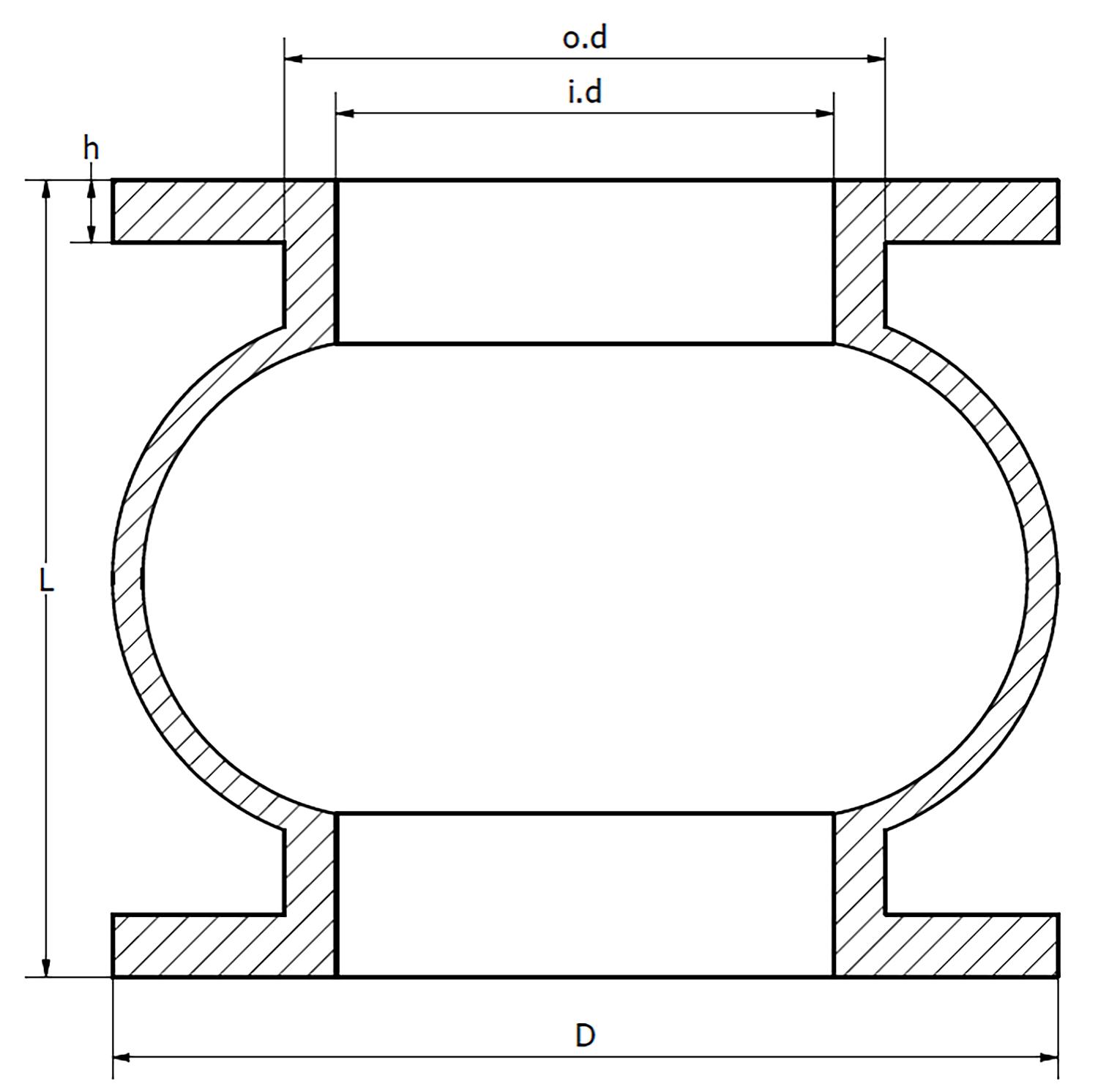

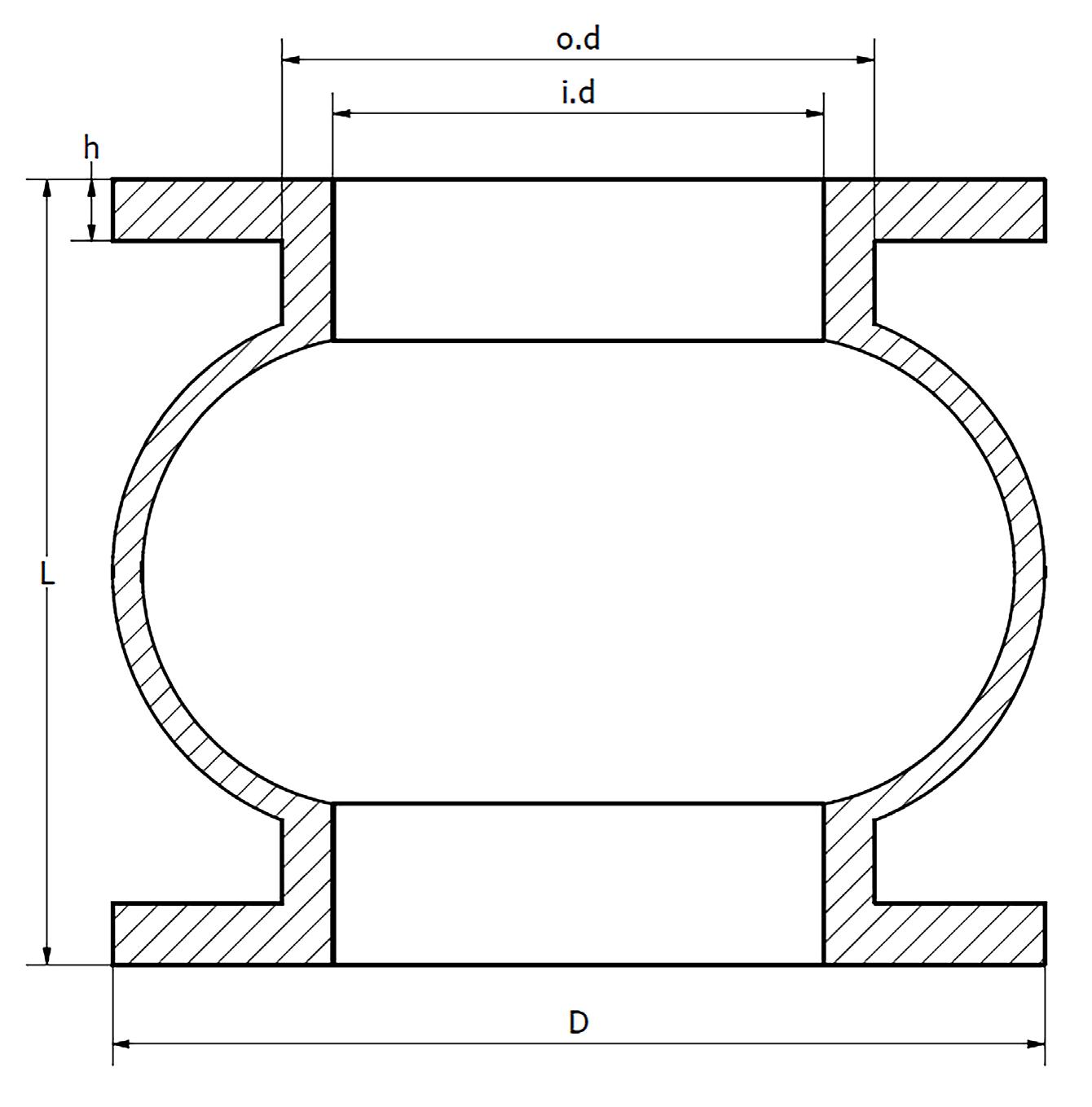

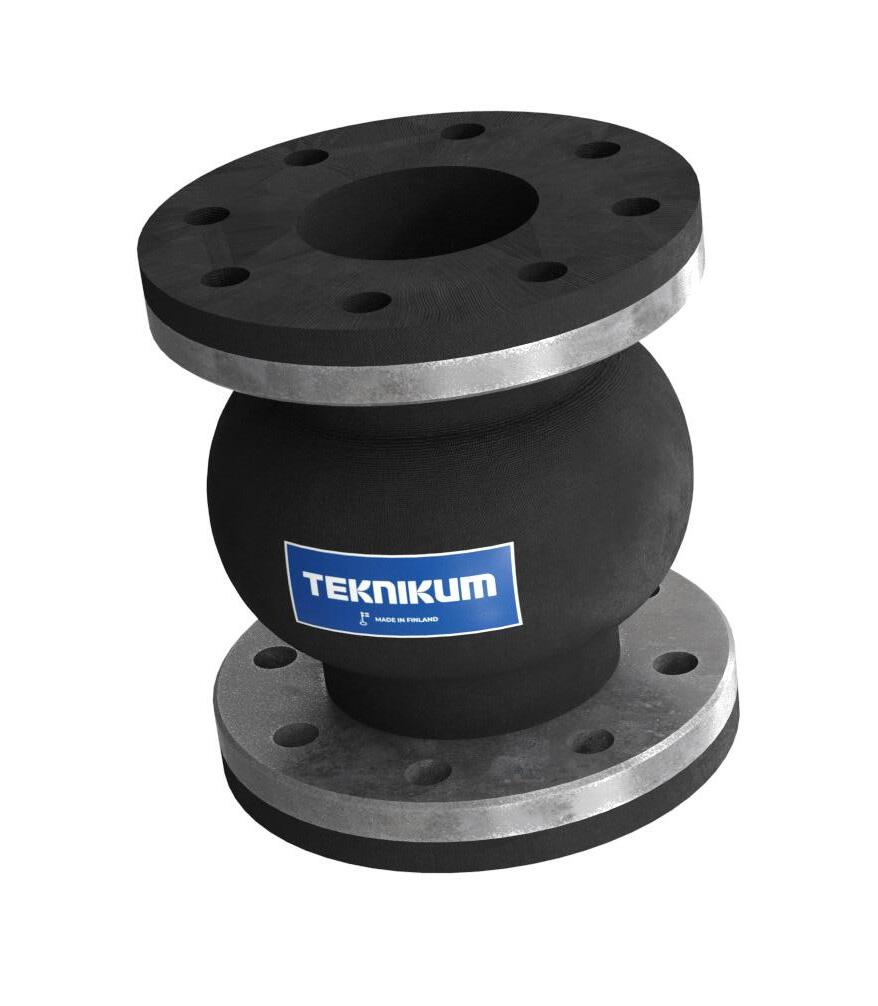

Rubber expansion joint

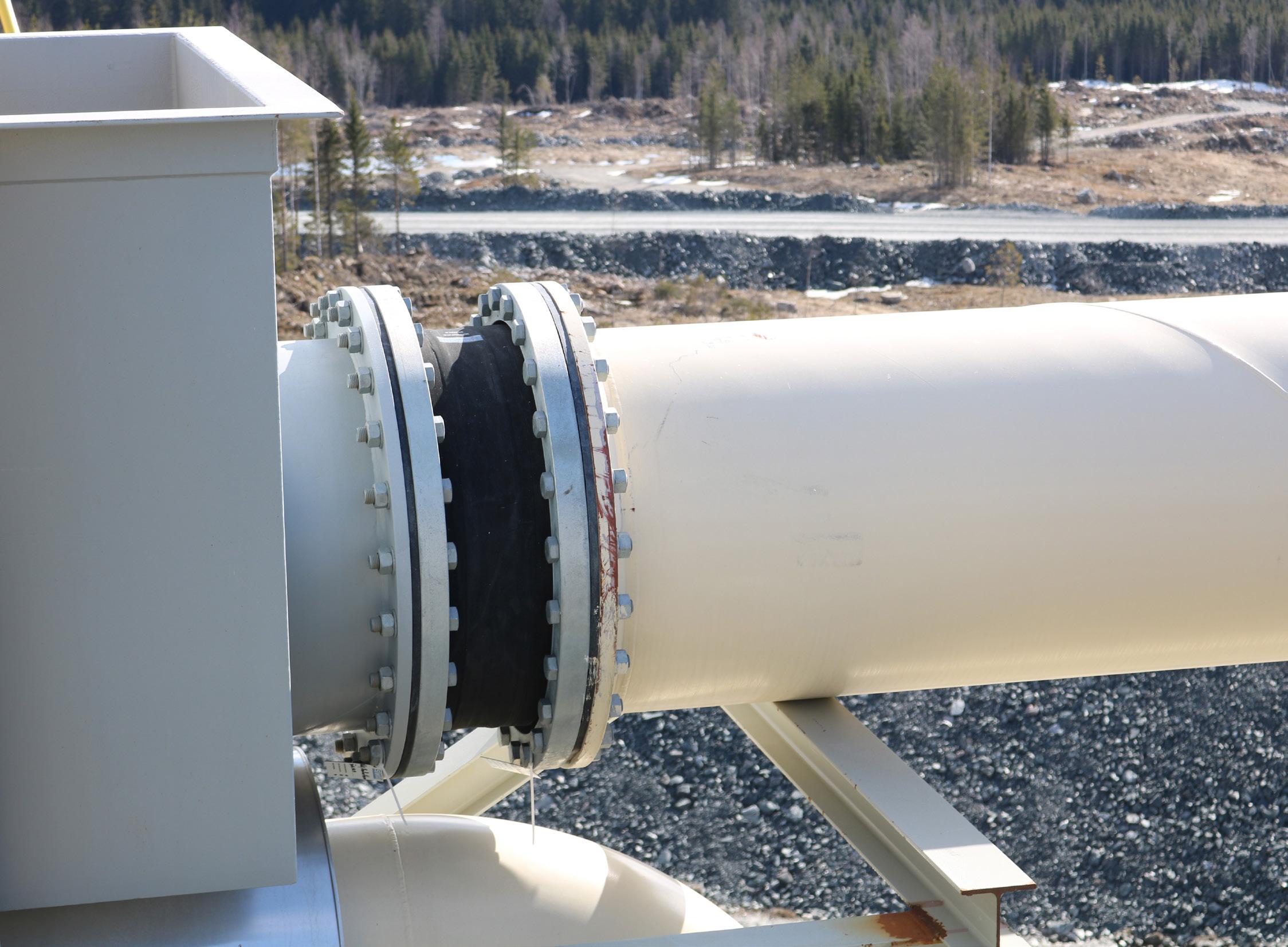

Rubber compensators
Large compensator
"Long lasting hoses for different abrasive materials make an economical and sustainable choice. We have the right hose lining materials for different types of abrasive wear and tear."
Timo Kokkonen Director, Hoses Business Unit
Teknikum Group
Green thinking and long life-cycle benefits
Teknikum’s high-quality industrial hoses, bends and connector systems provide advanced solutions for demanding abrasive environment. Our hoses are known from their innovative, extremely durable and flexible structure.
You can get straight, curved and flexible CERAMIC hoses from us. As the innovator of Smart Hose system and recycled wear resistant rubber qualities, we bring sustainability, GREEN & SMART ideology, to Mining Industry and to the reach of our demanding customers.
Umweltfreundlich und Vorteile durch langen Lebenszyklus
Die hochwertigen Industrieschläuche, Bögen und Verbindersysteme von Teknikum bieten moderne Lösungen für anspruchsvolle, abrasive Umgebungen. Unsere Schläuche sind für ihre innovative, äußerst langlebige und flexible Struktur bekannt.
Es sind original gerade, gebogene und flexible CERAMIC-Schläuche erhältlich. Als Innovator des Smart Hose-Systems und der recycelten verschleißfesten Gummieigenschaften bieten wir der Bergbauindustrie und unseren ambitionierten Kunden Nachhaltigkeit sowie UMWELTFREUNDLICHE und CLEVERE Ideen.
Pensée écologique et avantages liés au long cycle de vie
Les tuyaux industriels, coudes et systèmes de connecteurs de haute qualité de Teknikum fournissent des solutions avancées pour les environnements abrasifs exigeants. Nos tuyaux sont réputés pour leur structure innovante, extrêmement durable et flexible.
Vous pouvez vous procurer les tuyaux CERAMIC originaux droits, coudés et flexibles auprès de Teknikum. Notre système innovant Smart Hose et les qualités du caoutchouc recyclé résistant à l’abrasion nous permettent d’apporter la durabilité, l’idéologie VERTE ET INTELLIGENTE, à l’industrie minière et de la mettre à la portée de nos clients exigeants.
67 ABRASIVE / Slurry hoses 67
Teknikum® Smart Hose system
Measurement takes place automatically every 60 minutes
Smart Hose is manufactured with monitoring cable
With rubber or CERAMIC lining
Select GRANIT® or TITAN™ hose type
Optionally single or multilayer (1-3) measurement with several cables built into the hose structure
- 40°C +60°C
BATTERY DEVICE
Optionally with GRANIT® or TITAN™ Select couplings or with PLUS flange system
68 68 ABRASIVE / Slurry hoses Smart Hose system GREEN & SMART
• Teknikum Smart Hose system enables monitoring of wear and tear of inner lining of a hose
The system gives a signal when the hose needs to be changed to avoid breakage
Measurement takes place automatically every 60 minutes
A measurement can be carried out at any time by pressing the Test button
Optionally single or multilayer (1-3) measurement with several cables built into the hose structure
The benefits of Smart Hose system include:
• increased work and environmental safety and risk management, when hose's life cycle can be anticipated
• uninterrupted process flow as uncontrolled process stops can be avoided
maintenance savings and easier management when new hose can be purchased just in time or as planned
The Smart Hose system includes Teknikum ALER-TEK™ 2.0 monitoring device and a customer specific Teknikum GRANIT® or TITAN™ hose built with monitoring cable
Teknikum ALER-TEK™ 2.0 devide includes IP66 classification black aluminium case protected from moisture and dust. The cable feedthrough into the case has PG9 seal.
Ambient temperature: -40°C...+60°C (battery device)
There are two alarm LEDs on the front panel of the device:
1. Monitoring Loop Alarm - Red Alarm LED
2. Battery Alarm - Red Battery LED
• The ALER-TEK device is reusable Proven system designed for demanding Mining Industry environment
Suitable for various industrial applications
Suitable for custom Teknikum GRANIT® or TITAN™ hoses with rubber or CERAMIC lining
• Das Teknikum Smart Hose-System ermöglicht die Überwachung des Verschleißes der Innenauskleidung eines Schlauchs
Das System gibt ein Signal, wenn der Schlauch gewechselt werden muss, um einen Bruch zu vermeiden
Die Messung erfolgt automatisch alle 60 Minuten
Eine Messung kann jederzeit durch Drücken der Test-Taste durchgeführt werden
Wahlweise ein- oder mehrschichtige (1-3) Messung mit mehreren in die Schlauchstruktur integrierten Kabeln Zu den Vorteilen des Smart HoseSystems gehören: Erhöhte Arbeits- und Umweltsicherheit und Risikomanagement, wenn der Lebenszyklus des Schlauchs vorhergesehen werden kann ungestörter Prozessablauf, da unkontrollierte Prozessstopps vermieden werden können
• Wartungseinsparungen und einfachere Verwaltung, wenn neue Schläuche just-in-time oder wie geplant gekauft werden können
• Das Smart Hose-System umfasst das Teknikum ALER-TEK™ 2.0 Überwachungsgerät und einen kundenspezifischen Teknikum GRANIT® oder TITAN™ Schlauch mit integriertem Überwachungskabel
• Teknikum ALER-TEK™ 2.0 hat ein schwarzes Aluminiumgehäuse mit IP66-Klassifizierung, das vor Feuchtigkeit und Staub geschützt ist. Die Kabeldurchführung in das Gehäuse hat eine PG9-Dichtung. Umgebungstemperatur: -40°C...+60°C (Akkugerät)
• Auf der Frontplatte des Geräts befinden sich zwei Alarm-LEDs:
1. Überwachungsschleifenalarm –Rote Alarm-LED
2. Batteriealarm – Rote Batterie-LED Das ALER-TEK ist wiederverwendbar
• Bewährtes System für anspruchsvolle Umgebungen in der Bergbauindustrie
• Geeignet für verschiedene industrielle Anwendungen
Geeignet für kundenspezifische Teknikum GRANIT®- oder TITAN™Schläuche mit Gummi- oder KERAMIK-Auskleidung
• Le système Smart Hose de Teknikum permet de surveiller l'usure du revêtement intérieur d'un tuyau
Le système émet un signal lorsque le tuyau doit être changé pour éviter la rupture
La mesure a lieu automatiquement toutes les 60 minutes
Une mesure peut être effectuée à tout moment en appuyant sur le bouton Test
Possibilité de mesurer une ou plusieurs couches (1-3) avec plusieurs câbles intégrés dans la structure du tuyau
Les avantages du système Smart Hose sont les suivants : une meilleure gestion des risques et de la sécurité au travail et environnementale, lorsque le cycle de vie du tuyau peut être anticipé
• un flux de processus ininterrompu, car les arrêts non contrôlés du processus peuvent être évités
• des économies de maintenance et une gestion plus facile lorsque le nouveau tuyau peut être acheté juste à temps ou comme prévu
• Le système Smart Hose comprend le dispositif de surveillance Teknikum
ALER-TEK™ 2.0 et un tuyau Teknikum GRANIT® ou TITAN™ spécifique au client, équipé d'un câble de surveillance
• Le dispositif Teknikum ALERTEK™ 2.0 comprend un boîtier en aluminium noir classé IP66, protégé de l'humidité et de la poussière. Le passe-câbles dans le boîtier est doté d'un joint PG9.
• Température ambiante : -40 °C...+60 °C (dispositif à batterie)
• Il y a deux DEL d'alarme sur le panneau avant du dispositif :
1. Alarme de boucle de surveillanceDEL d'alarme rouge
2. Alarme de batterie - DEL rouge de batterie
Le dispositif ALER-TEK est réutilisable
• Système éprouvé conçu pour l'environnement exigeant de l'industrie minière
• Convient à diverses applications industrielles
Convient aux tuyaux personnalisés Teknikum GRANIT® ou TITAN™ avec revêtement en caoutchouc ou en CÉRAMIQUE
https://teknikum.com/product/teknikum-aler-tek-2-0-wear-indicator/
69 ABRASIVE / Slurry hoses Check all current product details and specification on product datasheet (QR code): DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
69
Teknikum PLUS™ flange system
Teknikum PLUS™ flange system consists of a rubber bead and a flange tightened behind the bead.
The flanges are used in hoses used especially in heavy chemical industry and in mining industry, but due its reliability and practicality it is suitable for a range of other applications as well.
The most important advantage of the Teknikum PLUS™ flange is free, undisturbed central flow in the connection point.
Addition benefits are high pressure resistance, reliability and long life cycle without need of seals are great advantages of Teknikum PLUS™ flanges.
There's no need for an extra gasket with fixed rubber flange
Das Teknikum PLUS™-Flanschsystem besteht aus einer einvulkanisierten Wölbung und einem hinter der Wölbung befestigten Flansch.
Die Flansche werden in Schläuchen verwendet, die insbesondere in der chemische Schwerindustrie und im Bergbau eingesetzt werden, sind aber aufgrund ihrer Zuverlässigkeit und Praktikabilität auch für eine Reihe anderer Anwendungen geeignet. Der wichtigste Vorteil des Teknikum PLUS™-Flansches ist die turbolenzfreie Strömung in der Verbindungsstelle.
Hohe Druckfestigkeit, Zuverlässigkeit und lange Lebensdauer ohne Notwendigkeit von Dichtungen sind große Vorteile von Teknikum PLUS™Flanschen.
Es ist keine zusätzliche Dichtung mit festem Gummiflansch erforderlich
Le système de brides Teknikum PLUS™ se compose d'un bourrelet en caoutchouc et d'une bride serrée derrière le bourrelet.
Les brides sont utilisées dans les tuyaux, notamment dans l'industrie chimique lourde et dans l'industrie minière, mais grâce à leur fiabilité et à leur fonctionnalité, elles conviennent également à une variété d'autres applications.
L'avantage majeur de la bride Teknikum PLUS™ est l'écoulement central libre et sans turbulences dans le point de raccordement.
D’autres avantages importants des brides Teknikum PLUS™ sont la résistance à la haute pression, la fiabilité et le long cycle de vie sans avoir recours à des joints.
Il n'est pas nécessaire de prévoir un joint supplémentaire avec la bride fixe en caoutchouc.
70 70 ABRASIVE / Slurry hoses PLUS™ flange system
ADVANTAGES
DESCRIPTION ET AVANTAGES
DESCRIPTION AND
BESCHREIBUNG UND VORTEILE
Fixed rubber flange, no need for extra seal
Smooth or corrucated cover
Custom flange accordding to hose dimensions
Free, undisturbed central flow in the connection point.
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
DN 40 HPLUSEND10040
DN 50 HPLUSEND10050
DN 65
DN 80
HPLUSEND10065
HPLUSEND10080
DN 100 HPLUSEND10100
DN 125
DN 150
DN 200
DN 250
DN 300
HPLUSEND10125
HPLUSEND10150
HPLUSEND10200
HPLUSEND10250
HPLUSEND10300
DN 350 HPLUSEND10350
DN 400
DN 450
DN 500
HPLUSEND10400
HPLUSEND10450
HPLUSEND10500
DN 600 HPLUSEND10600
DN 700
HPLUSEND10700
CARBON, CARBON LIGHT, GRANIT, GRANIT CERAMIC, GRANIT STEEL, TITAN
CARBON, CARBON LIGHT, GRANIT, GRANIT CERAMIC, GRANIT STEEL, TITAN
CARBON, CARBON LIGHT, GRANIT, GRANIT CERAMIC, GRANIT STEEL, TITAN
CARBON, CARBON LIGHT, GRANIT, GRANIT CERAMIC, GRANIT STEEL, TITAN
CARBON, CARBON LIGHT, GRANIT, GRANIT CERAMIC, GRANIT STEEL, TITAN
CARBON, CARBON LIGHT, GRANIT, GRANIT CERAMIC, GRANIT STEEL, TITAN
CARBON, CARBON LIGHT, GRANIT, GRANIT CERAMIC, GRANIT STEEL, TITAN
Ask for custom hose
Ask for custom hose
Ask for custom hose
Ask for custom hose
Ask for custom hose
Ask for custom hose
Ask for custom hose
Ask for custom hose
Ask for custom hose
71 71 ABRASIVE / Slurry hoses
PRODUKTINFORMATION / INFORMATION
Check all current product details and specification on product datasheet (QR code):
PRODUCT INFORMATION /
PRODUIT
71 Nominal diameter DN Product code
to stock hoses
Available
PLUS-end
https://teknikum.com/product/teknikum-plus-flange/ Product code Weight kg/m PLUS flange HPLUSFL10040 3,35 HPLUSFL10050 3,75 HPLUSFL10065 4,35 HPLUSFL10080 4,6 HPLUSFL10100 5,5 HPLUSFL10125 6,4 HPLUSFL10150 8,6 HPLUSFL10200 10,15 HPLUSFL10250 12,15 HPLUSFL10300 14,75 HPLUSFL10350 17,7 HPLUSFL10400 23,8 HPLUSFL10450 27,85 HPLUSFL10500 30,25 HPLUSFL10600 41,65 HPLUSFL10700 59,6 Other options available on request Pressure class PN 16 PN 25 ANSI B 16.5 150 lb / sq.in Nominal diameters DN 40 - 700 DN 40 - 700 1½" - 28"

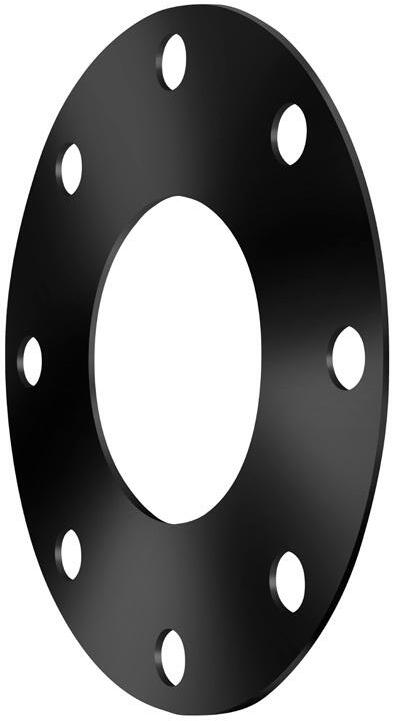

Teknikum® Steel support flanges
Steel support flanges are used to support the connection between rubber connecting hose flange and counter flange of the pipeline. Steel support flanges are assembled on finished hose after making the rubber flange drillings.
Note: Rubber flange drillings, as well as steel support flange assembly, are made free of charge in case that customer orders steel support flanges together with connecting hoses.
Standard steel support flanges comply with connecting dimensions of DIN 2642 / EN 1092-1 / SFS 2170 table PN 10, and the material is zinc galvanized steel.
We are able to supply steel support flanges with different specifications as well (e.g. different material or surface treatment).
Instead of rubber flanges and steel support flanges, connecting hoses can be supplied with Teknikum PLUS™ flange system.
Stützflansche aus Stahl werden verwendet, um die Verbindung zwischen Gummianschlussschlauchflansch und Gegenflansch der Rohrleitung zu unterstützen.
Stahl-Stützflansche werden nach dem Bohren der Gummiflanschbohrungen am fertigen Schlauch montiert.
Hinweis: Bohrungen für Gummiflansche sowie Stahlstützflansche werden kostenlos hergestellt, falls der Kunde Stahlstützflansche zusammen mit Verbindungsschläuchen bestellt. Standard-Stützflansche aus Stahl entsprechen den Anschlussmaßen der DIN 2642 / EN 1092-1 / SFS 2170 Tabelle PN 10, das Material ist verzinkter Stahl. Es besteht die Möglichkeit Stützflansche aus Stahl mit anderen Spezifikationen zu liefern (z. B. anderes Material oder andere Oberflächenbehandlung).
Anstelle von Gummiflanschen und Stützflanschen aus Stahl können Verbindungsschläuche mit Teknikum PLUS™ Flanschsystem geliefert werden.
Les brides support en acier sont utilisées pour supporter la connexion entre la bride du tuyau de raccordement en caoutchouc et la contre-bride de la conduite.
Les brides support en acier sont assemblées sur le tuyau fini après avoir effectué les perçages de la bride en caoutchouc.
Remarque : les perçages des brides en caoutchouc ainsi que l'assemblage des brides support en acier sont réalisés gratuitement si le client commande des brides support en acier avec des tuyaux de raccordement.
Les brides support standard en acier sont conformes aux dimensions de raccordement des normes DIN 2642 / EN 1092-1 / SFS 2170 tableau PN 10, et le matériau est de l'acier galvanisé au zinc.
Nous sommes également en mesure de fournir des brides support en acier avec des spécifications différentes (par exemple, un matériau ou un traitement de surface différent). Au lieu de brides en caoutchouc et de brides support en acier, les tuyaux de raccordement peuvent être fournis avec le système de brides Teknikum PLUS™.
72 72 ABRASIVE / Slurry hoses
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Flanges
DIN 2642 / EN 1092-1 / SFS 2170 table PN 10
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Check all current product details and specification on product datasheet (QR
73 73 ABRASIVE / Slurry hoses
/ PRODUKTINFORMATION / INFORMATION
PRODUCT INFORMATION
PRODUIT
code):
73
Product code Pressure class / Nominal diameter Ø i.d. mm Ø D mm Ø k mm d2 (pcs/flange) mm b mm Weight kg/pc Teknikum® Steel support flanges (hot galvanized steel) LAIPNS020 PN10/16 / DN 20 36 105 75 14 (4) 14 0,8 LAIPNS025 PN10/16 / DN 25 42 115 85 14 (4) 16 1,1 LAIPNS032 PN10/16 / DN 32 52 140 100 18 (4) 16 1,6 LAIPNS040 PN10/16 / DN 40 64 150 110 18 (4) 16 1,8 LAIPNS050 PN10/16 / DN 50 74 165 125 18 (4) 16 2,1 LAIPNS065 PN10/16 / DN 65 92 185 145 18 (4) 16 2,4 LAIPNS080 PN10/16 / DN 80 108 200 160 18 (8) 18 2,9 LAIPNS100 PN10/16 / DN 100 135 220 180 18 (8) 18 3,2 LAIPNS125 PN10/16 / DN 125 158 250 210 18 (8) 18 4 LAIPNS150 PN10/16 / DN 150 188 285 240 22 (8) 18 4,7 LAIPNS200 PN10 / DN 200 238 340 295 22 (8) 20 7 LAIPNS250 PN10 / DN 250 294 395 350 22 (12) 22 9 LAIPNS300 PN10 / DN 300 344 445 400 22 (12) 26 12 LAIPNS350 PN10 / DN 350 400 505 460 22 (16) 28 16 LAIPNS400 PN10 / DN 400 452 565 515 26 (16) 32 22,1 LAIPNS450 PN10 / DN 450 505 615 565 26 (20) 35 27 LAIPNS500 PN10 / DN 500 555 670 620 26 (20) 38 33 LAIPNS600 PN10 / DN 600 670 780 725 30 (20) 44 47 LAIPNS700 PN10 / DN 700 760 895 840 30 (24) 50 59 LAIPNS800 PN10 / DN 800 870 1015 950 33 (24) 56 78 HOSE FLANGE DRILLINGS PORAUS020 DN 20 - DN 80 PORAUS100 DN 100 - DN 200 PORAUS250 DN 250 - DN 450 PORAUS500 DN 500 -
https://teknikum.com/product/flanges/
Teknikum GRANIT®
ISO 28017:2011
Complete with GRANIT Select™ couplings
+80°C
- 40°C
Robust , but flexible material handling hose with corrugated cover
• For slurry and very abrasive substances
Two inner lining options: Teknikum WearGrey NR™ (Teknikum GRANIT®) and antistatic black SBR inner lining (Teknikum GRANIT® ANTISTATIC)
Excellent resistance to abrasion and weather
Eliminates vibrations and noise
High burst pressure ≥ 3,2 MPa
• Very flexible and low bending radius due to corrugated cover structure
On special order: chemical resistant EPDM and oil resistant NBR materials, special hose dimensions and working pressure according to need. Ask more from Teknikum sales.
Customized Teknikum GRANIT® hoses can be manufactured according to ISO 28017:2011 (rubber hoses and hose assemblies, wire or textile reinforced, for dredging applications) type 2. Quick and easy installation
Hoses can be cut on-site
Recommened connection with Teknikum GRANIT Select™ couplings or Teknikum PLUS™ flange system
Robuster, aber flexibler Förderschlauch mit gewellter Decke
• Für Schlämme und sehr abrasive Stoffe
Zwei Optionen für die Schlauchseele: Teknikum WearGrey NR™ (Teknikum GRANIT®) und antistatisches schwarzes SBR-Innenfutter (Teknikum GRANIT® ANTISTATIC) Hervorragende Abrieb- und Witterungsbeständigkeit
Eliminiert Vibrationen und Geräusche Hoher Berstdruck ≥ 3,2 MPa Sehr flexibel und geringer Biegeradius durch gewellte Deckstruktur
• Auf Sonderbestellung: chemikalienbeständige EPDM- und ölbeständige NBR-Werkstoffe, spezielle Schlauchabmessungen und Betriebsdruck nach Bedarf. Fragen Sie mehr vom Teknikum-Vertrieb.
• Kundenspezifische Teknikum GRANIT®-Schläuche können gemäß ISO 28017:2011 (Gummischläuche und -schlauchleitungen, draht- oder textilverstärkt, für Baggeranwendungen) Typ 2 hergestellt werden.
Schnelle und einfache Installation
• Schläuche können vor Ort geschnitten werden
Empfohlener Anschluss mit Teknikum GRANIT Select™ Kupplungen oder Teknikum PLUS™ Flanschsystem
Tuyau de manutention de matériaux robuste mais flexible, avec gaine striée
• Pour les boues et les substances très abrasives
Deux options de revêtement intérieur : Teknikum WearGrey NR™ (Teknikum GRANIT®) et revêtement intérieur SBR noir antistatique (Teknikum GRANIT® ANTISTATIC)
Excellente résistance à l'abrasion et aux intempéries
Élimine les vibrations et le bruit
Pression d'éclatement élevée ≥ 3,2 MPa
Très flexible et faible rayon de courbure grâce à la structure striée de la gaine
• Sur commande spéciale : matériaux EPDM résistant aux produits chimiques et NBR résistant aux hydrocarbures, dimensions spéciales des tuyaux et pression de service selon les besoins. Demandez plus d’informations à l’équipe de vente de Teknikum.
• Les tuyaux Teknikum GRANIT® personnalisés peuvent être fabriqués selon la norme ISO 28017:2011 (tuyaux et ensembles raccord-tuyau en caoutchouc, renforcés de fil ou de textile, pour applications de dragage) type 2. Installation rapide et facile
• Les tuyaux peuvent être coupés sur place Connexion recommandée avec les raccords Teknikum GRANIT Select™ ou le système de brides Teknikum PLUS™
74 74 ABRASIVE / Slurry hoses GRANIT® GREEN
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
SBR
NR 50 ShA or SBR 60 ShA TEXTILE STEEL SPIRAL
Other dimensions available on request. / Weitere Größen auf Anfrage
dimensions sont disponibles sur demande.
75 75 ABRASIVE / Slurry hoses PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code):
D'autres
75 Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum GRANIT® H4180025 25 53 1,0 0,09 120 2,20 40 H4180032 32 60 1,0 0,09 150 2,60 40 H4180040 40 73 1,0 0,09 150 3,80 40 H4180050 50 83 1,0 0,08 200 3,80 40 H4180065 65 98 1,0 0,08 200 4,70 40 H4180080 80 113 1,0 0,08 200 5,70 40 H4180102 102 133 1,0 0,08 250 7,90 20 H4180127 127 164 1,0 0,08 350 10,40 20 H4180152 152 189 1,0 0,08 500 12,00 20 H4180203 203 246 1,0 0,08 1000 18,00 10 H4180253 253 293 1,0 0,08 1700 20,60 10 H4180300 300 352 1,0 0,08 1900 31,00 10 H4180305 305 352 1,0 0,08 1900 31,00 10 H4180350 350 407 1,0 0,08 2200 41,00 10 Teknikum GRANIT® ANTISTATIC (Black SBR tube) H4280BC050 50 83 1,0 0,08 200 3,80 40 H4280BC080 80 113 1,0 0,08 200 6,70 40 H4280BC102 102 133 1,0 0,08 250 7,90 20 https://teknikum.com/product/teknikum-granit-sd-material-handling-hose/
erhältlich. /
Teknikum GRANIT® CERAMIC Antistatic
ISO 28017:2011
Complete with GRANIT Select™ couplings
+80°C
- 40°C
Robust, but flexible material handling hose with corrugated SBR cover and CERAMIC inner lining
• Up to 3-10 times the life of a rubber hose or metal tube, depending on the material being transferred
• For slurry and very abrasive substances
Excellent resistance to abrasion and weather
Eliminates vibrations and noise
High burst pressure ≥ 3,2 MPa
• Antistatic, ESD protection
Customization options: hose dimensions according to need. Ask more from Teknikum sales.
Flexible and low bending radius due to corrugated cover and rubber-ceramic lining structure
Quick and easy installation
Recommened connection with Teknikum GRANIT Select™ couplings or Teknikum PLUS™ flange system
Robuster, aber flexibler Förderschlauch mit gewellter SBR-Decke und KERAMIK-Innenschicht
• Bis zum 3- bis 10-fachen der Lebensdauer eines Gummischlauchs oder Metallrohrs, je nach zu transportierendem Material
• Für Schlämme und sehr abrasive Stoffe
Hervorragende Abrieb- und Witterungsbeständigkeit
Eliminiert Vibrationen und Geräusche Hoher Berstdruck ≥ 3,2 MPa Antistatisch, ESD-Schutz
• Anpassungsmöglichkeiten: Schlauchabmessungen nach Bedarf. Fragen Sie mehr vom TeknikumVertrieb.
Flexibel und geringer Biegeradius durch gewellte Decke und GummiKeramik Struktur Schnelle und einfache Installation Empfohlener Anschluss mit Teknikum GRANIT Select™ Kupplungen oder Teknikum PLUS™ Flanschsystem
Tuyau de manutention de matériaux robuste mais flexible, avec gaine striée en SBR et revêtement intérieur en CÉRAMIQUE
Jusqu'à 3 à 10 fois la durée de vie d'un tuyau en caoutchouc ou d'un tube métallique, en fonction du matériau transféré
• Pour les boues et les substances très abrasives
• Excellente résistance à l'abrasion et aux intempéries
Élimine les vibrations et le bruit
Pression d'éclatement élevée ≥ 3,2 MPa Antistatique, protection ESD
• Options de personnalisation : dimensions du tuyau selon les besoins. Demandez plus d’informations à l’équipe de vente de Teknikum.
• Flexible et faible rayon de courbure grâce à la structure striée de la gaine et du revêtement en caoutchouc céramique
Installation rapide et facile
Connexion recommandée avec les raccords Teknikum GRANIT Select™ ou le système de brides Teknikum PLUS™
76 76 ABRASIVE / Slurry hoses
GRANIT® CERAMIC GREEN & SMART DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
TEKNIKUM® CERAMIC
SBR
CERAMIC LINING TEXTILE STEEL SPIRAL
Other
77 77 ABRASIVE / Slurry hoses PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code):
dimensions available on request.
Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur
77 Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum GRANIT® CERAMIC 4910025 25 53 1 0,09 130 2,7 10 4910032 32 60 1 0,09 140 3,2 10 4910040 40 73 1 0,09 150 4,6 10 4910050 50 83 1 0,09 200 4,7 10 4910065 65 98 1 0,09 300 6 10 4910080 80 113 1 0,09 400 8,2 10 4910102 102 133 1 0,09 500 9,7 10 4910127 127 164 1 0,09 600 12,6 10 4910152 152 189 1 0,09 800 14,7 10 4910203 203 246 1 0,09 1800 21,5 10 4910253 253 293 1 0,09 2200 25 10 4910305 305 352 1 0,09 3000 42 10 4910350 350 407 1 0,09 3600 54 10 4910350 350 407 1 0,09 3600 54 10 https://teknikum.com/product/teknikum-granit-sd-material-handling-hose/ TEKNIKUM® CERAMIC Abrasive
/
demande.
Teknikum GRANIT® Select coupling
DIN PN10
A mechanical coupling for Teknikum GRANIT® hoses
Enables smooth flow through the connection
The material of the coupling is either aluminium or D-RIM™ – impact resistant antistatic reinforced polyamide withstanding mechanical fatigue and wearing
The dimensions of the flange correspond to DIN PN 10 and/or ANSI B16.5 (150PSI)
The couplings are used with a gasket made of polypropylene (TIIV-PP) Gaskets are not included in product prices
Eine mechanische Kupplung für Teknikum GRANIT®-Schläuche Ermöglicht eine turbolenzfreie Strömung durch die Verbindung
Das Material der Kupplung ist entweder Aluminium oder D-RIM™ – schlagfestes, antistatisch verstärktes Polyamid, das mechanischer Ermüdung und Verschleiß standhält
Die Abmessungen des Flansches entsprechen DIN PN 10 und / oder ANSI B16.5 (150PSI)
Die Kupplungen werden mit einer Dichtung aus Polypropylen (TIIV-PP) verwendet
Dichtungen sind nicht in den Produktpreisen enthalten
Un raccord mécanique pour les tuyaux Teknikum GRANIT®
Permet un écoulement fluide à travers la connexion
Le matériau du raccord est soit l'aluminium, soit le D-RIM™ –polyamide renforcé antistatique résistant aux chocs, à la fatigue mécanique et à l'usure
Les dimensions de la bride correspondent à DIN PN 10 et/ou ANSI B16.5 (150PSI)
Les raccords sont utilisés avec un joint en polypropylène (TIIV-PP) Les joints ne sont pas inclus dans le prix des produits
78 78 ABRASIVE / Slurry hoses
GRANIT® Select coupling
DESCRIPTION
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE
ET AVANTAGES
ANSI B 16.5 (150PSI)
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
79 79 ABRASIVE / Slurry hoses
PRODUKTINFORMATION /
Check all current product details and specification on product datasheet (QR code):
PRODUCT INFORMATION /
INFORMATION PRODUIT
Product code Hose o.d. mm Working press. MPa Coupling length mm Weight kg Aluminium GRANS050-AL 83 ±2 1 95 1,6 GRANS065-AL 98 ±2 1 100 1,9 GRANS080-AL 113 ±2 1 100 2 GRANS102-AL 133 ±2 1 85 2,8 GRANS127-AL 164 ±2 1 105 4,3 GRANS152-AL 189 ±2 1 120 5 GRANS203-AL 246 ±2 1 155 6,5 GRANS253-AL 293 ±2 0,5 175 11,2 GRANS300-AL 352 ±2 0,5 195 11,5 GRANS350-AL 407 ±2 0,5 200 15,5 Antistatic polyamide GRANS025 53 +0-2 1 70 0,6 GRANS032 60 +0-2 1 70 0,7 GRANS040 73 +0-2 1 70 0,9 GRANS050 83 +0-2 1 70 0,9 GRANS065 98 +0-2 1 70 1 GRANS080 113 ±2 1 80 1,2 GRANS102 133 ±2 1 80 1,3 GRANS127 164 ±2 1 120 2,2 GRANS152 189 ±2 1 120 2,5 GRANS203 246 ±2 0,5 155 4,3 GRANS253 293 ±2 0,2 175 6,2 https://teknikum.com/product/teknikum-granit-select/
Teknikum TITANTM
ISO 28017:2011
Complete with TITAN™ Select couplings
+80°C
- 40°C
Abrasive material handling hose with smooth cover
Excellent resistance to abrasion and weather
Two inner lining options: Teknikum WearGrey NR™ (version Teknikum TITAN™) and antistatic black
SBR (version Teknikum TITAN™ ANTISTATIC)
Eliminates vibrations and noise
• Low bending radius
ESD protection with Antistatic version
Customization options: chemical resistant EPDM and oil resistant NBR materials, special hose dimensions and working pressure according to need. Ask more from Teknikum sales.
Customized Teknikum TITAN™ hoses can be manufactured according to ISO 28017:2011 (Rubber hoses and hose assemblies, wire or textile reinforced, for dredging applications) type 2.
Quick and easy installation
Hoses can be cut on-site
• Complete with TITAN™ Select couplings or Teknikum PLUS™ flange system
• Burst safety factor is 2 x working pressure
Materialförderschlauch mit glatter Oberfläche
Hervorragende Abrieb- und Witterungsbeständigkeit
Zwei Optionen für die Schlauchseele:
Teknikum WearGrey NR™ (Version Teknikum TITAN™) und antistatisches schwarzes SBR (Version Teknikum TITAN™ ANTISTATIC)
Eliminiert Vibrationen und Geräusche
• Geringer Biegeradius
ESD-Schutz bei antistatischer Version
Anpassungsoptionen: chemikalienbeständige EPDM- und ölbeständige NBR-Materialien, spezielle Schlauchabmessungen und Arbeitsdruck nach Bedarf. Fragen Sie mehr vom Teknikum-Vertrieb.
Kundenspezifische Teknikum
TITAN™-Schläuche können gemäß ISO 28017:2011 (Gummischläuche und -schlauchleitungen, draht- oder textilverstärkt, für Baggeranwendungen) Typ 2 hergestellt werden.
Schnelle und einfache Installation Schläuche können vor Ort geschnitten werden
Komplett mit TITAN™ SelectKupplungen
• Berstsicherheitsfaktor ist 2 x Betriebsdruc
Tuyau de manutention de matériaux abrasifs avec gaine lisse
Excellente résistance à l'abrasion et aux intempéries
Deux options de revêtement intérieur : Teknikum WearGrey NR™ (version Teknikum TITAN™) et SBR noir antistatique (version Teknikum TITAN™ ANTISTATIC)
Élimine les vibrations et le bruit
• Faible rayon de courbure
Protection ESD avec la version antistatique
Options de personnalisation : matériaux EPDM résistant aux produits chimiques et NBR résistant aux hydrocarbures, dimensions spéciales des tuyaux et pression de service selon les besoins. Demandez plus d’informations à l’équipe de vente de Teknikum.
Les tuyaux Teknikum TITAN™ personnalisés peuvent être fabriqués selon la norme ISO 28017:2011 (tuyaux et ensembles raccord-tuyau en caoutchouc, renforcés de fil ou de textile, pour applications de dragage) type 2.
• Installation rapide et facile
Les tuyaux peuvent être coupés sur place
Complet avec les raccords TITAN™ Select ou le système de brides
Teknikum PLUS™
Le coefficient de sécurité à l'éclatement est de 2 x la pression de service
80 80 ABRASIVE / Slurry hoses TITANTM GREEN
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
SBR
NR 50 ShA or SBR 60 ShA TEXTILE STEEL SPIRAL
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Check all current product details and specification on product datasheet (QR code):
81 81 ABRASIVE / Slurry hoses
PRODUKTINFORMATION / INFORMATION
PRODUCT INFORMATION /
PRODUIT
81 Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum TITAN™ H4160040 40 64 1 0,09 120 2,2 40 H4160050 50 72 1 0,09 120 2,4 40 H4160063 63 82 1 0,09 140 2,7 40 H4160076 76 100 1 0,09 250 3,8 40 H4160080 80 100 1 0,09 250 4,3 40 H4160090 90 113 1 0,09 250 4,8 40 H4160102 102 125 1 0,09 250 5,1 20 H4160115 115 141 1 0,09 300 6,5 20 H4160127 127 154 1 0,09 350 6,9 20 H4160152 152 178 1 0,09 650 9,1 20 H4160180 180 212 1 0,09 1000 14,3 10 H4160203 203 238 1 0,09 1200 17,7 10 H4160253 253 291 1 0,05 1500 20,8 10 H4160300 300 341 1 0,05 1500 25,9 10 H4160305 305 341 1 0,05 1500 25,9 10 H4160350 350 403 1 0,05 2000 39,2 10 H4160405 405 456 0,5 0,05 2300 43,1 10 H4160450 450 508 0,5 0,05 3000 52 10 H4160508 508 558 0,5 0,05 4000 67 10 H4160600 600 664 0,5 0,05 5000 82 10 Teknikum TITAN™ ANTISTATIC (Black SBR tube) H4260BC050 50 72 1 0,09 120 2,4 40 H4260BC063 63 82 1 0,09 140 2,7 40 H4260BC080 80 100 1 0,09 250 4,3 40 H4260BC102 102 125 1 0,09 250 5,1 20 H4260BC152 152 178 1 0,09 650 9,1 20 H4260BC203 203 238 1 0,09 1200 17,7 10 https://teknikum.com/product/teknikum-titan-sd-material-handling-hose/
Teknikum TITAN™
CERAMIC Antistatic
Complete with TITAN™ Select couplings
ISO 28017:2011
SBR
DESCRIPTION AND ADVANTAGES
Abrasive material handling hose with smooth SBR cover and CERAMIC lining
Up to 3-10 times the life of a rubber hose or metal tube, depending on the material being transferred
• Excellent resistance to abrasion and weather
Eliminates vibrations and noise
Low bending radius due to special rubber-ceramic structure
Antistatic, ESD protection
Customization options: hose dimensions and working pressure according to need. Ask more from Teknikum sales.
• Quick and easy installation
Complete with TITAN™ Select couplings or Teknikum PLUS™ flange system
BESCHREIBUNG UND VORTEILE
Materialförderschlauch mit glatter SBR-Deckschicht und KERAMIKAuskleidung
Bis zum 3- bis 10-fachen der Lebensdauer eines Gummischlauchs oder Metallrohrs, je nach zu transportierendem Material
• Hervorragende Abrieb- und Witterungsbeständigkeit
• Eliminiert Vibrationen und Geräusche Geringer Biegeradius durch spezielle Gummi-Keramik-Struktur Antistatisch, ESD-Schutz Anpassungsoptionen: Schlauchabmessungen und Arbeitsdruck nach Bedarf. Fragen Sie mehr vom Teknikum-Vertrieb. Schnelle und einfache Installation
• Komplett mit TITAN™ SelectKupplungen
- 40°C +80°C
DESCRIPTION ET AVANTAGES
Tuyau de manutention de matériaux abrasifs avec gaine lisse en SBR et revêtement en CÉRAMIQUE
Jusqu'à 3 à 10 fois la durée de vie d'un tuyau en caoutchouc ou d'un tube métallique, en fonction du matériau transféré
• Excellente résistance à l'abrasion et aux intempéries
• Élimine les vibrations et le bruit Faible rayon de courbure grâce à la structure spéciale en caoutchouc céramique
Antistatique, protection ESD Options de personnalisation : dimensions du tuyau et pression de service selon les besoins. Demandez plus d’informations à l’équipe de vente de Teknikum.
Installation rapide et facile
• Complet avec les raccords TITAN™ Select ou le système de brides Teknikum PLUS™
82 82 ABRASIVE / Slurry hoses TITAN™ CERAMIC GREEN & SMART
CERAMIC LINING TEXTILE STEEL SPIRAL
TEKNIKUM® CERAMIC
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Check all current product details and specification on product datasheet (QR code):
https://teknikum.com/product/teknikum-titan-ceramic-antistatic/
83 83 ABRASIVE / Slurry hoses
INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
PRODUCT
83 Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum TITAN™ CERAMIC Antistatic H4920040 40 64 1 0,09 170 3,1 10 H4920050 50 72 1 0,09 220 3,6 10 H4920063 63 82 1 0,09 320 4 10 H4920076 76 100 1 0,09 420 5,5 10 H4920080 80 104 1 0,09 440 6 10 H4920090 90 113 1 0,09 500 6,8 10 H4920102 102 125 1 0,09 520 7,4 10 H4920115 115 141 1 0,09 560 9 10 H4920127 127 154 1 0,09 620 9,8 10 H4920152 152 178 1 0,09 820 12,5 10 H4920180 180 212 1 0,09 1200 18,1 10 H4920203 203 238 1 0,09 1800 21,3 10 H4920253 253 291 1 0,05 2500 26,4 10 H4920300 300 341 1 0,05 3000 32,7 10 H4920305 305 341 1 0,05 3000 32,7 10 H4920350 350 403 1 0,05 3600 48,5 10 H4920405 405 456 0,5 0,05 4200 53,4 10 H4920450 450 508 0,5 0,05 4700 63 10 H4920508 508 558 0,5 0,05 5200 76,5 10 H4920600 600 664 0,5 0,05 6500 96,7 10
TEKNIKUM® CERAMIC Abrasive
Teknikum TITAN™ Select coupling
DIN / PN 10
EN 1092-1 / PN 10
ANSI B 16,5 / 150 lb
The material of the coupling is strong and light weight aluminium.
The dimensions of the flange correspond to DIN PN 10 and ANSI B 16.5 (150PSI).
The couplings are used with Teknikum Select™ gaskets made of steel reinforced rubber or polypropylene (TIIV-PP).
Teknikum Select™ gaskets are not included in product prices.
Safe and durable connection
• Easy to assemble
Das Material der Kupplung ist Aluminium, ein sehr beständiger und leichter Werkstoff
Die Abmessungen des Flansches entsprechen DIN PN 10 und / oder ANSI B 16,5 (150PSI).
Die Kupplungen werden mit Teknikum Select™ Dichtungen aus stahlverstärktem Gummi oder Polypropylen (TIIV-PP) verwendet.
Teknikum Select™-Dichtungen sind nicht in den Produktpreisen enthalten. Sichere und dauerhafte Verbindung
• Leicht zusammenzubauen
Le matériau du raccord est un aluminium solide et léger. Les dimensions de la bride correspondent à DIN PN 10 et/ou ANSI B 16.5 (150PSI).
Les raccords sont utilisés avec les joints Teknikum Select™ en caoutchouc renforcé d'acier ou en polypropylène (TIIV-PP).
Les joints Teknikum Select™ ne sont pas inclus dans le prix des produits. Connexion sûre et durable
• Facile à assembler
84 84 ABRASIVE / Slurry hoses TITAN™ Select coupling
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other dimensions available on request. / Weitere Größen auf Anfrage
sont disponibles sur demande.
* Made outside Finland
** Suitable for Teknikum TITAN™ hoses
85 85 ABRASIVE / Slurry hoses PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code):
erhältlich. / D'autres dimensions
85 https://teknikum.com/product/teknikum-titan-select/ Product code Hose o.d. mm Working press. MPa Coupling length mm Gasket Weight kg Aluminium TITNS050-AL* 72 ±2 1,00 90 TIIV051 1,80 TITNS063-AL* 82 ±2 1,00 90 TIIV063 2,20 TITNS076-AL** 100 ±2 1,00 90 TIIV076 / TIIV080 2,40 TITNS102-AL 125 ±2 1,00 135 TIIV102 3,50 TITNS127-AL 154 ±2 1,00 165 TIIV127 4,80 TITNS152-AL 178 ±2 1,00 200 TIIV152 6,20 TITNS203-AL 238 ±2 1,00 260 TIIV203 10,60 TITNS253-AL 291 ±2 0,50 200 TIIV253 11,10 TITNS305-AL 341 ±2 0,50 240 TIIV305 18,40 TITNS350-AL 403 ±2 0,50 280 TIIV350 25,60 TITNS405-AL 456 ±2 0,50 400 TIIV405 45,40 TITNS450-AL 508 ±2 0,50 450 TIIV457 49,90 TITNS508-AL* 558 ±2 0,50 500 TIIV508 61,70 TITNS610-AL* 664 ±2 0,50 600 TIIV610 79,50
76 mm and i.d 80 mm
i.d

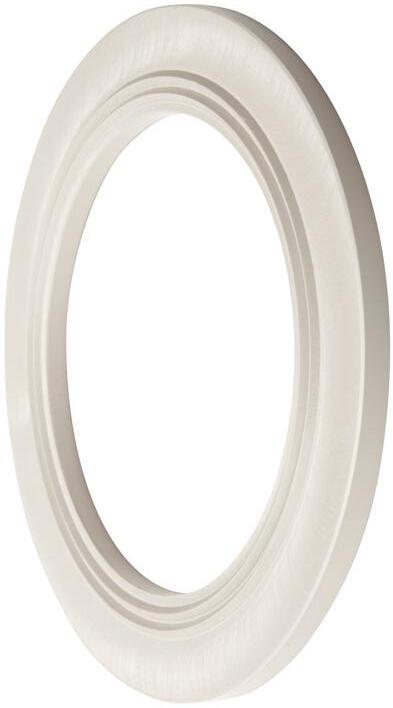

Teknikum Select™ gaskets
Teknikum Select™ flange couplings can be equipped with three alternative Teknikum Select™ gaskets
Polypropylene Teknikum Select™ gasket is light color plastic gasket, which is highly resistant to most of chemicals and recommended to applications in which connections need to be highly resistant to pressure.
Metal reinforced Teknikum Select™ rubber gasket is well suitable e.g. to mining industry applications in which the connection is required to be pressure resistant but flexible as well.
Plain Teknikum Select™ rubber gaskets or seals are intended primarily to applications in which pressures are low but flow rate possibly high.
Plain Teknikum Select™ rubber gasket material is EPDM and the drillings are in accordance with DIN 2642 / EN 1092-1 / SFS 2170 PN10.
Teknikum Select™Flanschkupplungen können mit drei alternativen Teknikum Select™Dichtungen ausgestattet werden Die Teknikum Select™-Dichtung aus Polypropylen ist eine helle Kunststoffdichtung, die gegenüber den meisten Chemikalien äußerst widerstandsfähig ist und für Anwendungen empfohlen wird, bei denen Verbindungen eine hohe Druckfestigkeit erfordern.
• Metallverstärkte Teknikum Select™ Gummidichtung ist gut geeignet z.B. für Anwendungen in der Bergbauindustrie, bei denen die Verbindung druckfest, aber auch flexibel sein muss.
• Einfache Teknikum Select™Gummidichtungen oder -Dichtungen sind hauptsächlich für Anwendungen bestimmt, bei denen niedrige Drücke, aber möglicherweise hohe Durchflussraten herrschen. Plain Teknikum Select™ Gummidichtungsmaterial ist EPDM und die Bohrungen entsprechen DIN 2642 / EN 1092-1 / SFS 2170 PN10.
Les raccords à bride Teknikum Select™ peuvent être équipés de trois joints Teknikum Select™ alternatifs
Le joint Teknikum Select™ en polypropylène est un joint en plastique de couleur claire, hautement résistant à la plupart des produits chimiques et recommandé pour les applications dans lesquelles les raccords doivent être hautement résistants à la pression.
• Le joint en caoutchouc Teknikum Select™ renforcé de métal est par exemple bien adapté aux applications de l'industrie minière dans lesquelles la connexion doit être résistante à la pression mais également flexible.
• Les joints ou garnitures simples en caoutchouc Teknikum Select™ sont destinés principalement aux applications dans lesquelles les pressions sont faibles mais le débit est éventuellement élevé.
• Le matériau des joints simples en caoutchouc Plain Teknikum Select™ est l'EPDM et les perçages sont conformes aux normes DIN 2642 / EN 1092-1 / SFS 2170 PN10.
Teknikum Select™ flange couplings can be equipped with three alternative Teknikum Select™ gaskets.
86 86 ABRASIVE / Slurry hoses Select™ gaskets
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
DIN 2642 / EN 1092-1 / SFS 2170 PN10
EBR
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
87 87 ABRASIVE / Slurry hoses PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
all current product details and specification on product datasheet (QR code):
Check
87
Product code Ø i.d. mm Weight kg/m Polypropylene TIIV025-PP 25 0,065 TIIV032-PP 32 0,07 TIIV040-PP 40 0,075 TIIV050-PP 50 0,08 TIIV065-PP 65 0,12 TIIV080-PP 80 0,13 TIIV102-PP 102 0,14 TIIV115-PP 115 0,145 TIIV127-PP 127 0,15 TIIV152-PP 152 0,165 TIIV203-PP 203 0,25 TIIV253-PP 253 0,35 TIIV305-PP 305 0,48 TIIV350-PP 350 0,58 Product code Ø i.d. mm Weight kg/m Steel reinforced rubber TIIV051 51 0,07 TIIV063 63 0,08 TIIV076 76 0,14 TIIV080 80 0,17 TIIV090 90 0,18 TIIV102 102 0,19 TIIV115 116 0,2 TIIV127 127 0,25 TIIV152 152 0,27 TIIV203 204 0,4 TIIV253 254 0,53 TIIV300 305 0,65 TIIV350 355 0,75 TIIV405 405 0,85 TIIV457 457 1 TIIV508 508 1,2 TIIV610 610 1,55 Product code Ø i.d. mm Weight kg/m Plain rubber TIIV025-R 25 0,02 TIIV032-R 32 0,03 TIIV040-R 40 0,04 TIIV050-R 50 0,05 TIIV065-R 65 0,07 TIIV076-R 76 0,08 TIIV080-R 80 0,08 TIIV102-R 102 0,1 TIIV127-R 127 0,13 TIIV152-R 152 0,15 TIIV203-R 203 0,21 TIIV253-R 253 0,26 TIIV300-R 300 0,31 TIIV350-R 350 0,36
https://teknikum.com/product/teknikum-select-gaskets-and-seals/
Teknikum TITAN™ 45°
Flanged hose bends
NR/SBR: +80°C
NBR: +90°
EPDM: +100°C
Used to absorb vibrations in the pipeline and work as material handling hoses.
Wear-resistant Teknikum WearGrey NR™ lining inside
Optionally with different lining materials (oil resistant NBR or chemical resistant EPDM)
Optionally with CERAMIC lining Reinforcement: textile
• Steel spiral from Ø i.d 150 mm
Safe and durable connection
Easy to assemble
Recommened connection with Teknikum steel support flanges or Teknikum PLUS™ flange system
• Supporting flanges or drillings are not included as default
• Optionally compatible with Teknikum TITAN™ Select couplings
Wird verwendet, um Vibrationen in der Rohrleitung zu dämpfen und als Materialtransportschläuche zu fungieren.
Innenfutter aus abriebfestem Teknikum WearGrey NR™ Wahlweise mit verschiedenen Auskleidungsmaterialien (ölbeständiges NBR oder chemikalienbeständiges EPDM)
Optional mit CERAMIC-Auskleidung Verstärkung: Textil
• Stahlspirale ab Ø i.d 150 mm Sichere und dauerhafte Verbindung Leicht zusammenzubauen
STEEL SPIRAL from Ø i.d 150 mm
Reinforcement: TEXTILE
Empfohlene Verbindung mit Teknikum-Flanschen oder Teknikum PLUS™ Flanschsystem
Stützflansche oder Bohrungen sind standardmäßig nicht enthalten
• Optional kompatibel mit Teknikum TITAN™ Select Kupplungen
Utilisés pour absorber les vibrations dans la conduite et servir de tuyaux de manutention de matériaux.
Revêtement intérieur Teknikum
WearGrey NR™ résistant à l'usure En option, avec différents matériaux de revêtement (NBR résistant aux hydrocarbures ou EPDM résistant aux produits chimiques)
En option avec un revêtement CÉRAMIQUE
Renforcement : textile
• Spirale en acier à partir de Ø i.d 150 mm
Connexion sûre et durable Facile à assembler
Connexion recommandée avec les brides support en acier Teknikum ou le système de brides Teknikum PLUS™ Les brides support ou les perçages ne sont pas inclus en standard
• Compatible en option avec les raccords
Teknikum TITAN™ Select
88 88 ABRASIVE / Slurry hoses b1 i.d h o.d D b2 R
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
TITAN™ 45° Flanged hose bends
NR (or NBR or EPDM)
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Check
https://teknikum.com/product/teknikum-45-flanged-hose-curves/
89 89 ABRASIVE / Slurry hoses
INFORMATION / PRODUKTINFORMATION / INFORMATION
PRODUCT
PRODUIT
on product
(QR code):
all current product details and specification
datasheet
Product code by material. NBR: LFS... EPDM: LFE... 89
Product code Ø i.d mm Ø o.d mm Ø D mm h mm R mm b1 x b2 mm Working press. MPa Weight kg/pc Teknikum TITAN™ 45° Flanged hose bends (NR) HLFR10050 50 72 165 10 290 106 x 256 1 1,2 HLFR10063 63 85 188 10 310 117 x 282 1 1,5 HLFR10075 75 97 198 12 340 124 x 300 1 1,8 HLFR10100 100 130 220 13 374 141 x 341 1 3,2 HLFR10125 125 155 250 16 422 159 x 384 1 4,5 HLFR10150 150 180 285 15 483 177 x 427 1 5,9 HLFR06200 200 236 340 16 591 212 x 512 0,6 9,9 HLFR06250 250 284 395 16 700 247 x 597 0,6 13,2 HLFR06300 300 336 445 16 809 286 x 683 0,6 20 HLFR06305 305 336 445 16 915 445 x 1085 0,6 22,5 HLFR06350 350 390 505 16 724 318 x 768 0,6 24 HLFR06400 400 440 565 16 600 353 x 851 0,6 32 HLFR06500 500 540 670 16 700 283 x 683 0,6 40 HLFR06600 600 640 780 16 800 319 x 771 0,6 42
Teknikum TITAN™ 90° Flanged hose bends
NR (or NBR or EPDM)
Reinforcement: TEXTILE STEEL SPIRAL from Øi.d. 300 mm
DESCRIPTION
Used to absorb vibrations in the pipeline and work as material handling hoses
• Available as large and tight radius versions
• The outer curve of the hose is made thicker with +50% of wear resistant inner rubber.
Large radius: Wear-resistant Teknikum WearGrey NR™ lining inside.
Tight radius: black NR
Optionally with different lining materials (oil-resistant NBR or chemical-resistant EPDM)
Optionally with extra long-life CERAMIC lining
• Reinforcement of tight radius version: Textile. Steel spiral from Øi.d. 300 mm.
Reinforcement of large radius version: Textile and steel spiral
Safe and durable connection
Easy to assemble
Recommened connection with Teknikum steel support flanges or Teknikum PLUS™ flange system
• Supporting flanges or drillings are not included as default
Large radius version optionally compatible with Teknikum TITAN™ Select couplings
BESCHREIBUNG UND VORTEILE
Wird verwendet, um Vibrationen in der Rohrleitung zu dämpfen und als Materialtransportschläuche zu fungieren.
Erhältlich als weit und steil gebogene Version
• Innenfutter aus abriebfestem Teknikum WearGrey NR™ Wahlweise mit unterschiedlichen Auskleidungsmaterialien (ölbeständiges NBR oder chemikalienbeständiges EPDM) Optional mit extra langlebiger CERAMIC-Auskleidung
NR/SBR: +80°C
NBR: +90°
EPDM: +100°C
Verstärkung stark gebogene Ausführung: Textil. Stahlspirale ab Øi.d. 300 mm.
Armierung bei weit gebogener Ausführung: Textil- und Stahlspirale Sichere und dauerhafte Verbindung
• Leicht zusammenzubauen Empfohlene Verbindung mit Teknikum-Flanschen oder Teknikum PLUS™ Flanschsystem Stützflansche oder Bohrungen sind standardmäßig nicht enthalten Weit gebogene Ausführung optional kompatibel mit Teknikum TITAN™ Select Kupplungen
intérieur Teknikum WearGrey NR™ résistant à l'usure.
Faible rayon de courbure : NR noir Au choix, avec différents matériaux de revêtement (NBR résistant aux hydrocarbures ou EPDM résistant aux produits chimiques)
En option, avec un revêtement
CÉRAMIQUE à très longue durée de vie
Renforcement de la version à faible rayon de courbure : textile. Spirale en acier à partir de Øi.d. 300 mm
Renforcement de la version à grand rayon de courbure : Textile et spirale en acier
• Connexion sûre et durable Facile à assembler
LARGE RADIUS
NR (or NBR or EPDM)
Reinforcement: Textile and steel spiral
TITAN™
Connexion recommandée avec les brides support en acier Teknikum ou le système de brides Teknikum PLUS™
Les brides support ou les perçages ne sont pas inclus en standard
Version à grand rayon de courbure compatible en option avec les raccords Teknikum TITAN™ Select
90 90 ABRASIVE / Slurry hoses b D
AND ADVANTAGES
90° Flanged hose bends
Outer curve 50% thicker inner rubber
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Working press. MPa Weight kg/pc Teknikum TITAN™ 90° Flanged hose bends HLGR10025 25 41 115 12 110 150 1 0,7 HLGR10032 32 50 140 12 110 150 1 0,8 HLGR10040 40 56 150 12 110 150 1 0,9 HLGR10050 50 72 165 10 110 150 1 1 HLGR10063 63 85 185 10 110 165 1 1,3 HLGR10075 75 97 195 12 135 175 1 1,6 HLGR10100 100 130 220 13 155 200 1 2,8 HLGR10125 125 155 253 16 177,5 225 1 3,8 HLGR10150 150 189 285 15 225 250 1 5,6 HLGR06200 200 236 340 16 245 300 0,6 9,6 HLGR06250 250 284 395 16 290 350 0,6 13 HLGR06300 300 336 445 16 335 400 0,6 17,8 HLGR06350 350 390 505 16 380 450 0,6 18,5 HLGR06400 400 440 565 16 425 500 0,6 35 HLGR06450 450 490 615 16 485 550 0,6 44 HLGR06500 500 540 670 16 515 600 0,6 53 Product code Ø i.d mm Ø o.d mm Ø D mm h mm R mm
b standard (min-max) mm
Product Product code Ø i.d mm Ø o.d mm Ø D mm h mm R mm b mm
c standard (min-max) mm
Working press. MPa Weight kg/pc Teknikum TITAN™ 90° Flanged hose bends - Large radius HLER10050 50 72 165 10 165 260 95 1,0 2,2 HLER10076 76 98 195 12 230 335 (285 – 485) 105 (55 – 255) 1,0 3,0 HLER10100 100 130 220 13 350 430 (400 – 470) 120 (50 – 120) 1,0 6,1 HLER10102 102 130 220 13 305 455 (355 – 605) 150 (50 – 300) 1,0 6,1 HLER10125 125 157 253 16 300 514 (350 – 550) 214 (50 – 250) 1,0 8,0 HLER10127 127 159 253 16 380 570 (430 – 600) 190 (50 – 220) 1,0 8,8 HLER10150 150 189 285 16 360 577 (410 – 600) 217 (50 – 240) 1,0 10,0 HLER10152 150 178 285 16 455 670 215 1,0 11,7 HLER10200 200 237 340 16 480 753 (530 – 785) 273 (50 – 305) 1,0 25,0 HLER10204 204 237 340 16 615 890 (665 – 920) 275 (50 – 305) 1,0 25,5 HLER10250 250 288 395 16 610 879 (660 – 900) 269 (50 – 290) 1,0 36,0 HLER10254 254 288 395 16 765 980 (815 – 1010) 215 (50 – 245) 1,0 38,0 HLER06300 300 338 445 16 725 1007 (775 – 1030) 282 (50 – 305) 0,6 50,0 HLER06305 305 338 445 16 915 1170 (965 – 1220) 255 (50 – 305) 0,6 55,0 HLER06350 350 390 505 16 1065 1360 (1105 – 1420) 295 (50 – 355) 0,6 85,0 HLER06405 405 440 565 16 1215 1615 (1515 – 1665) 400 (300 –450) 0,6 128,0 HLER06450 450 507 615 16 2300 2800 (2400-2900) 500 (100-600) 0,6 200,0 HLER06457* 457 507 615 16 1371 1871 500 0,6 150,0 HLER06508* 508 558 670 16 1520 2020 500 0,6 224,0 HLER06610* 610 664 777 16 1830 2440 605 0,6 290,0 HLER06700* 700 760 892 16 1586 1786 200 0,6 280,0
Check all current product details and specification on product datasheet (QR code):
91 91 ABRASIVE / Slurry hoses PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
91
https://teknikum.com/product/teknikum-90-flanged-hose-curves/ code by material. NBR: LES... EPDM: LEE...
Teknikum TITAN™ T-branch hose
Fixed rubber flange, no need for extra seal
Reinforcement: TEXTILE
NR: +70°C
NBR: : +90°
EPDM: +100°C
NR (or NBR or EPDM)
• Used to absorb vibrations in the pipeline and work as material handling hoses.
• Wear-resistant Teknikum WearGrey NR™ lining inside
Optionally with different lining materials (oil-resistant NBR or chemical-resistant EPDM)
Reinforcement: textile Safe and durable connection Easy to assemble
• Fixed rubber flange, no need for extra gasket
Recommened connection with Teknikum steel support flanges Supporting flanges or drillings are not included as default
Wird verwendet, um Vibrationen in der Rohrleitung zu dämpfen und als Materialtransportschläuche zu fungieren.
Innenfutter aus abriebfestem Teknikum WearGrey NR™ Wahlweise mit unterschiedlichen Auskleidungsmaterialien (ölbeständiges NBR oder chemikalienbeständiges EPDM)
Verstärkung: Textil Sichere und dauerhafte Verbindung
• Leicht zusammenzubauen Fester Gummiflansch, keine zusätzliche Dichtung erforderlich Empfohlene Verbindung mit Teknikum-Flanschen Stützflansche oder Bohrungen sind standardmäßig nicht enthalten
• Utilisés pour absorber les vibrations dans la conduite et servir de tuyaux de manutention de matériaux.
• Revêtement intérieur Teknikum WearGrey NR™ résistant à l'usure En option, avec différents matériaux de revêtement (NBR résistant aux hydrocarbures ou EPDM résistant aux produits chimiques)
Renforcement : textile
Connexion sûre et durable Facile à assembler
• Bride en caoutchouc fixe, aucun joint supplémentaire nécessaire
Connexion recommandée avec les brides support en acier Teknikum Les brides support ou les perçages ne sont pas inclus en standard.
92 92 ABRASIVE / Slurry hoses TITAN™ T-branch hose
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Check all current product details and specification on product datasheet (QR code):
https://teknikum.com/product/teknikum-flanged-t-branch-ltr-lts-and-lte/
93 93 ABRASIVE / Slurry hoses
INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
PRODUCT
93
Product code Ø i.d mm Ø o.d mm Ø D mm h mm b mm L mm Working press. MPa Weight kg/pc Teknikum TITAN™ T-branch hose (NR) HLTR10025 25 47 115 10 150 300 1 0,8 HLTR10032 32 50 140 12 150 300 1 1 HLTR10040 40 62 153 10 150 300 1 1,4 HLTR10050 50 72 165 10 150 300 1 1,7 HLTR10063 63 85 195 12 175 350 1 2,2 HLTR10075 75 96 199 12 175 350 1 2,6 HLTR10100 100 130 220 13 200 400 1 4,5 HLTR10125 125 155 253 16 225 450 1 6,5 HLTR10150 150 180 285 15 250 500 1 7,9 HLTR06200 200 236 340 16 300 600 0,6 13,1 HLTR06250 250 284 395 16 350 700 0,6 18 HLTR06300 300 336 445 16 400 800 0,6 24,8 HLTR06350 350 390 505 16 450 900 0,6 38 HLTR06400 400 440 565 16 500 1000 0,6 50 HLTR06500 500 542 672 16 600 1200 0,6 64 Product code by material. NBR: LTS... EPDM: LTE...
Teknikum TITAN™ Valve hoses
NR/SBR: +70°C
NBR: +90°
EPDM: +100°C
Reinforcement: TEXTILE
NR (or NBR or EPDM)
• Used as dosage and regulation valves at concentration plants and paper and cellulose mills
• The hoses require a metal choke device when used as a valve
Wear-resistant Teknikum WearGrey NR™ lining inside
Optionally with different lining materials (oil-resistant NBR or chemical-resistant EPDM)
On request the hoses will be delivered with release auricles
Reinforcement: textile
• Safe and durable connection Easy to assemble
Recommened connection with Teknikum steel support flanges
Supporting flanges or drillings are not included as default
• Einsatz als Dosier- und Regelventil in Konzentratoren und Papier- und Zellstofffabriken
• Die Schläuche benötigen eine Drosselvorrichtung aus Metall, wenn sie als Ventil verwendet werden Innenfutter aus abriebfestem Teknikum WearGrey NR™ Wahlweise mit unterschiedlichen Auskleidungsmaterialien (ölbeständiges NBR oder chemikalienbeständiges EPDM)
Auf Wunsch werden die Schläuche mit Öffnungslaschen geliefert Verstärkung: Textil Sichere und dauerhafte Verbindung
• Leicht zusammenzubauen Empfohlene Verbindung mit Teknikum-Flanschen Stützflansche oder Bohrungen sind standardmäßig nicht enthalten
• Utilisés comme valves de dosage et de régulation dans les usines de concentration et la production de papier et de cellulose
• Les tuyaux nécessitent un dispositif d'étranglement en métal lorsqu'ils sont utilisés comme valve
• Revêtement intérieur Teknikum
WearGrey NR™ résistant à l'usure En option, avec différents matériaux de revêtement (NBR résistant aux hydrocarbures ou EPDM résistant aux produits chimiques)
Sur demande, les tuyaux sont livrés avec des ouvertures de dégagement
Renforcement : textile Connexion sûre et durable
• Facile à assembler
Connexion recommandé avec les brides support en acier Teknikum
Les brides support ou les perçages ne sont pas inclus en standard.
94 94 ABRASIVE / Slurry hoses TITAN™ Valve hoses
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
95 95 ABRASIVE / Slurry hoses PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
on product datasheet
code):
Check all current product details and specification
(QR
95
Product code Ø i.d mm Ø o.d mm Ø D mm h mm L mm Working press. MPa Weight kg/pc Teknikum TITAN™ Valve hoses HLSR16025 25 40 115 10 200 1,6 0,4 HLSR16032 32 52 142 10 200 1,6 0,6 HLSR16040 40 55 152 10 200 1,6 0,7 HLSR06050 50 67 165 10 210 0,6 0,8 HLSR16050 50 67 165 10 200 1,6 0,8 HLSR16065 65 79 185 10 200 1,6 1 HLSR16080 80 103 200 12 250 1,6 1,6 HLSR06100 100 121 220 13 360 0,6 2,5 HLSR16100 100 121 220 13 300 1,6 2,7 HLSR16125 125 149 250 14 350 1,6 4,3 HLSR06150 150 174 285 15 415 0,6 4,4 HLSR16150 150 174 285 15 400 1,6 5,6 HLSR06200 200 226 340 16 610 0,6 7,9 HLSR10200 200 226 340 16 550 1 12,1 HLSR06250 250 276 395 16 700 0,6 10,9 HLSR10250 250 276 395 16 650 1 17,9 HLSR10300 300 330 445 16 800 1 27,2
https://teknikum.com/product/teknikum-valve-hoses/
Product code by material. NBR: LSS... EPDM: LSE...
Teknikum TITAN™ Straight connecting hoses
Reinforcement:
TEXTILE
DESCRIPTION AND ADVANTAGES
Used to absorb vibrations in the pipeline and work as material handling hoses.
Wear-resistant Teknikum WearGrey NR™ lining inside
• Optionally with different lining materials (oil-resistant NBR or chemical-resistant EPDM)
• Optionally with extra long-life CERAMIC lining
Reinforcement: textile
Safe and durable connection
Easy to assemble
• Recommened connection with Teknikum steel support flanges or Teknikum PLUS™ flange system
• Supporting flanges or drillings are not included as default
Optionally compatible with Teknikum TITAN™ Select couplings
NR: +80°C
NBR: : +90°
EPDM: +100°C
NR (or NBR or EPDM)
+ STEEL SPIRAL in vacuum version
BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Wird verwendet, um Vibrationen in der Rohrleitung zu dämpfen und als Materialtransportschläuche zu fungieren.
Innenfutter aus abriebfestem Teknikum WearGrey NR™ Wahlweise mit unterschiedlichen Auskleidungsmaterialien (ölbeständiges NBR oder chemikalienbeständiges EPDM) Optional mit extra langlebiger CERAMIC-Auskleidung
• Verstärkung: Textil Sichere und dauerhafte Verbindung Leicht zusammenzubauen Empfohlene Verbindung mit Teknikum-Flanschen oder Teknikum PLUS™ Flanschsystem
• Stützflansche oder Bohrungen sind standardmäßig nicht enthalten
• Optional kompatibel mit Teknikum TITAN™ Select Kupplungen
Utilisés pour absorber les vibrations dans la conduite et servir de tuyaux de manutention de matériaux.
Revêtement intérieur Teknikum WearGrey NR™ résistant à l'usure
• En option, avec différents matériaux de revêtement (NBR résistant aux hydrocarbures ou EPDM résistant aux produits chimiques)
• En option avec un revêtement CÉRAMIQUE à très longue durée de vie
• Renforcement : textile Connexion sûre et durable Facile à assembler Connexion recommandée avec les brides support en acier Teknikum ou le système de brides Teknikum PLUS™
• Les brides support ou les perçages ne sont pas inclus en standard
• Compatible en option avec les raccords Teknikum TITAN™ Select
96 96 ABRASIVE / Slurry hoses TITAN™ Straight connecting hoses
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
97 97 ABRASIVE / Slurry hoses
INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
PRODUCT
(QR code):
Check all current product details and specification on product datasheet
Product code Ø i.d mm Ø o.d mm Ø D mm h mm L standard mm L max. mm Vacuum max. MPa Weight kg/pc Teknikum TITAN™ Straight connecting hoses - vacuum (NR) HLIR050 50 67 165 10 200 1000 0,08 0,9 HLIR063 63 79 185 10 200 1000 0,08 1,1 HLIR075 75 91 195 12 200 1800 0,08 1,2 HLIR080 80 103 200 12 200 1000 0,08 1,5 HLIR100 100 121 220 13 200 1000 0,08 1,9 HLIR125 125 149 250 14 200 1900 0,08 2,6 HLIR150 150 174 285 15 200 2000 0,08 3,1 HLIR175 175 195 300 15 200 1000 0,08 3,5 HLIR200 200 226 340 16 200 1300 0,08 4,4 HLIR250 250 276 395 16 200 1300 0,08 5,5 HLIR300 300 330 445 16 200 1800 0,08 7,1 HLIR350 350 380 505 16 200 1400 0,08 8,9 HLIR400 400 432 565 16 200 1000 0,08 11,1 HLIR450 450 492 615 16 200 1200 0,08 12 HLIR500 500 532 670 16 200 1200 0,08 13 HLIR600 600 632 777 16 200 2000 0,08 14 HLIR700 700 739 892 16 200 1800 0,08 15 HLIR800 800 855 1024 16 200 1100 0,08 16 Product code Ø i.d mm Ø o.d mm Ø D mm h mm L standard mm L max. mm Working press. MPa Weight kg/pc Teknikum TITAN™ Straight connecting hoses - pressure (NR) HLHR10020 20 33 108 10 200 1000 1 0,3 HLHR10025 25 40 115 10 200 1200 1 0,4 HLHR10032 32 52 142 10 200 1000 1 0,6 HLHR10040 40 55 152 10 200 1000 1 0,7 HLHR10050 50 67 165 10 200 1000 1 0,8 HLHR10063 63 79 185 10 200 1000 1 1 HLHR10075 75 91 195 12 200 1800 1 1,3 HLHR10080 80 103 200 12 200 1000 1 1,5 HLHR10100 100 121 220 13 200 1000 1 1,8 HLHR10125 125 149 250 14 200 1900 1 2,4 HLHR10150 150 174 285 15 200 2000 1 2,8 HLHR10175 175 195 300 15 200 1000 1 3,2 HLHR10200 200 226 340 16 200 1300 1 4,4 HLHR10250 250 276 395 16 200 1300 1 5,5 HLHR10300 300 330 445 16 200 1800 1 6,8 HLHR10350 350 380 505 16 200 1400 1 8,2 HLHR10400 400 432 565 16 200 1000 1 9,3 HLHR10450 450 492 615 16 200 1200 1 11 HLHR10500 500 532 670 16 200 1200 1 12,1 HLHR10600 600 632 777 16 200 2000 1 14,2 HLHR10700 700 739 892 16 200 1800 1 16,3 97
Product code by material. NBR: LIS... EPDM: LIE... Product code by material. NBR: LHS... EPDM: LHE...
https://teknikum.com/product/teknikum-straight-connecting-hoses-for-vacuum-lir-lis-lie/

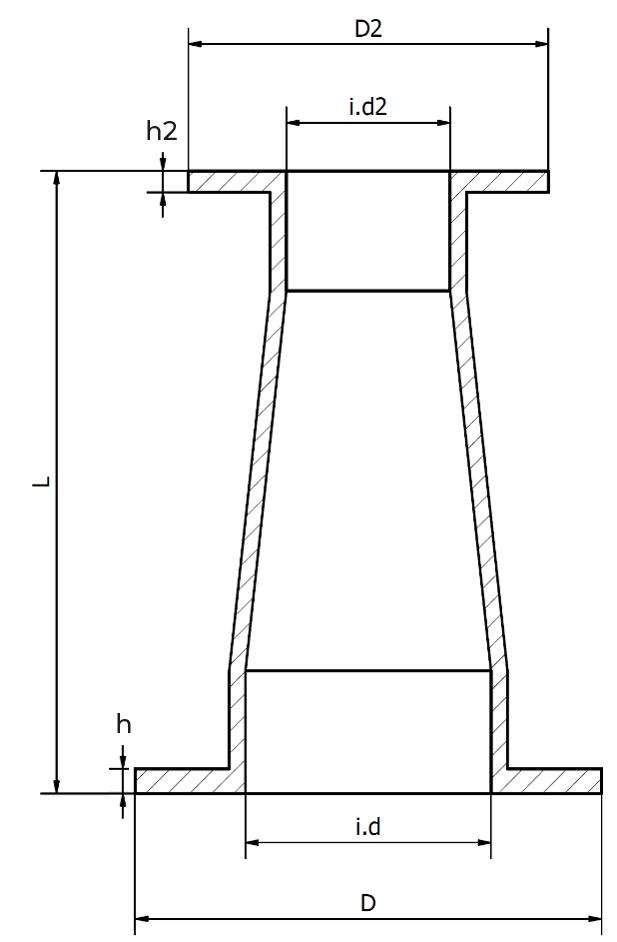

Teknikum TITAN™ Reducers
• Teknikum TITAN™ Reducers make it possible to connect hoses and pipes of different diameters
• Flexible reducer compensates vertical and horizontal movements in pipelines and damps vibrations
Designed for connecting a pump and steel pipeline
Wear-resistant Teknikum WearGrey NR™ lining inside
Optionally with different lining materials (oil-resistant NBR or chemical-resistant EPDM)
Reinforcement: textile
• Safe and durable connection
• Easy to assemble
Recommened connection with Teknikum steel support flanges
Supporting flanges or drillings are not included as default
NR/SBR: +80°C
NBR: : +90°
EPDM: +100°C
Reinforcement: TEXTILE NR (or NBR or EPDM)
• Teknikum TITAN™ Reduzierstücke ermöglichen den Anschluss von Schläuchen und Rohren mit unterschiedlichen Durchmessern
• Flexibles Reduzierstück gleicht vertikale und horizontale Bewegungen in Rohrleitungen aus und dämpft Schwingungen
• Konzipiert für den Anschluss einer Pumpe und einer Stahlrohrleitung Innenfutter aus abriebfestem Teknikum WearGrey NR™ Wahlweise mit unterschiedlichen Auskleidungsmaterialien (ölbeständiges NBR oder chemikalienbeständiges EPDM) Verstärkung: Textil Sichere und dauerhafte Verbindung
• Leicht zusammenzubauen Empfohlene Verbindung mit Teknikum-Flanschen Stützflansche oder Bohrungen sind standardmäßig nicht enthalten
• Les réducteurs Teknikum TITAN™ permettent de connecter des tuyaux et des conduites de différents diamètres
• Le réducteur flexible compense les mouvements verticaux et horizontaux dans les conduites et amortit les vibrations
• Conçus pour le raccordement d'une pompe et d'une conduite en acier
Revêtement intérieur Teknikum WearGrey NR™ résistant à l'usure En option, avec différents matériaux de revêtement (NBR résistant aux hydrocarbures ou EPDM résistant aux produits chimiques)
Renforcement : textile
Connexion sûre et durable
• Facile à assembler
Connexion recommandée avec les brides support en acier Teknikum Les brides support ou les perçages ne sont pas inclus en standard.
98 98 ABRASIVE / Slurry hoses TITAN™ Reducers
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other dimensions available on request. / Weitere
sont disponibles sur demande.
99 99 ABRASIVE / Slurry hoses PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code):
Anfrage erhältlich. / D'autres
99 https://teknikum.com/product/teknikum-reducer/ Product code by material. NBR: LKS... EPDM: LKE... Product code Ø i.d / i.d2 mm Ø D / D2 mm h / h2 mm L standard (L max) mm Working press. MPa Weight kg/pc Teknikum TITAN™ Reducers (NR) HLKR80-50 80/50 200/165 12/10 380 (480) 1 2,75 HLKR90-50 90/50 285/165 13/10 380 (480) 1 3,6 HLKR90-80 90/80 285/200 13/12 380 (480) 1 5,6 HLKR100-50 100/50 220/165 13/10 380 (480) 1 4 HLKR100-63 100/63 220/185 13/10 380 (480) 1 3,3 HLKR125-100 125/100 250/220 14/13 380 (480) 1 5,7 HLKR150- 80 150/80 285/200 15/12 380 (480) 1 5,9 HLKR150-100 150/100 285/220 15/13 380 (480) 1 6 HLKR150-125 150/125 285/250 15/14 380 (480) 1 6,2 HLKR200-100 200/100 340/220 16/13 380 (480) 0,6 7,2 HLKR200-125 200/125 340/250 16/14 380 (480) 0,6 7,6 HLKR200-150 200/150 340/285 16/15 380 (480) 0,6 7,9 HLKR250-200 250/200 395/340 16 380 (480) 0,6 8,5 HLKR300-200 300/200 445/340 16 500 (600) 0,6 9 HLKR300-250 300/250 445/395 16 380 (480) 0,6 9,4 HLKR350-250 350/250 500/395 16 500 (600) 0,6 11 HLKR350-300 350/300 500/445 16 500 (600) 0,6 12 HLKR500-350 500/350 670/500 16 500 (600) 0,6 25 HLKR600-450 600/450 780/615 16 500 (600) 0,6 32,2 HLKR600-500 600/500 780/670 16 500 (600) 0,6 33,4 HLKR850-500 850/500 1015/715 16 600 (700) 0,6 65 HLKR850-550 850/550 1015/840 16 600 (700) 0,6 67
Größen auf
dimensions
Teknikum TITAN™ Flexible rubber joints for pressure
• Used as a part of pipelines in light duty applications in process industry, machine building and civil engineering industry
• For air condition, air exhaust, wastewater or rainwater pipelines Eliminates slow and slight heat expansion
Flexible rubber joints may work as a sleeve, sealing or pipe protection
Wear-resistant Teknikum WearGrey NR™ lining inside
Optionally with different lining materials (oil-resistant NBR or chemical-resistant EPDM)
Reinforcement: textile
• Safe and durable connection
Easy to assemble
Can be attached with band clamps
NR: +70°C
NBR: : +90°
EPDM: +100°C
Reinforcement: TEXTILE NR (or NBR or EPDM)
• Wird als Teil von Rohrleitungen in leichten Anwendungen in der Prozessindustrie, im Maschinenbau und in der Bauindustrie verwendet
• Für Klimaanlagen, Luftabzüge, Abwasser- oder Regenwasserleitungen Eliminiert langsame und leichte Wärmeausdehnung
Flexible Gummiverbindungen können als Muffe, Dichtung oder Rohrschutz dienen
Innenfutter aus abriebfestem
Teknikum WearGrey NR™ Wahlweise mit unterschiedlichen Auskleidungsmaterialien (ölbeständiges NBR oder chemikalienbeständiges EPDM)
Verstärkung: Textil
• Sichere und dauerhafte Verbindung Leicht zusammenzubauen Kann mit Bandschellen befestigt werden
• Utilisé comme élément de conduites dans les applications légères de l'industrie de transformation, de la construction de machines et du génie civil
• Pour les conduites d'air conditionné, d'évacuation d'air, d'eaux usées ou d'eau de pluie
• Élimine la dilatation thermique lente et légère
Les joints flexibles en caoutchouc peuvent servir de manchon, de joint d'étanchéité ou de protection pour les tuyaux
Revêtement intérieur Teknikum
WearGrey NR™ résistant à l'usure En option, avec différents matériaux de revêtement (NBR résistant aux hydrocarbures ou EPDM résistant aux produits chimiques)
Renforcement : textile
Connexion sûre et durable
• Facile à assembler
Peut être fixé avec des colliers de serrage à bande
100 100 ABRASIVE / Slurry hoses TITAN™ Flexible rubber joints for pressure
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
These products are designed and manufactured specifically for the customer, according to application of use requirements. Ask more from our sales.
Check all current product details and specification on product datasheet (QR code):
https://teknikum.com/product/teknikum-flexible-rubber-joints-for-pressure/
101 101 ABRASIVE / Slurry hoses
101
Teknikum TITAN™ Balance flexible rubber joints
DIN 2642, EN 1092-1, SFS 2170 PN10
Reinforcement: TEXTILE EPDM (or NR or NBR)
NR: +70°C
NBR: : +90°
EPDM: +100°C
• Teknikum TITAN™ Balance flexible rubber joints are used for e.g. compensating thermal expansion in pipelines as well as attenuation of noise and vibrations. Other applications are connection points of e.g. machinery, equipment and motor to other structures.
Flange material is hot galvanized steel, and flange dimensions are complying
DIN 2642 / EN 1092-1 / SFS 2170 PN10. Hoses are delivered with installed flanges.
Flanges are included in product prices.
• Teknikum TITAN™ Balance flexible Gummigelenke werden z.B. Ausgleich von Wärmeausdehnungen in Rohrleitungen sowie Schallund Vibrationsdämpfung.
Weitere Anwendungen sind Verbindungsstellen von z.B. Maschinen, Ausrüstung und Motor zu anderen Strukturen.
Das Flanschmaterial ist feuerverzinkter Stahl und die Flanschabmessungen entsprechen DIN 2642 / EN 1092-1 / SFS 2170 PN10. Schläuche werden mit montierten Flanschen geliefert.
Flansche sind in den Produktpreisen enthalten.
• Les joints flexibles en caoutchouc Teknikum TITAN™ Balance sont par exemple utilisés pour compenser la dilatation thermique dans les conduites ainsi que pour atténuer le bruit et les vibrations. D'autres applications sont les points de raccordement, par exemple de machines, d'équipements et de moteurs, à d'autres structures.
Le matériau de la bride est en acier galvanisé à chaud, et les dimensions de la bride sont conformes aux normes
DIN 2642 / EN 1092-1 / SFS 2170 PN10. Les tuyaux sont livrés avec des brides installées.
Les brides sont incluses dans le prix des produits.
102 102 ABRASIVE / Slurry hoses TITAN™ Balance rubber expansion joint
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Check all current product details and specification on product datasheet (QR code):
https://teknikum.com/product/compensators-lce-lcr-lcs-connection-hoses/
103 103 ABRASIVE / Slurry hoses
PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
103 Product code Ø i.d. mm L mm Working press. MPa Axial flexibity mm Lateral flexibility mm Angular deviation Weight kg/pc Teknikum TITAN™ Balance flexible rubber joints (EPDM) HLCE10080 80 130 1,6 ± 30 ± 30 30° 7,40 HLCE10100 100 130 1,6 ± 30 ± 30 25° 8,60 HLCE10125 125 130 1,6 ± 30 ± 30 25° 11,00 HLCE10150 150 130 1,6 ± 30 ± 30 20° 13,30 HLCE10200 200 130 1,0 ± 30 ± 30 15° 18,50 HLCE10250 250 130 1,0 ± 30 ± 30 10° 21,50
Product code by material. NR: LCR... NBR: LCS...
Teknikum TITAN™ Rubber compensators for pressure and vacuum
Reinforcement: TEXTILE NR (or NBR or EPDM)
NR: +70°C
NBR: : +90°
EPDM: +100°C
Teknikum TITAN™ rubber compensators are used to absorb vibrations in a pipeline.
Cover and tube is made of wearresistant natural rubber (NR), but oil-resistant NBR and chemical resistant EPDM rubber options are also available by request.
Reinforcement: textile (pressure) and textile and steel spiral (vacuum)
• Recommened connection with Teknikum steel support flanges
• Supporting flanges and drilling by request.
• Teknikum TITAN™ Gummikompensatoren werden verwendet, um Vibrationen in einer Rohrleitung zu absorbieren.
• Abdeckung und Rohr bestehen aus verschleißfestem Naturkautschuk (NR), auf Anfrage sind jedoch auch ölbeständige NBR- und chemikalienbeständige EPDMGummioptionen erhältlich.
• Verstärkung: Textil (Druck) und Textilund Stahlspirale (Vakuum)
• Empfohlene Verbindung mit Teknikum-Flanschen Stützflansche und Bohrungen auf Anfrage.
• Les compensateurs en caoutchouc Teknikum TITAN™ sont utilisés pour absorber les vibrations dans une conduite.
• La gaine et le tube sont fabriqués en caoutchouc naturel (NR) résistant à l'usure, mais des options de caoutchouc NBR résistant aux hydrocarbures et d’EPDM résistant aux produits chimiques sont également disponibles sur demande. Renforcement : textile (pression) et textile + spirale en acier (vide)
• Connexion recommandée avec les brides support en acier Teknikum Brides de support et perçage sur demande.
104 104 ABRASIVE / Slurry hoses TITAN™ Rubber compensators for pressure and vacuum
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Check all current product details and specification on product datasheet (QR code):
https://teknikum.com/product/teknikum-compensators-for-pressure-lpr-lps-lpe/
105 105 ABRASIVE / Slurry hoses
INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
PRODUCT
105
Product code Ø i.d mm Ø o.d mm Ø D mm h mm L mm Working press. MPa Weight kg/pc Teknikum TITAN™ Rubber compensators for pressure (NR) HLPR10025 25 41 115 12 200 1,0 0,60 HLPR10032 32 50 140 12 200 1,0 0,80 HLPR10050 50 68 165 15 200 1,0 1,10 HLPR10063 63 84 185 15 220 1,0 1,40 HLPR10075 75 94 200 17 220 1,0 1,70 HLPR10100 100 132 220 17 220 1,0 2,10 HLPR10125 125 155 250 17 220 1,0 3,80 HLPR10150 150 181 285 19 240 1,0 5,10 HLPR06200 200 234 340 19 280 0,6 5,90 HLPR06250 250 281 395 19 300 0,6 10,80 HLPR06300 300 333 445 22 320 0,6 15,60 HLPR06350 350 384 505 22 320 0,6 18,30 HLPR06400 400 443 565 25 340 0,6 25,00 HLPR06500 500 545 700 25 340 0,6 32,90 Product code Ø i.d mm Ø o.d mm Ø D mm h mm L mm Working press. MPa Weight kg/pc Teknikum TITAN™ Rubber compensators for vacuum (NR) HLUR050 50 68 165 15 200 0,07 1,10 HLUR063 63 84 185 15 220 0,07 1,50 HLUR075 75 94 200 17 220 0,07 1,80 HLUR100 100 132 220 17 220 0,07 2,90 HLUR125 125 155 250 17 220 0,07 3,90 HLUR150 150 181 285 19 240 0,07 5,30 HLUR200 200 234 340 19 280 0,07 8,10 HLUR250 250 281 395 19 300 0,07 12,10 HLUR300 300 333 445 22 320 0,07 14,00 HLUR350 350 384 505 22 320 0,07 16,40 HLUR400 400 443 565 25 340 0,07 21,90 HLUR500 500 545 700 25 340 0,07 30,70 Product code by material. NBR: LUS... EPDM: LUE... Product code by material. NBR: LPS... EPDM: LPE...
Teknikum TITAN™
Large compensator
D 780-2113 mm
• For compensating heat expansion and movement, to absorb noise and vibration as well as for eliminating pipeline tension.
• Suitable for power plants and other process industries as well as for civil engineering applications.
• Highly customizable with alternative rubber materials.
Customized steel flanges available according of required material and connection dimensions.
• Zum Ausgleich von Wärmeausdehnungen und -bewegungen, zur Schall- und Vibrationsdämpfung sowie zum Abbau von Rohrleitungsspannungen.
• Geeignet für Kraftwerke und andere Prozessindustrien sowie für Anwendungen im Hoch- und Tiefbau.
• Hochgradig anpassbar mit alternativen Gummimaterialien. Kundenspezifische Stahlflansche je nach erforderlichem Material und Anschlussabmessungen erhältlich.
NR/SBR: +70°C
NBR: +90°
EPDM: +100°C
(or NBR or EPDM)
• Pour compenser la dilatation thermique et les mouvements, pour absorber le bruit et les vibrations ainsi que pour éliminer la tension des conduites.
• Convient aux centrales électriques et autres industries de transformation, ainsi qu'aux applications de génie civil.
• Hautement personnalisable avec d'autres matériaux en caoutchouc. Des brides en acier personnalisées sont disponibles en fonction du matériau et des dimensions de raccordement requis.
106 106 ABRASIVE / Slurry hoses TITAN™ Large compensator
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
NR
Ø
Other dimensions available on request. / Weitere Größen auf Anfrage
107 107 ABRASIVE / Slurry hoses PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code):
erhältlich. / D'autres
107 https://teknikum.com/product/teknikum-large-compensators/ Ø i.d. mm Ø D mm h mm Lenght (min-max) mm Max. working pressure MPa Max. Vacuum MPa Max. axial flexibity mm Lateral flexibility mm Max. angular deviation Approximate weight with min. length kg Teknikum TITAN™ Large compensator 600 780 16 300 - 500 0,6 0,07 ± 30 15 4,0° 45 700 892 16 300 - 500 0,6 0,07 ± 30 18 4,0° 65 800 1015 16 300 - 500 0,6 0,07 ± 30 21 4,0° 90 900 1117 22 300 - 500 0,6 0,07 ± 30 24 3,0° 120 1000 1222 16 300 - 500 0,6 0,07 ± 30 27 3,0° 130 1200 1455 20 300 - 500 0,6 0,07 ± 30 30 3,0° 150 1400 1675 15 300 0,6 0,07 ± 15 33 2,0° 170 1600 1915 15 300 0,6 0,07 ± 15 39 2,0° 200 1800 2113 25 300 0,6 0,07 ± 15 45 1,5° 250
dimensions sont disponibles sur demande.
Water / Air / Steam
For industrial requirements, arctic environment and safe handling of hot water and saturated steam
Teknikum PAVE™ 1,0 MPa AIR/WATER
PAVE™ Cool Red 1,5 MPa AIR/WATER
PAVE™ 2,0 / 2,5 MPa AIR/WATER
PAVE™ Hot Yellow 3,0 MPa AIR/WATER

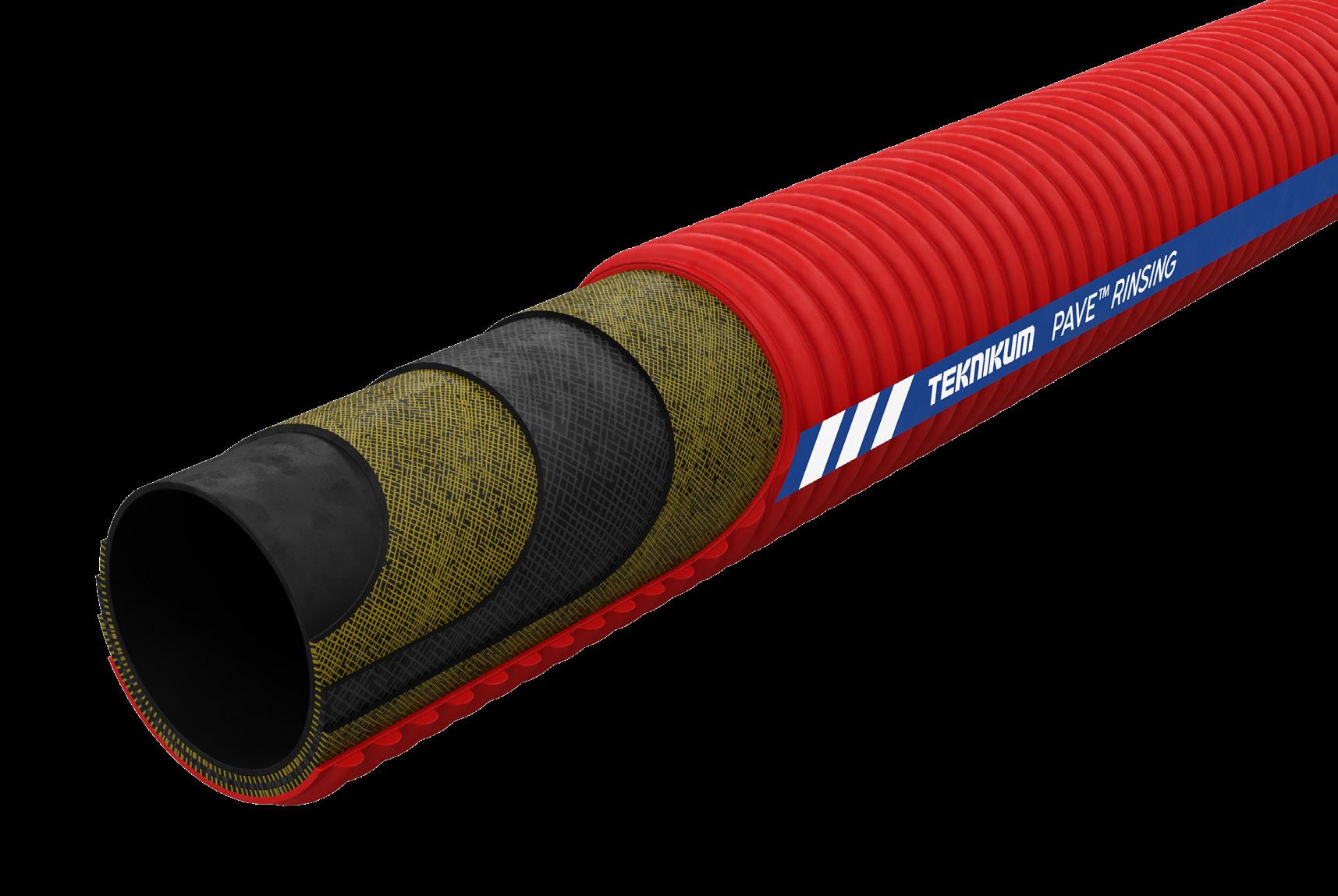

PAVE™ Rinsing
PAVE™ Rinsing nozzle

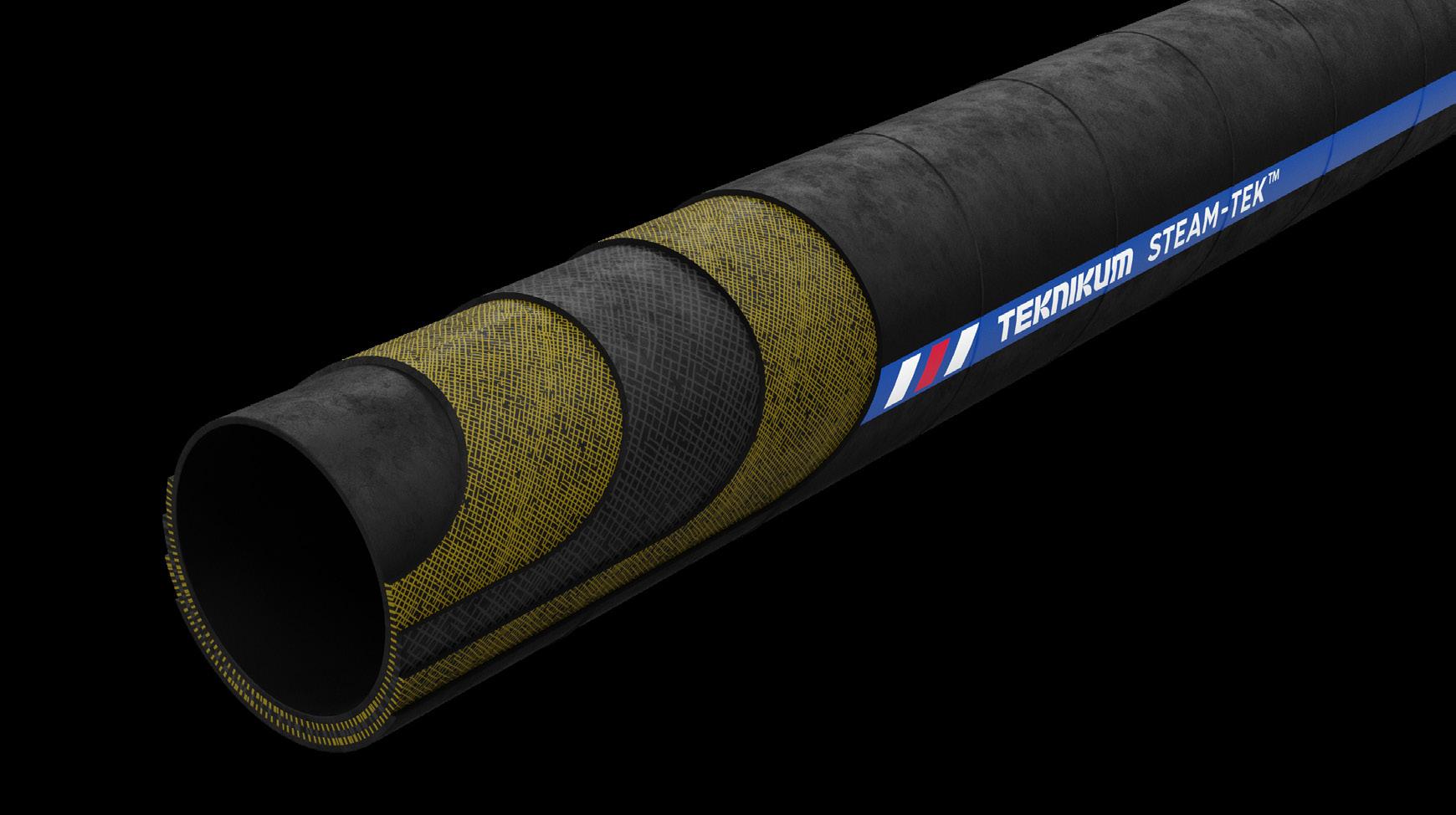

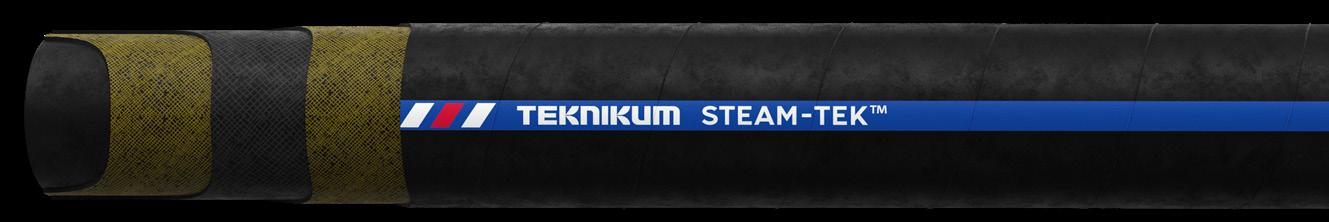

Teknikum STEAM-TEK™
Teknikum NORA™ Radiator 0,6 MPa

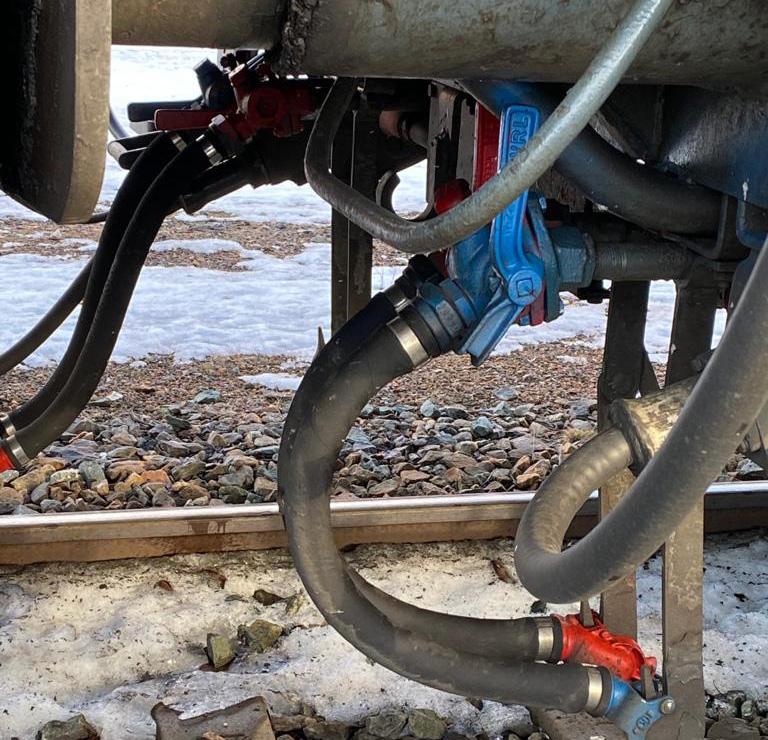

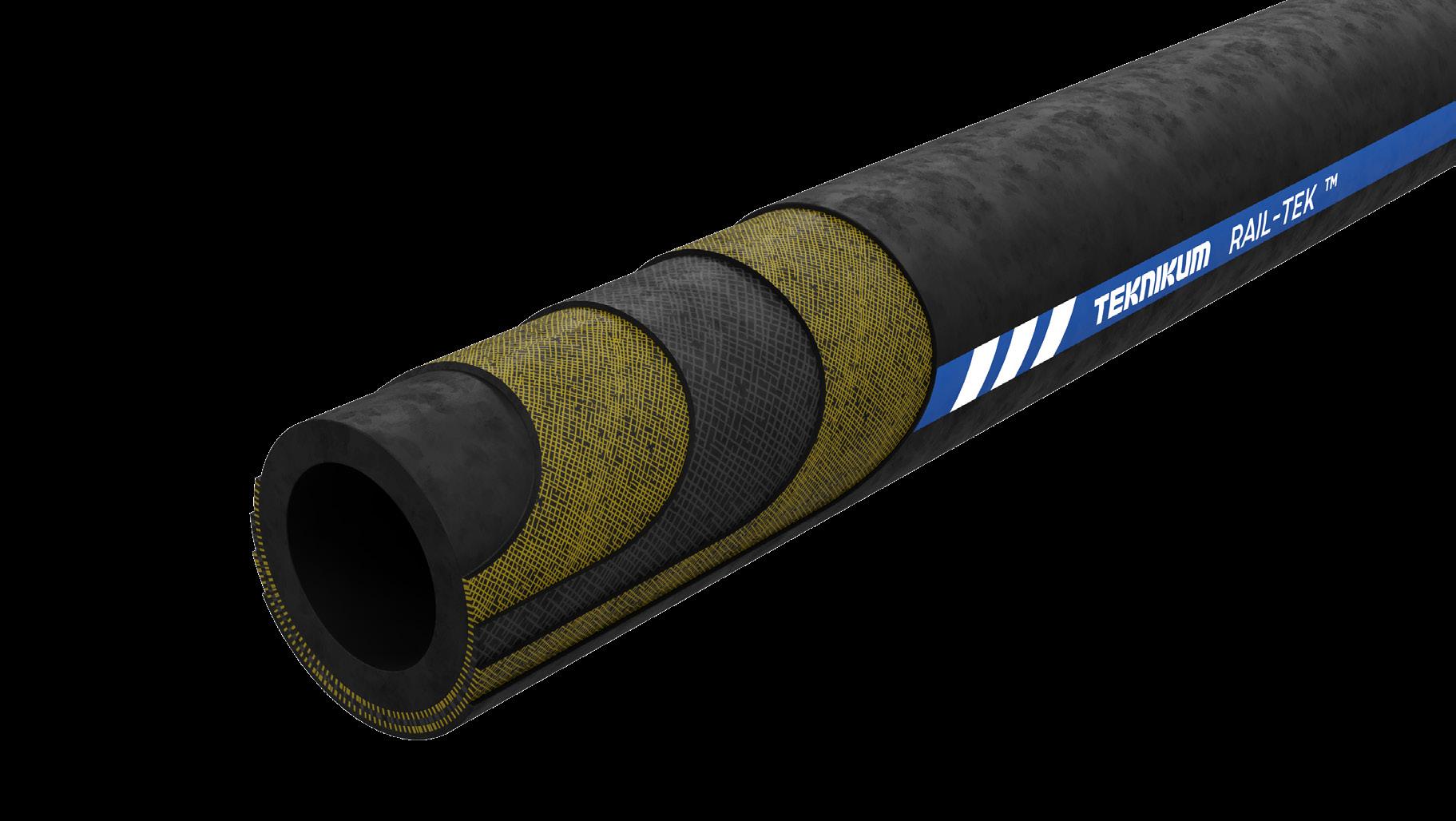

Teknikum RAIL-TEK™
Teknikum AIR-TEK® SD
“The choice of raw materials is very important. It is important to us that our rubber compounds are of high quality, reliable and meet all the criteria.”
For demanding use and safe handling of steam and hot water
Teknikum’s premium multi-purpose water and pressure hoses are arctic quality, maintaining their properties in low minus degrees. Our rinsing and washing hoses come with a separate jet nozzle, a water hose for cooling systems and air brake hose for air transfer in railway pneumatic braking systems.
Our weather- and wear-resistant hoses are designed for the transfer of hot water and saturated steam, complying with the EN ISO 6134 requirements.
Für anspruchsvolle Anwendungen und sichere Handhabung von Dampf und Warmwasser
Die erstklassigen Mehrzweck-Wasserund -Druckschläuche von Teknikum bieten arktische Qualität und behalten ihre Eigenschaften auch bei tiefen Minusgraden bei. Unsere Spülund Waschschläuche sind mit einer separaten Strahldüse, einem Wasserschlauch für Kühlsysteme und einem Luftbremsschlauch für den Lufttransfer in pneumatischen Bremssystemen von Eisenbahnen ausgestattet.
Unsere witterungs- und verschleißfesten Schläuche sind für die Förderung von Warmwasser und Sattdampf gemäß den Anforderungen von EN ISO 6134 ausgelegt.
Pour les applications exigeantes et la manipulation sûre de la vapeur et de l’eau chaude
Les tuyaux d’eau et de pression multi-usages premium de Teknikum sont de qualité arctique : ils conservent leurs propriétés à des températures négatives. Nos tuyaux de rinçage et de nettoyage sont fournis avec une buse à jet séparée, un tuyau d’eau pour les systèmes de refroidissement et un tuyau de frein à air pour le transfert d’air dans les systèmes de freinage pneumatique ferroviaires.
Nos tuyaux résistants aux intempéries et à l’abrasion sont conçus pour le transfert d’eau chaude et de vapeur saturée ; ils sont conformes aux exigences de la norme EN ISO 6134.
109 109 Water / Air / Steam
Mira Juutilainen R&D Manager
M.Sc. Plastics and Elastomers & M. Sc. Material Chemistry
Teknikum PAVE™ 1,0 MPa AIR/WATER
• Delivery hose
High quality water and compressed air hose
Suitable for various applications requiring reliability and long-life cycle
Flexible and durable
• Length 10-40m made in Finland
We recommend band clamp for hose tightening
Burst safety factor is 4 x working pressure
• Druckschlauch
Hochwertiger Druckluft- und Wasserschlauch
Geeignet für verschiedene Anwendungen, die Zuverlässigkeit und Langlebigkeit erfordern
Flexibel und langlebig
Länge 10-40m hergestellt in Finnland
• Extrusionsverfahren in der EU Wir empfehlen eine Bandschelle zum Festziehen des Schlauchs
Berstsicherheitsfaktor 4 x Betriebsdruck
• Tuyau de refoulement
Tuyau d'eau et d'air comprimé de haute qualité
Convient à diverses applications nécessitant fiabilité et long cycle de vie
Flexible et durable
• En longueur 10-40m : fabriqué en Finlande
• Nous recommandons l’utilisation d’un collier de serrage à bande pour le serrage des tuyaux
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
110 110 Water / Air / Steam
PAVE™ 1,0 MPa Air/Water DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES - 40°C +80°C EPDM EPDM TEXTILE
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Suitable for various applications requiring reliability and long-life cycle.
Check all current product details and specification on product datasheet (QR code):
https://teknikum.com/product/teknikum-pave-10-mpa/
111 111 Water / Air / Steam PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Product code Ø i.d. mm Ø o.d. mm Working press. MPa Bending radius mm Weight kg/m Length m Teknikum PAVE™ 1,0 MPa AIR/WATER HPAVE10032 32 43 1,0 160 0,90 40 HPAVE10040 40 51 1,0 220 1,00 40 HPAVE10045 45 56 1,0 320 1,10 40 HPAVE10050 50 61 1,0 410 1,30 40 HPAVE10063 63 75 1,0 500 1,70 40 HPAVE10075 76 88 1,0 560 2,00 40 HPAVE10100 102 119 1,0 1340 3,80 40 HPAVE10115 115 132 1,0 1430 4,30 40 HPAVE10125 127 144 1,0 1520 4,70 40 HPAVE10150 152 169 1,0 1720 5,50 40 HPAVE10200 203 226 1,0 1890 9,10 10

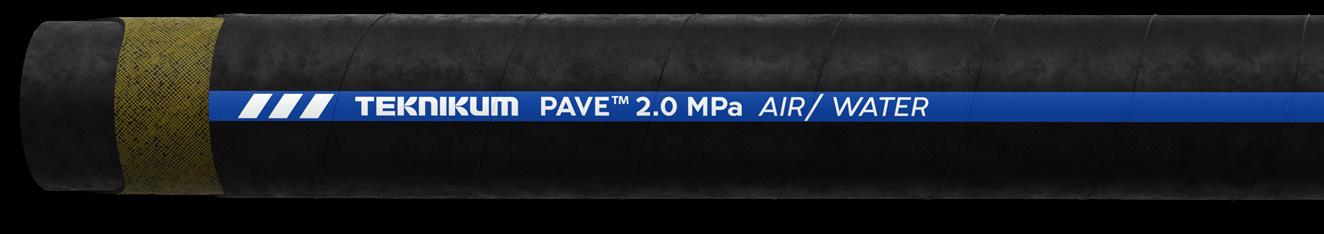

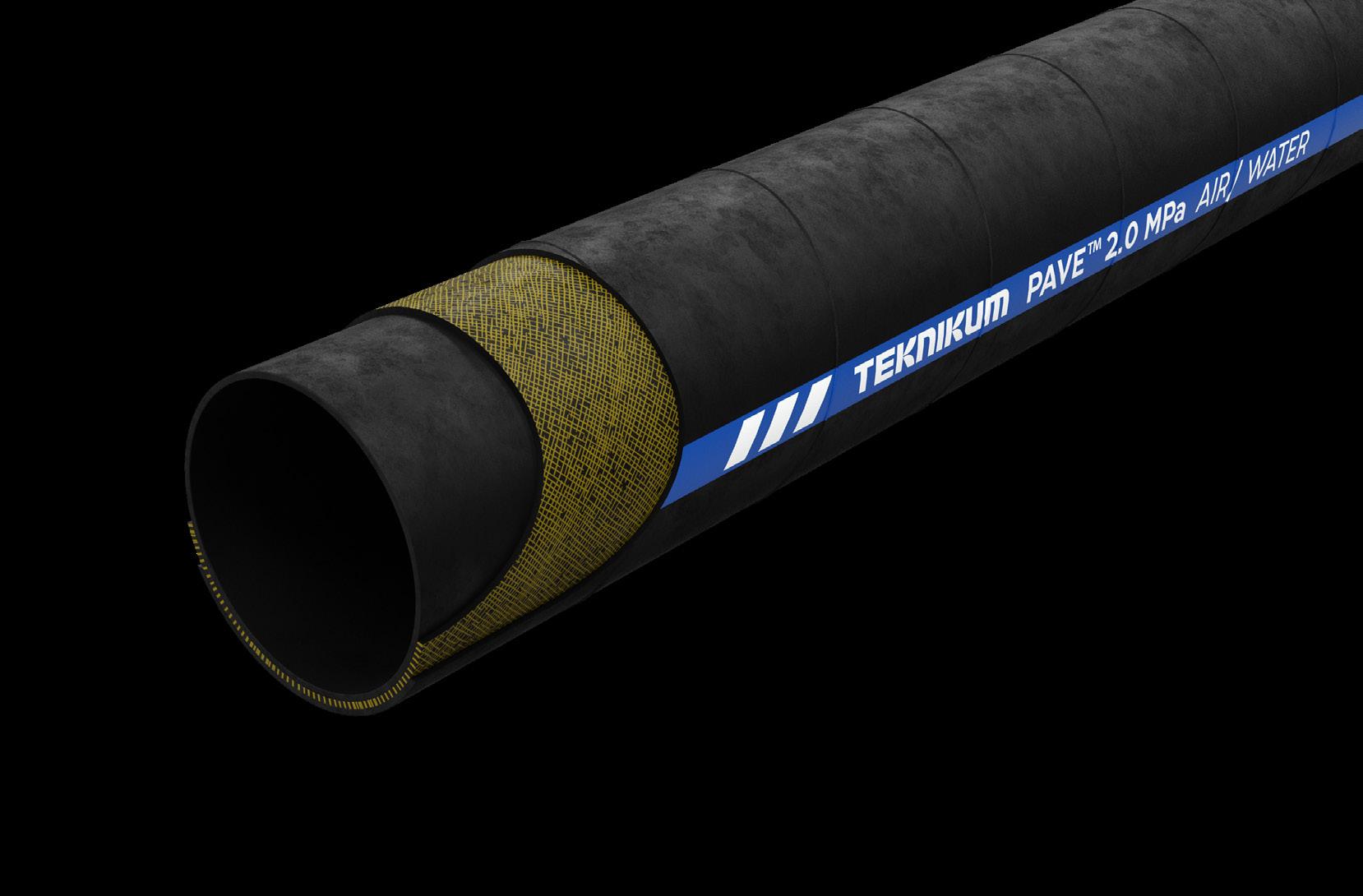

Teknikum PAVE™ 2,0 / 2,5 MPa AIR/WATER
EN:ISO 1403:2005 type 3
EN ISO 2398:2010 3A / L-T
Ø i.d. 6-25 mm: EPDM/SBR
Ø i.d. 32-50 mm: EPDM
Ø i.d. 6-25 mm: EPDM/SBR
Ø i.d. 32-50 mm: EPDM
TEXTILE
• Delivery hose
High quality water and compressed air hose
Suitable for various applications requiring reliability, high-pressure resistance and long-life cycle
Flexible and durable
Length 40 m made in Finland
• The hose meets requirements of standard EN ISO 1403:2005 type 3 and EN ISO 2398:2010 3A / L-T, for inner diameters 6-25 mm
• We recommend band clamp for hose tightening
Burst safety factor is 4 x working pressure
• Druckschlauch
Hochwertiger Druckluft- und Wasserschlauch
Geeignet für verschiedene Anwendungen, die Zuverlässigkeit, Hochdruckfestigkeit und Langlebigkeit erfordern
Flexibel und langlebig
Länge 40 m hergestellt in Finnland
• Der Schlauch erfüllt die Anforderungen der Norm EN ISO 1403:2005 Typ 3 und EN ISO 2398:2010 3A / L-T, für Innendurchmesser 6-25 mm
• Wir empfehlen eine Bandschelle zum Festziehen des Schlauchs
Berstsicherheitsfaktor 4 x Betriebsdruck
+80°C
- 40°C
• Tuyau de refoulement
Tuyau d'eau et d'air comprimé de haute qualité
Convient à diverses applications nécessitant fiabilité, résistance à la haute pression et long cycle de vie
Flexible et durable
En longueur 40 m : fabriqué en Finlande
• Le tuyau répond aux exigences des normes EN ISO 1403:2005 type 3 et EN ISO 2398:2010 3A / L-T, pour des diamètres intérieurs de 6-25 mm
• Nous recommandons l’utilisation d’un collier de serrage à bande pour le serrage des tuyaux
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
112 112 Water / Air / Steam
PAVE™ 2,0 / 2,5 MPa Air/Water
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
*Made with extrusion process in EU.
Check
https://teknikum.com/product/teknikum-pave-air-water-20-25-mpa/
113 113 Water / Air / Steam PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
all current product details and specification on product datasheet (QR code):
Product code Ø i.d. mm Ø o.d. mm Working press. MPa Bending radius mm Weight kg/m Length m Teknikum PAVE™ 2,0 / 2,5 MPa AIR/WATER HPAVE25006 6 14 2,5 50 0,20 60 HPAVE25008 8 16 2,5 50 0,20 60 HPAVE25010 10 18 2,5 60 0,20 60 HPAVE25013 13 22 2,5 90 0,30 60 HPAVE25016 16 25 2,5 100 0,40 60 HPAVE25020 19 29 2,5 120 0,50 60 HPAVE25025 25 35 2,5 150 0,70 60 HPAVE20032 32 46 2,0 180 1,00 40 HPAVE20040 40 54 2,0 220 1,20 40 HPAVE20045 45 59 2,0 320 1,40 40 HPAVE20050 50 64 2,0 400 1,50 40

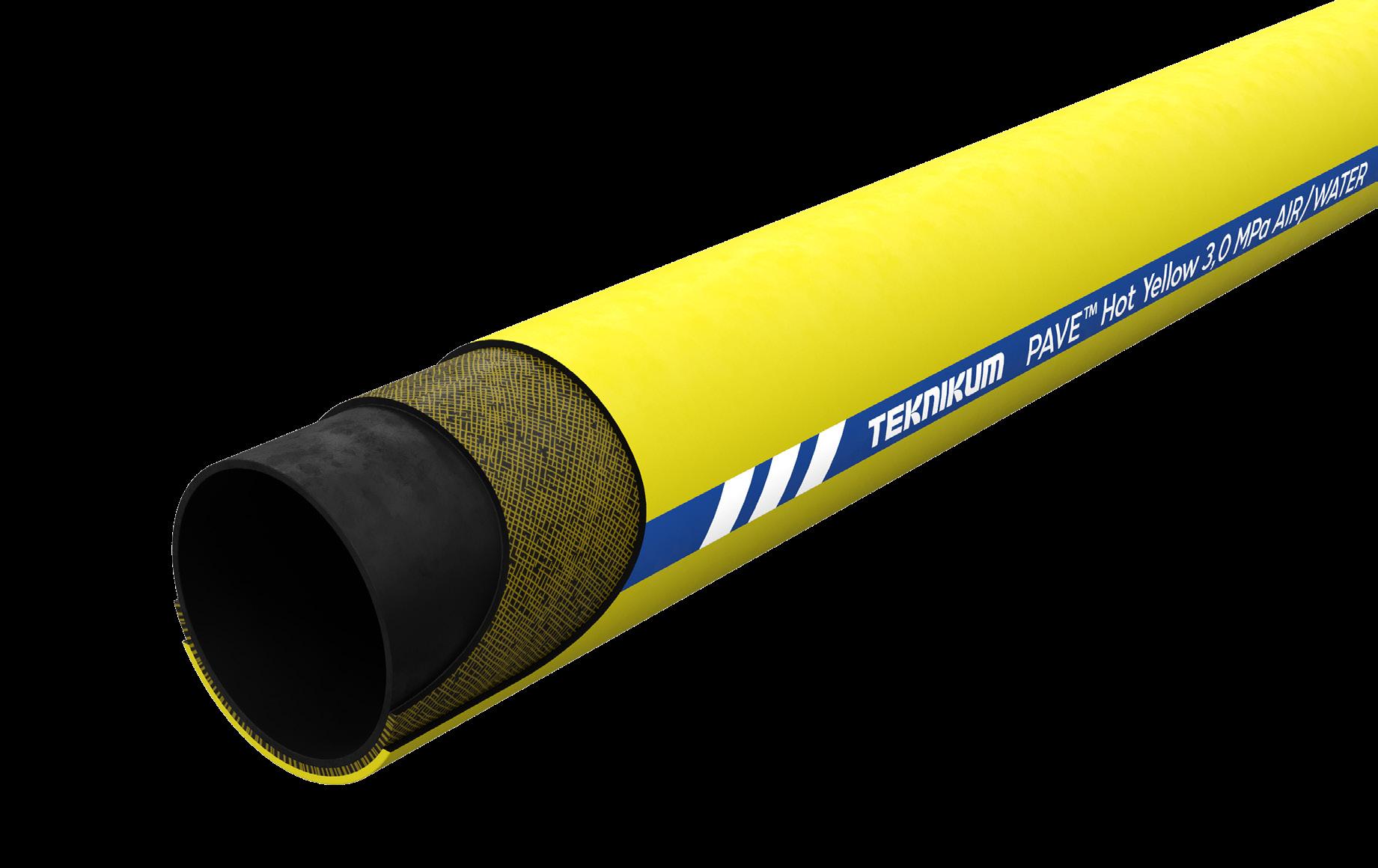

Teknikum PAVE™ Hot Yellow 3,0 MPa AIR/WATER
EN:12115 EN:1761
DESCRIPTION
• Delivery hose
High quality water and compressed air hose
Safe and durable hose for hot water
Suitable for mild industrial cleaning chemicals
Excellent visibility due to the yellow cover
• Excellent weather- and ozoneresistance
We recommend for band clamp or high-pressure couplings according to EN 14420 and clamps according to EN 14420-3. Please ensure the clamp suitability according to the hose dimension.
Burst safety factor is 3,2 x working pressure
• Druckschlauch
Hochwertiger Wasser- und Druckluftschlauch
EPDM
- 40°C
Sicherer und haltbarer Schlauch für heißes Wasser
Geeignet für milde industrielle Reinigungschemikalien
Hervorragende Sichtbarkeit durch die gelbe Deckenfarbe
• Hervorragende Witterungs- und Ozonbeständigkeit
Wir empfehlen Bandschellen oder Hochdruckkupplungen nach EN 14420 und Schellen nach EN 14420-3. Bitte achten Sie auf die Schelleneignung entsprechend der Schlauchdimension. Berstsicherheitsfaktor 3,2 x Betriebsdruck
• Tuyau de refoulement
Tuyau d'eau et d'air comprimé de haute qualité
Tuyau sûr et durable pour l'eau chaude
Convient aux produits chimiques doux de nettoyage industriel
Excellente visibilité grâce à la gaine jaune
• Excellente résistance aux intempéries et à l'ozone
Nous recommandons l'utilisation de colliers de serrage à bande ou de raccords haute pression selon la norme EN 14420 et de colliers de serrage selon la norme EN 14420-3. Veuillez vous assurer de l'adéquation du collier de serrage avec les dimensions du tuyau.
114 114 Water / Air / Steam
• Le coefficient de sécurité à l'éclatement est de 3,2 x la pression de service AND ADVANTAGES
+120°C
EPDM
PAVE™ Hot Yellow 3,0 MPa AIR/WATER
TEXTILE
Other dimensions available on request. / Weitere Größen auf
sont disponibles sur demande.
https://teknikum.com/product/teknikum-parak-air-water-30-mpa/
115 115 Water / Air / Steam PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code):
erhältlich.
D'autres
Product code Ø i.d. mm Ø o.d. mm Working press. MPa Bending radius mm Weight kg/m Length m Teknikum PARAK™ 3,0 MPa AIR/WATER HPARAK30008 8 17 3,0 50 0,20 40 HPARAK30010 10 20 3,0 60 0,30 40 HPARAK30013 13 23 3,0 80 0,40 40 HPARAK30016 16 27 3,0 100 0,40 40 HPARAK30019 19 30 3,0 110 0,50 40 HPARAK30025 25 37 3,0 150 0,70 40 HPARAK30032 32 44 3,0 320 0,90 40 HPARAK30038 38 51 3,0 380 1,10 40 HPARAK30042 42 56 3,0 420 1,40 40 HPARAK30050 50 66 3,0 500 1,90 40
Anfrage
/
dimensions

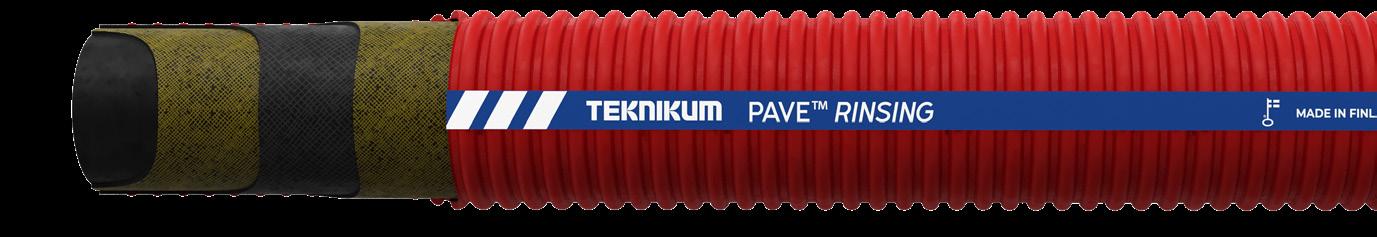

Teknikum PAVE™ RINSING
Teknikum PAVE™ RINSING nozzle
NR/EPDM
Delivery hose
• Rinsing and washing hose
Highly regarded among its users, especially at paper mills
Light weight and easy handling
Extremely flexible and low bending radius due to special structure and corrugated surface
The other end of the hose includes a fixed spray nozzle
• The hose’s bendable spray nozzle can be easily adjusted and directed into the tight spaces
• Designed particularly for washing applications where targets are variable and not easy to reach
Teknikum PAVE™ RINSING nozzle is a separately available rubber spray nozzle similar to Teknikum Teknikum PAVE™ RINSING hose's fixed spray nozzle, with a cuff in the other end to make the attachment easy
We recommend hose band clamp for tightening
Burst safety factor is 3,2 x working pressure
Druckschlauch
• Spül- und Waschschlauch hohe Zufriedenheit bei seinen Anwendern, insbesondere in Papierfabriken
Geringes Gewicht und einfache Handhabung
Extrem flexibel und geringer Biegeradius durch spezielle Struktur und geriffelter Oberfläche
Ein Ende des Schlauchs enthält eine feste Sprühdüse
Die biegbare Sprühdüse des Schlauchs lässt sich leicht verstellen und in enge Zwischenräume verlegen
• Speziell für Waschanwendungen entwickelt, bei denen die zu reinigenden Stellen variabel und nicht leicht zu erreichen sind
• Die Teknikum RINSING™-Düse ist eine separat erhältliche Gummi-Sprühdüse ähnlich der festen Sprühdüse des Teknikum RINSING-Schlauchs, mit einer Manschette am anderen Ende, um das Anbringen zu erleichtern
• Zum Spannen empfehlen wir eine Schlauchbandschelle Berstsicherheitsfaktor 3,2 x Betriebsdruck
Tuyau de refoulement
• Tuyau de rinçage et de lavage
Très apprécié par ses utilisateurs, notamment dans les papeteries
Léger et facile à manipuler
Extrêmement flexible et à faible rayon de courbure grâce à sa structure spéciale et à sa surface striée
L'autre extrémité du tuyau comprend une buse de pulvérisation fixe
• La buse de pulvérisation flexible du tuyau peut être facilement ajustée et dirigée dans les espaces restreints
• Conçu particulièrement pour les applications de lavage où les endroits à nettoyer sont variables et difficiles d’accès
La buse Teknikum RINSING™ est une buse en caoutchouc disponible séparément, similaire à la buse de pulvérisation fixe du tuyau Teknikum RINSING, avec un embout à l'autre extrémité pour faciliter la fixation
• Nous recommandons l’utilisation d’un collier de serrage à bande pour le serrage des tuyaux
Le coefficient de sécurité à l'éclatement est de 3,2 x la pression de service
Highly regarded hose among its users, especially at paper mills.
116 116 Water / Air / Steam
SBR TEXTILE
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
Check
117 117 Water / Air / Steam
INFORMATION / PRODUKTINFORMATION / INFORMATION
PRODUCT
PRODUIT
code):
all current product details and specification on product datasheet (QR
https://teknikum.com/product/teknikum-lns-rinsing/ Product code Ø i.d. mm Ø o.d. mm Working press. MPa Bending radius mm Weight kg/m Length m Teknikum PAVE™ RINSING (hose with a fixed spray nozzle end) HLNS100200 19 31 1,0 110 0,60 10 HLNS100201 19 31 1,0 110 0,60 15 HLNS100202 19 31 1,0 110 0,60 20 HLNS100250 25 36 1,0 130 0,80 10 HLNS100251 25 36 1,0 130 0,80 15 HLNS100252 25 36 1,0 130 0,80 20 HLNS100320 32 43 1,0 170 0,90 10 HLNS100321 32 43 1,0 170 0,90 15 HLNS100322 32 43 1,0 170 0,90 20 HLNS100380 38 49 1,0 200 1,00 10 HLNS100381 38 49 1,0 200 1,00 15 HLNS100382 38 49 1,0 200 1,00 20 HLNS100400 40 51 1,0 220 1,10 10 HLNS100401 40 51 1,0 220 1,10 15 HLNS100402 40 51 1,0 220 1,10 20 HLNS100500 50 61 1,0 200 1,40 10 HLNS100501 50 61 1,0 200 1,40 15 HLNS100502 50 61 1,0 200 1,40 20 Teknikum PAVE™ RINSING nozzle (spray nozzle only) HLNK10019 19 / 9 31 1,0 60 0,40 0,6 HLNK10025 25 / 10 36 1,0 60 0,40 0,6 HLNK10032 32 / 12 43 1,0 60 0,60 0,7 HLNK10038 38 / 12 49 1,0 60 0,70 0,7 HLNK10040 40 / 12 51 1,0 60 0,70 0,7 HLNK10050 50 / 16 61 1,0 60 0,80 0,7
Teknikum STEAM-TEK™
EN: ISO 6134
+120°C / +164°C
- 40°C
Delivery hose
The hose complies to EN ISO 6134 requirements for Ω type hose, meaning that electrical resistance of a hose assembly is < 10^6 Ω
The hose is suitable for the conveyance of steam (steam pressure 6 bar +164°C) and hot water up to working pressure 2,0 MPa +120°C
Suitable applications include such as industrial cleaning machines and equipment, sewer defrosting equipment and industrial heating machines, where the hose is working in open-end discharging
Not for stationary installation
At continuous temperature of more than +150°C the operating time of steam hoses becomes considerably shorter
Suitable coupling and clamp combination is steam hose coupling and clamp according to EN 14423 / DIN 2826
Before steam hose use check out carefully instructions for safe usage of industrial hoses, correct couplings and clamps, and how steam acts during operation in pipelines and hoses
Burst safety factor is 10 x working pressure
Druckschlauch
Der Schlauch entspricht den Anforderungen der EN ISO 6134 für Schläuche vom Typ Ω, was bedeutet, dass der elektrische Widerstand einer Schlauchleitung < 10^6 Ω beträgt
Der Schlauch ist für die Förderung von Dampf (Dampfdruck 6 bar +164°C) und Heißwasser bis zu einem Betriebsdruck von 2,0 MPa +120°C geeignet
Zu den geeigneten Anwendungen gehören beispielsweise industrielle Reinigungsmaschinen und -geräte, Abwasserenteisungsgeräte und industrielle Heizgeräte, bei denen der Schlauch im offenem System arbeitet Nicht für stationäre Installation
Bei Dauertemperaturen über +150°C verkürzt sich die Betriebszeit von Dampfschläuchen erheblich Geeignete Kupplungs- und Schellenkombination Dampfschlauchkupplung und Schelle nach EN 14423 / DIN 2826
Lesen Sie vor der Verwendung von Dampfschläuchen sorgfältig die Anweisungen zur sicheren Verwendung von Industrieschläuchen, richtigen Kupplungen und Klemmen und wie Dampf während des Betriebs in Rohrleitungen und Schläuchen wirkt
Berstsicherheitsfaktor 10 x Betriebsdruck
Tuyau de refoulement
Le tuyau est conforme à la norme EN ISO 6134 pour les tuyaux de type Ω, ce qui signifie que la résistance électrique d'un ensemble raccordtuyau est < 10^6 Ω
Le tuyau est adapté au transport de la vapeur (pression de vapeur 6 bar +164 °C) et de l'eau chaude jusqu'à une pression de service de 2,0 MPa +120 °C Les applications appropriées comprennent notamment les machines et équipements de nettoyage industriel, les équipements de dégivrage des égouts et les machines de chauffage industriel, où le tuyau fonctionne en système ouvert Ne convient pas aux installations fixes À une température continue supérieure à +150 °C, le temps de fonctionnement des tuyaux à vapeur se réduit considérablement La combinaison raccord/collier de serrage appropriée est le raccord et le collier de serrage pour tuyau à vapeur selon la norme EN 14423 / DIN 2826 Avant d'utiliser un tuyau à vapeur, lisez attentivement les instructions relatives à l'utilisation sûre des tuyaux industriels, aux raccords et aux colliers de serrage appropriés, ainsi qu'à l'action de la vapeur dans les conduites et les tuyaux pendant le fonctionnement
Le coefficient de sécurité à l'éclatement est de 10 x la pression de service
118 118 Water / Air / Steam
EPDM
EPDM
TEXTILE
STEAM-TEK™ DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other dimensions available on request. / Weitere Größen auf Anfrage
/
dimensions sont disponibles sur demande.
119 119 Water / Air / Steam PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code):
erhältlich.
Product code Ø i.d. mm Ø o.d. mm Working press. Water/Steam MPa Bending radius mm Weight kg/m Length m Teknikum STEAM-TEK™ H2720BC013 13 25 2,0 / 0,6 100 0,40 40 H2720BC019 19 33 2,0 / 0,6 120 0,70 40 H2720BC025 25 40 2,0 / 0,6 150 0,90 40 H2720BC032 32 48 2,0 / 0,6 200 1,10 40 H2720BC038 38 54 2,0 / 0,6 250 1,50 40 H2720BC050 50 68 2,0 / 0,6 340 2,10 40 https://teknikum.com/product/teknikum-steam-tek/
D'autres

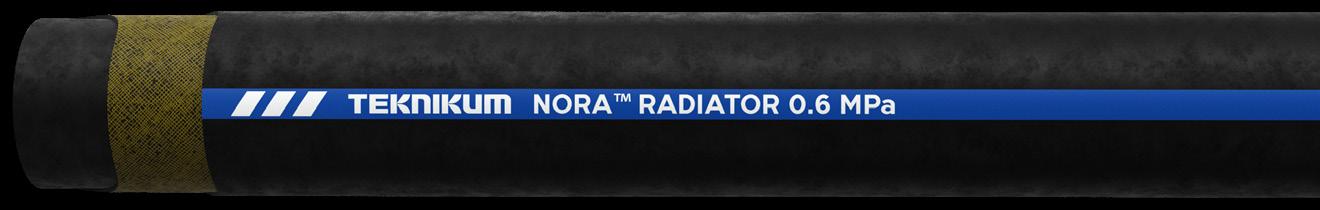

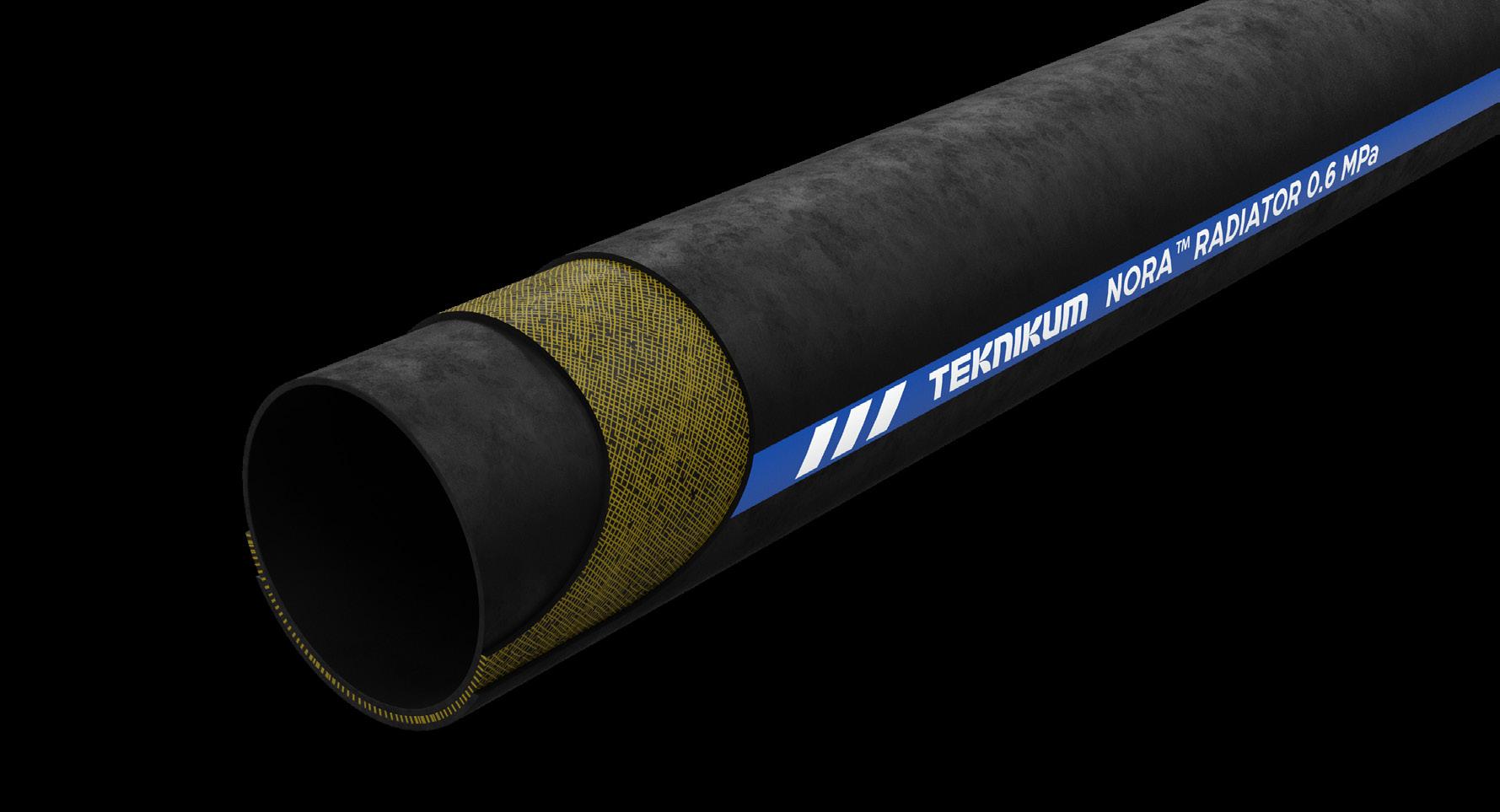

Teknikum NORA™
Radiator 0,6 MPa
Delivery hose
Water and cooling hose
Optimal pressure resistance for cooling systems
• Designed for systems requiring EPDM quality
Highly flexible and multipurpose
Excellent weather and ozone resistance
We recommend hose band clamp for tightening
Burst safety factor is 3 x working pressure
Druckschlauch
Wasser- und Kühlschlauch
Optimale Druckfestigkeit für Kühlsysteme
• Entwickelt für Systeme, die EPDMQualität erfordern
Hochflexibel und vielseitig einsetzbar
Hervorragende Witterungs- und Ozonbeständigkeit
Zum Spannen empfehlen wir eine Schlauchbandschelle
Berstsicherheitsfaktor 3 x Betriebsdruck
Tuyau de refoulement
Tuyau d'eau et de refroidissement
Résistance optimale à la pression pour les systèmes de refroidissement
• Conçu pour les systèmes nécessitant la qualité EPDM
Hautement flexible et polyvalent
Excellente résistance aux intempéries et à l'ozone
Nous recommandons l’utilisation d’un collier de serrage à bande pour le serrage des tuyaux
Le coefficient de sécurité à l'éclatement est de 3 x la pression de service
120 120 Water / Air / Steam Check all current product details and specification on product datasheet (QR code):
TEXTILE NORA™ Radiator 0,6 MPa DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES https://teknikum.com/product/teknikum-nora-radiator-06-mpa/ Product code Ø i.d. mm Ø o.d. mm Working press. MPa Bending radius mm Weight kg/m Length m Teknikum NORA™ Radiator 0,6 MPa HNORA06013 13 21 0,6 90 0,20 40 HNORA06016 16 24 0,6 100 0,30 40 HNORA06020 19 28 0,6 120 0,30 40 HNORA06022 22 30 0,6 130 0,40 40 HNORA06025 25 33 0,6 150 0,50 40 HNORA06029 29 38 0,6 155 0,60 40 HNORA06032 32 42 0,6 160 0,70 40 HNORA06040 40 50 0,6 220 0,80 40 HNORA06050 50 61 0,6 410 1,10 40 HNORA06057 57 68 0,6 450 1,30 40 HNORA06060 60 71 0,6 480 1,30 40 HNORA06075 76 86 0,6 560 1,40 40
- 40°C +110°C EPDM EPDM
Teknikum RAIL-TEK™
EN15807:2011
EN 45545-2:2020
HL2 for R22 and R23
Compressed air brake hose
Specially designed for air transfer in railway pneumatic braking systems
Meets very demanding railway standards
• Fire resistant
Low toxicity and halogen free
Robust structure
Excellent weather- and ozoneresistance
High burst pressure 75 bar
TEXTILE
Druckluftbremsschlauch
Speziell entwickelt für die Luftübertragung in pneumatischen Eisenbahnbremssystemen Erfüllt sehr anspruchsvolle Bahnnormen
Feuerresistent
• Geringe Toxizität und halogenfrei Robuste Struktur Hervorragende Witterungs- und Ozonbeständigkeit
Hoher Berstdruck 75 bar
Specially designed for air transfer in railway pneumatic braking systems. Meets very demanding railway standards.
Flexible de frein à air comprimé
Spécialement conçu pour le transfert d'air dans les systèmes de freinage pneumatiques ferroviaires
Répond aux normes ferroviaires très exigeantes
Résistant au feu
• Faible toxicité et sans halogène
Structure robuste
Excellente résistance aux intempéries et à l'ozone
Pression d'éclatement élevée de 75 bar
121 Check all current product details and specification on product datasheet (QR code):
30°C
-
+70°C
RUBBER
SYNTHETIC RUBBER SYNTHETIC
RAIL-TEK™ DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES https://teknikum.com/product/teknikum-rail-tek/ Product code Ø i.d. mm Ø o.d. mm Burst press. bar Bending radius mm Weight kg/m Length m Teknikum RAIL-TEK™ HRAIL10019 19 35 75 90 0,9 max. 40 HRAIL10025 25 41 75 90 1,0 max. 40 HRAIL10028 28 44 75 90 1,1 max. 40 HRAIL10029 29,5 45,5 75 90 1,1 max. 40
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE ANVÄNDNINGSOMRÅDEN
• Suction and delivery hose especially designed for aerator systems.
• Used as air supply hoses in aerator and mixing machines, but also great as multipurpose hoses.
Excellent weather and ozone resistance.
On request the hose ends are made with steel spiral-free cuffs.
Quick and easy installation Hoses can be cut on-site
• We recommend Teknikum PLUS™ flange system or hose clamp for hose tightening.
Burst safety factor is 3 x working pressure
• Saug- und Druckschlauch speziell für Belüftersysteme entwickelt.
• Verwendet als Luftversorgungsschläuche in Belüftern und Mischmaschinen, aber auch hervorragend als Mehrzweckschläuche.
• Hervorragende Witterungs- und Ozonbeständigkeit.
Auf Wunsch werden die Schlauchenden mit spiralfreien Stahlmanschetten ausgeführt. Schnelle und einfache Installation Schläuche können vor Ort geschnitten werden
Wir empfehlen das Teknikum PLUS™-Flanschsystem oder die Schlauchschelle zum Festziehen des Schlauchs.
• Berstsicherheitsfaktor ist 3 x Betriebsdruck
• Tuyau d'aspiration et de refoulement spécialement conçu pour les systèmes d'aérateurs.
• Utilisés comme tuyaux d'alimentation en air dans les aérateurs et les mélangeurs, mais aussi comme tuyaux polyvalents.
• Excellente résistance aux intempéries et à l'ozone.
Sur demande, les extrémités des tuyaux sont réalisées avec des embouts en acier sans spirale. Installation rapide et facile Les tuyaux peuvent être coupés sur place
Nous recommandons l’utilisation du système de brides Teknikum PLUS™ ou d’un collier de serrage pour le serrage des tuyaux.
• Le coefficient de sécurité à l'éclatement est de 3 x la pression de service
High quality suction and delivery hose especially designed for aerator systems. The hose is made of EPDM rubber and provides excellent weather and ozone resistance.
122 122 Water / Air / Steam
EPDM EPDM

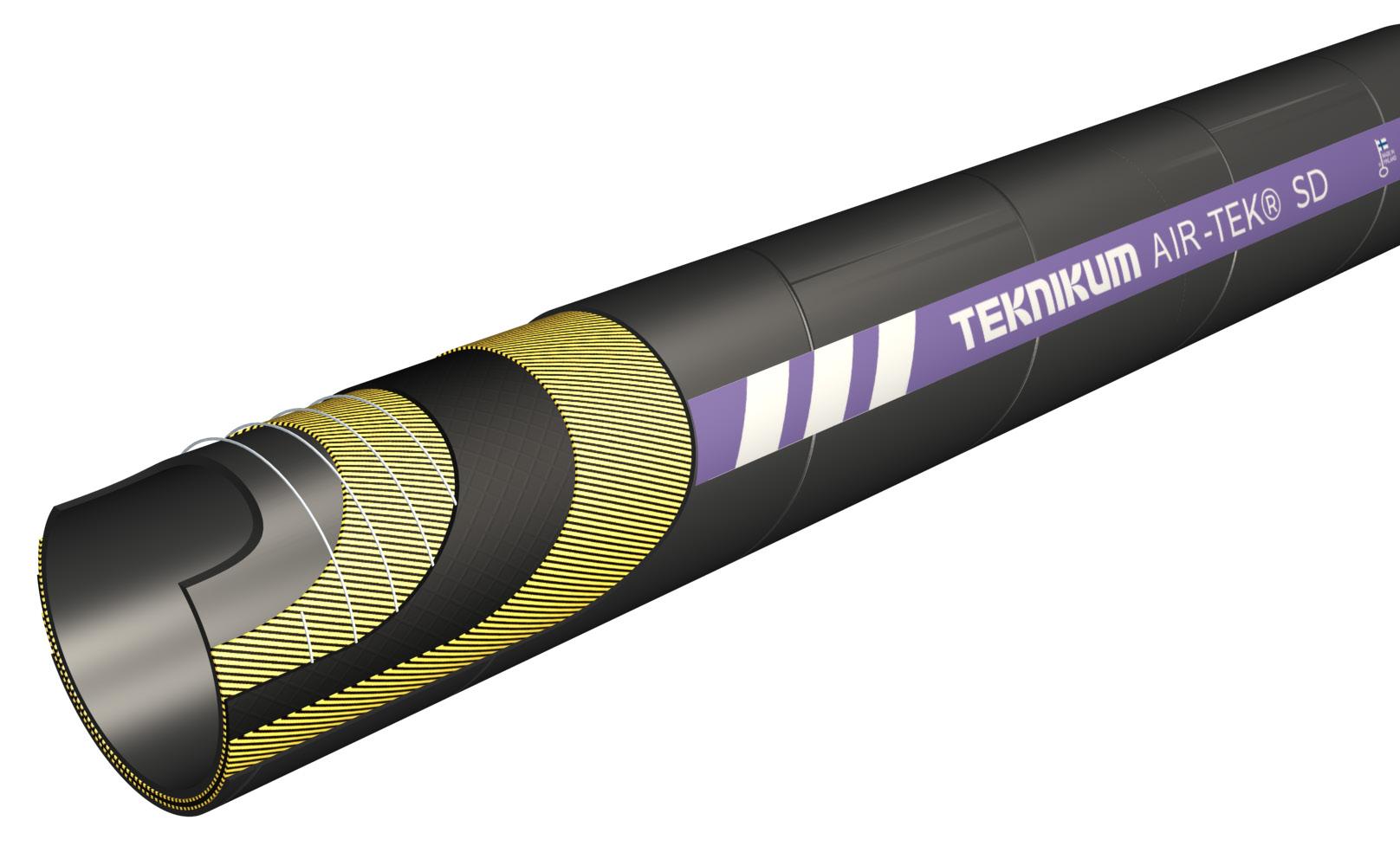

AIR-TEK® SD
40°C

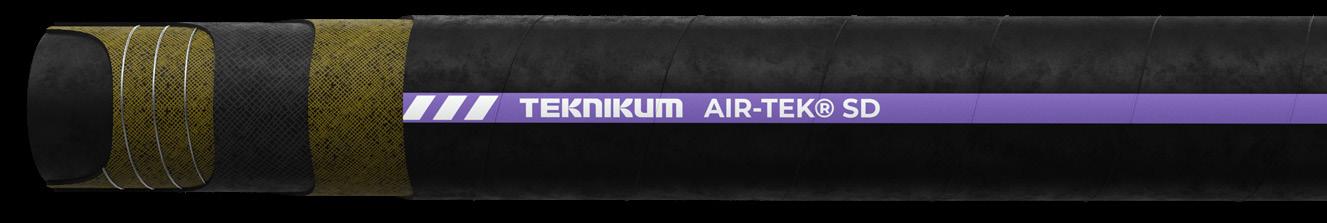

Teknikum AIR-TEK® SD
TEXTILE
-
+130°C
STEEL SPIRAL
Other dimensions available on request. / Weitere Größen auf Anfrage
dimensions sont disponibles sur demande.
123 123 Water / Air / Steam PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT Check all current product details and specification on product datasheet (QR code):
erhältlich. / D'autres
https://teknikum.com/product/teknikum-air-tek-sd/ Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum AIR-TEK® SD HAIR040-051 40 51 0,6 0,09 300 2 40 HAIR050-067 50 67 0,6 0,09 350 2,2 40 HAIR076-095 76 95 0,6 0,09 400 3,5 40 HAIR080-099 80 99 0,6 0,09 450 3,7 40 HAIR090-109 90 109 0,6 0,09 450 4 40 HAIR102-124 102 124 0,6 0,09 650 5,2 40 HAIR110-132 110 132 0,6 0,09 800 5,6 20 HAIR115-137 115 137 0,6 0,09 800 5,8 40 HAIR127-146 127 146 0,6 0,09 900 6,3 40 HAIR127-149 127 149 0,6 0,09 900 6,4 40 HAIR152-174 152 174 0,6 0,09 1000 7,9 20
Agricultural hoses
For wide range of applications such as watering or collecting water, wastewater or use in tank trucks collecting sewage.
TEKNIKUM AGRI-TEK™ SD
“Our hoses are easy-tohandle, wear resistant, antistatic and safe for the environment.”
Martti Jokela Director, New Business Development
Teknikum Group Ltd, Central Europe
Safe and durable multipurpose hoses
Our agricultural hoses are suitable for wide range of applications such as watering or collecting water, wastewater or use in tank trucks collecting sewage. The hoses are easy-to-handle, wear resistant, antistatic and safe for the environment.
Sichere und robuste Mehrzweckschläuche
Unsere Landwirtschaftsschläuche eignen sich für eine Vielzahl von Anwendungen. Hierzu zählen unter anderem die Bewässerung oder der Auffang von Wasser und Schmutzwasser oder die Verwendung in Abwassertankwagen. Die Schläuche sind einfach in der Handhabung, verschleißfest, antistatisch und ökologisch verträglich.
Tuyaux multi-usages sûrs et durables
Nos tuyaux pour l’agriculture conviennent à une large gamme d’applications, comme l’arrosage ou la collecte de l’eau, les eaux usées ou l’utilisation dans des camions-citernes collectant les eaux usées. Les tuyaux sont maniables, résistants à l’abrasion, antistatiques et sans danger pour l’environnement.
125 Agricultural hoses

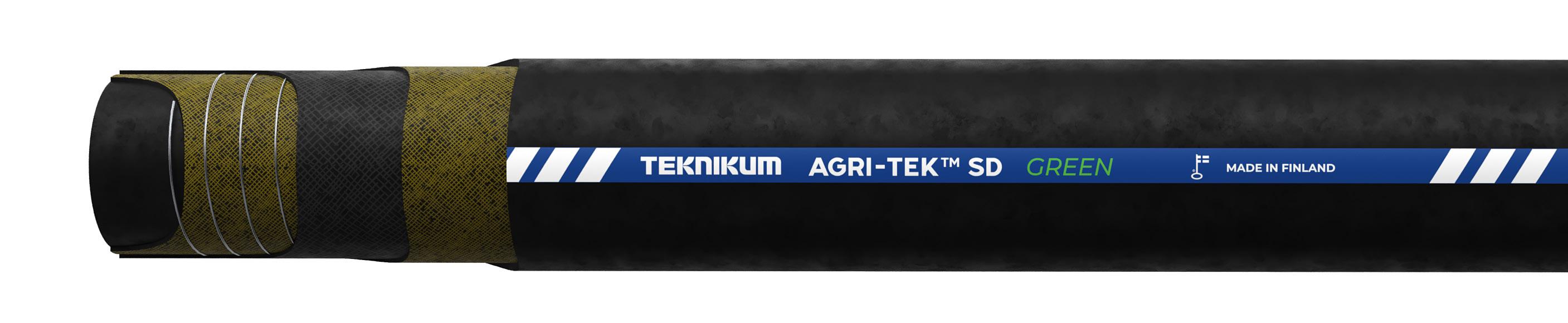

Teknikum AGRI-TEK™ SD
Suction and delivery hose for water
Flexible smoot or corrugated structure
For wide range of industrial and agricultural applications such as industrial water or wastewater or for tank trucks collecting sewage
• Wear resistant
Antistatic
Quick and easy installation
Hoses can be cut on-site
• We recommend hose clamp for tightening
• Burst safety factor is 3 x working pressure
Saug- und Druckschlauch für Wasser
Flexible glatte oder gewellte Struktur
Für ein breites Spektrum industrieller und landwirtschaftlicher Anwendungen wie Industriewasser, Abwasser oder für Tankwagen zum Sammeln von Abwasser Verschleißfest
• Antistatisch
Schnelle und einfache Installation Schläuche können vor Ort geschnitten werden
Wir empfehlen eine Schlauchschelle zum Festziehen
• Berstsicherheitsfaktor 3 x Betriebsdruck
+80°C
- 40°C
Tuyau d'aspiration et de refoulement de l'eau
Structure flexible, lisse ou striée
Pour une large gamme d'applications industrielles et agricoles telles que l'eau industrielle ou les eaux usées ou pour les camions-citernes collectant les eaux usées Résistant à l'usure
• Antistatique
Installation rapide et facile
Les tuyaux peuvent être coupés sur place Nous recommandons l’utilisation d’un collier de serrage pour le serrage des tuyaux
• Le coefficient de sécurité à l'éclatement est de 3 x la pression de service
PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
126 126 Agricultural hoses Check all current product details and specification on product datasheet (QR code):
SBR
SBR
AGRI-TEK™ SD
TEXTILE
https://teknikum.com/product/teknikum-agri-tek/ Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum AGRI-TEK™ SD HLIP050 50 61 0,6 0,09 120 1,30 40 HLIP063 63 74 0,6 0,09 210 1,60 40 HLIP075 76 88 0,6 0,09 310 2,00 40 HLIP090 90 103 0,6 0,09 350 2,90 40 HLIP100 102 114 0,6 0,09 360 3,10 40 HLIP115 115 127 0,6 0,09 430 3,40 20 HLIP125 127 141 0,6 0,09 450 3,70 20 HLIP150 152 168 0,6 0,09 520 5,80 20 HLIP200 203 221 0,6 0,09 690 8,20 10
STEEL SPIRAL
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Hose band clamp
• Kerko hose clamps are multipurpose band clamps which are used e.g. in hydraulics, vehicles, machines and construction.
• Clamps operate with one screw (KERK1R-) or two screws (KERK2R-) and a wide range of steel materials is available. Band dimensions vary according to band material and clamp size. Two or three clamps are recommended for larger diameter hoses to secure a firm grip. Different alternatives can be seen in the table below.
• Schlauchbandschellen sind Mehrzweckbandschellen, die unter anderem in der Hydraulik, in Fahrzeugen, Maschinen und Anlagen verwendet werden.
• Die Bandschellen werden mit einer Schraube (KERK1R-) oder mit zwei Schrauben (KERK2R-) gesteuert. Des Weiteren ist eine große Auswahl an Stahlmaterialien verfügbar. Die Bandmaße variieren je nach Bandmaterial und Schellengröße. Es werden zwei oder drei Klemmen für Schläuche mit größerem Durchmesser zur Gewährleistung eines festen Sitzes empfohlen. Entnehmen Sie der folgenden Tabelle verschiedene Alternativen.
• Kerko-slangklämmor är mångsidiga bandklämmor som används t.ex. i hydraulik, fordon, maskiner och konstruktion.
• Klämmorna levereras med en skruv (KERK1R-) eller med två skruvar (KERK2R-) och tillverkade av olika material. Bandstorleken varierar enligt material och klämstorlek. För större slangdiametrar rekommenderas två eller tre slangklämmor för att säkerställa ett bra grepp. Olika alternativ visas i tabellen nedan.
127 127 Agricultural hoses Check all current product details and specification on product datasheet (QR code):
Hose band clamp https://teknikum.com/product/hose-clamp/
BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
DESCRIPTION AND ADVANTAGES
Product code Hose o.d. mm Band dimensions mm Band material 1-SCREW KERK1R035 32-35 1,0 x 20,5 Fe / Zn KERK1R040 35-40 1,0 x 20,5 Fe / Zn KERK1R045 40-45 1,0 x 20,5 Fe / Zn KERK1R050 45-50 1,0 x 20,5 Fe / Zn KERK1R055 50-55 1,0 x 20,5 Fe / Zn KERK1R060 55-60 1,0 x 20,5 Fe / Zn KERK1R065 60-65 1,0 x 20,5 Fe / Zn KERK1R070 65-70 1,0 x 20,5 Fe / Zn KERK1R075 70-75 1,0 x 20,5 Fe / Zn KERK1R080 75-80 1,0 x 20,5 Fe / Zn KERK1R085 80-85 1,0 x 20,5 Fe / Zn KERK1R090 85-90 1,0 x 20,5 Fe / Zn KERK1R095 90-95 1,0 x 20,5 Fe / Zn KERK1R100 95-100 1,0 x 20,5 Fe / Zn KERK1R105 100-105 1,0 x 20,5 Fe / Zn KERK1R110 105-110 0,9 x 20,5 AISI 304 / EN 1.4301 KERK1R115 110-115 0,9 x 20,5 AISI 304 / EN 1.4301 KERK1R120 115-120 0,9 x 20,5 AISI 304 / EN 1.4301 1-SCREW STAINLESS STEEL KERK1RHK031 26-31 0,9 x 20,5 AISI 316L / EN 1.4404 KERK1RHK035 32-35 0,9 x 20,5 AISI 316L / EN 1.4404 KERK1RHK038 35-38 0,9 x 20,5 AISI 316L / EN 1.4404 KERK1RHK040 35-40 0,9 x 20,5 AISI 316L / EN 1.4404 KERK1RHK045 40-45 0,9 x 20,5 AISI 316L / EN 1.4404 2-SCREW KERK2R050 40-50 1,0 x 20,5 Fe / Zn KERK2R055 45-55 1,0 x 20,5 Fe / Zn KERK2R060 50-60 1,0 x 20,5 Fe / Zn KERK2R065 55-65 1,0 x 20,5 Fe / Zn KERK2R070 60-70 1,0 x 20,5 Fe / Zn KERK2R075 65-75 1,0 x 20,5 Fe / Zn KERK2R080 70-80 1,0 x 20,5 Fe / Zn KERK2R085 75-85 1,0 x 20,5 Fe / Zn KERK2R090 80-90 1,0 x 20,5 Fe / Zn KERK2R095 85-95 1,0 x 20,5 Fe / Zn KERK2R100 90-100 1,0 x 20,5 Fe / Zn KERK2R105 95-105 1,0 x 20,5 Fe / Zn Product code Hose o.d. mm Band dimensions mm Band material KERK2R110 100-110 1,0 x 20,5 Fe / Zn KERK2R115 105-115 1,0 x 20,5 Fe / Zn KERK2R120 110-120 1,0 x 20,5 Fe / Zn KERK2R125 115-125 1,0 x 20,5 Fe / Zn KERK2R130 120-130 1,0 x 20,5 Fe / Zn KERK2R135 125-135 1,0 x 20,5 Fe / Zn KERK2R140 130-140 1,0 x 20,5 Fe / Zn KERK2R145 135-145 1,1 x 20,5 AISI 304 / EN 1.4301 KERK2R150 140-150 1,1 x 20,5 AISI 304 / EN 1.4301 KERK2R160 150-160 1,1 x 20,5 AISI 304 / EN 1.4301 KERK2R170 160-170 1,1 x 20,5 AISI 304 / EN 1.4301 KERK2R180 170-180 1,1 x 20,5 AISI 304 / EN 1.4301 KERK2R190 180-190 1,1 x 20,5 AISI 304 / EN 1.4301 KERK2R200 190-200 1,1 x 20,5 AISI 304 / EN 1.4301 KERK2R210 200-210 1,1 x 20,5 AISI 304 / EN 1.4301 KERK2R220 210-220 1,1 x 20,5 AISI 304 / EN 1.4301 2-SCREW STAINLESS STEEL KERKHK050 40-50 0,9 x 20,5 AISI 316L / EN 1.4404 KERKHK055 45-55 0,9 x 20,5 AISI 316L / EN 1.4404 KERKHK060 50-60 0,9 x 20,5 AISI 316L / EN 1.4404 KERKHK065 55-65 0,9 x 20,5 AISI 316L / EN 1.4404 KERKHK070 60-70 0,9 x 20,5 AISI 316L / EN 1.4404 KERKHK075 65-75 0,9 x 20,5 AISI 316L / EN 1.4404 KERKHK080 70-80 0,9 x 20,5 AISI 316L / EN 1.4404 KERKHK085 75-85 0,9 x 20,5 AISI 316L / EN 1.4404 KERKHK090 80-90 0,9 x 20,5 AISI 316L / EN 1.4404 KERKHK095 85-95 0,9 x 20,5 AISI 316L / EN 1.4404 KERKHK100 90-100 1,1 x 20,5 AISI 316L / EN 1.4404 KERKHK110 100-110 1,1 x 20,5 AISI 316L / EN 1.4404 KERKHK120 110-120 1,1 x 20,5 AISI 316L / EN 1.4404 KERKHK130 120-130 1,1 x 20,5 AISI 316L / EN 1.4404 KERKHK140 130-140 1,1 x 20,5 AISI 316L / EN 1.4404 KERKHK150 140-150 1,1 x 20,5 AISI 316L / EN 1.4404 KERKHK160 150-160 1,1 x 20,5 AISI 316L / EN 1.4404 KERKHK170 160-170 1,1 x 20,5 AISI 316L / EN 1.4404 KERKHK175 165-175 1,1 x 20,5 AISI 316L / EN 1.4404 KERKHK180 170-180 1,1 x 20,5 AISI 316L / EN 1.4404 KERKHK210 200-210 1,1 x 20,5 AISI 316L / EN 1.4404 KERKHK310 300-310 1,1 x 20,5 AISI 316L / EN 1.4404
Food Quality Hoses
For food industry and other process industries with high hygienic demands
FOOD-TEK®
FOOD-TEK® SD LACTO
FOOD-TEK® D LACTO
FOOD-TEK® D CLEAN
Teknikum FOOD-TEK® SD LIGHT
SD
“Superior cleanliness, suitability and safety for food industry uses.”
Mira Juutilainen
R&D
Manager
M.Sc. Plastics and Elastomers
& M. Sc. Material Chemistry
For the handling of various foodstuffs and liquids
Teknikum’s food quality hoses are always manufactured by using clean aluminum mandrels. This guarantees a superior cleanliness, suitability and safety for food industry uses.
Our modern production lines ensure high dimensional accuracy for the hoses and good adhesion for the rubber layers, which enables also meeting the demands of customer-specific solutions.
Our food industry hoses and the rubber compounds used in the manufacturing are developed and made in compliance with the most common international rules and regulations for the food industry.
Für die Handhabung zahlreicher Lebensmittel und Flüssigkeiten
Die Lebensmittelschläuche von Teknikum werden stets mit sauberen Aluminiumdornen gefertigt, wodurch erstklassige Reinheit, Eignung und Sicherheit für die Verwendung in der Lebensmittelindustrie garantiert wird.
Unsere modernen Produktionslinien gewährleisten eine hohe Dimensionsgenauigkeit der Schläuche und eine gute Haftfestigkeit der Gummischichten, was es uns wiederum ermöglicht, die Anforderungen kundenspezifischer Lösungen zu erfüllen.
Unsere Lebensmittelschläuche und die in der Herstellung verwendeten Gummiverbindungen werden in Übereinstimmung mit den gängigsten internationalen Bestimmungen und Richtlinien der Lebensmittelindustrie entwickelt und hergestellt.
Pour la manipulation de divers liquides et denrées alimentaires
Les tuyaux de qualité alimentaire de Teknikum sont toujours fabriqués à l’aide de mandrins propres en aluminium. Cela garantit une propreté, une aptitude et une sécurité incomparables pour les applications dans l’industrie alimentaire.
Nos lignes de production modernes assurent une grande précision dimensionnelle des tuyaux et une bonne adhésion des couches de caoutchouc, ce qui permet également de répondre aux exigences de solutions personnalisées.
Nos tuyaux destinés à l’industrie alimentaire et les composés en caoutchouc utilisés dans la fabrication sont développés et fabriqués en conformité avec les règles et réglementations internationales les plus communes pour l’industrie alimentaire.
129 129 Food

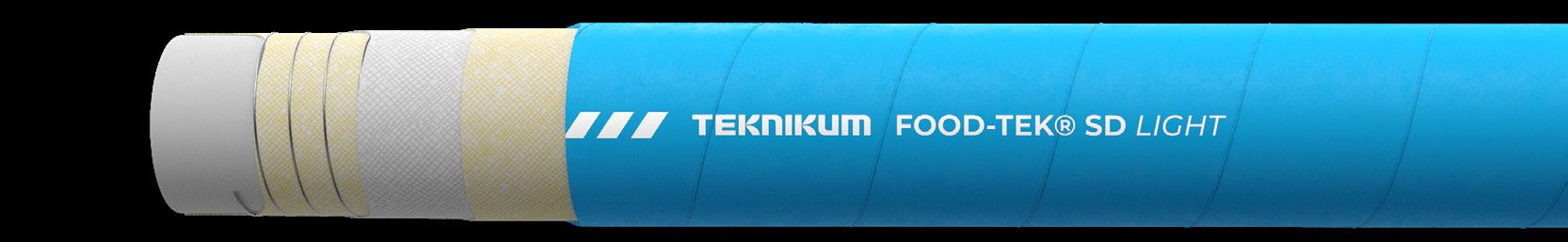

Teknikum FOOD-TEK® SD LIGHT
NR
NR
Suction and delivery hose
Suitable and safe hose for most liquid foodstuff materials, such as milk, beer, wine and strong alcohols
Reelable, light weight, extremely flexible and easy to handle Reshapes after compression
• For filling, disharging applications
High mechanical strength Hose can be cut on-site
Before using in food industry, the hoses must be washed with 5 % soda solution
We recommend dairy coupling, swaged clamp, SL-clamp or band clamp for hose tightening
• Burst safety factor is 4 x working pressure
Saug- und Druckschlauch Geeignet für die meisten flüssigen Lebensmittel wie Milch, Bier, Wein und starke Alkohole
Aufrollbar, leicht, extrem flexibel und einfach zu handhaben
Geht nach Komprimierung in seine ursprüngliche Form zurück
• Für Füll- und Entleerungsanwendungen
• Hohe mechanische Festigkeit Schlauch kann vor Ort geschnitten werden
Vor dem Einsatz in der Lebensmittelindustrie müssen die Schläuche mit 5 %iger Sodalösung gewaschen werden
Wir empfehlen Molkereikupplungen, Presshülsen, SL-Schellen oder Bandschellen zum Festziehen des Schlauchs
Berstsicherheitsfaktor 4 x Betriebsdruck
(+120°C) +80°C
- 40°C
Tuyau d'aspiration et de refoulement
Tuyau adapté et sûr pour la plupart des denrées alimentaires liquides, telles que le lait, la bière, le vin et les alcools forts
Enroulable, léger, extrêmement flexible et facile à manipuler
Reprend sa forme après compression
• Pour les applications de remplissage et de vidange
• Résistance mécanique élevée
Le tuyau peut être coupé sur place
Avant toute utilisation dans l'industrie alimentaire, les tuyaux doivent être lavés avec une solution de soude à 5 %
Nous recommandons l'utilisation d'un raccord laitier, d'un collier à sertir, d'un collier SL ou d'un collier à bande pour le serrage des tuyaux
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
Reelable, light weight, extremely flexible and easy to handle.
130 130 Food FOOD-TEK® SD LIGHT
TEXTILE PLASTIC SPIRAL
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
131 131 Food
PRODUKTINFORMATION / INFORMATION
Check all current product details and specification on product datasheet (QR code):
PRODUCT INFORMATION /
PRODUIT
Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum FOOD-TEK® SD LIGHT HFOOD051PS 51 64 0,6 0,09 160 1,40 40 HFOOD053PS 53 66 0,6 0,09 160 1,40 40 HFOOD063PS 63 78 0,6 0,09 220 1,80 40 HFOOD065PS 65 80 0,6 0,09 220 1,90 40
https://teknikum.com/product/teknikum-food-tek-sd-light/

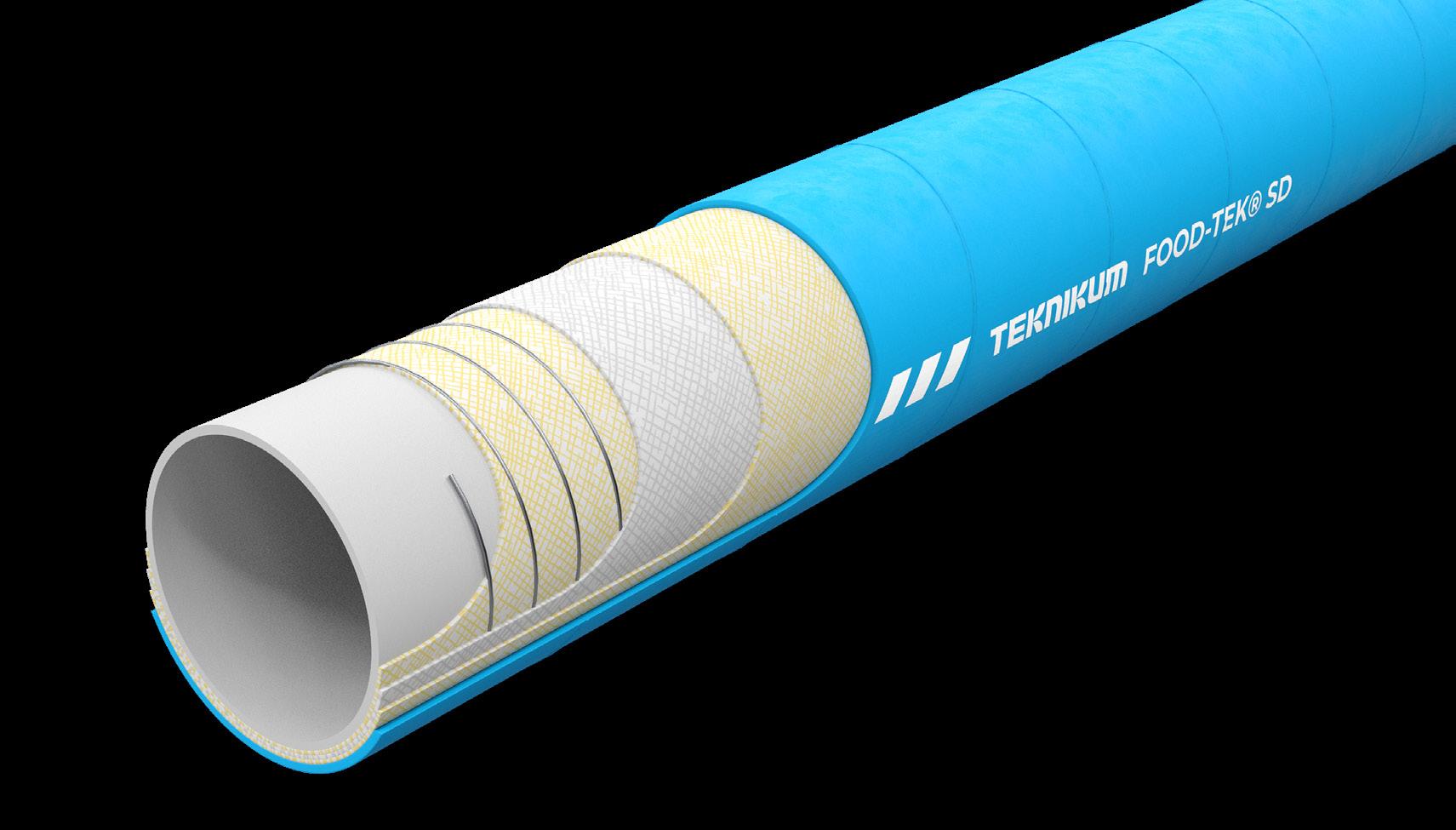

Teknikum FOOD-TEK®
SD
Suction and delivery hose
Suitable and safe hose for most liquid foodstuff materials, such as milk, beer, wine and strong alcohols Reelable, flexible and easy to handle
• For filling, disharging or stationary applications
• High mechanical strength
Hose can be cut on-site
Before using in food industry, the hoses must be washed with 5 % soda solution
We recommend dairy coupling, swaged clamp, SL-clamp or band clamp for hose tightening
Burst safety factor is 4 x working pressure
Saug- und Druckschlauch Geeignet für die meisten flüssigen Lebensmittel wie Milch, Bier, Wein und starke Alkohole
Aufrollbar, flexibel und einfach zu handhaben
Zum Befüllen, Entleeren oder stationären
•
Hohe mechanische Festigkeit Schlauch
Wir empfehlen Molkereikupplungen, Presshülsen, SL-Schellen oder Bandschellen zum Festziehen des Schlauchs
(+120°C) STEEL SPIRAL DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES https://teknikum.com/product/teknikum-food-tek-sd/
Tuyau d'aspiration et de refoulement Tuyau adapté et sûr pour la plupart des denrées alimentaires liquides, telles que le lait, la bière, le vin et les alcools forts Enroulable, flexible et facile à manipuler
• Pour les applications de remplissage, de vidange ou stationnaires
• Résistance mécanique élevée
Le tuyau peut être coupé sur place
Avant toute utilisation dans l'industrie alimentaire, les tuyaux doivent être lavés avec une solution de soude à 5 % Nous recommandons l'utilisation d'un raccord laitier, d'un collier à sertir, d'un collier SL ou d'un collier à bande pour le serrage des tuyaux
Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum FOOD-TEK® SD HFOOD025 25 36 0,6 0,09 60 0,80 40 HFOOD038 38 49 0,6 0,09 100 1,20 40 HFOOD040 40 51 0,6 0,09 100 1,30 40 HFOOD045 45 56 0,6 0,09 110 1,40 40 HFOOD050 51 62 0,6 0,09 120 1,50 40 HFOOD053 53 65 0,6 0,09 120 1,60 40 HFOOD063 63 79 0,6 0,09 180 2,30 40 HFOOD065 65 81 0,6 0,09 180 2,50 40 HFOOD075 76 91 0,6 0,09 300 2,60 40 HFOOD100 100 116 0,6 0,09 640 4,30 40 HFOOD102 102 116 0,6 0,09 650 4,40 40
NR NR TEXTILE FOOD-TEK® SD
132 132 Food Check all current product details and specification on product datasheet (QR code):
40°C
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service +80°C
Einsatz
werden
kann vor Ort geschnitten
Vor dem Einsatz in der Lebensmittelindustrie müssen die Schläuche mit 5 %iger Sodalösung gewaschen werden
Berstsicherheitsfaktor 4 x Betriebsdruck
Teknikum FOOD-TEK® SD LACTO
Suction and delivery hose
Safe and durable hose for industries with high hygienic demands
The hoses inner lining is smooth and it does not transfer odor or taste to transported foodstuffs
Great for fatty and oily foodstuffs
• Reelable
Easy handling
Before use the hose must be washed with 5 % soda solution
Hose can be cut on-site
• We recommend dairy coupling, swaged clamp, SL-clamp or band clamp for hose tightening
Burst safety factor is 4 x working pressure
Saug- und Druckschlauch Sicherer und langlebiger Schlauch für Industrien mit hohen hygienischen Anforderungen
Die Innenauskleidung des Schlauchs ist glatt und überträgt weder Geruch noch Geschmack auf transportierte Lebensmittel
Ideal für fettige und ölige Lebensmittel
• Aufrollbar
Einfache Handhabung
Vor Gebrauch muss der Schlauch mit 5 %iger Sodalösung gewaschen werden Schlauch kann vor Ort geschnitten werden
Wir empfehlen Molkereikupplungen, gestauchte Schellen, SL-Schellen oder Bandschellen zum Festziehen des Schlauchs
Der Berstsicherheitsfaktor beträgt das 4-fache des Betriebsdrucks
NBR/PVC
Tuyau d’aspiration et de refoulement
Un tuyau sûr et durable pour les industries ayant des exigences élevées en matière d'hygiène
Le revêtement intérieur du tuyau est lisse et ne transmet pas d'odeur ni de goût aux denrées alimentaires transportées
Idéal pour les aliments gras et huileux
• Enroulable
Facile à manipuler
Avant utilisation, le tuyau doit être lavé avec une solution de soude à 5 %
Le tuyau peut être coupé sur place
• Nous recommandons l'utilisation d'un raccord laitier, d'un collier à sertir, d'un collier SL ou d'un collier à bande pour le serrage des tuyaux
• Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.
133 Check all current product details and specification on product datasheet (QR code):
NBR TEXTILE STEEL SPIRAL - 30°C (+130°C) +80°C Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum FOOD-TEK® SD LACTO H1420SL025 25 37 1,0 0,09 60 0,90 40 H1420SL040 40 53 1,0 0,09 110 1,50 40 H1420SL050 50 66 1,0 0,09 140 2,20 40 H1420SL051 51 62 1,0 0,09 140 1,80 40 H1420SL065 65 79 1,0 0,09 180 2,60 40 H1420SL075 75 91 1,0 0,09 220 3,30 40 H1420SL076 76 92 1,0 0,09 220 3,30 40 FOOD-TEK® SD LACTO https://teknikum.com/product/teknikum-food-tek-sd-lacto/ DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
PRODUCT

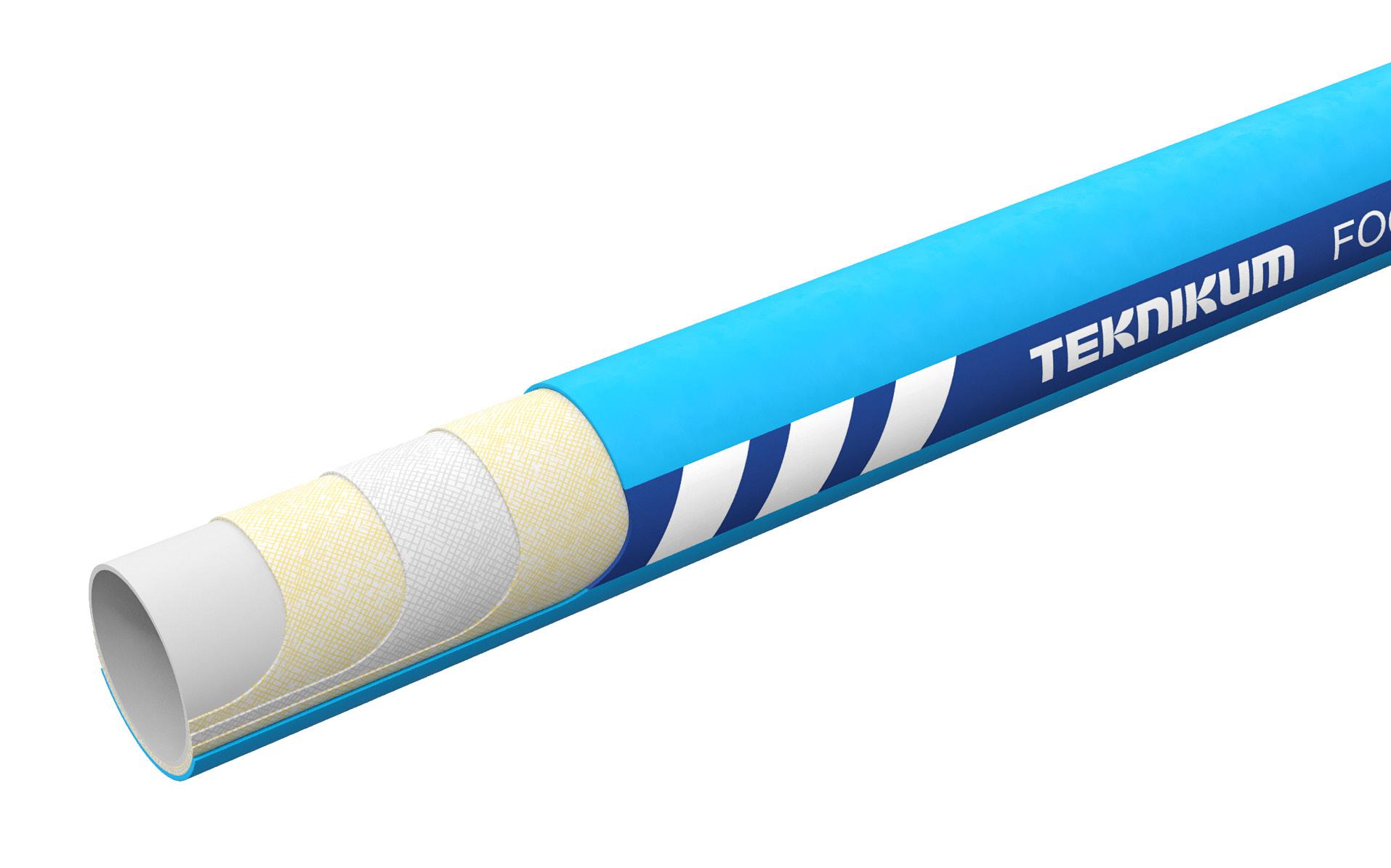

Teknikum FOOD-TEK®
Delivery hose
• Hot water and steam hose
For washing and cleaning in food industry
Excellent weather and ozone resistance
Easy handling
• Hose can be cut on-site
We recommend dairy coupling, swaged clamp, SL-clamp or band clamp for hose tightening
Burst safety factor is 4 x working pressure
- 30°C
+120°C
Druckschlauch
• Heißwasser- und Dampfschlauch
Zum Waschen und Reinigen in der Lebensmittelindustrie
Hervorragende Witterungs- und Ozonbeständigkeit
Einfache Handhabung
• Schlauch kann vor Ort geschnitten werden
Wir empfehlen Molkereikupplungen, gestauchte Schellen, SL-Schellen oder Bandschellen zum Festziehen des Schlauchs
Der Berstsicherheitsfaktor beträgt das 4-fache des Betriebsdrucks
Tuyau de refoulement
• Tuyau d'eau chaude et à vapeur
Pour le lavage et le nettoyage dans l'industrie alimentaire
Excellente résistance aux intempéries et à l'ozone
Facile à manipuler
• Le tuyau peut être coupé sur place Nous recommandons l'utilisation d'un raccord laitier, d'un collier à sertir, d'un collier SL ou d'un collier à bande pour le serrage des tuyaux
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
134 134 Food Check all current product details and specification on product datasheet (QR code):
D
CLEAN
FOOD-TEK® D CLEAN
EPDM EPDM TEXTILE
https://teknikum.com/product/teknikum-food-tek-d-clean/ DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
dimensions available
request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions
Product code Ø i.d. mm Ø o.d. mm Working press. MPa Bending radius mm Weight kg/m Length m Teknikum FOOD-TEK® D CLEAN HCLEAN25013 13 23 2,5 80 0,40 40 HCLEAN15016 16 26 1,5 120 0,40 40 HCLEAN15019 19 29 1,5 160 0,50 40 HCLEAN15025 25 35 1,5 200 0,60 40 HCLEAN15032 32 43 1,5 220 0,80 40 HCLEAN15038 38 50 1,5 250 1,10 40 HCLEAN15050 50 66 1,5 300 1,60 40
Other
on
sont disponibles sur demande.
Teknikum FOOD-TEK® D LACTO
Delivery hose
• Safe and durable hose for industries with high hygienic demands
The hoses inner lining is smooth and it does not transfer odor or taste to transported foodstuffs
Great for fatty and oily foodstuffs
Easy handling
• Before use the hose must be washed with 5 % soda solution
• Hose can be cut on-site
We recommend dairy coupling, swaged clamp, SL-clamp or band clamp for hose tightening
Burst safety factor is 4 x working pressure
Druckschlauch
• Sicherer und langlebiger Schlauch für Industrien mit hohen hygienischen Anforderungen
Die Innenauskleidung des Schlauchs ist glatt und überträgt weder Geruch noch Geschmack auf transportierte Lebensmittel
Ideal für fettige und ölige Lebensmittel Einfache Handhabung
Vor Gebrauch muss der Schlauch mit 5 %iger Sodalösung gewaschen werden
• Schlauch kann vor Ort geschnitten werden
Wir empfehlen Molkereikupplungen, Presshülsen, SL-Schellen oder Bandschellen zum Festziehen des Schlauchs
Der Berstsicherheitsfaktor beträgt das 4-fache des Betriebsdrucks
NBR/PVC
(+130°C) +80°C
Tuyau de refoulement
• Un tuyau sûr et durable pour les industries ayant des exigences élevées en matière d'hygiène
Le revêtement intérieur du tuyau est lisse et ne transmet pas d'odeur ni de goût aux denrées alimentaires transportées
Idéal pour les aliments gras et huileux Facile à manipuler
Avant utilisation, le tuyau doit être lavé avec une solution de soude à 5 %
• Le tuyau peut être coupé sur place Nous recommandons l'utilisation d'un raccord laitier, d'un collier à sertir, d'un collier SL ou d'un collier à bande pour le serrage des tuyaux
Le coefficient de sécurité à l'éclatement est de 4 x la pression de service
135 Check all current product details and specification on product datasheet (QR code):
TEXTILE FOOD-TEK® D LACTO
NBR
- 30°C
Product code Ø i.d. mm Ø o.d. mm Working press. MPa Vacuum max. MPa Bending radius mm Weight kg/m Length m Teknikum FOOD-TEK® D LACTO H1410013 13 23 1,0 0,07 80 0,40 40 H1410019 19 29 1,0 0,07 115 0,50 40 H1410025 25 37 1,0 0,05 150 0,80 40 H1410040 40 58 1,0 0,05 230 1,90 40 H1410050 50 70 1,0 0,05 290 2,60 40 H1410065 65 89 1,0 0,05 440 4,10 40
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES PRODUCT INFORMATION / PRODUKTINFORMATION / INFORMATION PRODUIT
https://teknikum.com/product/teknikum-food-tek-d-lacto/
Other dimensions available on request. / Weitere Größen auf Anfrage erhältlich. / D'autres dimensions sont disponibles sur demande.

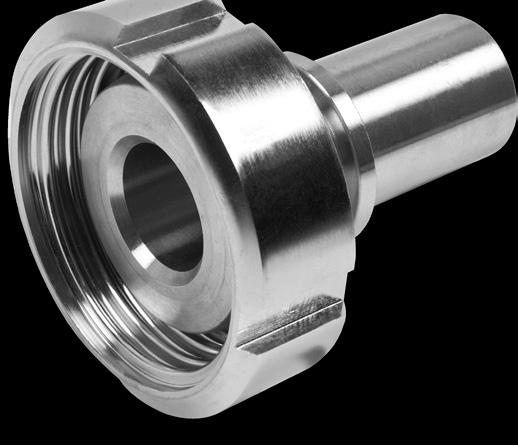

Dairy coupling
SMS 1145
DN 11851
AISI 316 / EN 1.4401
AISI 304 / EN 1.4301
• Hose nipple and union nut for dairy applications. The coupling is connected to a hose using SL-clamp or by swaging.
The coupling is available acc. to either SMS 1145 or DN 11851 standards. Also available on request couplings with male thread and serrated hose shank.
• Schlauchnippel und Überwurfmutter für Molkereianwendungen. Die Kupplung wird mittels SL-Klemme oder durch Crimpen mit einem Schlauch verbunden.
• Die Kupplung ist gem. entweder nach SMS 1145 oder DN 11851 Standards. Auf Anfrage auch Kupplungen mit Außengewinde und geriffeltem Schlauchtülle lieferbar.
• Embout de tuyau et écrou-raccord pour les applications laitières. Le raccord est connecté à un tuyau à l'aide d'un collier SL ou par sertissage. Le raccord est disponible selon la norme SMS 1145 ou DN 11851. Sur demande, des raccords avec filetage mâle et tige de tuyau dentelée sont également disponibles.
KARA-65-DIN 65 AISI 316 / EN 1.4401
11851 / DN 65 MUT-65-DIN
KARA-75-DIN 75 AISI 316 / EN 1.4401 DIN 11851 / DN 80 MUT-75-DIN
KARA-76-DIN 76 AISI 316 / EN 1.4401 DIN 11851 / DN 80 MUT-75-DIN
KARA-100-DIN 100 AISI 316 / EN 1.4401 DIN 11851 / DN 100 MUT-100-DIN
DIN 11851 UNION NUTS
SMS 1145 UNION NUTS
MUT-25 25 AISI 304 / EN 1.4301 SMS 1145 / DN 25 KARA-25
MUT-32 32 AISI 304 / EN 1.4301 SMS 1145 / DN 32 KARA-32
MUT-40 38 / 40 AISI 304 / EN 1.4301 SMS 1145 / DN 40 KARA-38 / KARA-40
MUT-50 51 AISI 304 / EN 1.4301 SMS 1145 / DN 50 KARA-50
MUT-65 63 / 65 AISI 304 / EN 1.4301 SMS 1145 / DN 65 KARA-63 / KARA-65
MUT-75 75 / 76 AISI 304 / EN 1.4301 SMS 1145 / DN 80 KARA-75 / KARA-76
MUT-100 102 AISI 304 / EN 1.4301 SMS 1145 / DN 100 KARA-102
MUT-25-DIN 25 AISI 304 / EN 1.4301 DIN 11851 / DN 25 KARA-25-DIN
MUT-40-DIN 40 AISI 304 / EN 1.4301 DIN 11851 / DN 40 KARA-40-DIN
MUT-50-DIN 50 AISI 304 / EN 1.4301 DIN 11851 / DN 50 KARA-50-DIN
MUT-65-DIN 65 AISI 304 / EN 1.4301 DIN 11851 / DN 65 KARA-65-DIN
MUT-75-DIN 75 / 76 AISI 304 / EN 1.4301 DIN 11851 / DN 80 KARA-75-DIN / KARA-76-DIN
MUT-100-DIN 100 AISI 304 / EN 1.4301 DIN 11851 / DN 100 KARA-100-DIN
https://teknikum.com/product/dairy-coupling/
136 136 Food Check all current product details and specification on product datasheet (QR code):
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
SMS DIN nut nipple nut nipple Product code Hose i.d. Material Standard In connection to SMS 1145 HOSE NIPPLES KARA-25 25 AISI 316 / EN 1.4401 SMS 1145 / DN 25 MUT-25 KARA-32 32 AISI 316 / EN 1.4401 SMS 1145 / DN 32 MUT-32 KARA-38 38 AISI 316 / EN 1.4401 SMS 1145 / DN 40 MUT-40 KARA-40 40 AISI 316 / EN 1.4401 SMS 1145 / DN 40 MUT-40 KARA-50 51 AISI 316 / EN 1.4401 SMS 1145 / DN 50 MUT-50 KARA-63 63 AISI 316 / EN 1.4401 SMS 1145 / DN 65 MUT-65 KARA-65 65 AISI 316 / EN 1.4401 SMS 1145 / DN 65 MUT-65 KARA-75 75 AISI 316 / EN 1.4401 SMS 1145 / DN 80 MUT-75 KARA-76 76 AISI 316 / EN 1.4401 SMS 1145 / DN 80 MUT-75 KARA-102 102 AISI 316 / EN 1.4401 SMS 1145 / DN 100 MUT-100 Product code Hose i.d. Material Standard In connection to DIN 11851 HOSE NIPPLES KARA-25-DIN 25 AISI 316 / EN 1.4401 DIN 11851 / DN 25 MUT-25-DIN KARA-38-DIN 38 AISI 316 / EN 1.4401 DIN 11851
DIN
DIN
/ DN 40 MUT-40-DIN KARA-40-DIN 40 AISI 316 / EN 1.4401
11851 / DN 40 MUT-40-DIN KARA-50-DIN 50 AISI 316 / EN 1.4401
11851 / DN 50 MUT-50-DIN KARA-63-DIN 63 AISI 316 / EN 1.4401 DIN 11851 / DN 63 MUT-65-DIN
DIN
Hose band clamp
SL clamp
• Special clamp for assembling dairy coupling.
Corrugated inner surface, two tightening screws and clamp collar ensure by two ways that the coupling stays in hose: by tightening the hose on the hose shank and by locking the coupling behind the clamp collar. The clamp may also be welded to dairy pipelines which are equipped with ready-installed ring. The ring quarantees the right installation of the SL-clamp and the hose.
The material of the clamp is acid proof steel AISI 316L / EN 1.4404.
There is also available separate spare part to SL-clamps. Bolts and nuts are sold as single pieces.
• Spezialschelle zur Montage von Molkereikupplungen.
Geriffelte Innenfläche, zwei Spannschrauben und Klemmschelle sorgen auf zwei Arten dafür, dass die Kupplung im Schlauch bleibt: durch Festziehen des Schlauchs auf dem Schlauchschaft und durch Verriegeln der Kupplung hinter der Klemmschelle. Die Schelle kann auch an Molkereileitungen geschweißt werden, die mit einem fertig installierten Ring ausgestattet sind. Der Ring garantiert die richtige Montage der SL-Schelle und des Schlauches.
• Das Material der Schelle ist säurebeständiger Stahl AISI 316L / EN 1.4404.
Es ist auch ein separates Ersatzteil für SL-Klemmen erhältlich. Schrauben und Muttern werden einzeln verkauft.
• Collier spécial pour le montage de raccords laitiers.
La surface intérieure striée, les deux vis de serrage et le collier de serrage garantissent que le raccord reste dans le tuyau de deux façons : en serrant le tuyau sur la tige du tuyau et en bloquant le raccord derrière le collier de serrage.
Le collier peut également être soudé sur les conduites de produits laitiers qui sont équipées d'une bague déjà installée. La bague garantit l'installation correcte du collier SL et du tuyau. Le matériau du collier est de l’acier résistant aux acides AISI 316L / EN 1.4404.
Il existe également une pièce de rechange distincte pour les colliers SL. Les boulons et les écrous sont vendus séparément.
137 137 Food Check all current product details and specification on product datasheet (QR code):
DESCRIPTION AND ADVANTAGES BESCHREIBUNG UND VORTEILE DESCRIPTION ET AVANTAGES
Product code Hose i.d. mm Hose o.d. mm Connection screws Mounting screws COMPLETE CLAMPS SLKIR025 25 36 2xM5x25 2xM5x35 SLKIR040 40 51 2xM6x30 2xM6x50 SLKIR050 50 62 2xM6x30 2xM6x50 SLKIR065 63 / 65 81 2xM8x40 2xM8x60 SLKIR075 75 91 2xM8x40 2xM8x60 SLKIR102 102 116 2xM8x40 2xM8x60 Product code Bolt/ Screw In connection to SPARE PART BOLTS FOR CLAMPS SLRUV025 1xM5x25 SLMUT025 SLRUV040 1xM6x30 SLMUT040 SLRUV050 1xM6x30 SLMUT050 SLRUV065 1xM8x40 SLMUT065 SLRUV075 1xM8x40 SLMUT075 SLRUV102 1xM8x40 SLMUT102 Product code Thread In connection to SPARE PART NUTS FOR CLAMPS SLMUT025 M5 SLRUV025 SLMUT040 M6 SLRUV040 SLMUT050 M6 SLRUV050 SLMUT065 M8 SLRUV065 SLMUT075 M8 SLRUV075 SLMUT102 M8 SLRUV102 INSTALLATION RINGS TO BE WELDED INTO PIPELINE SLRUV025 SLRUV040 SLRUV050 SLRUV065 SLRUV075 SLRUV102 https://teknikum.com/product/sl-clamp/ SL clamp
316L
EN 1.4404
AISI
/
and handling instructions
Installation
Teknikum material handling hoses, couplings and flanges
Teknikum material handling hoses, couplings and flanges
Installation and handling instructions
SAFETY RECOMMENDATIONS
Always use approved personal safety equipment. Installation and maintenance must be carried out in compliance with the manufacturer’s instructions and local safety regulations.
RECOMMENDED TOOLS
139 All rights reserved. ©Teknikum Group Ltd 2020
2 4 6
Teknikum GRANIT® coupling and gasket
Teknikum TITAN™ coupling and gasket
Teknikum PLUS™ flange system
1 3 5 7
Teknikum GRANIT® coupling and gasket
140 All rights reserved. ©Teknikum Group Ltd 2020 2 4 6 1 2 3 4
Teknikum PLUS™ flange system
Teknikum TITAN™ coupling and gasket
1 3 5 7
Ø≤305mm 2 parts Ø≥350mm 4 parts
Teknikum material handling hose handling and support
<200mm
>200mm
141 All rights reserved. ©Teknikum Group Ltd 2020
EN - Instructions for washing and disinfecting food quality hoses
The inner rubber tube of food quality hoses generally does not add any flavors or odors to the material being transferred. However, prolonged storage or improper handling may result in taste nuisance. Therefore, before initial installation, the hoses should be steamed twice with +130°C steam for a maximum of 20 minutes at a time, with occasional cooling.
Alternatively, the hose can be rinsed for 24 hours with a solution of 4g of sodium hydroxide and 5.8g of common salt in a liter of water at + 40°C. After treatment, the hose must always be rinsed with drinkable water.
The chemical resistance of hoses is affected by many factors, e.g. operating temperature, chemical properties of the substance to be transferred, rate and time of transfer. It is difficult to give precise washing and disinfection recommendations unless the actual conditions of use are known.
The information given in the table below is based on studies performed under laboratory conditions. No guarantee can be given as to the suitability of the substances, as the actual conditions of use vary. All information given in the table is indicative.
Washing and disinfection recommendations
For hoses with natural rubber tube:
Substance Recommended use
Hot water 80°C, max. 30min
Steam 100°C, max. 60min
130°C, max. 20min
Sodium hydroxide 2%, 20°C
Phosphoric acid 5%, 20°C 1%, 70°C
Nitric acid 2%, 20°C
Sulfuric acid 3%, 20°C 1%, 40°C
For hoses with nitrile rubber tube:
Substance Recommended use
Hot water 95°C, max. 30min
Steam 110°C, max. 60min
130°C, max. 20min
Sodium hydroxide 5%, 20°C 2%, 85°C
Phosphoric acid 5%, 20°C 1%, 70°C
Nitric acid 2%, 20°C 0,2%, 60°C
Sulfuric acid 3%, 20°C 1%, 40°C
Hydrogen peroxide 0,3%, 20°C
For hoses with UPE rubber tube:
Substance Recommended use
Hot water 95°C, max. 30min
Steam 110°C, max. 60min
130°C, max. 20min
Sodium hydroxide 10%, 20°C
5%, 90°C
Phosphoric acid 10%, 20°C 3%, 80°C
Nitric acid 5%, 20°C 2%, 90°C
Sulfuric acid 5%, 20°C 3%, 90°C
Hydrogen peroxide 2%, 50°C
142 INFO
EN - Teknikum® industrial hoses and services
Rubber as material - benefits
As a flexible material rubber enables several advantages to engineering, to operation as well as to maintenance, no matter if the case is light washing hose or heavy-duty slurry hose pipeline. For example, rubber hose attachment point can be fixed easily in the process, and the kintetic energy of the transferred material is absorbed by rubber hose.
As a flexible element in the construction a rubber hose attenuates e.g. wearing movement or vibration from pumps. Additionally, a rubber hose recovers from deformation.
The prices in the price list are retail prices and only for stock items. Currency is EUR, value added tax 0% and the prices are based on delivery terms FCA shipping point, Incoterms 2010. For deliveries we apply NL17 General Conditions. Stock items delivered ex-stock, subject to prior sale.
Packaging - wooden pallet or cage
We supply our hoses mainly in a way that up to inner/nominal diameter 150 mm hoses are coiled and packed on a wood pallet (price 12,00 €/pc, will be charged separately).
Bigger hoses are supplied mainly in straight position and packed in a wooden cage, in a special long wood pallet or in a wood box (pricing according to the size). Please contact to our sales when concerning the right packing.
SERVICES
Cutting hoses
Please ask more from our sales.
Other additional services
We provide according to customer need: hose and coupling assembly works, hose and hose assembly pressure proof tests as well as different kind of certificates and documents (e.g. Declaration of compliance, material certificate and different kind of inspection/test reports). Please ask more about these from our sales.
HOSE TYPES & APPLICATIONS
Applications
Straight hoses are used in several applications, e.g. in foodstuff, chemical, construction, mining and machinery industries.
We have divided our standard hoses into product groups according to transferred materials and use application. In addition to this, the customer should pay attention to several other issues, e.g. working pressure, working temperature and chemical resistance.
Custom hoses & assemblies
In addition to the standard hoses, we manufacture customer specific hoses and hose assemblies. The requirements of those hoses and hose assemblies originates e.g. from customer´s will, use application, regulations and legislation. Ask more from our sales engineers.
Hose tolerances & standards
Our straight hose dimensions comply mainly with the requirements of the standard (SFS-EN) ISO 1307. In case of more specific standard those requirements are followed. Hose outer diameter and wall thickness tolerances are not complied simultaneously.
If more specific information is needed, please contact to our sales. Our standard hose tolerances are as following.
Storage
When keeping rubber hose products in storage or for maintenance operations for rubber hoses we highly recommend seeing standard EN ISO 8331 – Rubber and plastics hoses and hose assemblies – Guidelines for selection, storage, use and maintenance.
143
Length mm Tolerance L ≤ 300 ± 3 mm 300 < L ≤ 600 ± 4,5 mm 600 < L ≤ 900 ± 6 mm 900 < L ≤ 1200 ± 9 mm 1200 < L ≤ 1800 ± 12 mm L > 1800 ± 1 % Nominal outer diameter mm Tolerance OD < 11 ± 0,6 mm 11 ≤ OD < 21 ± 1,0 mm 21 ≤ OD < 30 ± 1,2 mm 30 ≤ OD < 50 ± 1,6 mm 50 ≤ OD < 70 ± 2,0 mm 70 ≤ OD < 100 ± 2,0 mm 100 ≤ OD < 130 ± 2,0 mm 130 ≤ OD < 175 ± 2,0 mm 175 ≤ OD < 225 ± 2 % 225 ≤ OD < 316 ± 2 % OD ≥ 316 ± 2 % Nominal wall thickness mm Tolerance W < 3 ± 0,4 mm 3 ≤ W < 6 ± 0,5 mm 6 ≤ W < 10 ± 0,6 mm 10 ≤ W < 18 ± 0,8 mm 18 ≤ W < 30 ± 1,0 mm 30 ≤ W < 50 ± 2,0 mm W ≥ 50 ± 2,0 mm
DE - Wasch- und Desinfektionsanleitung für Lebensmittelschläuche
Der innere Gummischlauch von Lebensmittelschläuchen verursacht in der Regel keine Geschmacks- oder Geruchsbeeinträchtigungen des zu fördernden Materials. Eine längere Lagerung oder eine unsachgemäße Handhabung kann jedoch zu Geschmacksabweichungen führen. Daher sollten die Schläuche vor der Erstinstallation zwei Mal mit +130 °C heißem Dampf für jeweils maximal 20 Minuten mit zwischenzeitlicher Abkühlung behandelt werden.
Alternativ kann der Schlauch für 24 Stunden mit einer Lösung aus 4 g Natriumhydroxid und 5,8 g Kochsalz auf einen Liter Wasser bei +40 °C gespült werden. Anschließend muss der Schlauch mit Trinkwasser gespült werden.
Die Chemikalienbeständigkeit von Schläuchen wird von vielen Faktoren beeinflusst, z. B. Betriebstemperatur, chemische Eigenschaften der zu fördernden Substanz, Geschwindigkeit und Dauer der Förderung. Genaue Waschund Desinfektionsempfehlungen können nur bei bekannten Verwendungsbedingungen gegeben werden.
Die Informationen in der folgenden Tabelle basieren auf Studien, die unter Laborbedingungen durchgeführt wurden. Die Eignung der Substanzen kann nicht garantiert werden, da die tatsächlichen Verwendungsbedingungen variieren. Sämtliche Informationen in der Tabelle sind indikativ.
Wasch- und Desinfektionsempfehlungen
Für Schläuche mit NR-Seele:
Substanz Empfohlene Verwendung
Heißes Wasser
Dampf
80 °C, max. 30 min
100 °C, max. 60 min
130 °C, max. 20 min
Natriumhydroxid 2 %, 20 °C
Phosphorsäure 5 %, 20 °C
1 %, 70 °C
Salpetersäure 2 %, 20 °C
Schwefelsäure 3 %, 20 °C
1 %, 40 °C
Für Schläuche mit NBR-Seele:
Substanz
Empfohlene Verwendung
Heißes Wasser 95 °C, max. 30 min
Dampf 110 °C, max. 60 min
130 °C, max. 20 min
Natriumhydroxid 5 %, 20 °C
2 %, 85 °C
Phosphorsäure 5 %, 20 °C
1 %, 70 °C
Salpetersäure 2 %, 20 °C
0,2 %, 60 °C
Schwefelsäure 3 %, 20 °C
1 %, 40 °C
Wasserstoffperoxid 0,3 %, 20 °C
Für Schläuche mit UPE-Seele:
Substanz Empfohlene Verwendung
Heißes Wasser 95 °C, max. 30 min
Dampf 110 °C, max. 60 min
130 °C, max. 20 min
Natriumhydroxid 10 %, 20 °C
5 %, 90 °C
Phosphorsäure 10 %, 20 °C
3 %, 80 °C
Salpetersäure 5 %, 20 °C
2 %, 90 °C
Schwefelsäure 5 %, 20 °C
3 %, 90 °C
Wasserstoffperoxid 2 %, 50 °C
144
DE - Teknikum® Industrieschläuche und Dienstleistungen
Gummi als Material - Vorteile
Das flexible Material bietet zahlreiche Vorteile für Planung, Betrieb und Wartung, ganz gleich, ob es sich um einen leichten Reinigungsschlauch oder eine Hochleistungsschlauchleitung für Schlämme handelt. Beispielsweise kann der Befestigungspunkt für einen Gummischlauch im Verfahren leicht fixiert werden und die kinetische Energie des geförderten Materials wird von dem Gummischlauch absorbiert.
Als flexibles Element in einer Anlage dämpft ein Gummischlauch z. B. Verschleißbewegungen oder Vibrationen von Pumpen. Darüber hinaus gleicht ein Gummischlauch Verformungen wieder aus.
Die Preise in der Preisliste sind Einzelhandelspreise und gelten nur für Lagerartikel. Die Währung ist EUR, die Mehrwertsteuer beträgt 0 % und die Preise basieren auf den Lieferbedingungen FCA Versandstelle, Incoterms 2010. Für Lieferungen gelten NL17 Allgemeine Bedingungen. Lagerartikel werden ab Lager geliefert, Zwischenverkauf vorbehalten.
Verpackung - Holzpalette oder Holzkiste
Wir liefern unsere Schläuche bis zu einem Innen-/Nenndurchmesser von 150 mm hauptsächlich aufgerollt und verpackt auf Holzpaletten (Preis 12,00 €/Stk., wird separat berechnet).
Größere Schläuche werden hauptsächlich in gerader Position in Holzkisten, auf langen Spezialholzpaletten oder in Holzkisten geliefert (Preis je nach Größe). Bitte wenden Sie sich für die korrekte Verpackung an unser Vertriebsteam.
DIENSTLEISTUNGEN
Schneiden von Schläuchen
Erkundigen Sie sich bitte bei unserem Vertriebsteam.
Weitere Dienstleistungen
Wir liefern nach Kundenbedarf: Schlauch- und Kupplungsmontagearbeiten, Überlastungsdruckprüfungen für Schläuche und Schlauchleitungen sowie verschiedene Zertifikate und Dokumente (z. B. Konformitätserklärung, Materialzertifikate sowie verschiedene Kontroll-/Prüfberichte). Weitere Informationen hierzu erhalten Sie von unserem Vertriebsteam.
SCHLAUCHTYPEN UND ANWENDUNGEN
Anwendungen
Gerade Schläuche kommen in einer Reihe von Anwendungen zum Einsatz, z. B. in der Lebensmittel-, Chemie-, Bau-, Bergbau- und Maschinenbauindustrie.
Unsere Standardschläuche sind in Produktgruppen eingeteilt, die sich nach den zu fördernden Materialien und Anwendungen richten. Darüber hinaus sollte der Kunde einige weitere Punkte berücksichtigen, z. B. Arbeitsdruck, Arbeitstemperatur und Chemikalienbeständigkeit.
Kundenspezifische Schläuche und Schlauchleitungen
Neben den Standardschläuchen stellen wir auch kundenspezifische Schläuche und Schlauchleitungen her. Die Anforderungen für diese Schläuche und Schlauch-
leitungen ergeben sich u. a. aus den Kundenwünschen, Anwendungszwecken, Vorschriften und Gesetzen. Weitere Informationen erhalten Sie von unserem Vertriebsteam.
Schlauchtoleranzen und -standards
Die Abmessungen unserer geraden Schläuche erfüllen größtenteils die Anforderungen der Norm (SFS-EN) ISO 1307. Bei spezifischeren Normen werden diese Anforderungen befolgt. Der Außendurchmesser des Schlauchs und die Toleranzen der Wanddicke werden nicht gleichzeitig erfüllt.
Wenn Sie genauere Informationen benötigen, wenden Sie sich bitte an unser Vertriebsteam. Unsere Standardschlauchtoleranzen sind wie folgt.
Lagerung
Bei der Lagerung von Gummischläuchen oder bei Wartungsarbeiten an Gummischläuchen empfehlen wir dringend die Berücksichtigung der Norm EN ISO 8331 – Gummi- und Kunststoffschläuche und -schlauchleitungen – Richtlinien für die Auswahl, Lagerung, Verwendung und Wartung.
Länge mm Toleranz
L ≤ 300 ± 3 mm
300 < L ≤ 600 ± 4,5 mm
600 < L ≤ 900 ± 6 mm
900 < L ≤ 1200 ± 9 mm
1200 < L ≤ 1800 ± 12 mm
L > 1800 ± 1 %
Nominaler Außendurchmesser mm
Toleranz
AD < 11 ± 0,6 mm
11 ≤ AD < 21 ± 1,0 mm
21 ≤ AD < 30 ± 1,2 mm
30 ≤ AD < 50 ± 1,6 mm
50 ≤ AD < 70 ± 2,0 mm
70 ≤ AD < 100 ± 2,0 mm
100 ≤ AD < 130 ± 2,0 mm
130 ≤ AD < 175 ± 2,0 mm
175 ≤ AD < 225 ± 2 %
225 ≤ AD < 316 ± 2 %
AD ≥ 316 ± 2 %
Nominale Wanddicke mm
Toleranz
W < 3 ± 0,4 mm
3 ≤ W < 6 ± 0,5 mm
6 ≤ W < 10 ± 0,6 mm
10 ≤ W < 18 ± 0,8 mm
18 ≤ W < 30 ± 1,0 mm
30 ≤ W < 50 ± 2,0 mm
W ≥ 50 ± 2,0 mm
145
FR - Instructions de nettoyage et de désinfection des flexibles de qualité alimentaire
En général, le tube intérieur en caoutchouc des flexibles de qualité alimentaire ne laisse pas de goût ni d’odeur à la matière transférée. Cependant, un stockage prolongé ou une manipulation incorrecte risque d’altérer le goût des matières transférées. Par conséquent, avant l’installation initiale, les flexibles doivent être étuvés deux fois à une température de vapeur de 130 °C pour un maximum de 20 minutes à la fois, avec un refroidissement intermittent.
Une solution alternative consiste à rincer le flexible pendant 24 heures avec une solution de 4 g d’hydroxyde de sodium et de 5,8 g de sel ordinaire dans un litre d’eau à + 40 °C. Après le traitement, le flexible doit toujours être rincé à l’eau potable.
La résistance chimique des flexibles est conditionnée par de nombreux facteurs, notamment la température de service, les propriétés chimiques de la substance à transférer, la vitesse et la durée de transfert. Il est difficile de fournir des recommandations précises pour le nettoyage et la désinfection, sauf si les conditions réelles d’utilisation sont connues.
Les informations indiquées dans le tableau ci-dessous sont basées sur des études réalisées dans des conditions de laboratoire. Aucune garantie ne peut être donnée quant à l’aptitude des substances, car les conditions réelles d’utilisation varient. Toutes les données du tableau sont fournies à titre indicatif.
Recommandations de nettoyage et de désinfection
Pour les flexibles avec tube intérieur en caoutchouc :
Substance
Eau chaude
Vapeur
Utilisation recommandée
80 °C, 30 min max.
100 °C, 60 min max.
130 °C, 20 min max.
Hydroxyde de sodium 2 %, 20 °C
Acide phosphorique 5 %, 20 °C
1 %, 70 °C
Acide nitrique 2 %, 20 °C
Acide sulfurique 3 %, 20 °C
1 %, 40 °C
Pour les flexibles avec tube en caoutchouc nitrile :
Substance Utilisation recommandée
Eau chaude
Vapeur
95 °C, 30 min max.
110 °C, 60 min max.
130 °C, 20 min max.
Hydroxyde de sodium 5 %, 20 °C
2 %, 85 °C
Acide phosphorique 5 %, 20 °C
1 %, 70 °C
Acide nitrique 2 %, 20 °C
0,2 %, 60 °C
Acide sulfurique 3 %, 20 °C
1 %, 40 °C
Peroxyde d’hydrogène 0,3 %, 20 °C
Pour les flexibles avec tube en caoutchouc
UPE :
Substance Utilisation recommandée
Eau chaude 95 °C, 30 min max.
Vapeur
110 °C, 60 min max.
130 °C, 20 min max.
Hydroxyde de sodium 10 %, 20 °C
5 %, 90 °C
Acide phosphorique 10 %, 20 °C
3 %, 80 °C
Acide nitrique 5 %, 20 °C
2 %, 90 °C
Acide sulfurique 5 %, 20 °C
3 %, 90 °C
Peroxyde d’hydrogène 2 %, 50 °C
146
FR - concernant les flexibles industriels et les services Teknikum®
Avantages du caoutchouc en tant que matériau
En tant que matériau flexible, le caoutchouc offre divers avantages dans le secteur de l’ingénierie, que ce soit en termes d’utilisation ou de maintenance, qu’il s’agisse d’un flexible léger de nettoyage ou d’un tuyau rigide de conduite de boues. Par exemple, le point de fixation du flexible en caoutchouc peut être facilement attaché dans le processus, et l’énergie cinétique de la matière transférée est absorbée par le flexible en caoutchouc.
Le flexible en caoutchouc, un élément souple dans la construction, atténue notamment le mouvement d’usure ou les vibrations des pompes. De plus, un flexible en caoutchouc retrouve sa forme après déformation.
Les prix indiqués dans la liste de prix sont des prix de détail et ils ne s’appliquent qu’aux articles en stock. La devise est l’euro (EUR), la taxe sur la valeur ajoutée est de 0 % et les prix sont basés sur les conditions de livraison FCA point d’expédition, Incoterms 2010. Pour les livraisons, nous appliquons les Conditions générales NL17. Les articles en stock sont livrés depuis le stock, sous réserve de vente intermédiaire.
Conditionnement - palette en bois ou cage
Nous fournissons nos flexibles généralement de sorte que les flexibles jusqu’à un diamètre intérieur/nominal de 150 mm soient enroulés et conditionnés sur une palette en bois (un tarif de 12,00 €/unité est facturé séparément).
Les flexibles d’un diamètre plus large sont fournis principalement en position droite et conditionnés dans une cage en bois, sur une longue palette en bois spéciale ou dans une boîte en bois (tarification en fonction des dimensions). Veuillez contacter notre service commercial pour convenir d’un conditionnement adéquat.
SERVICES
Découpe de flexibles
Veuillez vous adresser à notre service commercial pour plus d’informations.
Autre services supplémentaires
Nous proposons des services répondant aux besoins de nos clients : travaux d’assemblage de flexibles et de coupleurs, essais de pression d’assemblage de flexibles ainsi que différents types de certificats et de documents (par exemple Déclaration de conformité, certificat matière et différents types d’inspection/de rapports d’essais). Veuillez vous adresser à notre service commercial pour plus d’informations à ce sujet.
TYPES DE FLEXIBLES ET APPLICATIONS
Applications
Les flexibles droits sont utilisés dans diverses applications, notamment les industries alimentaire, chimique, de la construction, minière et des machines.
Nous avons réparti nos flexibles standard dans des groupes de produits selon les matières transférées et l’application finale. En outre, le client doit prêter attention à plusieurs autres aspects, notamment la pression de service, la température de service et la résistance chimique.
Flexibles et assemblages personnalisés
En plus des flexibles standard, nous fabriquons des flexibles et des assemblages de flexibles spécifiques au client. Les exigences de ces flexibles et assemblages de flexibles proviennent par exemple de la volonté du client, de l’application d’utilisation, des règlements et de la législation. Demandez plus d’informations à nos ingénieurs de vente.
Tolérances des flexibles et normes
Les dimensions de nos flexibles droits sont principalement en conformité avec les exigences de la norme (SFS-EN) ISO 1307. En cas de normes plus spécifiques, ces exigences sont suivies. Les tolérances de diamètre extérieur et d’épaisseur de paroi des flexibles ne sont pas respectées simultanément.
Si des informations plus spécifiques sont nécessaires, veuillez contacter notre service commercial. Les tolérances de nos flexibles standard sont celles indiquées ci-dessous.
Stockage
Pour le stockage des flexibles en caoutchouc ou pour les opérations de maintenance des flexibles en caoutchouc, nous recommandons vivement la consultation de la norme EN ISO 8331 – Tuyaux et flexibles en caoutchouc et en plastique – Lignes directrices pour la sélection, le stockage, l'utilisation et la maintenance.
Longueur mm
Tolérance
L ≤ 300 ± 3 mm
300 < L ≤ 600
4,5 mm
600 < L ≤ 900 ± 6 mm
900 < L ≤ 1200 ± 9 mm
1200 < L ≤ 1800
12 mm L > 1800
1
Épaisseur de paroi nominale mm
147
±
±
% Diamètre extérieur nominal mm Tolérance OD < 11 ± 0,6 mm 11 ≤ OD < 21 ± 1,0 mm 21 ≤ OD < 30 ± 1,2 mm 30 ≤ OD < 50 ± 1,6 mm 50 ≤ OD < 70 ± 2,0 mm 70 ≤ OD < 100 ± 2,0 mm 100 ≤ OD < 130 ± 2,0 mm 130 ≤ OD < 175 ± 2,0 mm 175 ≤ OD < 225 ± 2 % 225 ≤ OD < 316 ± 2 % OD ≥ 316 ± 2 %
±
Tolérance W < 3 ± 0,4 mm 3 ≤ W < 6 ± 0,5 mm 6 ≤ W < 10 ± 0,6 mm 10 ≤ W < 18 ± 0,8 mm 18 ≤ W < 30 ± 1,0 mm 30 ≤ W < 50 ± 2,0 mm W ≥ 50 ± 2,0 mm
Teknikum is the official partner for Finnish Men’s Artistic Gymnastics national team.
Technical. Flexible. Strong. World-Class.
9/ 2023
