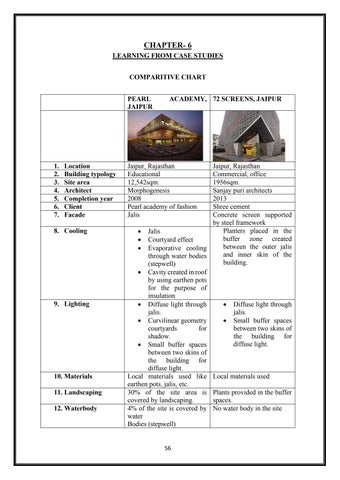

CHAPTER- 6 LEARNING FROM CASE STUDIES COMPARITIVE CHART PEARL JAIPUR
1. 2. 3. 4. 5. 6. 7.
Location Building typology Site area Architect Completion year Client Facade
8. Cooling
9. Lighting
10. Materials 11. Landscaping 12. Waterbody
ACADEMY, 72 SCREENS, JAIPUR
Jaipur, Rajasthan Educational 12,542sqm. Morphogenesis 2008 Pearl academy of fashion Jalis
Jaipur, Rajasthan Commercial, office 1956sqm. Sanjay puri architects 2013 Shree cement Concrete screen supported by steel framework Planters placed in the • Jalis buffer zone created • Courtyard effect between the outer jalis • Evaporative cooling and inner skin of the through water bodies building. (stepwell) • Cavity created in roof by using earthen pots for the purpose of insulation • Diffuse light through • Diffuse light through jalis. jalis. • Curvilinear geometry • Small buffer spaces courtyards for between two skins of shadow. the building for diffuse light. • Small buffer spaces between two skins of the building for diffuse light. Local materials used like Local materials used earthen pots, jalis, etc. 30% of the site area is Plants provided in the buffer covered by landscaping. spaces. 4% of the site is covered by No water body in the site water Bodies (stepwell)
56
