PASSIVE TECHNIQUES IN HOT & DRY CLIMATE

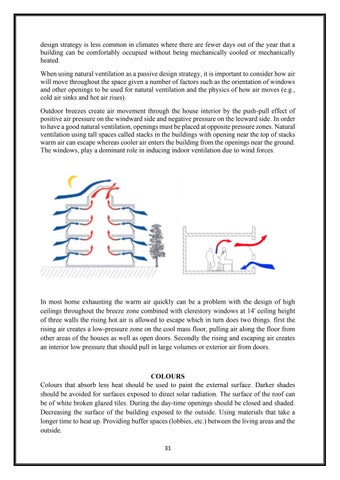

Page 31

design strategy is less common in climates where there are fewer days out of the year that a building can be comfortably occupied without being mechanically cooled or mechanically heated. When using natural ventilation as a passive design strategy, it is important to consider how air will move throughout the space given a number of factors such as the orientation of windows and other openings to be used for natural ventilation and the physics of how air moves (e.g., cold air sinks and hot air rises). Outdoor breezes create air movement through the house interior by the push-pull effect of positive air pressure on the windward side and negative pressure on the leeward side. In order to have a good natural ventilation, openings must be placed at opposite pressure zones. Natural ventilation using tall spaces called stacks in the buildings with opening near the top of stacks warm air can escape whereas cooler air enters the building from the openings near the ground. The windows, play a dominant role in inducing indoor ventilation due to wind forces.

In most home exhausting the warm air quickly can be a problem with the design of high ceilings throughout the breeze zone combined with clerestory windows at 14' ceiling height of three walls the rising hot air is allowed to escape which in turn does two things. first the rising air creates a low-pressure zone on the cool mass floor, pulling air along the floor from other areas of the houses as well as open doors. Secondly the rising and escaping air creates an interior low pressure that should pull in large volumes or exterior air from doors.

COLOURS Colours that absorb less heat should be used to paint the external surface. Darker shades should be avoided for surfaces exposed to direct solar radiation. The surface of the roof can be of white broken glazed tiles. During the day-time openings should be closed and shaded. Decreasing the surface of the building exposed to the outside. Using materials that take a longer time to heat up. Providing buffer spaces (lobbies, etc.) between the living areas and the outside. 31
