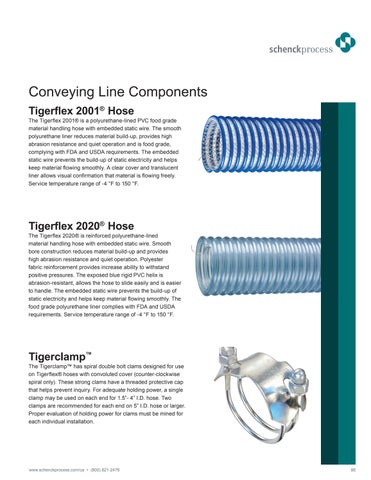

Conveying Line Components Tigerflex 2001® Hose
The Tigerflex 2001® is a polyurethane-lined PVC food grade material handling hose with embedded static wire. The smooth polyurethane liner reduces material build-up, provides high abrasion resistance and quiet operation and is food grade, complying with FDA and USDA requirements. The embedded static wire prevents the build-up of static electricity and helps keep material flowing smoothly. A clear cover and translucent liner allows visual confirmation that material is flowing freely. Service temperature range of -4 °F to 150 °F.
Tigerflex 2020® Hose
The Tigerflex 2020® is reinforced polyurethane-lined material handling hose with embedded static wire. Smooth bore construction reduces material build-up and provides high abrasion resistance and quiet operation. Polyester fabric reinforcement provides increase ability to withstand positive pressures. The exposed blue rigid PVC helix is abrasion-resistant, allows the hose to slide easily and is easier to handle. The embedded static wire prevents the build-up of static electricity and helps keep material flowing smoothly. The food grade polyurethane liner complies with FDA and USDA requirements. Service temperature range of -4 °F to 150 °F.
Tigerclamp™
The Tigerclamp™ has spiral double bolt clams designed for use on Tigerflex® hoses with convoluted cover (counter-clockwise spiral only). These strong clams have a threaded protective cap that helps prevent inquiry. For adequate holding power, a single clamp may be used on each end for 1.5”- 4” I.D. hose. Two clamps are recommended for each end on 5” I.D. hose or larger. Proper evaluation of holding power for clams must be mined for each individual installation.
www.schenckprocess.com/us • (800) 821-2476
86
