Separation Magnets

Conveying Line Components

Separation Magnets

Clean Flow™ Drawer-In-Housing Magnet

Recommended for the plastics industry to ensure a pure product flow and protect machinery

Reduces downtime

Cast in three sizes

Available options: purging spout, dump tube, slide gate and NPT plugs

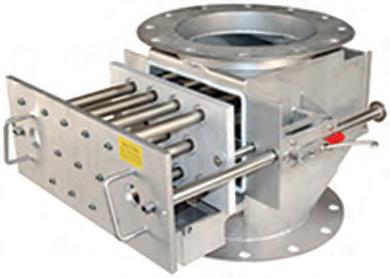

EZ Clean Drawer-In-Housing

Removes ferrous tram metal from dry, bulk products in a gravity fed system

Available in standard and custom sizes, this extremely powerful magnetic separator can remove very fine ferrous material

Cleaning is made easy by simply pulling the magnetic drawer through the stripper seals, allowing collected tramp metal to fall free of the magnets Clean Flow™ Drawer-In-Housing Magnet

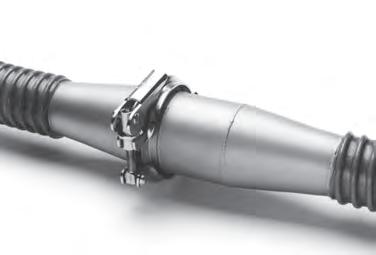

Vacuum 4JIT

Provides machinery protection and product purification for

Just-In-Time material systems in the plastics industry

Captures ferrous tramp metal from pellets that could cause expensive damage to processing equipment

Available from 1.5” to 2.5 “ line sizes Vacuum 4JIT

Exposed Pole (E.P.) Tube Magnet

Used in pneumatic systems to control ferrous tramp metal in the lines

Used where product lumping or larger physical size of a product is evident

Located outside the assembly and does not restrict flow of product

Ideal for receiving areas

Available in most standard line sizes

Single probe box accepts one probe of any standard size

Bullet™ Magnet

Bullet™ Magnets can be used anywhere in a pneumatic system to remove tramp metal in receiving areas or ahead of process equipment

The straight-through flow of the Bullet™ Magnet allows trump metal to be removed from the line with negligible line pressure loss.

The tramp metal is captured and remains on the magnetic poles

Bullet™ Magnets are available in a variety of sizes and can be mounted in any position or angle

A lexan window, built into the removable cover, enables plant personnel to observe pneumatic flow and tramp metal collection during operation

It has a magnetic loss approximately .5 of 1 percent per 100 years
