Cam and Groove Couplings

Conveying Line Components

Cam and Groove Couplings

Eight standard couplings pictured Swivel, reducing and special couplings available Materials of construction vary Sizes 5” and 8”-12” are not industry interchangeable

Part A Male Adapters - Female Thread Part B Female Couplers - Male Thread Sizes 0.50” 0.75” 1.00” 1.25” 1.50” 2.00” 2.50” 3.00” 4.00” 5.00” 6.00”

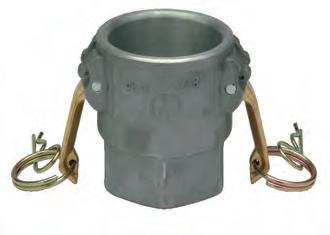

Part C Female Couplers - Hose Shank Part D Female Couplers - Female Thread Part E Male Adapters - Hose Shank
