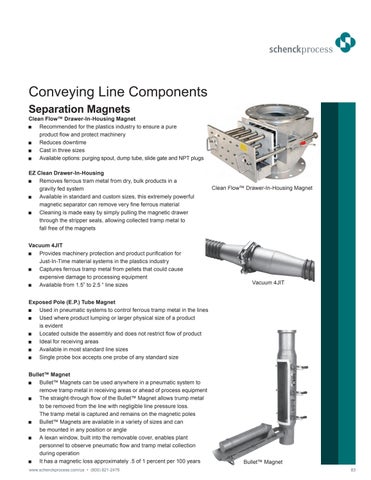

Conveying Line Components Separation Magnets
Clean Flow™ Drawer-In-Housing Magnet Recommended for the plastics industry to ensure a pure product flow and protect machinery Reduces downtime Cast in three sizes Available options: purging spout, dump tube, slide gate and NPT plugs EZ Clean Drawer-In-Housing Removes ferrous tram metal from dry, bulk products in a gravity fed system Available in standard and custom sizes, this extremely powerful magnetic separator can remove very fine ferrous material Cleaning is made easy by simply pulling the magnetic drawer through the stripper seals, allowing collected tramp metal to fall free of the magnets Vacuum 4JIT Provides machinery protection and product purification for Just-In-Time material systems in the plastics industry Captures ferrous tramp metal from pellets that could cause expensive damage to processing equipment Available from 1.5” to 2.5 “ line sizes
Clean Flow™ Drawer-In-Housing Magnet
Vacuum 4JIT
Exposed Pole (E.P.) Tube Magnet Used in pneumatic systems to control ferrous tramp metal in the lines Used where product lumping or larger physical size of a product is evident Located outside the assembly and does not restrict flow of product Ideal for receiving areas Available in most standard line sizes Single probe box accepts one probe of any standard size Bullet™ Magnet Bullet™ Magnets can be used anywhere in a pneumatic system to remove tramp metal in receiving areas or ahead of process equipment The straight-through flow of the Bullet™ Magnet allows trump metal to be removed from the line with negligible line pressure loss. The tramp metal is captured and remains on the magnetic poles Bullet™ Magnets are available in a variety of sizes and can be mounted in any position or angle A lexan window, built into the removable cover, enables plant personnel to observe pneumatic flow and tramp metal collection during operation It has a magnetic loss approximately .5 of 1 percent per 100 years www.schenckprocess.com/us • (800) 821-2476
Bullet™ Magnet 83
