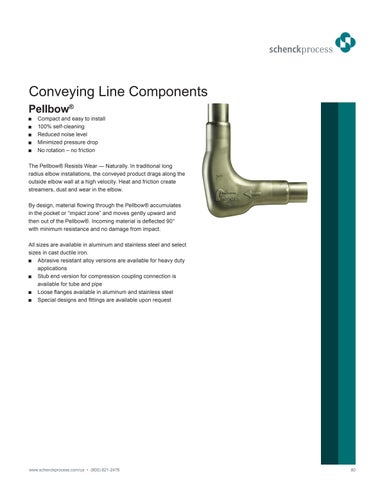

Conveying Line Components Pellbow®
Compact and easy to install 100% self-cleaning Reduced noise level Minimized pressure drop No rotation – no friction
The Pellbow® Resists Wear — Naturally. In traditional long radius elbow installations, the conveyed product drags along the outside elbow wall at a high velocity. Heat and friction create streamers, dust and wear in the elbow. By design, material flowing through the Pellbow® accumulates in the pocket or “impact zone” and moves gently upward and then out of the Pellbow®. Incoming material is deflected 90° with minimum resistance and no damage from impact. All sizes are available in aluminum and stainless steel and select sizes in cast ductile iron. Abrasive resistant alloy versions are available for heavy duty applications Stub end version for compression coupling connection is available for tube and pipe Loose flanges available in aluminum and stainless steel Special designs and fittings are available upon request
