Studio 701
Lac de Déni Malick Gueye Diamniadio Lake City Design
Echin Li, Yucheng Feng, Shihang Yan
Hailey Hyun, Christian Butts, Sylvanus Duamor,
Instructors: David, Ellen
Dakar, Senegal
Bridge the divide —
The formal and informal The planned and organic Diversity and Harmony
01
Site Background
Introduction to Diamniadio
● Regional Connection & The Corridor Plan
● Diamniadio & The Master Plan
Site Features
● Diverse Resources
● Current Status
Regional Connection
Transportation & Urbanization (Relocation)
Ecological Connections
Agriculture
Green & Blue
Proposed Regional Corridor Plan
Lake City
Proposed Connection
Informal
Incubator
Diamniadio - The Expected Hub
As the industrial / business / education / sport / R & D / macro transportation hub, Diamniadio is planned in ISOLATION with depleting blue-green networks, unbalanced and inequitable housing & infrastructure, segregated transportation, and monotonous development and urban life.
Proposed Master Plan
Diverse Resources
Current Status
Challenges & Opportunities
Challenges - Opportunities
● Limited Accessibility
● Broken Ecological Network
● Underutilized Public Spaces
● Lack of Inclusivity
Summary
Limited Accessibility
Megastructure as Barriers Unwalkable & Uninviting Networks
Opportunities: TOD with Regional POIs, Diverse Contexts for Pedestrian-Friendly Networks, Community Needs of Accessibility
Achieve complete multi-model transportation system that breaks barriers and serves local communities. Develop characterized and invigorated micro and public networks under diverse ecological / cultural / commercial contexts.
Broken Ecological Network
Opportunities: Wetland Ecotourism, Waterfront Public Spaces, Multi-functional Community Spaces, Traffic Development.
Achieve greater integration of the lake with surrounding settlements. Develop commercial corridors to activate streets and ro ads. Develop parks and green infrastructure using exiting lakes, wetlands, and other greenery.
Lack of Buffer Zone
Land Farm Depletion (Flooding)
Broken Green Infrastructure
Underutilized Public Space
Opportunities: Large-Vacant lands, Diverse Cultural & Ecological Resources, Multi-Functional Demand & Potential of Communities
Build diverse and characterized strong interactive public systems. Promote community engagement and interactions. Full fill s ocial, economic, recreational, cultural, sport needs of communities with Activity Stewards. Develop rhythmic corridors as Attractors
Lack of Inclusivity
Socio-Economic Segregation (Housing / Working)
to Integrate the Cultural & Community Characters
Opportunities: Mixed-Use TOD, (Eco)tourism, Diverse Communities, Small Business Opportunities, Urban-Rural Interface, Institutions
Build mixed-use community-centric development. Break segregation through vibrant and inclusive hubs and corridors. Develop equitable incubators / SOHO / housing patches with proper incentives. Put importance on ecological and cultural connection and development.
A.
Multi-Model Mobility System
↳ Micro bus lines + Pedestrian / bike paths + Special Trails + Existed large-scale networks
Goals
B. Integrated Blue-Green
System
↳ Protect the remaining environmental systems and valuable agricultural land from urban growth
Goals
C.
Engaging Public Space System
↳ Create a robust, varied, and interactive urban life for both informal and formal communities
D.
Mixed-Use Development System
Envision hubs, corridors, districts, buildings with character and inclusivity to bridge the GAP
Hand Drawing
Birdview
Birdview
Birdview
Birdview
Birdview
Birdview
Existing Location
Landscape Proposal
Strategies & Takeaways
Strategies for
● Multi-Model Mobility System
● Integrated Blue-Green System
● Engaging Public Space System
● Mixed-Use Development System
Key Takeaways
A.
Multi-Model Mobility System
↳ Micro bus lines + Pedestrian / bike paths + Special Trails + Existed large-scale networks
Strategies for Multi-Model Mobility System
Strategy 1: Narrow, Dense, SubLevel Networks
Strategies for Multi-Model
Mobility System
Strategy 1: Narrow, Dense, SubLevel Networks
Urban
Vibe
Vibrancy
Vibe
Lakeside
Trail
A. Strategies for Multi-Model
Mobility System
Strategy 3: Continuous PedestrianFriendly Design
A. Strategies for Multi-Model
Mobility System
Strategy 3: Continuous PedestrianFriendly Design
A. Strategies for Multi-Model
Mobility System
Strategy 3: Continuous PedestrianFriendly Design
A. Strategies for Multi-Model
Mobility System
Strategy 3: Continuous PedestrianFriendly Design
A. Strategies for Multi-Model
A. Strategies for Multi-Model
Strategy 4: Micro-Level Public
Goals
B. Integrated
Blue-Green System
↳ Protect the remaining environmental systems and valuable agricultural land from urban growth
Strategies for
Orchards as the Park
Blue Green Corridor to the North Side Urban Runoffs
Agri-eco
Buffer Zone
Islands / Sandy Beaches

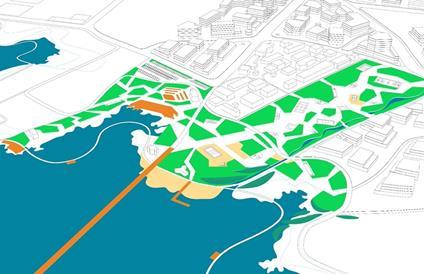

B. Strategies for Integrated Blue-Green System
Strategy 2: Ecological
Programming with Open Space
Water Front
Blue-Green Corridor
Water Front
Goals
C.
Engaging Public Space System
↳ Create a robust, varied, and interactive urban life for both informal and formal communities
C. Strategies for Engaging Public Space System
Strategy 2: Ecological, Sports, Healthy Public Space
C. - Zone 02
Strategies for Engaging
Public Space System
Strategy 2: Ecological, Sports,
Healthy Public Space
C. - Zone 03
Strategies for Engaging
Public Space System
Strategy 2: Ecological, Sports,
Healthy Public Space
C. - Zone 01
Strategies for Engaging
Public Space System
Strategy 2: Ecological, Sports,
Healthy Public Space
Green Corridor Water Management
Circulation
High Density
Strategies for Engaging Public Space System Strategy 2: Ecological, Sports,
Strategies for Engaging Public Space System Strategy 2: Ecological, Sports,
Strategies for Engaging Public Space System Strategy 2: Ecological, Sports,
Space System
Strategy 2: Ecological, Sports,
D.
Mixed-Use Development System
Envision hubs, corridors, districts, buildings with character and inclusivity to bridge the GAP

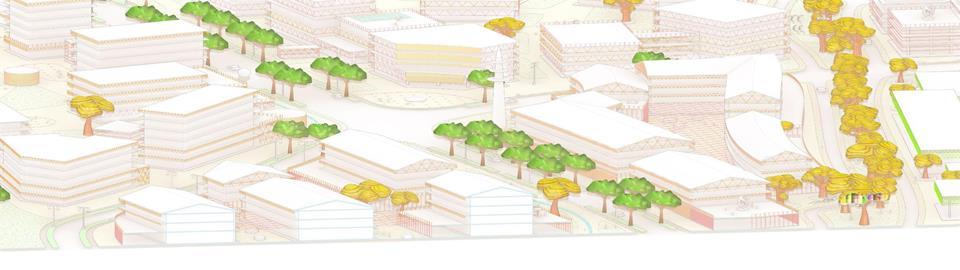

D. Strategies for Mixed-Use Development System
Strategy 1: Residential + Localized
Multifunctions
D. Strategies for Mixed-Use Development System
Mixed-Use Development for Urban and Informal Settlers, Small business, Farmers, Workers, and Students NEEDS INCENTIVE
D. Strategies for Mixed-Use Development System
Mutual-Related Sections
Mutual-Related Sections
Faced with Diamniadio grand institutions, regional hubs, car-driven design, and vibrant facilities, we must bridge the divide — unifying the formal and informal, the planned and organic, to craft a city that thrives in its diversity.
