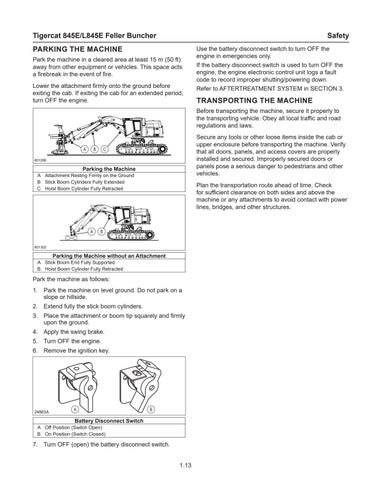

Tigercat 845E/L845E Feller Buncher
Safety
PARKING THE MACHINE Park the machine in a cleared area at least 15 m (50 ft) away from other equipment or vehicles. This space acts a firebreak in the event of fire. Lower the attachment firmly onto the ground before exiting the cab. If exiting the cab for an extended period, turn OFF the engine.
Use the battery disconnect switch to turn OFF the engine in emergencies only. If the battery disconnect switch is used to turn OFF the engine, the engine electronic control unit logs a fault code to record improper shutting/powering down. Refer to AFTERTREATMENT SYSTEM in SECTION 3.
TRANSPORTING THE MACHINE Before transporting the machine, secure it properly to the transporting vehicle. Obey all local traffic and road regulations and laws.
A
B
Secure any tools or other loose items inside the cab or upper enclosure before transporting the machine. Verify that all doors, panels, and access covers are properly installed and secured. Improperly secured doors or panels pose a serious danger to pedestrians and other vehicles.
C
801289
Parking the Machine
A Attachment Resting Firmly on the Ground B Stick Boom Cylinders Fully Extended C Hoist Boom Cylinder Fully Retracted
A
Plan the transportation route ahead of time. Check for sufficient clearance on both sides and above the machine or any attachments to avoid contact with power lines, bridges, and other structures.
B
801302
Parking the Machine without an Attachment
A Stick Boom End Fully Supported B Hoist Boom Cylinder Fully Retracted
Park the machine as follows: 1. Park the machine on level ground. Do not park on a slope or hillside. 2. Extend fully the stick boom cylinders. 3. Place the attachment or boom tip squarely and firmly upon the ground. 4. Apply the swing brake. 5. Turn OFF the engine. 6. Remove the ignition key.
24863A
A
B
Battery Disconnect Switch OFF ON
A Off Position (Switch Open) B On Position (Switch Closed)
24863A R0
7. Turn OFF (open) the battery disconnect switch. 1.13
