4.3.3
Service Manual
Control panel

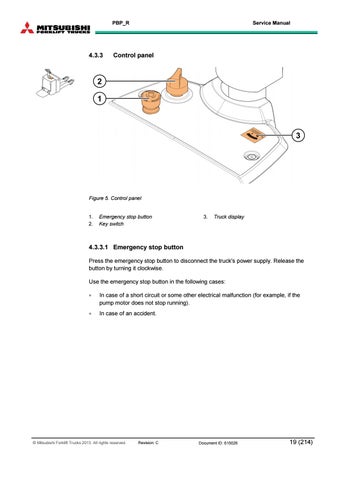

Figure 5. Control panel
1. 2.
Emergency stop button Key switch
3.
Truck display
4.3.3.1 Emergency stop button Press the emergency stop button to disconnect the truck's power supply. Release the button by turning it clockwise. Use the emergency stop button in the following cases: •
In case of a short circuit or some other electrical malfunction (for example, if the pump motor does not stop running).
•
In case of an accident.
