4.3.8 Truck suspension

4.3.8 Truck suspension

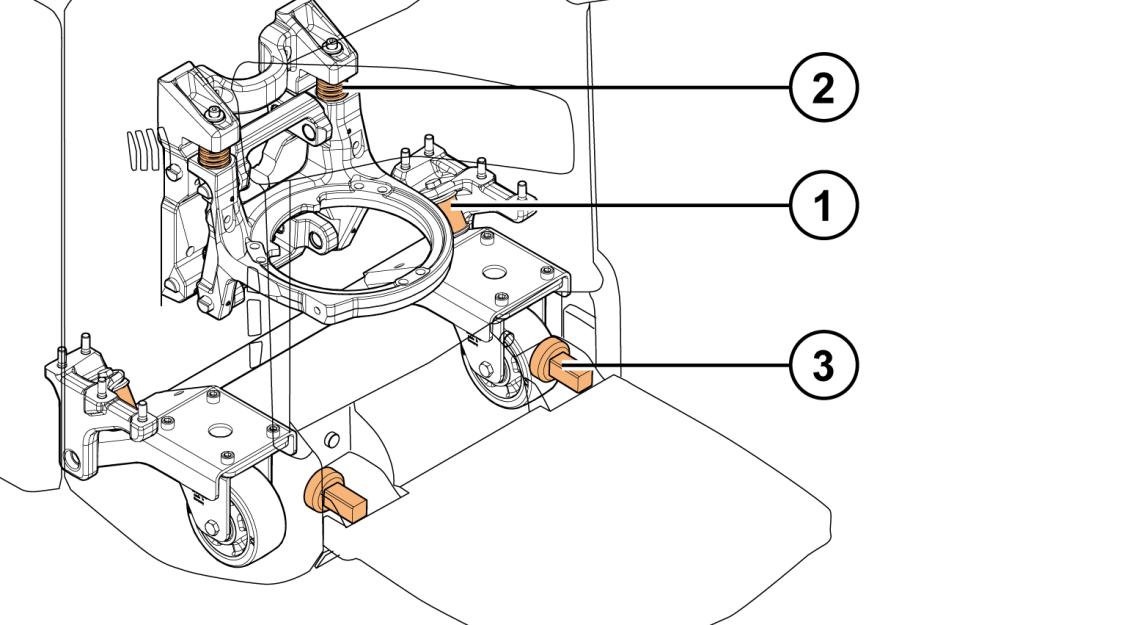

Figure 17. Truck suspension overview

1. Castor wheel suspension 2. Drive unit suspension 3. Platform suspension

The truck has three suspension systems:

• Drive unit suspension • Castor wheel suspension • Platform suspension

Together these suspension systems improve the truck’s driving experience.

The purpose of the suspension systems is to ensure the truck’s driving capabilities regardless of the truck’s loading situation. The drive unit and castor wheel suspension systems work together and they are tuned according to the truck’s load weight. The platform suspension is designed to reduce the vibration and shock impact to the truck driver.
