4.3.4 Driving position

The multi-function display shows the following information:

• Level of battery charge • Indication of operational hours • System messages: ECO = Economy mode selected Lo SPd = Low speed mode selected • Fault codes:

Numeric code = warning or alarm. For more detailed information about warnings and alarms, see chapter 13. • LED indicator:

Flashing red = alarm

4.3.4 Driving position

A pallet truck equipped with a foldable operator’s platform can be driven either walking behind the truck (the pedestrian mode) or standing on the platform (the riding mode).

4.3.4.1 Pedestrian mode

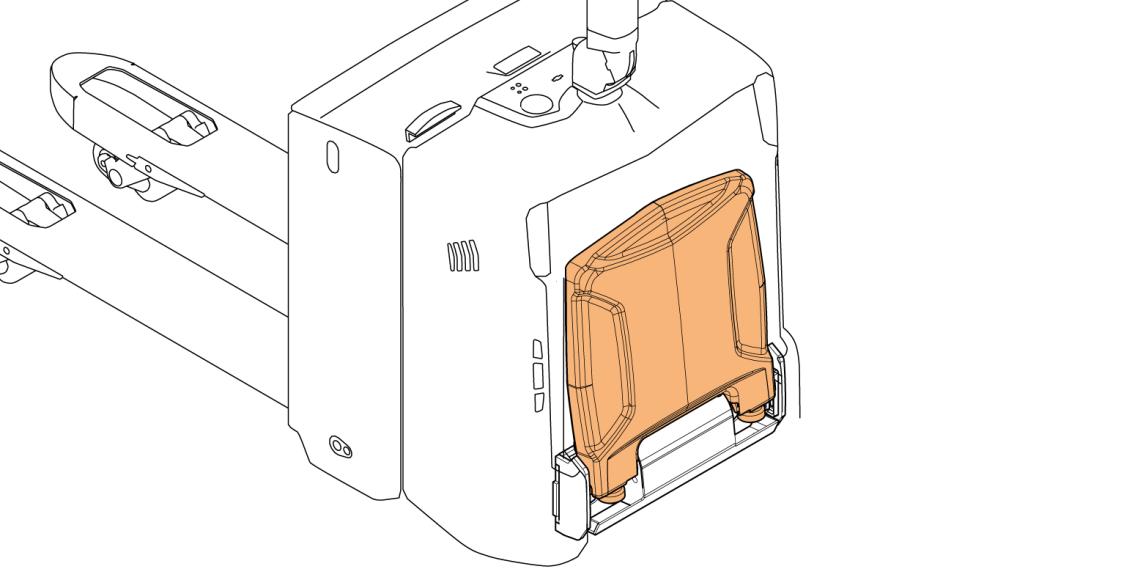

Figure 9. Operator’s platform in the pedestrian mode

To drive the truck in the pedestrian mode, lift the operator’s platform up by lifting it slightly and allowing the gas spring to lift it up.

To drive the truck in the direction of the forks, walk behind the truck and keep both hands on the tiller arm. To drive in the opposite direction, walk beside the truck and keep one hand on the tiller arm.

© Mitsubishi Forklift Trucks 2013. All rights reserved. Revision: C Document ID: 615026 24 (214)

NOTE: The maximum driving speed in pedestrian mode has been limited to 6 km/h.

4.3.4.2 Riding mode

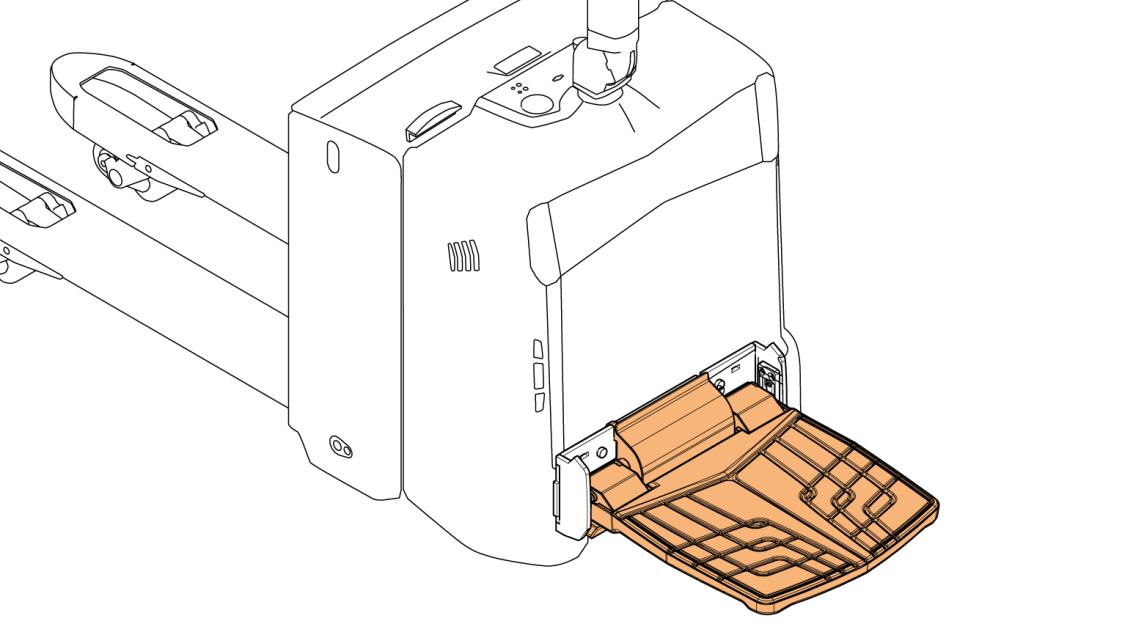

Figure 10. Operator’s platform in the riding mode

To drive the truck in the riding mode, lower the operator’s platform to the horizontal position.

To drive the truck in the riding mode, step on the platform and keep both hands on the tiller arm. When you step off the platform, it stays in the horizontal position automatically.

NOTE: The maximum driving speed in the riding mode is 6 km/h.
