5.1.2 Hoist points

5.1.2 Hoist points

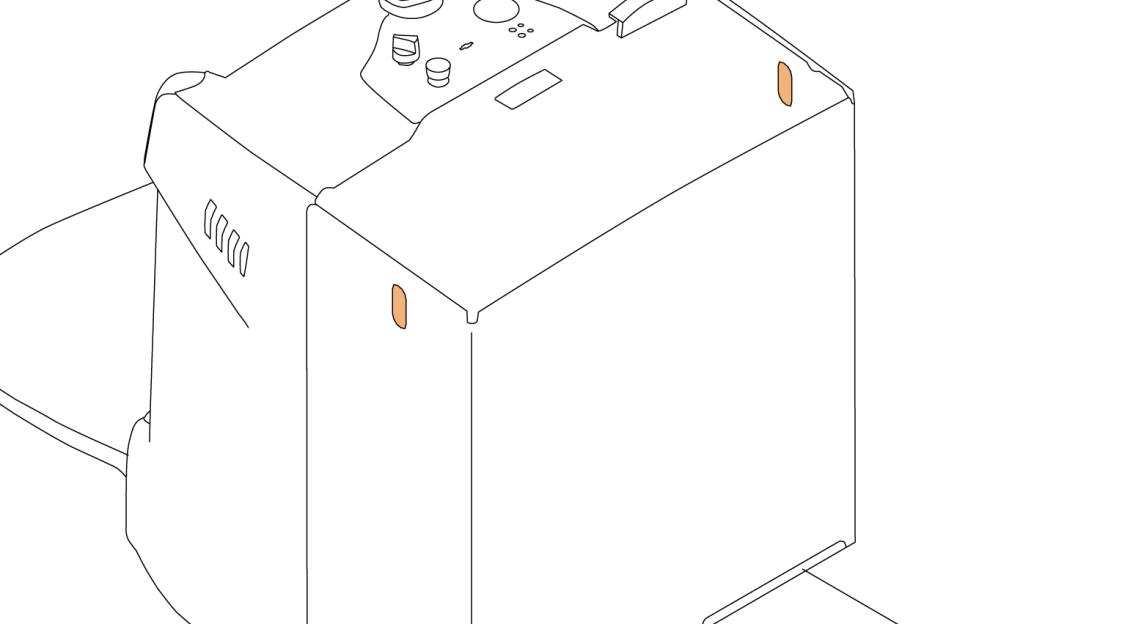

Figure 19 below indicates the correct hoist points for hoisting the truck up for maintenance. Make sure that the capacity of the lifting device is sufficient.

Figure 19. Hoist points

5.2 Transportation

When transporting the truck, it is important that you secure it safely to prevent it from moving. For transport, lift the operator’s platform up. Also support the traction wheel with blocks.

CAUTION

Do not tie the truck from the tiller arm or it may break.

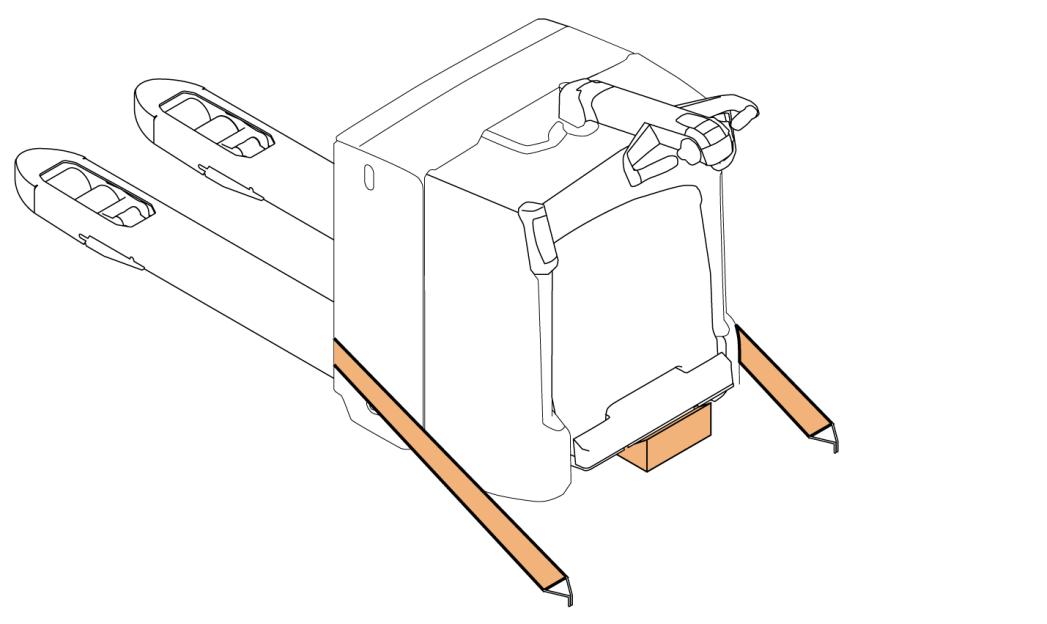

Figure 20 below shows an example on how to secure the truck safely for transportation.

© Mitsubishi Forklift Trucks 2013. All rights reserved. Revision: C Document ID: 615026 33 (214)

Figure 20. Securing the truck for transportation

5.3 Ordering spare parts

When ordering spare parts, always contact your maintenance centre. Only use original spare parts. To ensure that you receive the correct parts, include the following information in your order:

• Truck type • Serial number of the truck

• Order number of the part • Name of the part • Number of parts ordered
