Control and operation

The access and the outfit of the cab

1 Set horizontal, upper 4a Set seat inclination, front 7 Set lumbar support

2 Set horizontal, lower 4b Set seat inclination, rear 8 Seat heating

3 Adjust armrests 6 Set lumbar support 10 Set backrest

This will avoid unexpected movement of the machine.

Setting the armrests

Setting the armrests

Turn the knurled head screw 3 on the armrest in direction a The armrests incline upwards.

Turn the knurled head screw 3 on the armrest in direction b. The armrests incline downwards.

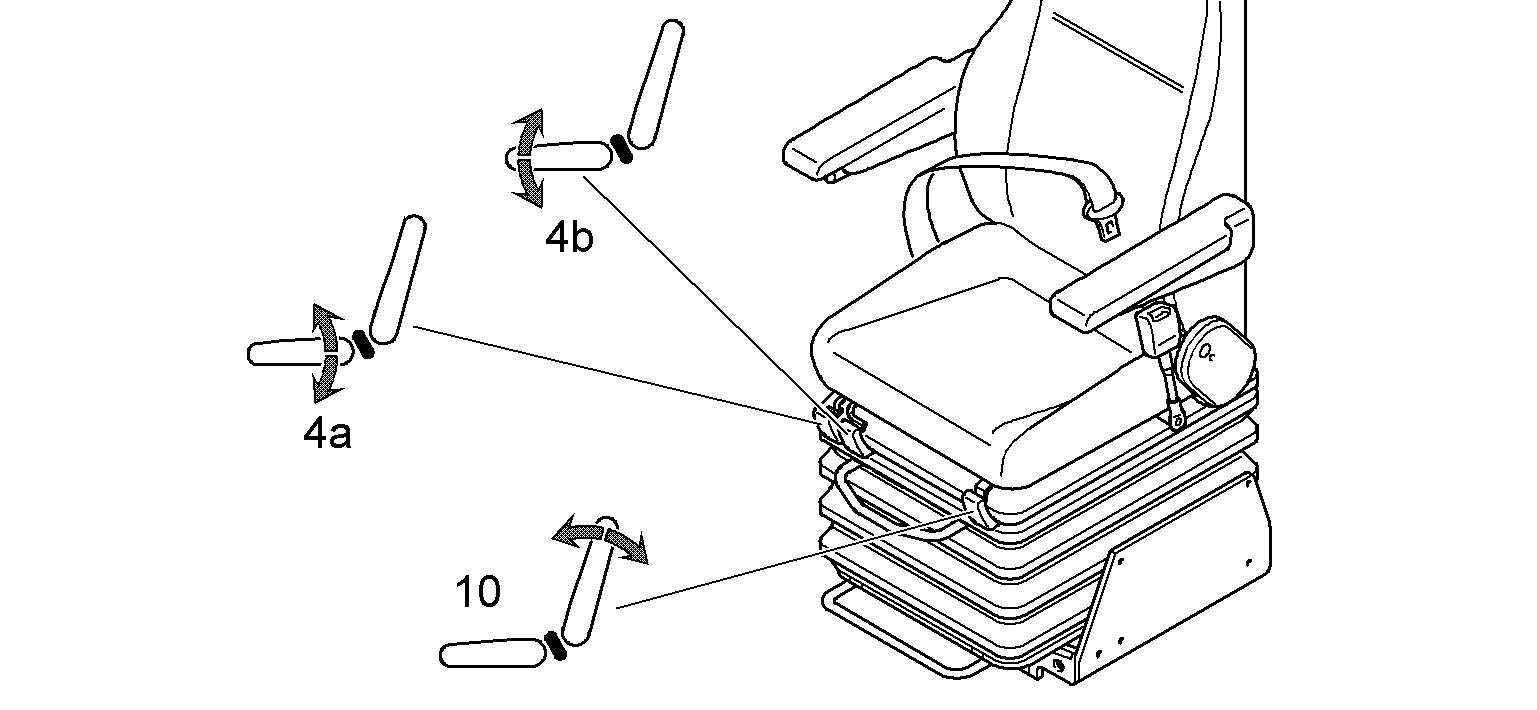

Setting the seat and backrest

Rear seat inclination: Pull lever 4a up, set the inclination and release the lever. Front seat inclination: Pull lever 4b up, set the inclination and release the lever. Backrest: Pull lever 10 up, set the inclination and release the lever.

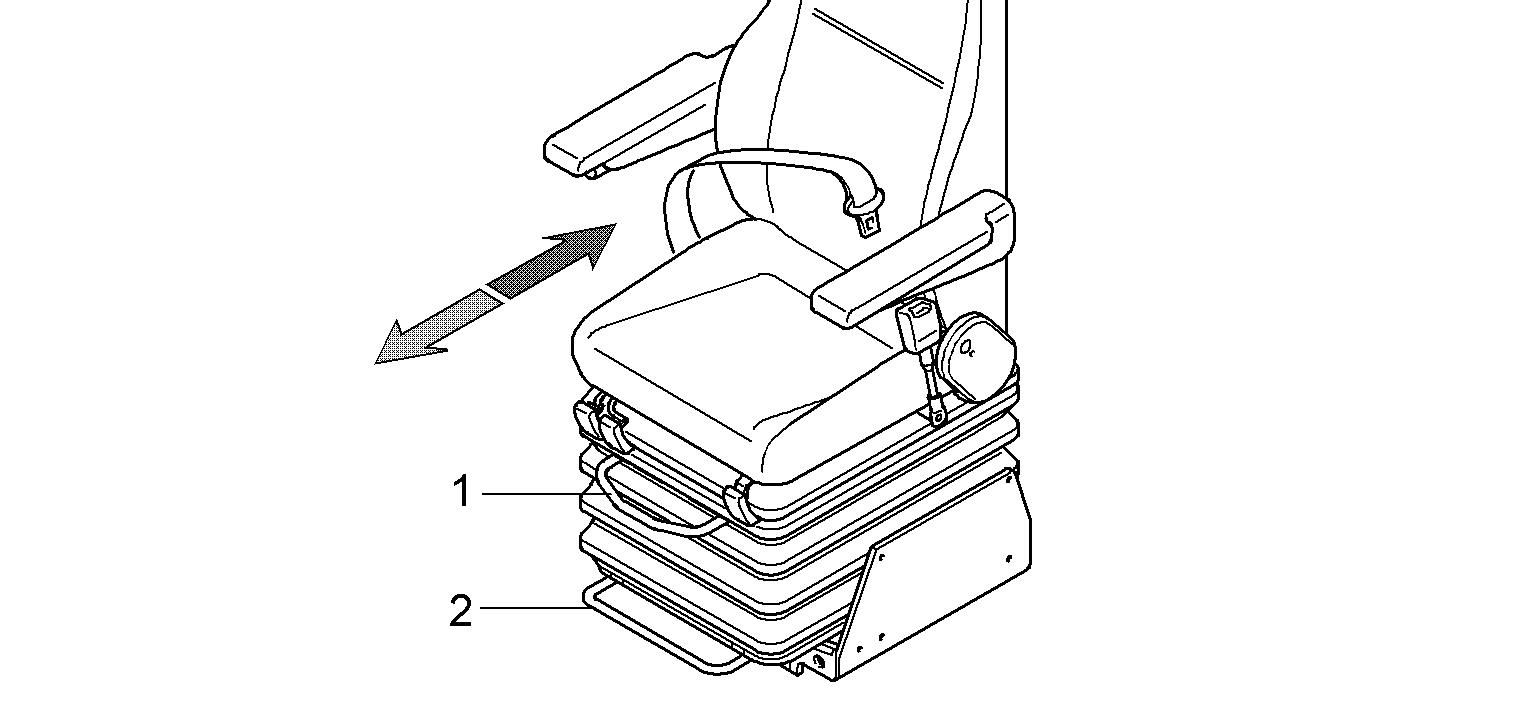

Setting the horizontal seat position

Pull up the lever 1 to push the operator's seat in the horizontal direction. Pullupthelever2topushtheoperator'sseatandcontrolpanelsinthehorizontal direction.

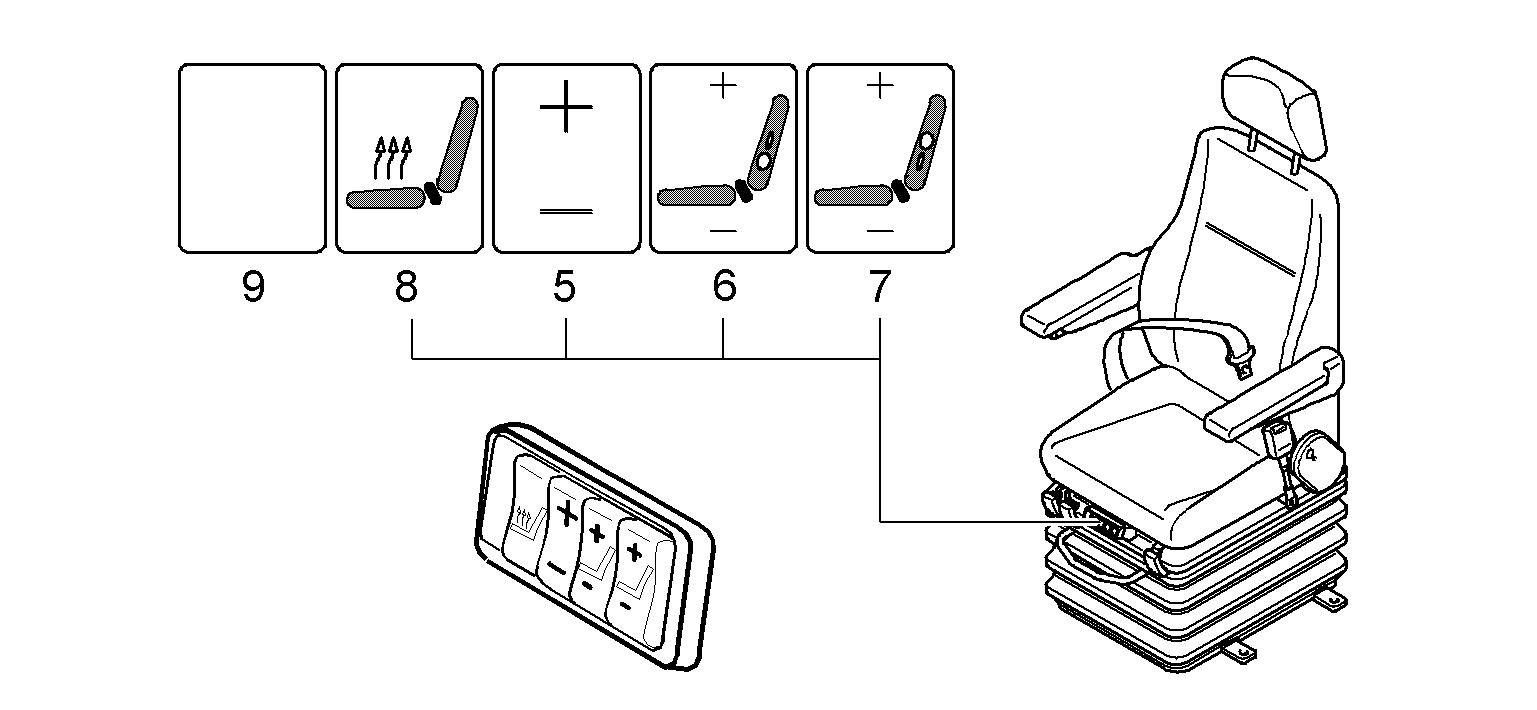

Setting the vibration damping and lumbar support, switching on theseat heating (air-cushioned operator’s seat, optional extras)

Seat

To set the vibration damping: Press button 5 (+ or -) and set the vibration system according to body weight.

To set the lumbar support: Press button 6 (+ or -) to inflate or deflate the lower lumbar chamber. Press button 7 (+ or -) to inflate or deflate the upper lumbar chamber.

To set the seat heating: Use switch 8 toswitch the seat heating on or off. The seat heating switches off automatically when the temperature set is reached.

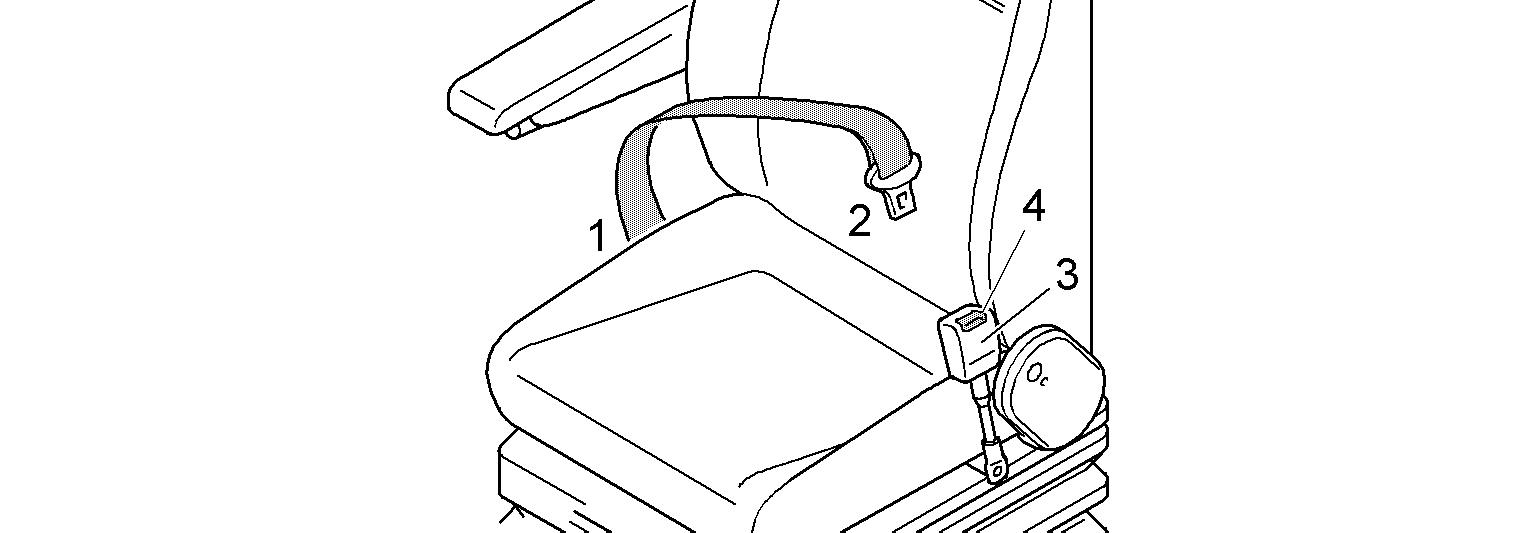

Putting on / releasing the safety belt

The safety belt is automatic. It is not necessary to adjust the length of the belt. Pull the belt and buckle 2 out of the roller mount 1 If pulled out of the roller mount sharply, the belt may lock. Push the buckle into the belt lock 3 until it fastens.

Danger!

The safety belt is designed to protect the operator. Before starting the machine, always fasten the safety belt. Ensure that the safety belt is not twisted when it is fastened. To ensure your safety, check the condition, function and fastening of the belt regularly and replace any damaged parts without delay.

To open lock 4, push down on the belt lock using your thumbs. The safety belt will slide automatically back into the roller mount 1.

3.2.4Adjusting of the auxiliary seat

Thelever1serves tolock the auxiliaryseat into

To rotate the seat, Pull the lever 1. To seat, Pull down the seating.

Note

When there is no one on this auxiliary seat, the seating must be pulled up and the

The access and the outfit of the cab

3.2.5Sunshade

Thecabisprovidedwiththreesunshades,locatedonthewindscreenandonthetwo side windows.

Windscreen

Pull the sunshade down using the cross strut on the sunshade 1. The sunshade can be set for individual use.

Pull out on the string 2 The sunshade rolls itself up.

Side windows

Pull the sunshade down using the cross strut on the sunshade 1 The sunshade can be set for individual use.

Pull out on the string 2 The sunshade rolls itself up.

3.2.6Emergency exit

Rear emergency exit (if installed)

Danger!

Incorrect use of the emergency exit! Risk of death.

Youcanusethewindowatthebottomofthecabdoorasanemergencyexitonly if this window has an emergency handle.

Ifthewindowatthebottomofthecabdoordoesnothaveanemergencyhandle, use the lateral emergency exit (refer to the description below).

1

To open the emergency exit: Pulltheemergencyhandle1 ontheinsideofthewindowwhichisinstalledatthe bottom of the cab door.

The window seal breaks into two parts and the window is released. Push the window out.
