Control and operation

lected will be listed on the second page. Press the Back button. The first page of the submenu appears. PresstheBackbuttonagaintoselectanothererrortypeorpresstheDownorUp arrow key to select a new error code.

s*: Error was indicated by a buzzer and was acknowledged using the Back button. The duration is given in seconds.

m*: Error was indicated by a buzzer and was acknowledged using the Back button. The duration is given in minutes.

Note!

Only operating errors with an error code E 5xx will be displayed in the list Exxx menu.

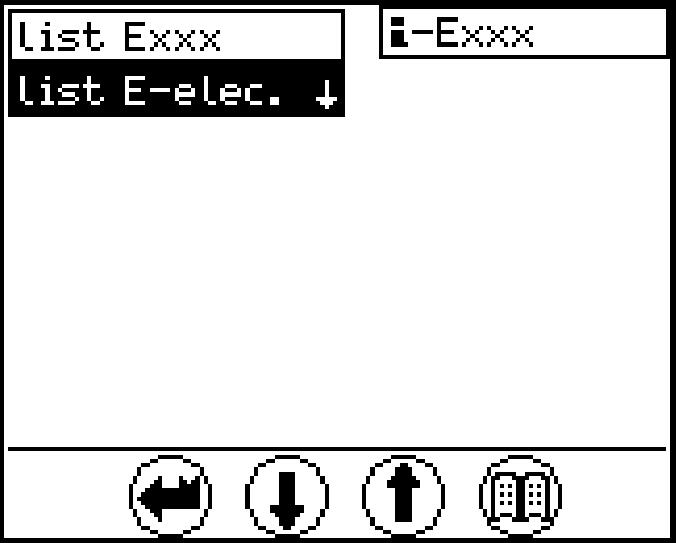

Cable error list E-elec.:

Fig. 3-22 Occurrence of electrical error (Fig. left) and Error statistics (Fig. right)

Select Cable error list E-elec.: Press the Menu button. The submenu appears.

The column "Sum" shows the number of all errors that were ever noted.

Thecolumn"Test"showsthenumberoferrorsoccurredsincethelastdeletionofthis test error memory listing.

The operating hours above the test column show the operating hour when the last test memory was deleted (reset).

Press the Back button.

A different error type may be selected.

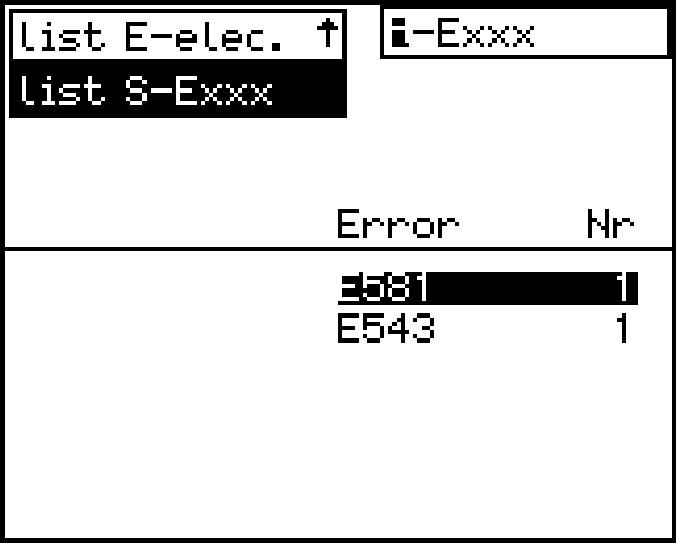

Other errors list S-Exxx:

Call up service operation error list menu

Selecting "list S-Exxx" also shows the errors according to the list in pages (see section "Warning symbols in the SY field" previously in this chapter), but this time only the errors that occurred during "service operation".

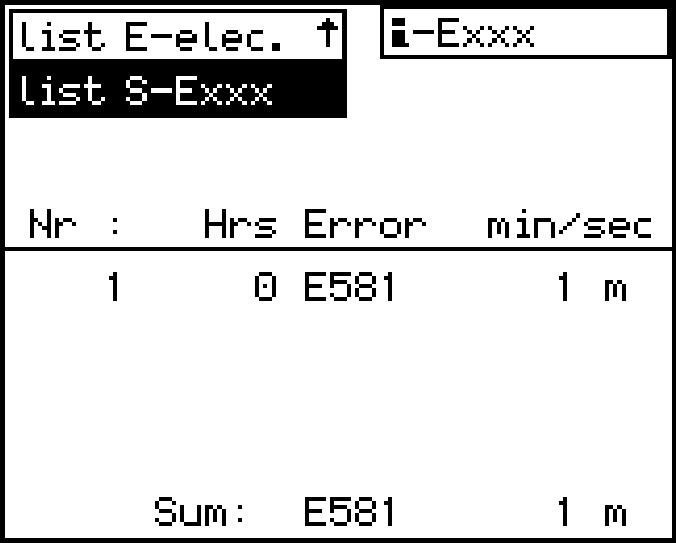

For each error, an overview can be shown and paged in just like for the "list-Exxx" selection. The column"Sum" shows the number of all errors that were ever noted.

3.1.7Monitoring cameras
