Safety instructions
Signs on the machine
Plate 5: Rotation blade hazard label Indicates risks due to rotating blades and gives associated safety instructions.
Plate 6: Restricted area label Indicates access restriction to the related area.
Plate 7: Hydraulic tank pressure ON/OFF label Indicates how to switch hydraulic tank pressure on and off.
Plate 10: Explosion hazard label Indicates explosion risk and gives associated safety instructions.
Plate 11: Emergency stop label Indicates an emergency stop.
Plate 12: Danger signal label Indicatestostayoutofthesurroundingoperatingareainordertoavoidsevereinjury.
Plate 15: Emergency exit label Indicates the direction of an emergency exit.
Plate 16: Emergency ladder label Indicates the emergency ladder.

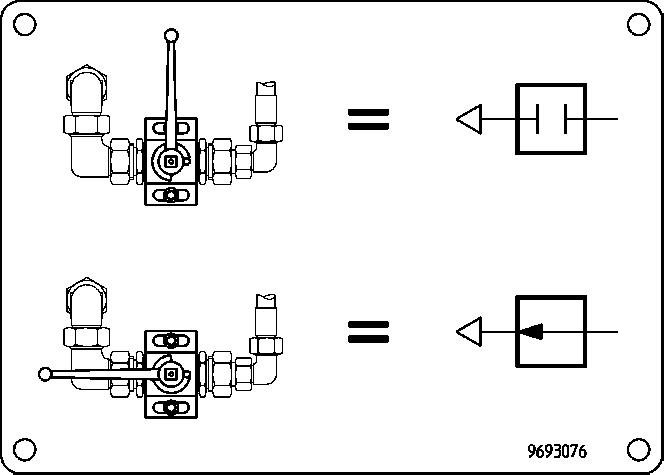

Plate 17: Hydraulic valve position label Indicates how to open and close the hydraulic valve.
Plate 18: Hydraulic tank shut-off valves label Indicates precaution to be taken before starting the excavator.
Plate 19: Operating manual label Indicates that the informations in the Operating manual must be carefully noted.
Plate 20: Safety belt label Indicates to always seat belt while operating the excavator.
Plate 21: Safety lever label Indicates precaution to be taken before leaving the driver seat.
