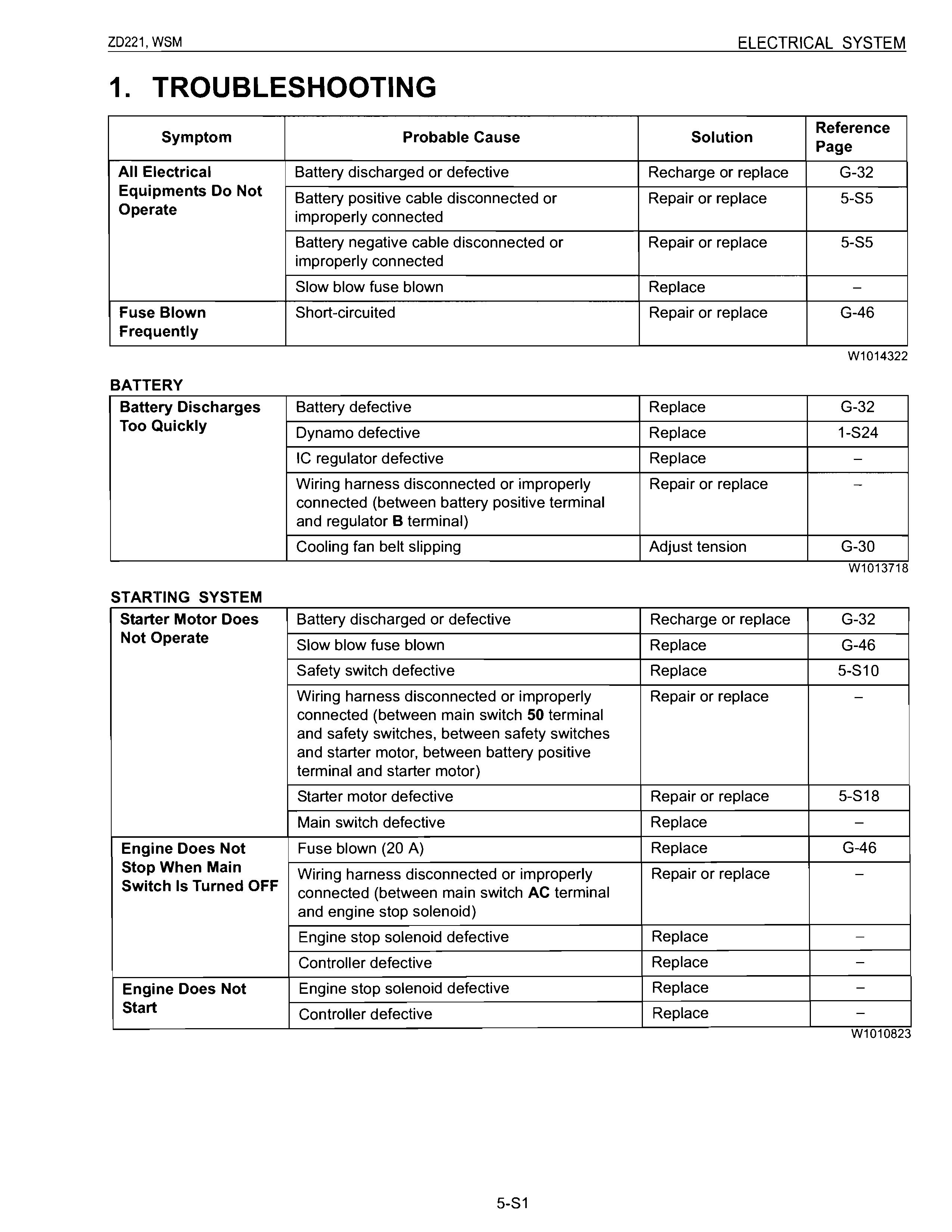

1. TROUBLESHOOTING

disconnected or improperly connected (between main switch 50 terminal and safety switches, between safety switches and starter motor, between battery positive terminal and starter motor) or improperly connected (between main switch AC terminal and engine stop solenoid)

Charging System

Charging Lamp Does Fuse blown (15 A)

Not Light When Main Switch Is Turned ON Wiring harness disconnected or improperly connected (between main switch AC terminal and panel board, between panel board and dynamo)

GAUGES

Wiring harness disconnected or improperly connected (between main switch 30 terminal and dynamo, between panel board and dynamo) Repair or replace W1011186 5-82 disconnected or improperly connected (between fuel gauge and fuel level sensor)
