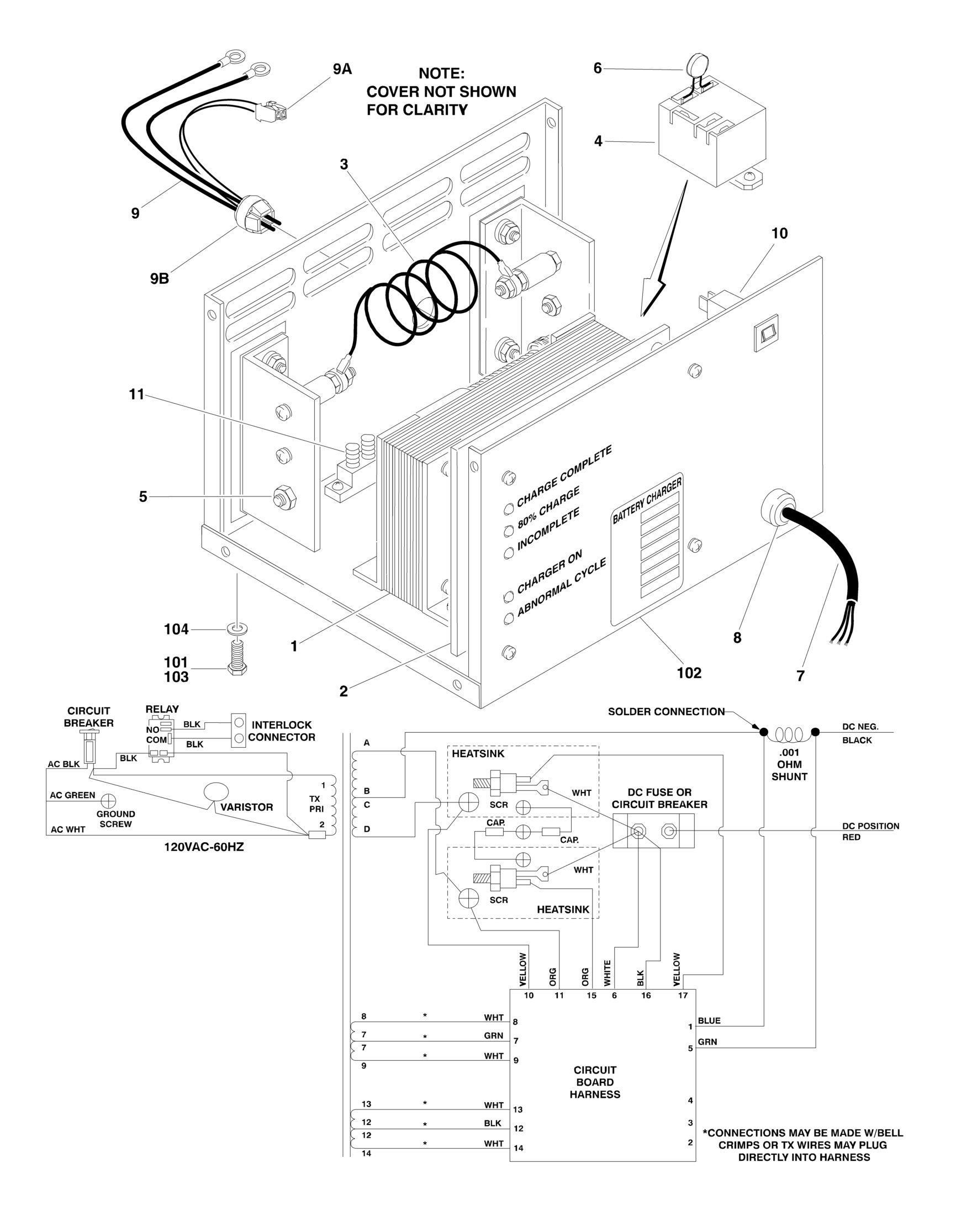

FIGURE 1 26. BATTERIES INSTALLATION (ELECTRIC POWERED MACHINES) (SN 0030001804 through 0030012032
FIGURE 1-26. BATTERIES INSTALLATION (ELECTRIC POWERED MACHINES) (SN 0030001804 through 0030012032)
ITEM PART NUMBER QTY
DESCRIPTION
Ref BATTERIES INSTALLATION 0275709 Ref Batteries Installation T350/T500J without Drive Option (Prior
to SN 0030001896)
0275718 Ref Batteries Installation T350/T500J with Drive Option 1001201419 Ref Batteries Installation – AGM Batteries T350/T500J without
Drive Option (SN 0030006791 through 0030012032)
1 0100048 AR Grease, Dielectric 2 0100051 AR Grease, Battery Terminal 4 Ref Batteries Options: 4 0400215 4 Battery - 6V/220Amp 4 1001112112 4 AGM Battery - 6V/220Amp 5 1701644 1 Decal - Battery Charger (Not Shown - DECAL SECTION For Location) 6 1702155 1 Decal - Battery Disconnect 7 3300506 2 Nut, Acorn 5/16in-24 8 4220306 1 Pad, Battery (Prior to SN 0030003105) 9 4240177 4 Strap, Tie-Down (Prior to SN 0030003105) 10 4420038 80 in Tape, Rubber in/2m 11 Ref Battery Cables Kit (Not Shown - See ELECTRICAL SECTION for Breakdown) 11 4923020 1 Without Drive Option 11 4923428 1 With Drive Option 12 0630541 8 Bolt, Battery Hold-Down (SN 0030003105 through 0030012032) 13 3311608 8 Nut, Serrated 3/8in-16NC (SN 0030003105 through
0030012032)
14 0100011 AR Compound, Locking 20 1001104509 4 Plate, Hold-Down (SN 0030003105 through 0030012032) 0275439 Ref CONTACTOR INSTALLATION 101 0630468 2 Screw 5/16in-18NC x 1in 102 0641407 2 Bolt 1/4in-20NC x 7/8in 103 0721004 2 Screw, Machine #10-24NC x 1/2in 104 0903560 1 Bracket, Contactor Mount 105 2400087 1 Fuse - 300 Amp 106 2400088 1 Fuseholder 107 3311405 2 Locknut 1/4in-20NC 108 3311005 2 Locknut #10-24NC 109 3576773 1 Bar, Clamping 110 3740150 1 Relay 111 4711000 2 Flatwasher #10 Thin 112 4711400 2 Flatwasher 1/4in Thin 113 4923545 1 Cable, Electrical (Fuse to Battery B+) (See ELECTRICAL SECTION for Breakdown) 114 4923570 1 Cable, Electrical
REV
B
E A
C
