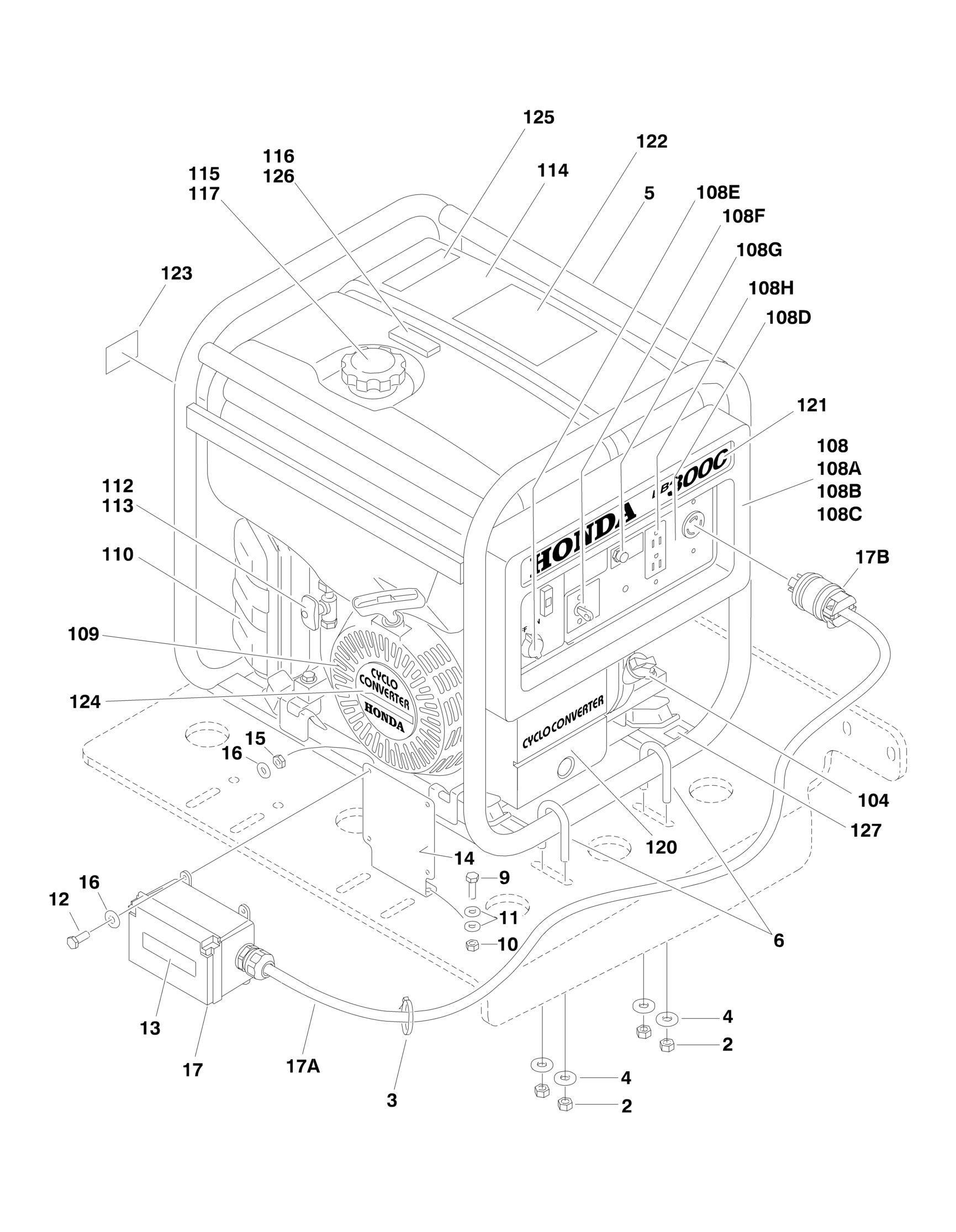

FIGURE 2 7. 2500W GENERATOR INSTALLATION (OPTIONAL) (Prior to SN 0030004340
ITEM PART NUMBER QTY DESCRIPTION REV
1001120260 Ref GENERATOR INSTALLATION (ANSI SPEC ONLY - NOT
AVAILABLE IN CALIFORNIA)
B
1 1060688 1 Cable, AC 2 3311505 8 Locknut 5/16in-18NC 3 4240033 AR Tie, Wire 4 4751500 8 Flatwasher 5/16in 5 1001120261 1 Generator 2500W (See Items 101 - 150 for Breakdown) 6 1001120264 4 Bolt U, 5/16in - 18NC X 1in 8 3020015 0.33 qt Motor Oil 10W 40 1001120261 Ref 2500W GENERATOR ASSEMBLY (Prior to SN 0030004340) B 101 70002769 1 Gasket, Muffler 102 70002770 1 Plug, Spark 103 70002771 1 Cap, Oil Filler 104 70002772 1 Starter Assy (Recoil) 104 70002773 1 Grip 104 70002774 1 Rope 105 70002775 1 Carburetor Assy 106 70002776 1 Gasket, Insulator 107 70002777 1 Gasket, Carburetor 108 70002778 1 Coil Assy (Not Shown) 109 70002779 1 Harness, Stop Switch (Not Shown) 110 70002781 1 Harness, Control (Not Shown) 111 70002782 1 Receptacle 112 70002783 1 Switch (Engine Stop) 113 70002784 1 Breaker, Circuit 114 70002785 1 Element, Air Cleaner 115 70002786 1 Seal, Air Cleaner Cover 116 70002787 1 Muffler 117 70002788 1 Gasket, Exhaust Pipe 118 70003055 1 Tank, Fuel 118 70003059 4 Bolt, Flange M6 x 22mm 118 4811700 4 Flatwasher M6 118 70003055 4 Collar, Mounting Cushion 118 70003056 4 Cushion, Mounting 118 70003054 1 Tank Drain Assembly (Includes Petcock, Strainer Screen, O-Ring, Cup and Cup Filter) 119 70002790 1 Gauge, Fuel 119 70003058 2 Screw M5 x 10mm 120 70002789 1 Cap, Fuel Filler 120 70002791 1 Filter, Fuel 121 70002792 1 Brush, Assy 122 70002793 1 Regulator 123 70002794 1 Bearing 124 70002795 1 Decal - Emblem (EP2500CX) 125 70002796 1 Decal - Spec (CX-A) 126 70002797 1 Decal - Engine Switch 127 70002798 1 Decal - Operator Warning 128 70002799 1 Decal - Choke 129 70002800 1 Decal - Oil Alert 130 70002801 1 Decal - Honda
ITEM PART NUMBER QTY DESCRIPTION
131 70002802 2 Decal - Caution 132 70002803 1 Decal - Fuel 133 70002804 1 Decal - Fuel Indication 134 70002805 1 Decal - Oil Check 150 70002780 1 Gasket Kit - Engine (Not Shown)
