FIGURE 3 2. MAIN BOOM ASSEMBLY (T350

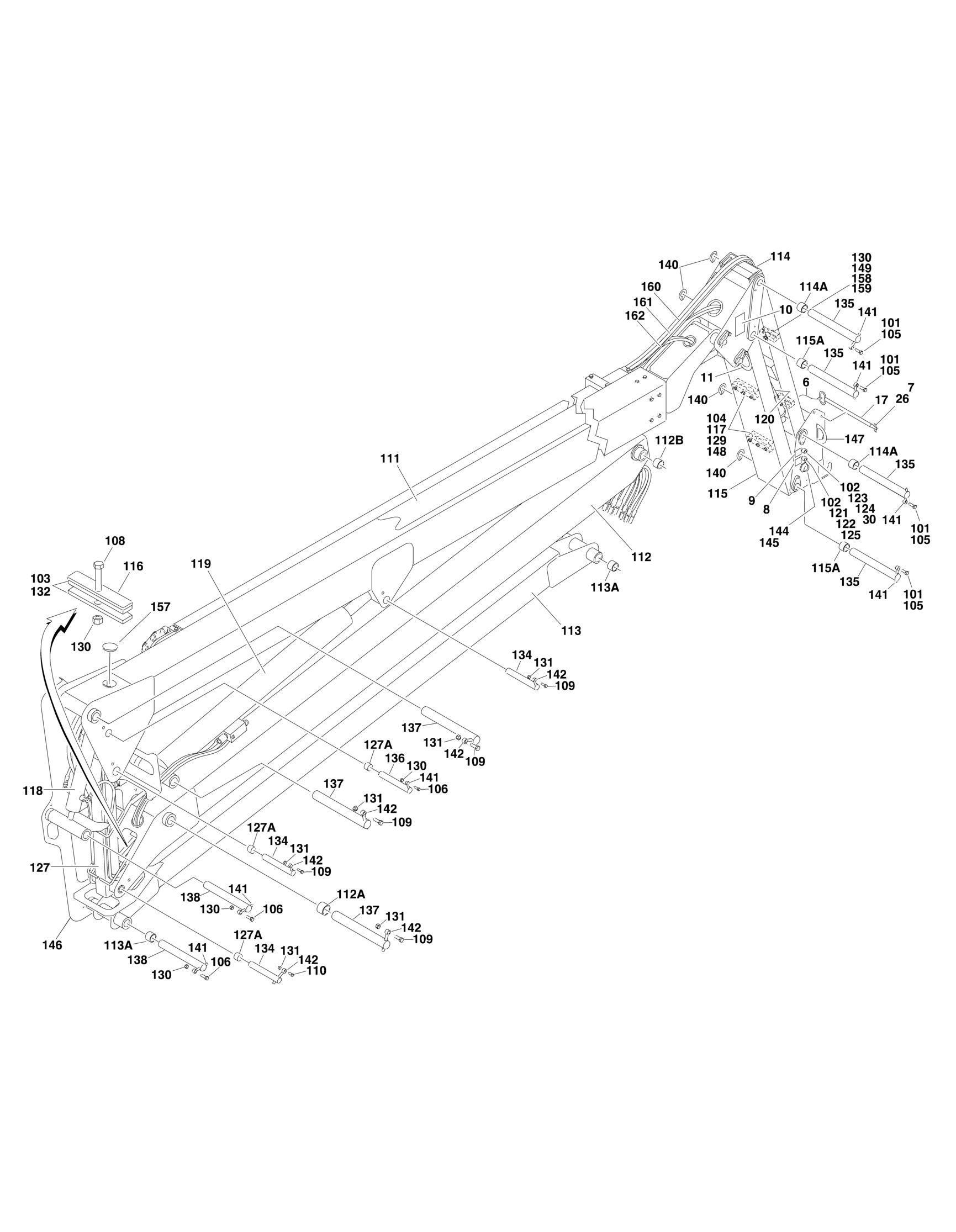

FIGURE 3-2. MAIN BOOM ASSEMBLY (T350)
ITEM PART NUMBER QTY
DESCRIPTION
0801426 Ref BOOM ASSEMBLY (T350) 1 0100011 AR Compound, Locking 2 3900316 8 Screw 3/8in-16NC x 1in 5 0641628 2 Bolt 3/8in-16NC x 3-1/2in 6 0641830 4 Bolt 1/2in-13NC x 3-3/4in 7 0801427 1 Base, Boom 7A 0961951 2 Bushing 8 0801428 1 Fly, Boom 8A 0961947 2 Bushing 9 0811606 8 Screw 3/8in-16NC x3/4in 10 0811607 10 Screw 3/8in-16NC x 7/8in 11 0811608 2 Screw 3/8in-16NC x 1in 12 1180391 1 Powertrack 12 70002233 AR Repair Section 13 1180394 1 Tube, Push 14 1684367 1 Telescope Cylinder Assembly (See CYLINDER SECTION for Breakdown) 15 1684373 1 Platform Level Cylinder Assembly (See CYLINDER SECTION for Breakdown) 18 3311605 10 Locknut 3/8in-16NC 19 3340764 1 Pad 20 3340881 8 Pad, Wear 21 3423101 2 Pin 22 3423104 1 Pin 23 3423105 2 Pin 24 3538758 1 Plate 26 3760115 2 Ring, Retaining 27 3760351 4 Ring, Retaining 28 3841143 3 Keeper, Pin 29 4070897 8 Shim 18 Gauge 30 4070898 8 Shim #11 Gauge 31 4071039 2 Shim 18 Gauge 32 4071040 2 Shim #11 Gauge 33 3900283 2 Screw 3/8in-16NC x 3/4in 34 0641607 3 Bolt 3/8in-16NC x 7/8in 35 4630002 1 Pivot 36 4700017 1 Pad, Wear 37 4700018 1 Pad, Wear 38 4700019 2 Pad, Wear 40 4711600 18 Flatwasher 3/8in Thin 41 4891800 4 Flatwasher 1/2in Hardened 44 4460497 1 Nut, Terminal (Not Shown - ELECTRICAL SECTION for Breakdown) 45 4460496 1 Lockwasher, Terminal (Not Shown - ELECTRICAL SECTION for Breakdown)
REV
S
