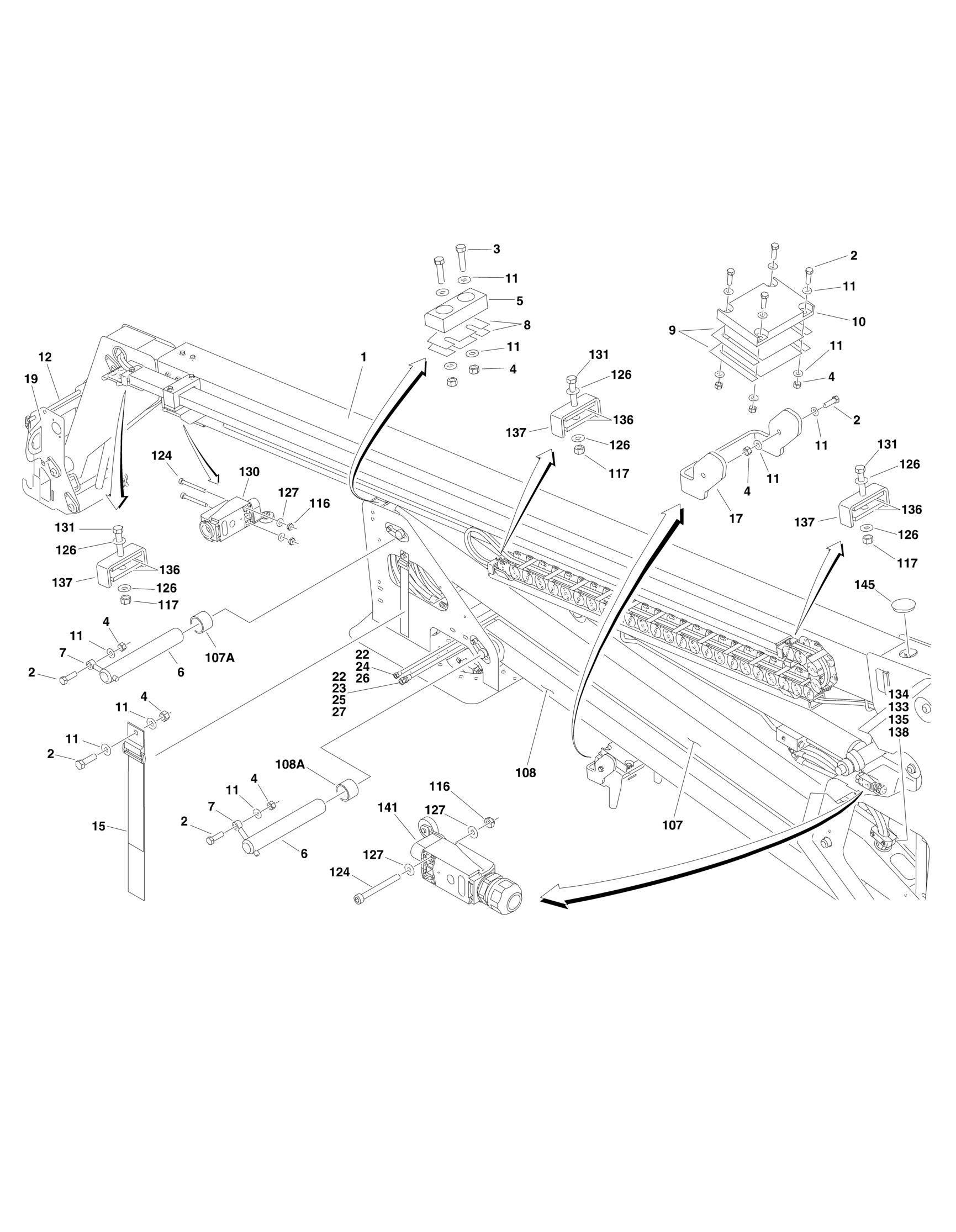

FIGURE 3 1. BOOM ASSEMBLY AND INSTALLATION (T350

FIGURE 3-1. BOOM ASSEMBLY AND INSTALLATION (T350)

ITEM PART NUMBER QTY

DESCRIPTION

Ref BOOM INSTALLATIONS (T350) 0274325 Ref With Air and Water Lines to Platform 0273604 Ref Without Air and Water Lines to Platform (SN 0030000006

through 0030000120, Excluding 0030000007 and 0030000011)

1 Ref Boom Assembly Options (See Items 101-145 for Breakdown): 1 0274327 1 Boom with Air and Water Lines to Platform 1 0273865 1 Boom without Air and Water Lines to Platform 2 0641610 8 Bolt 3/8in-16NC x 1-1/4in 3 0641612 2 Bolt 3/8in-16NC x 1-1/2in 4 3311605 10 Locknut 3/8in-16NC 5 3340843 1 Pad, Wear 6 Ref Pin Options: 6 3422799 2 Pin (Prior to SN 0030000732) 6 3423201 2 Pin (SN 0030000732 through 0030012032) 7 3841143 2 Keeper, Pin 8 4071082 2 Shim 9 4071083 2 Shim 10 4220211 1 Pad, Boom Rest 11 4711600 18 Flatwasher 3/8in Thin 12 3423100 1 Pin, Gravity 13 Ref Nameplate - Pressure Washer Options: 13 1706261 1 Boom with Air and Water Lines to Platform 13 Not Required 0 Boom without Air and Water Lines to Platform 14 Ref Nameplate - Air Compressor Options: 14 1706262 1 Boom with Air and Water Lines to Platform 14 Not Required 0 Boom without Air and Water Lines to Platform 15 Ref Strap, Cinch Options: 15 4240003 1 Boom with Air and Water Lines to Platform 15 Not Required 0 Boom without Air and Water Lines to Platform 17 3575803 2 Plate, Boom Stop 19 1060329 1 Lanyard 20 1060799 1 Lanyard (SN 0030000460 through 0030012032) 21 8310264 1 Hairpin (SN 0030000460 through 0030012032) 22 0100020 AR Sealant, Pipe 23 2221209 1 Fitting, Coupler (SN 0030000460 through 0030012032) 24 2221212 1 Fitting, Nipple (SN 0030000460 through 0030012032) 25 2221213 1 Fitting, Female Coupler (SN 0030000460 through 0030012032) 26 1706625 1 Decal - Air (SN 0030000460 through 0030012032) 27 1706626 1 Decal - Water (SN 0030000460 through 0030012032) 28 2220003 1 Fitting, Swivel (SN 0030007362 through 0030012032) Ref BOOM ASSEMBLIES 0274327 Ref With Air and Water Lines to Platform 0273865 Ref Without Air and Water Lines to Platform (SN 0030000006

through 0030000120, Excluding 0030000007 and 0030000011)

101 0100020 AR Sealant, Pipe 102 0100081 AR Adhesive #454 103 0641607 1 Bolt 3/8in-16NC x 7/8in 104 0641609 8 Bolt 3/8in-16NC x 1-1/8in 105 0641620 1 Bolt 3/8in-16NC x 2-1/2in 106 0801426 1 Main Boom Assembly (See MAIN BOOM ASSEMBLY (T350) for

REV

H E

S J

ITEM PART NUMBER QTY DESCRIPTION

Breakdown) 107 0801429 1 Tube, Tower (Top) 107A 0961951 4 Bushing 108 Ref Tube, Tower (Bottom) Options: 108 0801430 1 Tube, Tower (Prior to SN 0030000732) 108 0801516 1 Tube, Tower (SN 0030000732 through 0030012032) 108A 0961951 4 Bushing 109 1320289 1 Clamp 110 1684415 1 Master Cylinder Assembly (See CYLINDER SECTION for Breakdown) 111 1684433 1 Lift Cylinder Assembly (See CYLINDER SECTION for Breakdown) 112 Ref Hose, Air Line Options: 112 2754171 1 Boom with Air and Water Lines to Platform 112 Not Required 0 Boom without Air and Water Lines to Platform 113 Ref Hose, Water Line Options: 113 2754172 1 Boom with Air and Water Lines to Platform 113 Not Required 0 Boom without Air and Water Lines to Platform 115 3010127 1 Link, Timing 115A 0961951 4 Bushing 116 3290405 4 Locknut 4mm 117 3311605 13 Locknut 3/8in-16NC 118 3340943 2 Pad, Rubber 119 3422333 1 Pin 120 Ref Pin Options: 120 3422792 5 Pin (Prior to SN 0030000732) 120 3423200 5 Pin (SN 0030000732 through 0030012032) 121 3423102 2 Pin 122 3423103 1 Pin 123 3841143 6 Keeper, Pin 124 4031512 4 Capscrew 4mm x 40mm 125 4630001 1 Upright 126 4711600 7 Flatwasher 3/8in Thin 127 4811400 6 Flatwasher 4mm 128 4923100 1 Harness, Lift Down Prop Valve (Not Shown - See ELECTRICAL SECTION for Breakdown) 129 4923185 1 Harness, Center Brake Light (Not Shown - See ELECTRICAL SECTION for Breakdown) 130 4923192 1 Harness, Telescope Limit Switch (See ELECTRICAL SECTION for Breakdown) 131 0641616 3 Bolt 3/8in-16NC x 2in 133 0641424 2 Bolt 1/4in-20NC x 3in 134 1321318 2 Clamp, Hose 135 3311405 2 Locknut 1/4in-20NC 136 3340941 6 Pad, Rubber 137 3575021 3 Plate, Clamping 138 4711400 4 Flatwasher 1/4in Thin 139 4923040 1 Harness, Boom Cable (Not Shown - ELECTRICAL SECTION for Breakdown) 140 4923104 1 Harness, AC Cable (Not Shown - ELECTRICAL SECTION for Breakdown) 141 4923112 1 Harness, Transport Limit Switch (See ELECTRICAL SECTION for Breakdown)

REV

D

C

ITEM PART NUMBER QTY

DESCRIPTION

142 2220364 1 Fitting, Coupler (SN 0030000460 through 0030012032) 143 2221210 1 Fitting, Nipple (SN 0030000460 through 0030012032) 144 2221211 1 Fitting, Female Coupler (SN 0030000460 through 0030012032) 145 1001092012 1 Plug, Hole (SN 0030002177 through 0030012032)

REV

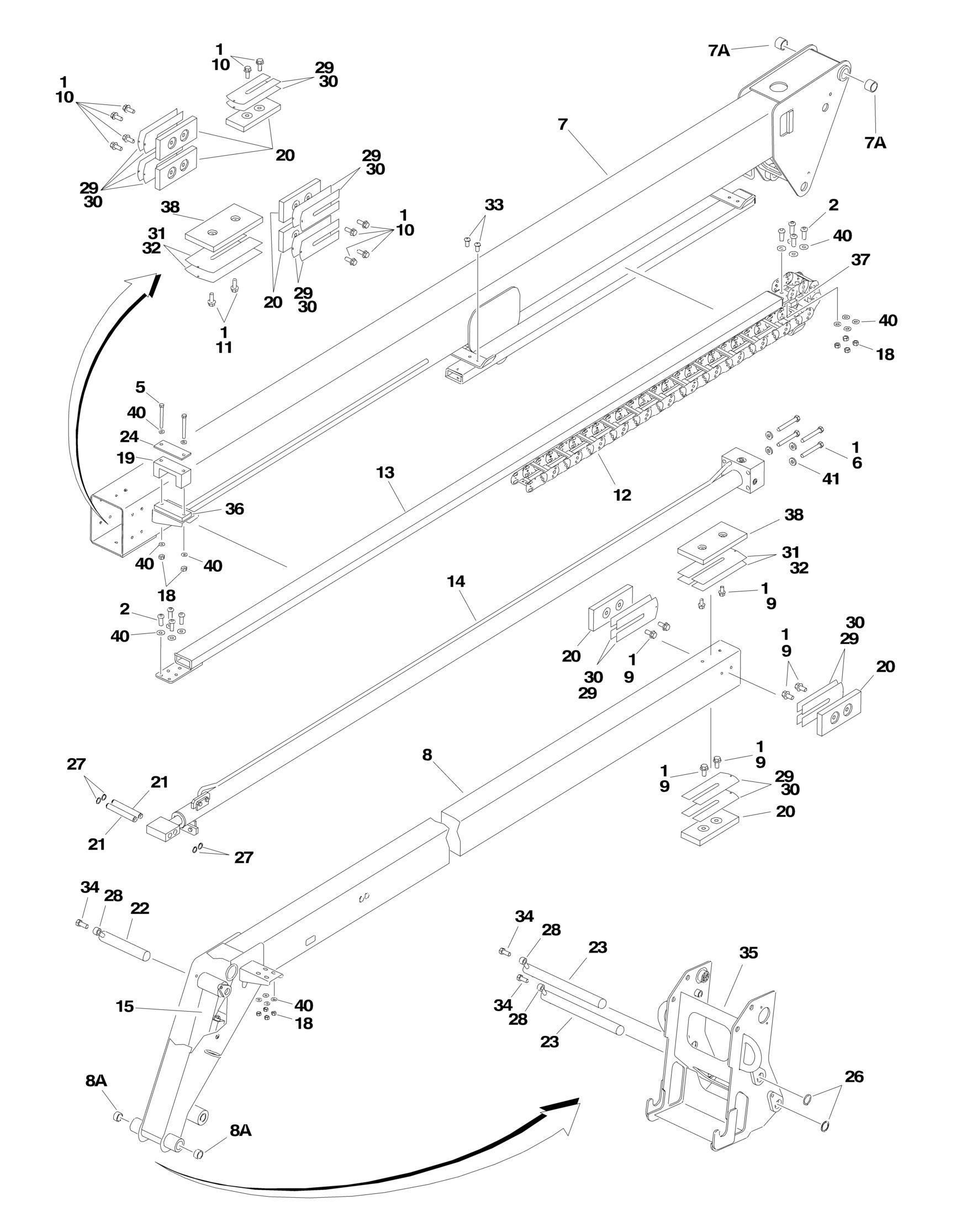

FIGURE 3-2. MAIN BOOM ASSEMBLY (T350)
