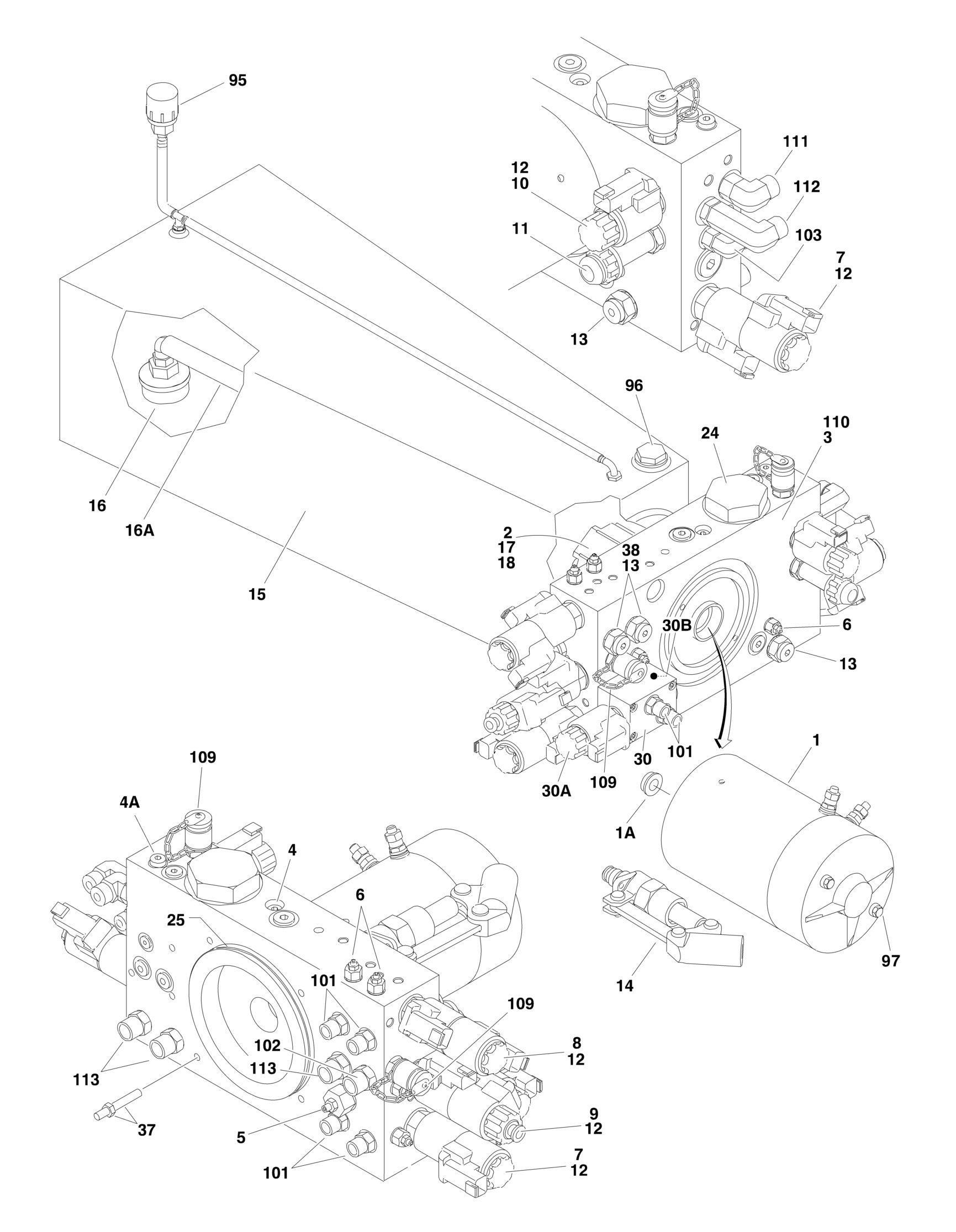

FIGURE 1 21. CONTROL MODULES AND VALVES INSTALLATION
FIGURE 1-21. CONTROL MODULES AND VALVES INSTALLATION
ITEM PART NUMBER QTY
DESCRIPTION
Ref CONTROL VALVE INSTALLATION 0273616 Ref Control Valve Installation T350 Electric Powered 0273618 Ref Control Valve Installation T350 Gas Powered 0273617 Ref Control Valve Installation T500J Electric Powered 0273619 Ref Control Valve Installation T500J Gas Powered 1 0100011 AR Compound, Locking 2 Ref Bolt Options: 2 0700610 1 Bolt 6mm x 20mm (T350) 2 0700812 1 Bolt 8mm x 25mm (T500J) 3 0760810 3 Bolt 8mm x 20mm 4 1320263 1 Clamp 5 1380136 2 Clip, Gripper 6 2560122 1 Handle 7 2560123 1 Grip, Handle 8 Ref Locknut Options: 8 3290605 1 Locknut 6mm x 20mm (T350) 8 3290805 1 Locknut 8mm x 25mm (T500J) 10 3820017 2 Rivet 5/32in 11 Ref Control Valve Assembly Options: 11A 4641342 1 Control Valve Assembly T350 Electric Powered (See CONTROL VALVE ASSEMBLY (ELECTRICAL POWERED MACHINES) for Breakdown) 11B 4641344 1 Control Valve Assembly T350 Gas Powered (See CONTROL VALVE ASSEMBLY (GAS POWERED MACHINES) for Breakdown) 11C 4641343 1 Control Valve Assembly T500J Electric Powered (See CONTROL VALVE ASSEMBLY (ELECTRICAL POWERED MACHINES) for Breakdown) 11D 4641345 1 Control Valve Assembly T500J Gas Powered (See CONTROL VALVE ASSEMBLY (GAS POWERED MACHINES) for Breakdown) 13 Ref Flatwasher Options: 13 4811900 2 Flatwasher 8mm (T350) 13 4711400 2 Flatwasher 1/4in Thin (T500J) 14 4811900 3 Flatwasher 8mm 15 0100081 AR Loctite #454 Ref CONTROL MODULE INSTALLATIONS 0273793 Ref Electric Machines without Drive Option (Prior to SN
0030001804)
0275776 Ref Electric Machines without Drive Option (SN 0030001804
through 0030012032)
9984274 Ref Electric Machines with Drive Option 0273794 Ref Gas Machines 101 3311405 4 Locknut 1/4in-20NC (Prior to SN 0030001397) 103 0700510 1 Bolt 5mm x 20mm 104 1600370 1 Module, Ground Control (Note: Control System must be recalibrated when Module is replaced) 105 Ref Controller, Sevcon Options: 105A 1600371 1 Electric Powered Machines without Drive (Prior to SN
0030001804)
105A 1600412 1 Electric Powered Machines without Drive (SN 0030001804
through 0030012032) REV
E E E E
H
F
D F
ITEM PART NUMBER QTY DESCRIPTION REV
105B 1600412 1 Electric Powered Machines with Drive 105C Not Required 0 Gas Powered Machines 106 3290507 1 Locknut 5mm 107 3290605 5 Locknut 6mm 108 3740145 1 Relay 109 4811600 2 Flatwasher 5mm 110 4811700 10 Flatwasher 6mm 111 Ref Harness, Frame (Not Shown - See ELECTRICAL SECTION for Breakdown) 111 4922975 1 Electric Powered Machines (Prior to SN 0030001804) 111 4923427 1 Electric Powered Machines (SN 0030001804 through
0030012032)
111 4923130 1 Gas Powered Machines 112 4923041 1 Harness, Jack and Valve (Not Shown - See ELECTRICAL SECTION for Breakdown) 113 Ref Harness, Frame to Boom Options (Not Shown - See ELECTRICAL SECTION for Breakdown): 113 4923103 1 Harness, Frame to Boom (Prior to SN 0030001804) 113 4923427 1 Harness, Frame to Boom (SN 0030001804 through
0030012032)
114 4923109 1 Harness, Main Valve (Not Shown - See ELECTRICAL SECTION for Breakdown) 115 0100083 AR Grease, Heat Transfer (Prior to SN 0030001397) 117 4031714 5 Capscrew 6mm x 50mm 118 4460905 5 Plug, Connector (Not Shown) 119 0100011 AR Compound, Locking 120 0760608 4 Capscrew 6mm x 16mm (Electric Machines Only) (Prior to SN
0030001397)
121 3575884 1 Plate, Mounting (Electric Machines Only) (Prior to SN
0030001397)
122 Ref Capscrew Options (Electric Machines Only): 122 4031708 4 Capscrew 6mm x 20mm (Prior to SN 0030001397) 122 3931416 4 Capscrew 1/4in-20NC x 1in (SN 0030001397 through
0030001804)
122 4191709 4 Capscrew 6mm x 25mm (SN 0030001804 through
0030012032)
123 4711400 4 Flatwasher 1/4in Thin Ref OUTRIGGER VALVE INSTALLATION 0273712 Ref Outrigger Valve Installation T350 ANSI, ANSI Export and
South Africa Specs
G
0274375 Ref Outrigger Valve Installation T350 Australian and CE Specs B 0273715 Ref Outrigger Valve Installation T500J ANSI and ANSI Export and I
South Africa Specs
0274321 Ref Outrigger Valve Installation T500J Australian and CE Specs D 223 0700827 2 Bolt 8mm x 100mm 224 3290805 2 Locknut 8mm 225 4641380 1 Outrigger Valve Assembly B 225A 2220885 4 Plug 225B 2110406 6 Fitting, Straight 225C 2110606 2 Fitting, Straight 226 4811900 4 Flatwasher 8mm 231 0641516 4 Bolt 5/16in-18NC x 2in 232 1320159 4 Clamp 233 3311505 4 Locknut 5/16in-18NC
ITEM PART NUMBER QTY
DESCRIPTION
234 4751500 4 Flatwasher 5/16in Regular Ref FRAME WELDMENT 2360718 Ref Frame Weldment T350 2360717 Ref Frame Weldment T500J All Specs Except CE Specs 2360716 Ref Frame Weldment T500J CE Specs without Drive Option (South
Africa Spec) (SN 0030006102 through 0030012032)
2360773 Ref Frame Weldment T500J CE Specs with Drive Option
