FIGURE 1 19. DRIVE DIRECTIONAL VALVE ASSEMBLY (USED WITH DRIVE OPTION ONLY

FIGURE 1-19. DRIVE DIRECTIONAL VALVE ASSEMBLY (USED WITH DRIVE OPTION ONLY)

ITEM PART NUMBER QTY

DESCRIPTION

4641420 Ref DRIVE DIRECTIONAL VALVE ASSEMBLY 1 70002815 4 Cartridge, Counterbalance Valve 1 Not Required 0 Seal Kit - Cartridge 2 7024898 2 Cartridge, Valve 2 7012518 2 Seal Kit - 7024898 Cartridge 3 7010542 3 Cartridge, Load Sensing Valve 3 7010543 3 Seal Kit - 7010542 Cartridge 4 7024899 2 Cartridge, Solenoid Cartridge 4 7017402 2 Seal Kit - Cartridge 4 7024885 4 Coil 5 See Note 2 Orifice (.40) (Not Shown) (Note: Not available for purchase)

REV

B

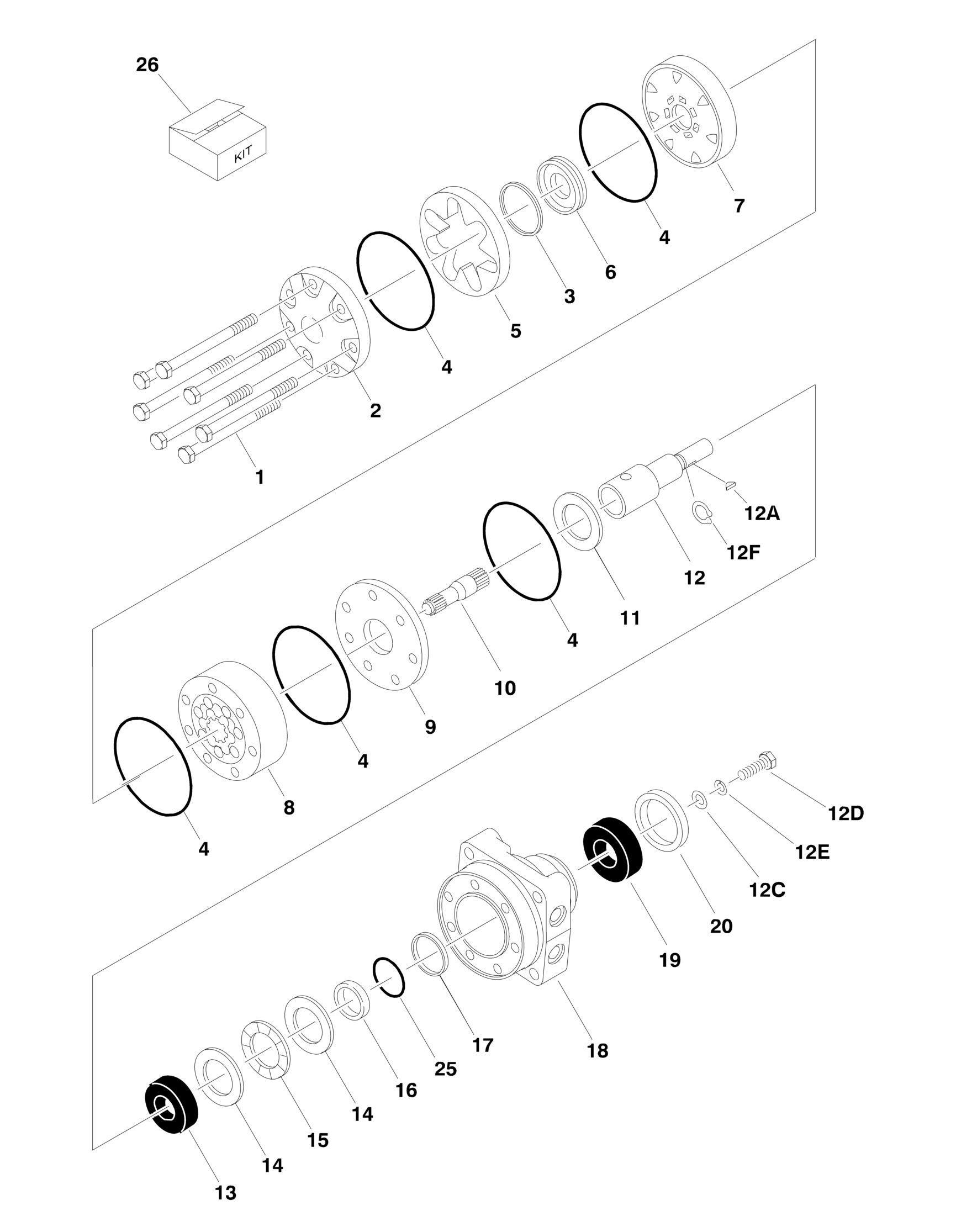

FIGURE 1-20. DRIVE MOTOR ASSEMBLY (USED WITH DRIVE OPTION ONLY)
