RT9150E OPERATOR MANUALOPERATING CONTROLS AND PROCEDURES

Monitoring Submenu

The Monitoring submenu shows the most important measured values.

Press the monitoring submenu button (Figure3-40) in the main menu to open the submenu.

Monitoring Submenu

Item

Description

1Hydraulic oil temperature, in °C (°F)

2Battery voltage, in Volts

3Coolant temperature, in °C (°F)

4Fuel supply, as a percentage

5Engine speed, in RPM

6Transmission oil temperature, in °C (°F)

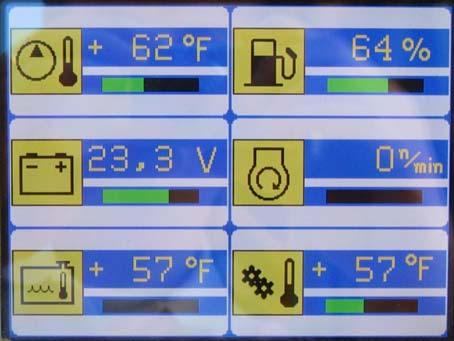

With the monitoring submenu open, the indicated values are displayed.

The color of the bar indicates the following:

•Green: Value OK

•Yellow: Limit value almost reached

•Red: Maximum limit value exceeded or minimum value not reached, refer to Warning Messages, page 3-62.

Published 2-18-2016, Control # 614-00 Grove

Power Unit Speed Submenu

You can enter a percent of the maximum speed that should be enabled for each power unit. The values entered are the maximum speeds allowed, the power units can be operated from 0 up to the set speeds.

NOTE: Depending on the crane configuration and conditions the maximum speeds may be automatically limited by the ECOS system. The automatically limited values are not displayed.

Press the power unit speed submenu button (Figure3-42) in the main menu to open this submenu.

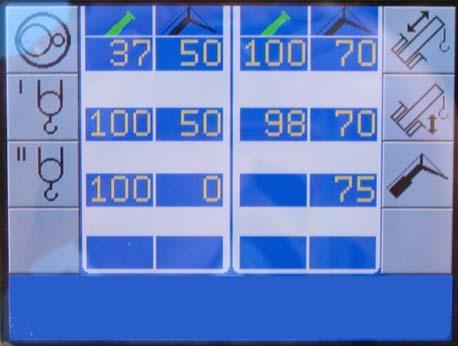

The symbols for the main boom (A) or boom with extension (B) (Figure3-43) for the cu rrent operati on will be green, indicating which configuration is active. To use the boom extension, symbol (6) must be active, press the F7 button. The values below the green symbols indicate the maximum speeds that can be used for that function.

The values for the swing gear, telescope cylinder and lift cylinder only apply if they are lower than the automatically limited values.

Changing values

Example: Referring to (Figure3-44):

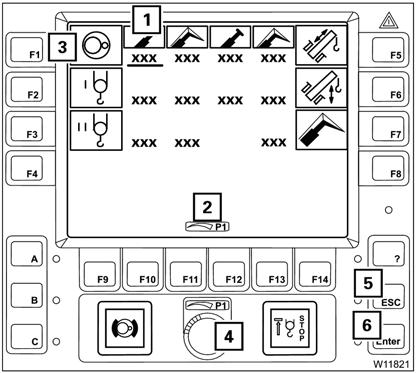

1. Press the F1 button (3) for the swing gear until the red bar is under the desired value (1), input mode is now on, indicated by the input icon (2).

Item Description

AMain boom

BMain boom with extension

2. Change the value using the knob (4).

To cancel the input, press the Esc button (5) once.

If necessary, change the values for other power units in the same way.

Confirm the changed values by pressing the Enter button (6) once. All changed values are accepted.
