Page 87

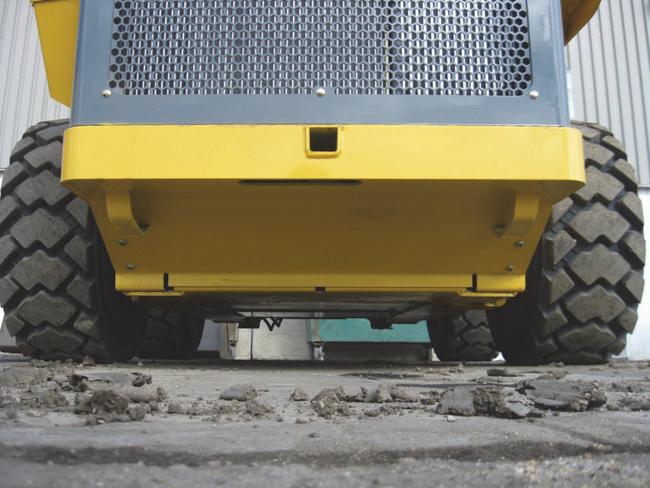

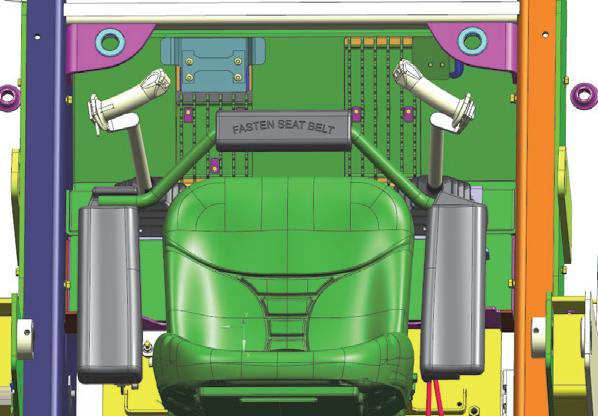

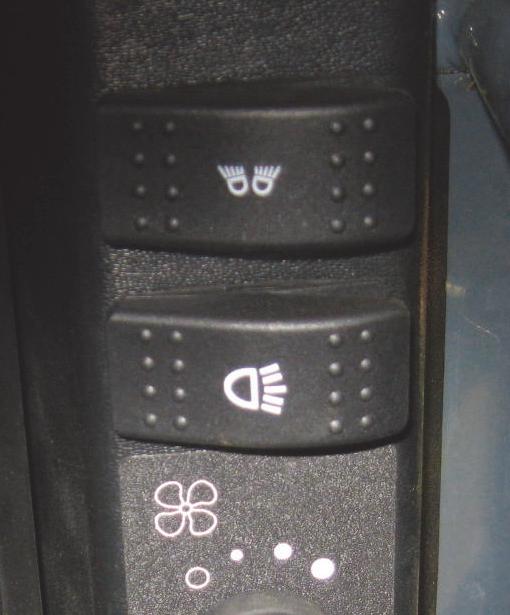

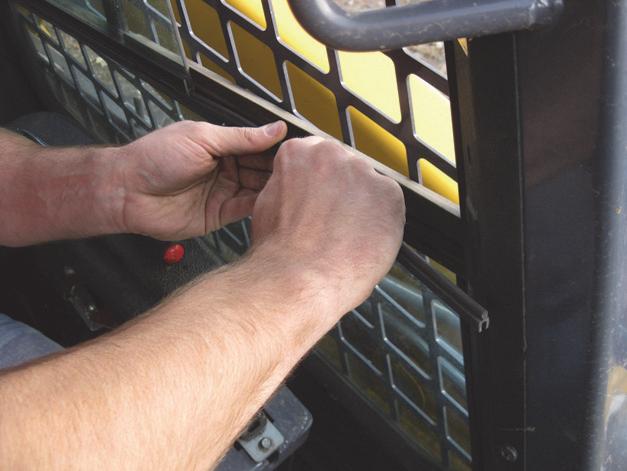

Hydraulic System Refer to the Maintenance Interval Chart (page 99) for service intervals. Refer to the Replacement Parts chart (page 58) for filter part numbers.

Checking Hydraulic Oil Level Inside the engine compartment, the loader has a hydraulic tank dipstick left of the air cleaner assembly. To check the level, run the engine at IDLE and remove the dipstick. Clean the dipstick and replace in its holder. Remove the dipstick again and check the fluid level, (Figure 47). Add hydraulic oil as required in the hydraulic oil fill tube. Refer to the Lubrication chart (page 63). Replace the fill cap.

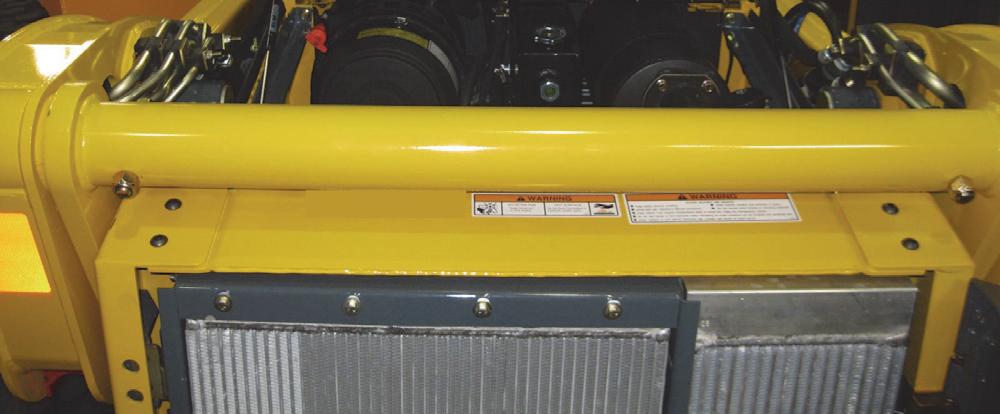

Figure 47 Hydraulic Oil Dipstick and Fill Tube

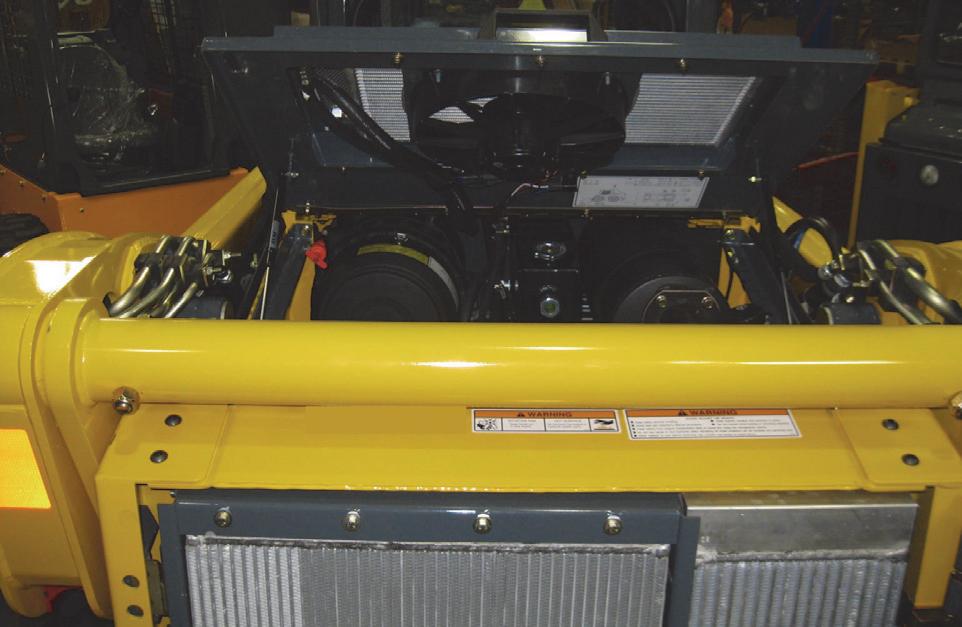

Changing Hydraulic Oil Filter The hydraulic oil filter element is located underneath a flat cover plate on top of the reservoir tank. To change the hydraulic filter element: 1. Park the loader on a level surface and raise the lift arm, refer to the Lift Arm Support Device Engagement Procedure (page 22). Shut off the engine and remove the key. 2. Tilt back the ROPS/FOPS, refer to the ROPS/FOPS Procedure (page 61). 3. Remove the left side access cover. 4. Clean any dirt/debris off the surface of Figure 48 Hydraulic Oil Filter Cap and Spring the filter housing. 5. Remove four bolts on the cover plate and remove the plate and spring. 6. Pull up on the filter element and remove it from the reservoir (Figure 49).

50950004/CP0714

83
