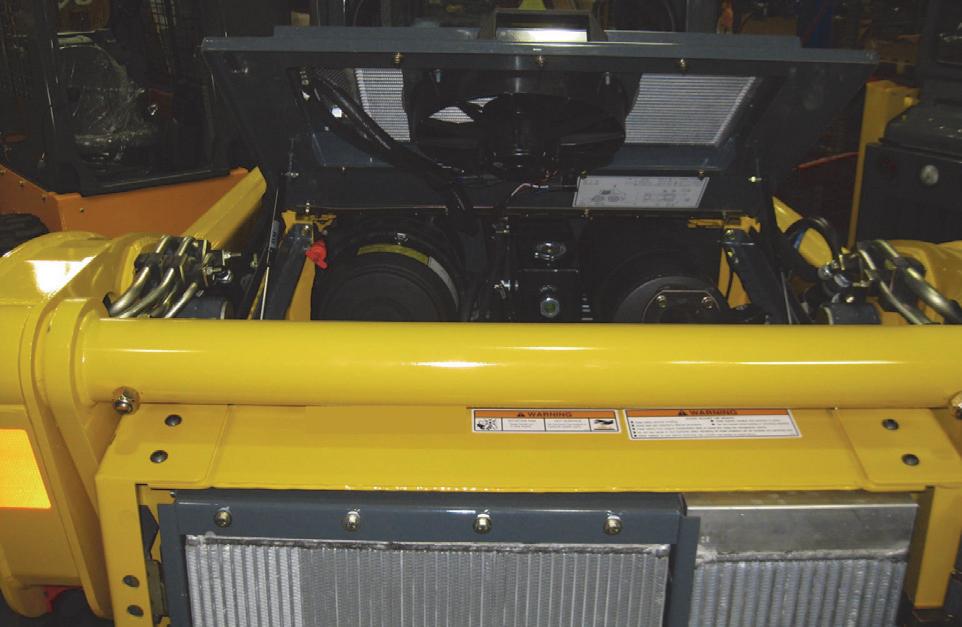

ANSI-Style Safety Decals in the Engine Compartment

Hose removal or component failure can cause lift arm to drop. Always use lift arm support device when leaving lift arm raised for service.

To install lift arm support, raise lift arm and have helper:

1. Remove retaining pin and support from storage location;

2. Install support on left lift cylinder with tab facing forward;

3. Secure support with retaining pin. Then, slowly lower lift arm until braced by support.

137756

IMPORTANT

Coolant Fill Instructions

Coolant must be topped off after radiator has been drained and refilled. Operate unit until thermostat has opened, then shut off. Allow radiator to cool before opening cap. Top off with coolant.
