M/S Endplay Shimming Procedure

Special Instructions

None

Special Tools

• Dial Indicator

Procedure -

1. The output bearing must be fully seated on the auxiliary mainshaft before starting the shimming procedure. To insure this, install the speedometer rotor, output yoke, and nut. Torque the output nut to 450-500 lb-ft (610–677 Nm).

2. The input shaft bearing race must be fully seated in the front bearing cover to insure proper clearance. The use of an arbor press is recommended to insure the race is fully seated.

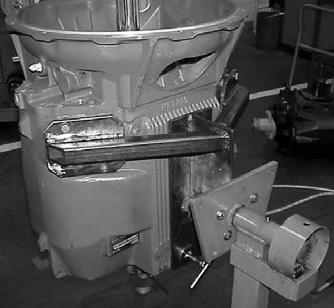

3. Transmission must be supported by the main case in a suitable stand that allows for the clutch housing to face upward and allow the output shaft to rotate freely.

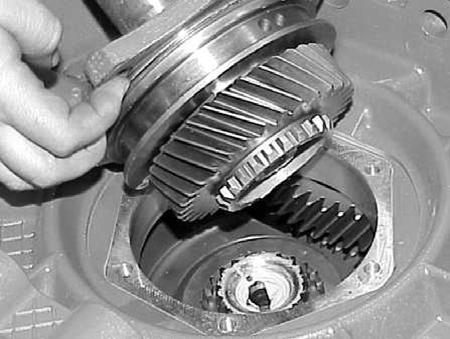

4. The transmission should be fully assembled minus the input shaft front bearing cover assembly and shift tower.

Note: All bearings should be pre-lubed with transmission lube during assembly.

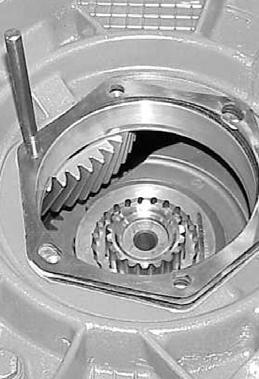

5. Start with (3) .020" shims (p/n 4304193) and use the threaded alignment pins if available.

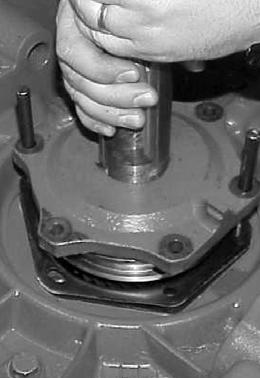

6. Install the front bearing cover assembly minus O-ring (5568540) to prevent damage to the O-ring.

Note: Bearing cover capscrew holes will only line up one way.

7. Install the (6) bearing cover capscrews and tighten to 47-52 lb-ft (63-70 Nm).

8. Rotate the input shaft to insure no binding has occurred during assembly, and to insure the bearings are seated.

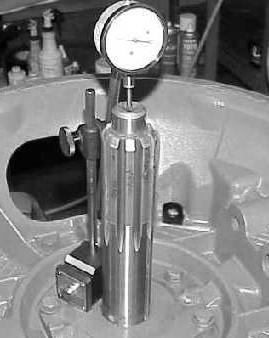

9. Mount a dial indicator to the front bearing cover so that the endplay can be measured at the end of the input shaft.

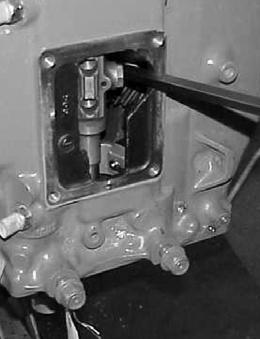

10.Insert an 18" pry bar through the shift tower opening to the right of the shift bar.

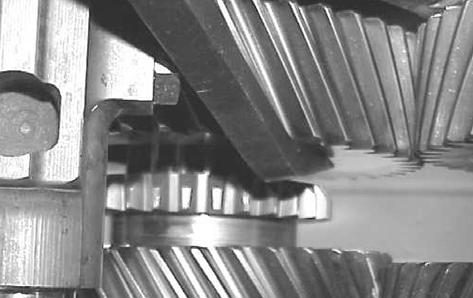

11.Apply leverage between the splitter clutch and auxiliary drive gear to separate the mainshafts while watching the dial indicator.

12.Take a minimum of three endplay readings on the input shaft to get a good sample.

13.Subtract the average of the three readings from .064". This will be the final shim pack thickness required ± .002". Example: if the average reading is .025", (.064 - .025 = .039). Your exact shim pack thickness would have to fall between .037" and .041". In this case, you could use (2) .020" shims to achieve the required .002"-.006" mainshaft endplay clearance.

Note: If no endplay reading can be obtained with (3) .020 shims one of the mainshaft bearing races must not be seated - inspect the input and output bearing races and re-test.

Mainshaft endplay clearance must be .002"-.006".

14.Remove the front bearing cover assembly and install the required number of shims on the bearing cover using the assortment included in the kit.

15.Apply assembly lubricant to the O-ring and install the O-ring onto the bearing cover.

16.Carefully install the front bearing cover assembly into the clutch housing to prevent damaging the O-ring.

17.Install the (6) capscrews and tighten to 47-52 lb-ft (63-70

Nm).

18.Recheck the endplay by repeating steps 8 through 11.

Mainshaft endplay clearance must be .002"-.006".
