How to Install Output Yoke

Special Instructions

None

Special Tools

• Typical Service Tools

Procedure -

1. Install the O-ring and speedometer rotor on the output shaft ,until the rotor is fully seated against the output bearing.

2. Install the output yoke over the output shaft. The yoke should slide on and stop before contacting the speedometer rotor. As the output shaft nut is installed, the output yoke will contact the speedometer rotor.

3. Inspect the output shaft nut for damage and wear. If the nylon locking material is damaged or excessively worn, use a new output nut.

Note: The nylon locking material must be in good condition so that the nut doesn’t loosen when the vehicle is in use.

4. Lightly oil the output shaft threads and the output nut threads and install the nut. Torque the nut to 450-500 lb-ft (610-677Nm).

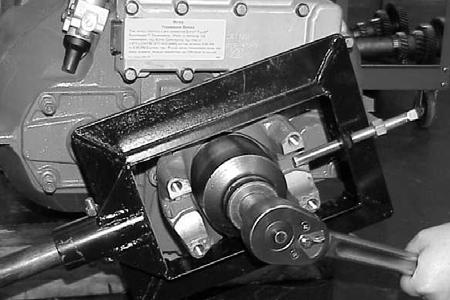

TIP: To prevent the output shaft and yoke from rotating while installing the nut, use a fixture to hold the yoke.

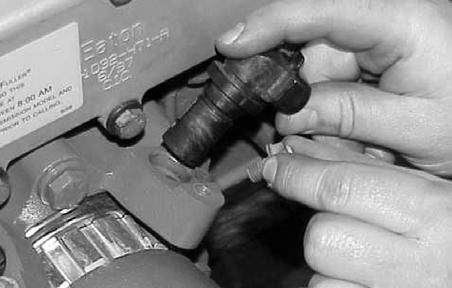

5. Install the speedometer sensor and retaining capscrew.

Tighten to 20-23 lb·ft (27-31 Nm).
