How to Install Cooler and Fittings How to Assemble and Install Auxiliary

How to Install Cooler and Fittings

Special Instructions

None

Special Tools

• Typical Service Tools

Procedure -

1. Generously coat the internal and external O-rings on the cooler fittings with Eaton Fuller silicone lubricant #71206 or equivalent to prevent the O-rings from being damaged during fitting and cooler installation.

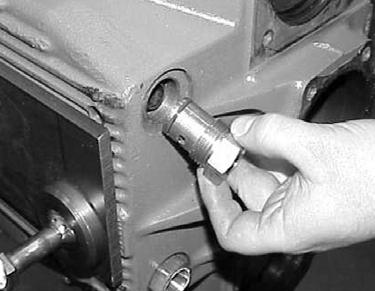

2. Install both fittings into the rear of the transmission case, tighten to 40-50 lb-ft (54-67 Nm).

3. If the original cooler is being reused, completely flush the internal cooler tubes and blow out all residual solvent from the external fins using a low-pressure blow gun.

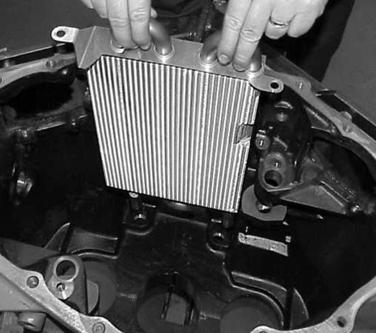

4. Install the cooler into the case and carefully work the cooler tubes into the inlet and outlet fittings until fully seated against the retaining capscrew mounting surface.

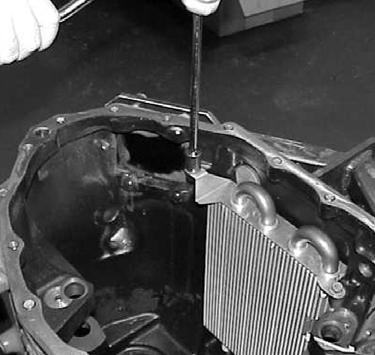

5. Install the two (2) cooler retaining capscrews and tighten to 20-23 lb-ft (27-31 Nm).
